Model # NBF125J20A1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP NBF125J20A1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Cap Rnrd 1094956
#8

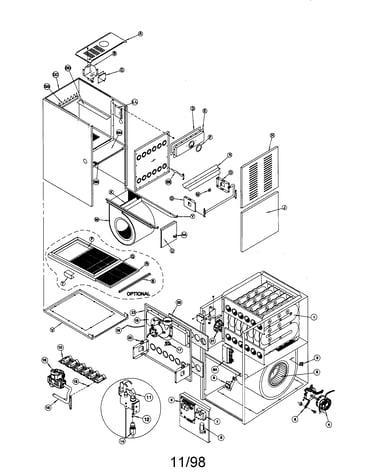

Replacement parts diagram

Cap rnrd

Part #1094956

Replaced by #12908

?
Manufacturer substitution
This part replaces 1094956. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.26
16% OFF Phone Price : $6.26
In Stock
Limit Switch 1000735
#3

Replacement parts diagram

Limit switch

Part #1000735

Replaced by #1013105

?
Manufacturer substitution
This part replaces 1000735. Substitute parts can look different from the original.
This item is not returnable
In Stock
Front Panel 1008073
#23

Replacement parts diagram

Front panel

Part #1008073

In Stock
Panel Cutoff 721020008
#X

Replacement parts diagram

Panel cutoff

Part #721020008

In Stock
Rail Galv Bl 57059
#BB

Replacement parts diagram

Rail galv bl

Part #57059

In Stock
Furnace Pilot Burner Bracket 1010901
#M

Replacement parts diagram

Furnace pilot burner bracket

Part #1010901

In Stock
Tubing 64930
#14

Replacement parts diagram

Tubing

Part #64930

In Stock
Baffle 707010031
#DD

Replacement parts diagram

Baffle

Part #707010031

In Stock
Valve 1162036
#16

Replacement parts diagram

Valve

Part #1162036

$310.26
$10.00 OFF Phone Price : $320.26
In Stock
Conv Kit 1160991

#NI

All parts diagram

Conv kit

Part #1160991

In Stock
