Frigidaire
Room Air Conditioner

Model # FAC066P7B1 Official Frigidaire room air conditioner - 5995216529

Here are the diagrams and repair parts for Official Frigidaire FAC066P7B1 room air conditioner - 5995216529, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |

Louver 08017364
#8

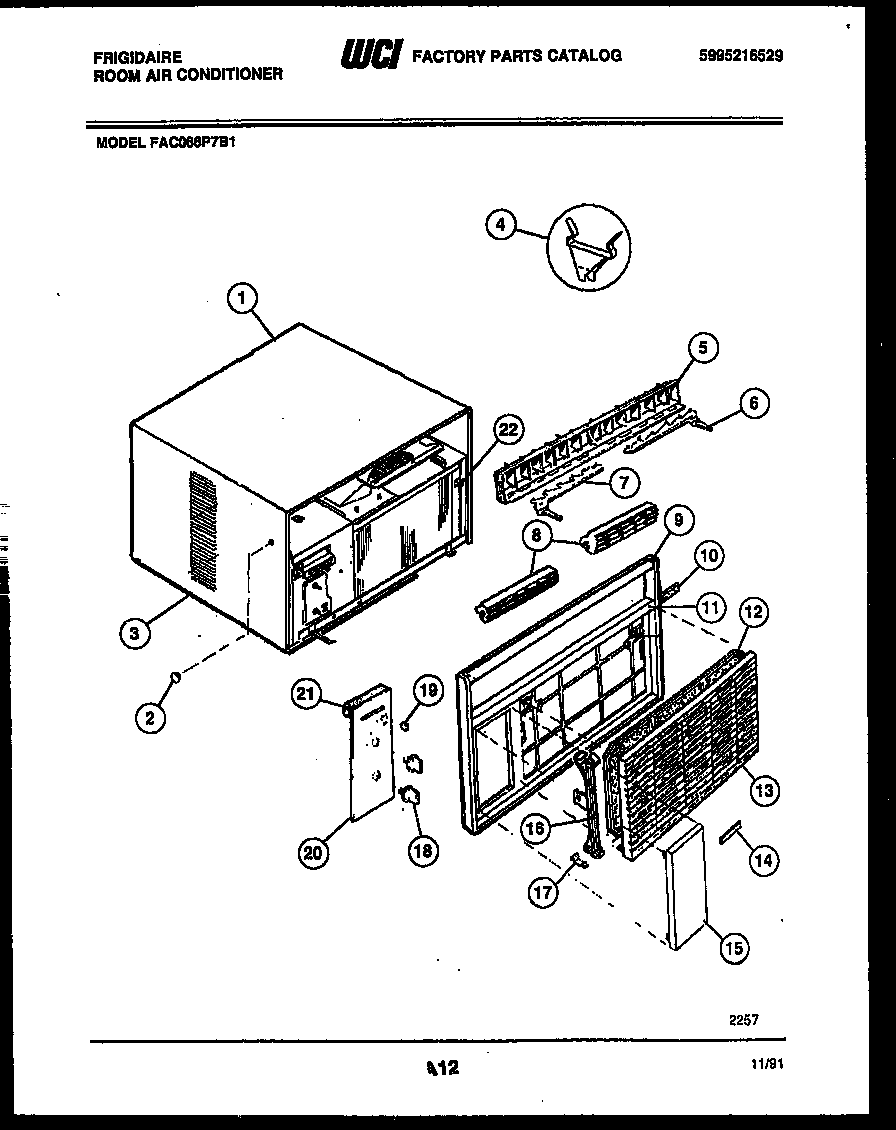

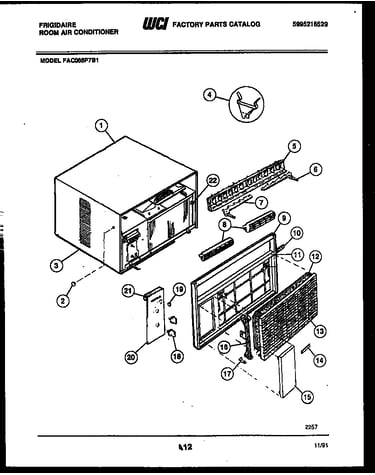

Cabinet parts diagram

Louver

Part #08017364

This item is not returnable
In Stock
Nut 08016090
#8

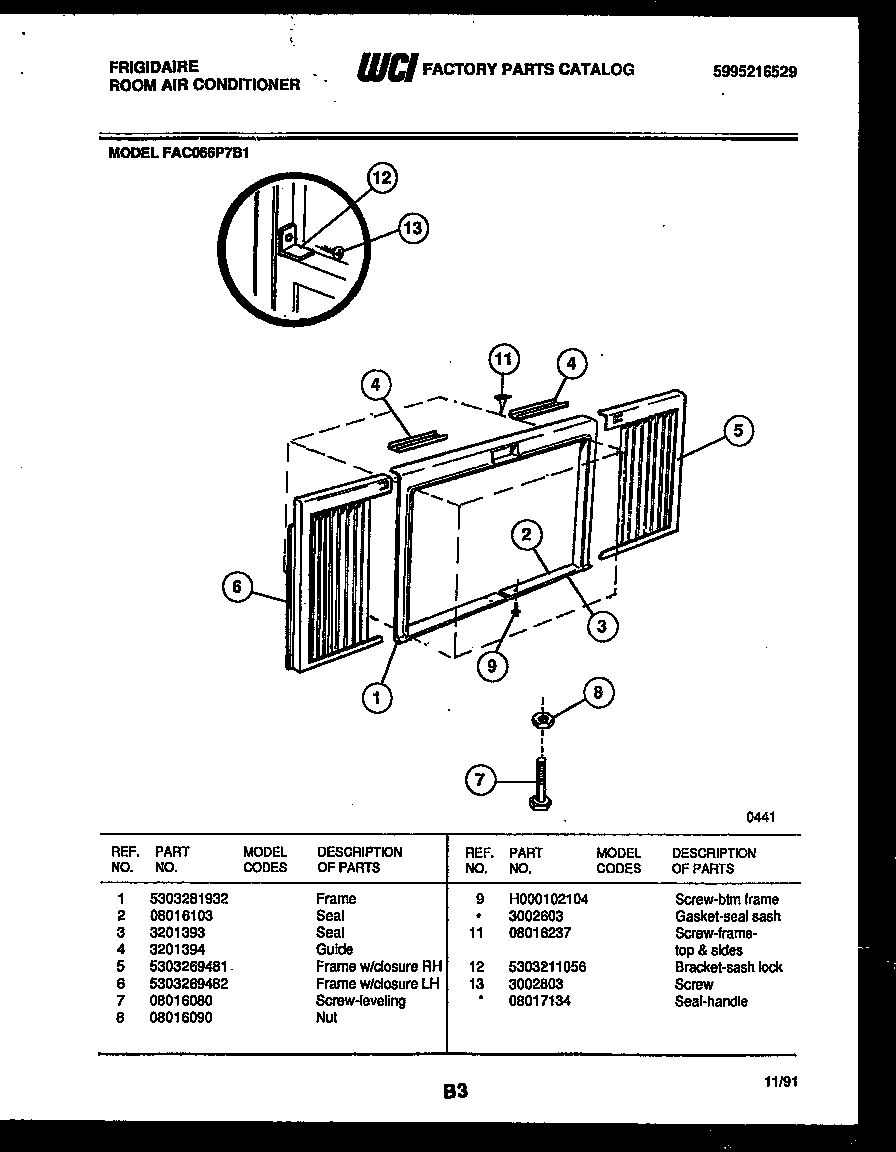

Window mounting parts diagram

Nut

Part #08016090

This item is not returnable
In Stock
Room Air Conditioner Filter Dryer 5300265301
#16

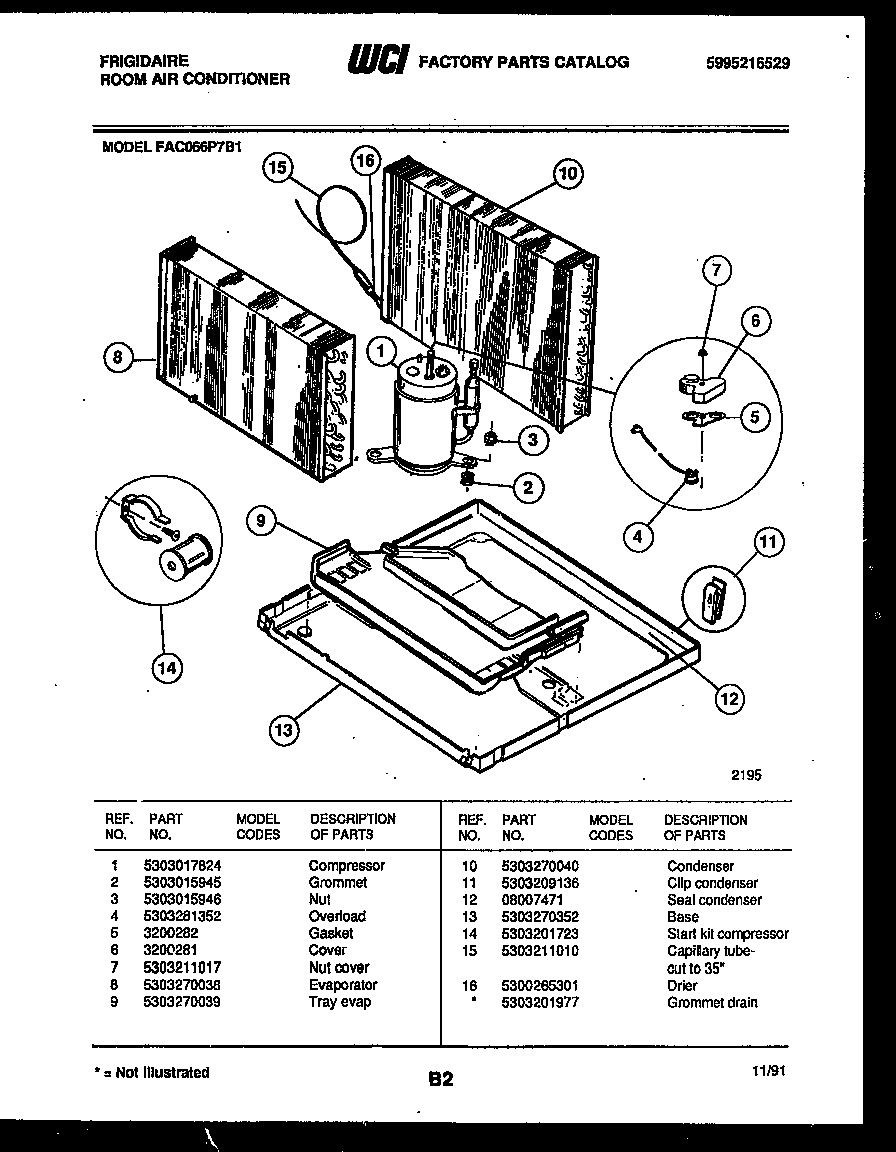

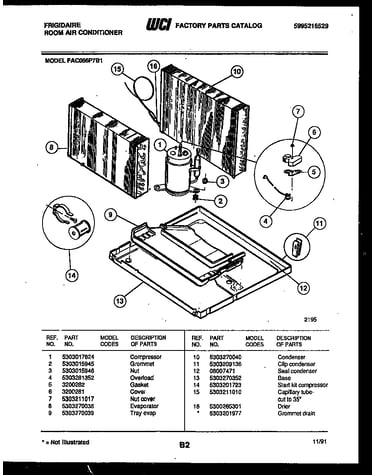

System parts diagram

Room air conditioner filter dryer

Part #5300265301

In Stock
Screw 3202975
#13

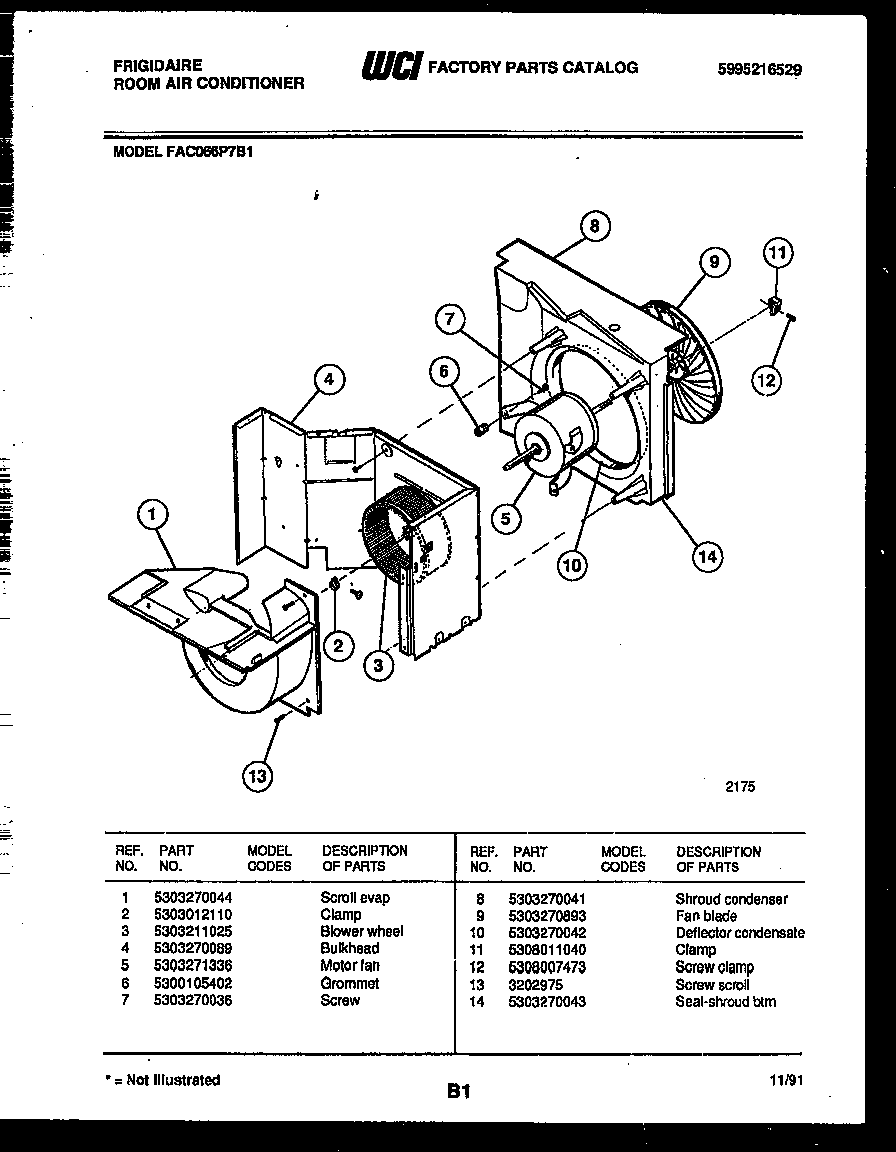

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 5308007473
#12

Air handling parts diagram

Screw

Part #5308007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 5308007473. Substitute parts can look different from the original.
In Stock
Bracket Screw 3015312
Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
In Stock
Gasket 3002603
#9A

Window mounting parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
In Stock
Capacitor 5303272857
#12

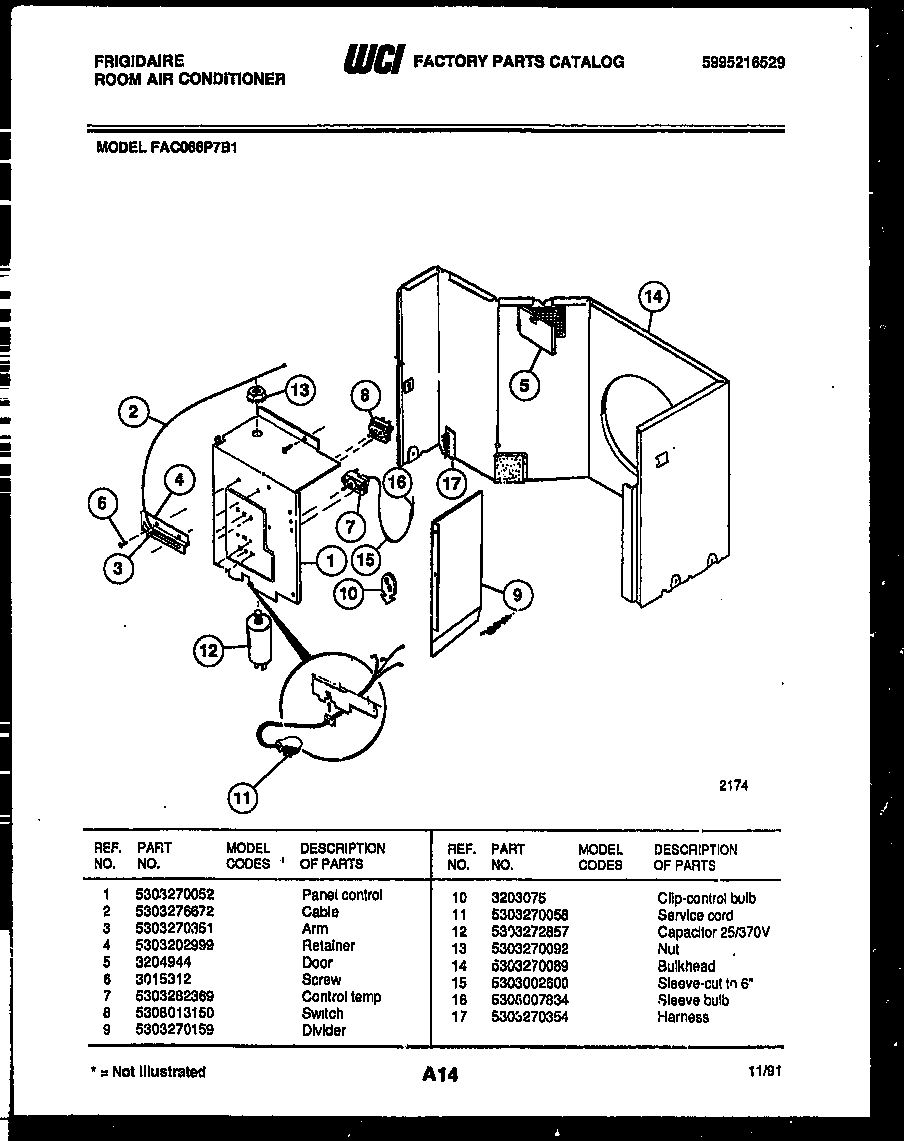

Electrical parts diagram

Capacitor

Part #5303272857

Replaced by #5303289579

?
Manufacturer substitution
This part replaces 5303272857. Substitute parts can look different from the original.
In Stock
Terminal Cover Nut 5303211017
#7

System parts diagram

Terminal cover nut

Part #5303211017

The manufacturer no longer makes this part, and there's no substitute part

Door Vent 3204944
#5

Electrical parts diagram

Door vent

Part #3204944

The manufacturer no longer makes this part, and there's no substitute part
