Countertop Microwave

Model # 5649937711 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5649937711 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Screw 10049
#22

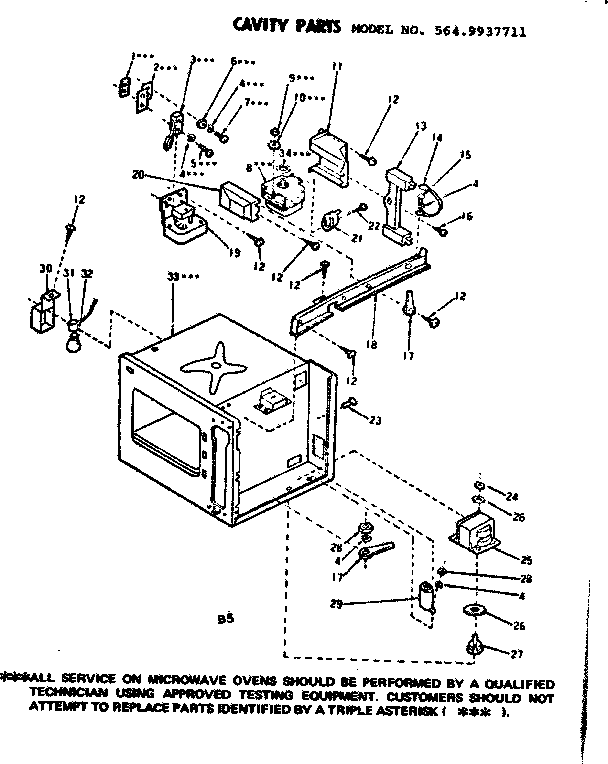

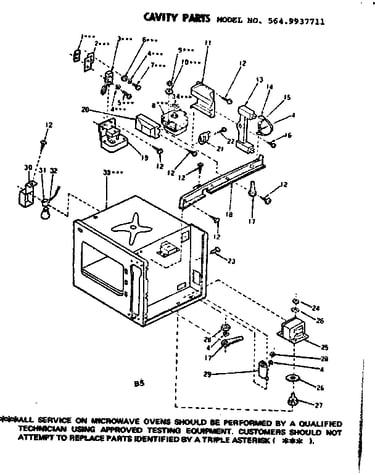

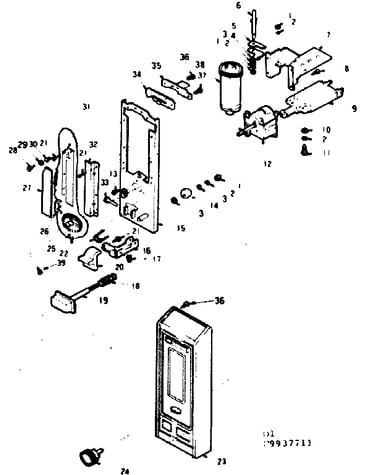

Cavity parts diagram

Screw

Part #10049

The manufacturer no longer makes this part, and there's no substitute part

Screw 10213
#22

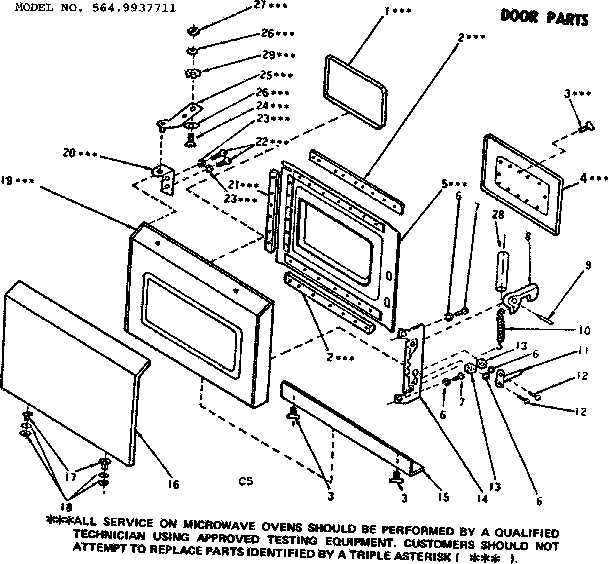

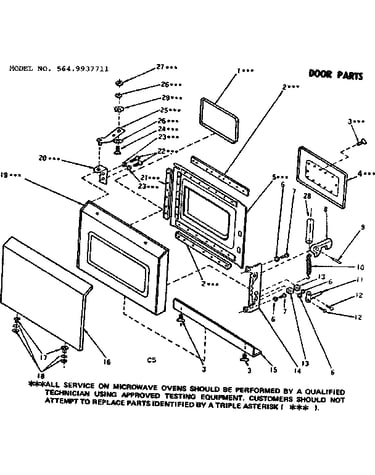

Door parts diagram

Screw

Part #10213

The manufacturer no longer makes this part, and there's no substitute part

Screw 10026
Screw

Part #10026

The manufacturer no longer makes this part, and there's no substitute part

Microwave Rubber 10197
#2

Door parts diagram

Microwave rubber

Part #10197

The manufacturer no longer makes this part, and there's no substitute part

Lamp Socket 10260
#31

Cavity parts diagram

Lamp socket

Part #10260

The manufacturer no longer makes this part, and there's no substitute part

Screw 10153
#3

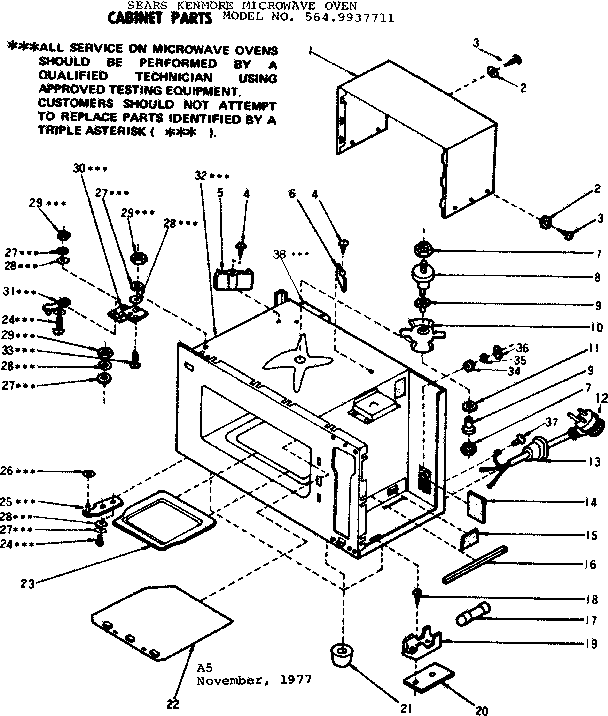

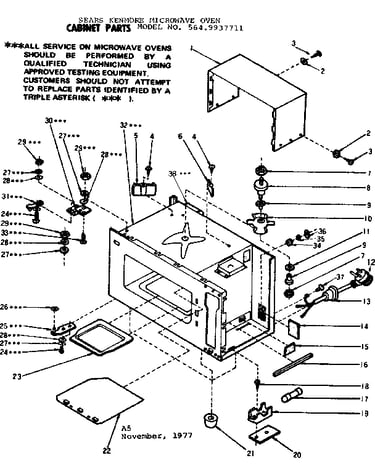

Cabinet parts diagram

Screw

Part #10153

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 10191
#11

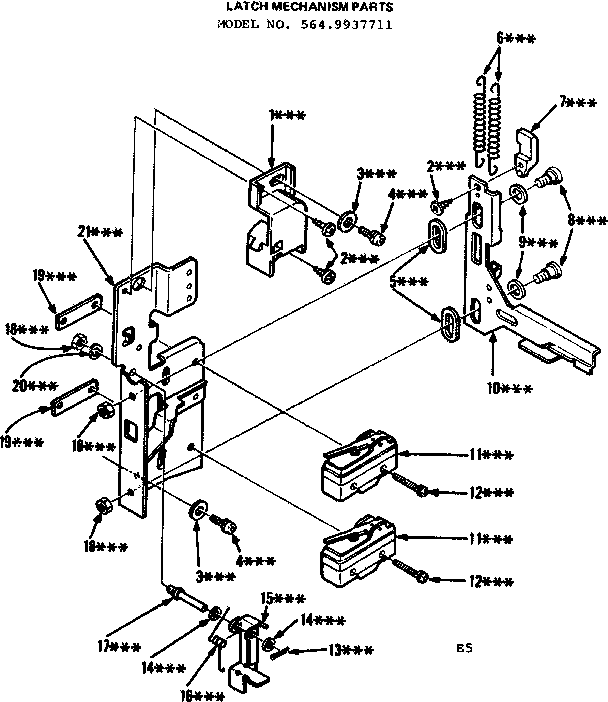

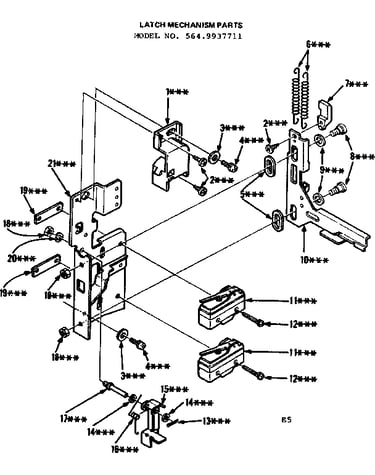

Latch mechanism parts diagram

Micro-switch

Part #10191

The manufacturer no longer makes this part, and there's no substitute part

Rivet 10428
#38A

Cabinet parts diagram

Rivet

Part #10428

The manufacturer no longer makes this part, and there's no substitute part

Washer 10262
Washer

Part #10262

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 10424
#12

Cabinet parts diagram

Power cord

Part #10424

The manufacturer no longer makes this part, and there's no substitute part
