GE NP16G60V12603 hvac-packaged Parts
Here are the diagrams and repair parts for GE NP16G60V12603 hvac-packaged, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for NP16G60V12603 HVAC-Packaged

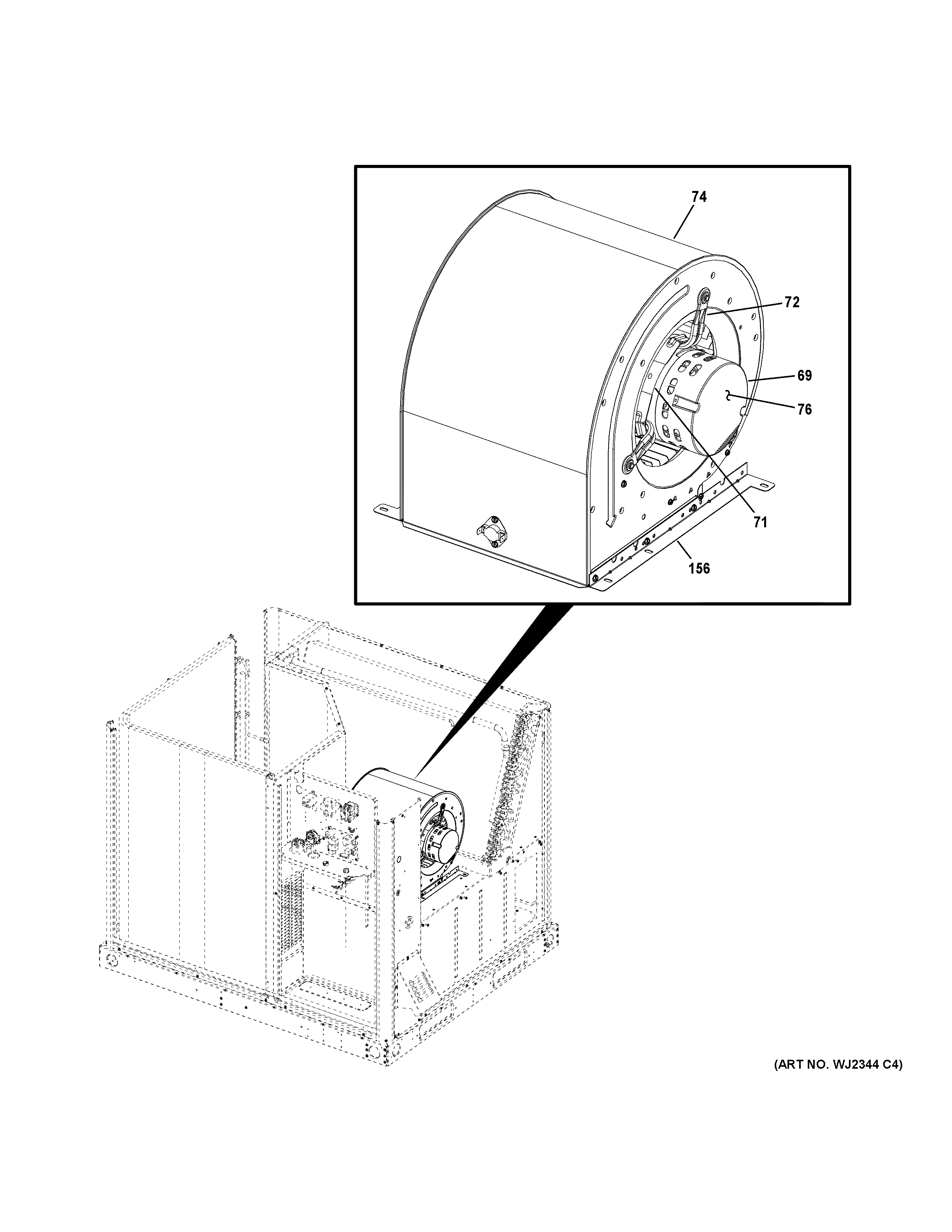

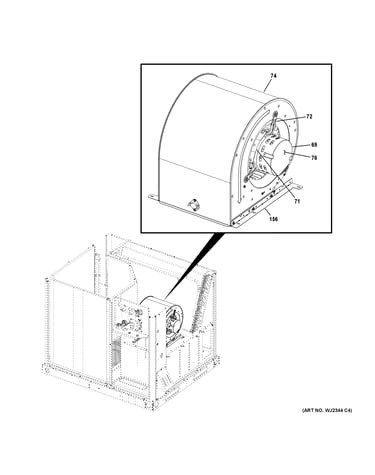

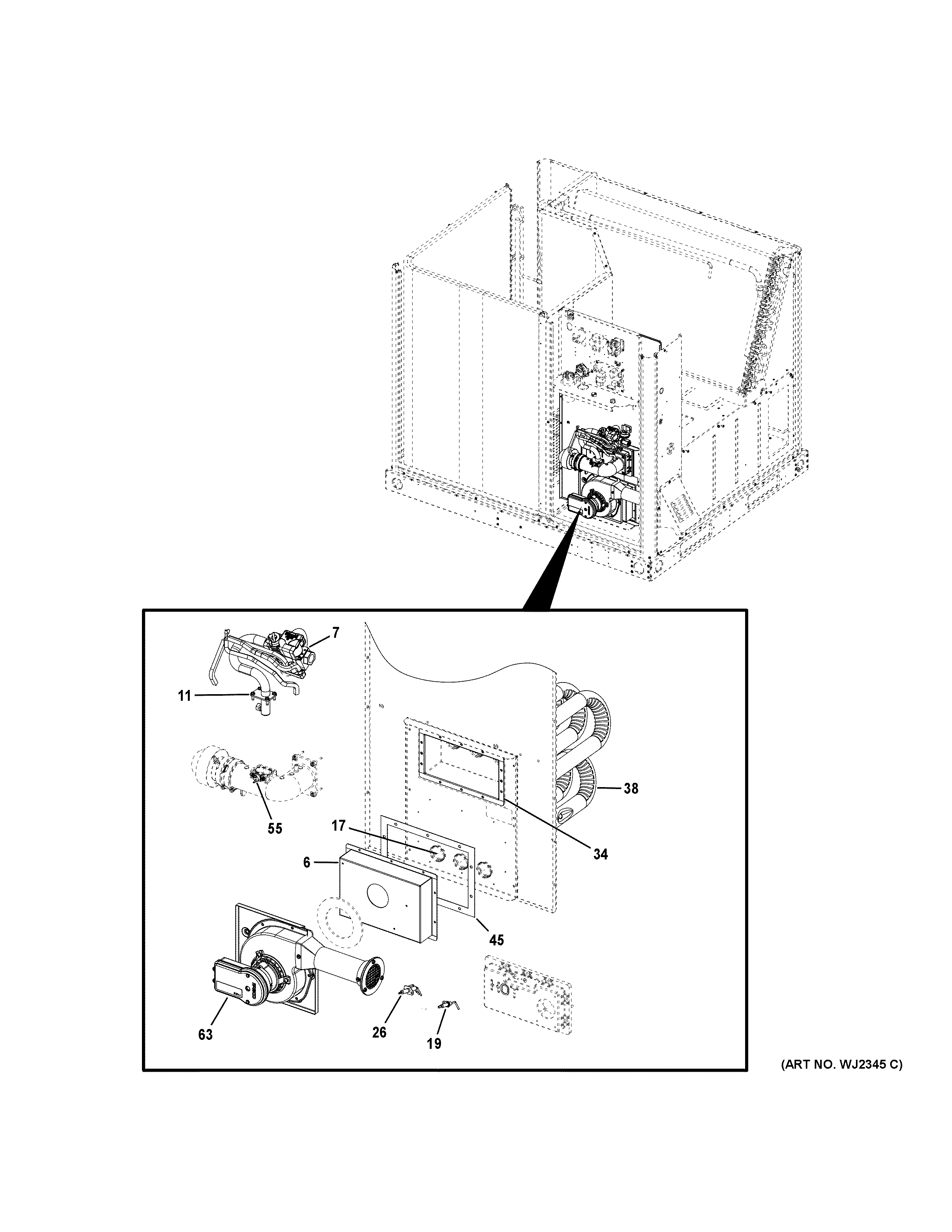

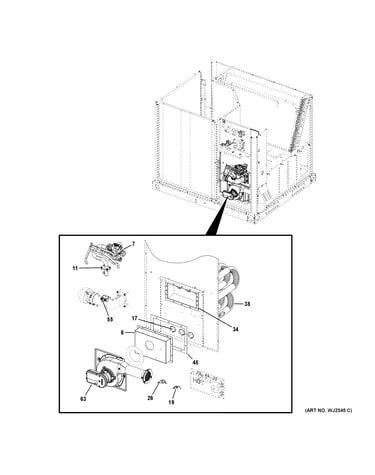

Gas valve & burner assembly diagram
Blwr Comustion 2-stage-(cto)
Part #14Y59
The manufacturer no longer makes this part, and there's no substitute part

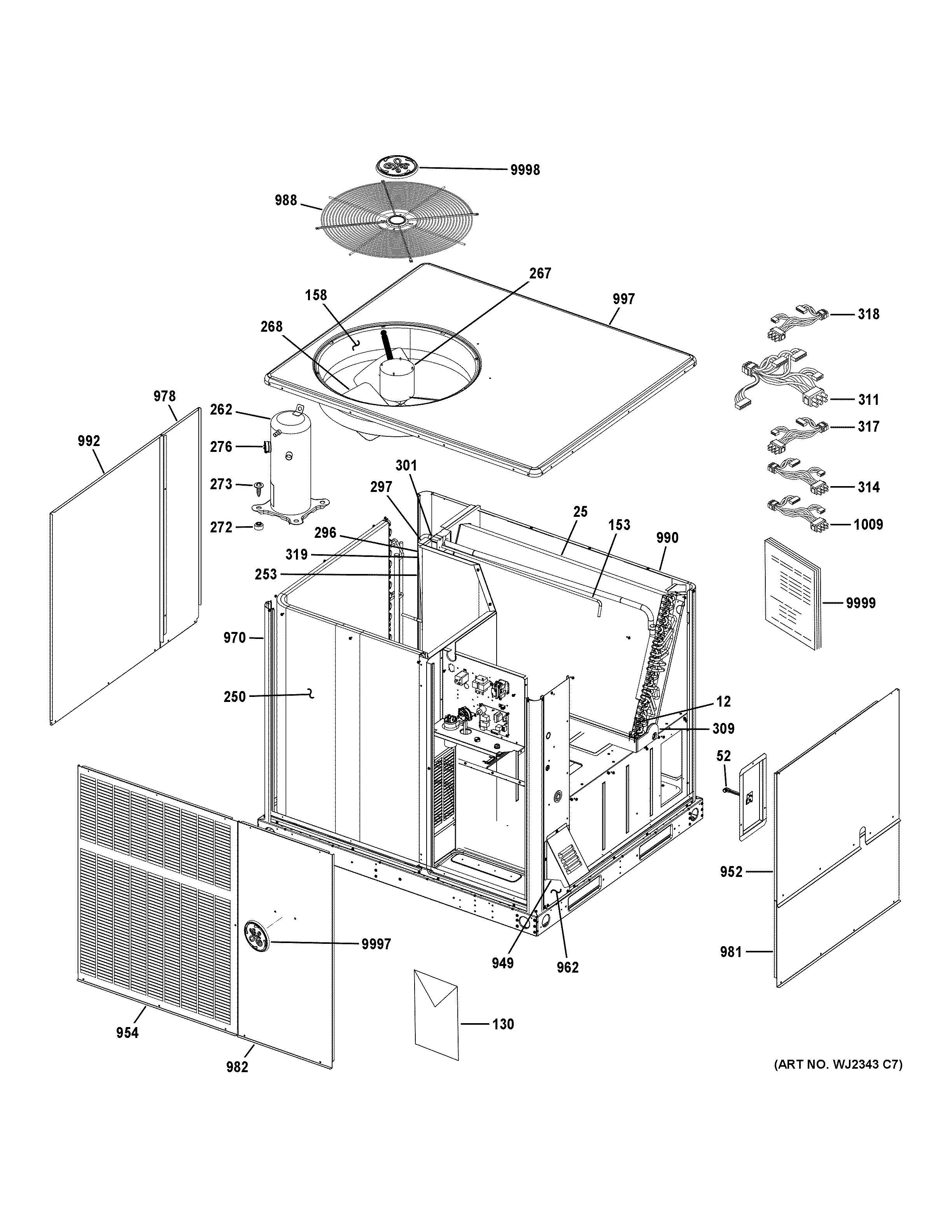

Body parts diagram
Harness-wiring Harness-(cto)
Part #22C75
The manufacturer no longer makes this part, and there's no substitute part
Body parts diagram
102857-27 Limit Control (195f)
Part #22B74
The manufacturer no longer makes this part, and there's no substitute part
Body parts diagram
Pnl -utility G/e Lg-(cto)
Part #R622288-02E
The manufacturer no longer makes this part, and there's no substitute part
Gas valve & burner assembly diagram
103181-04 Valve-gas 2 Stage
Part #10A33
The manufacturer no longer makes this part, and there's no substitute part
Gas valve & burner assembly diagram
Ignitor
Part #49M85
The manufacturer no longer makes this part, and there's no substitute part
Gas valve & burner assembly diagram
Assy-manifold Gas 7 Burn-(cto)
Part #12L07
The manufacturer no longer makes this part, and there's no substitute part
Body parts diagram
Drier R410a - One Way - 55g-(cto)
Part #12K40
The manufacturer no longer makes this part, and there's no substitute part
Gas valve & burner assembly diagram
Box Collector (7 Burner)-(cto)
Part #12P11
The manufacturer no longer makes this part, and there's no substitute part

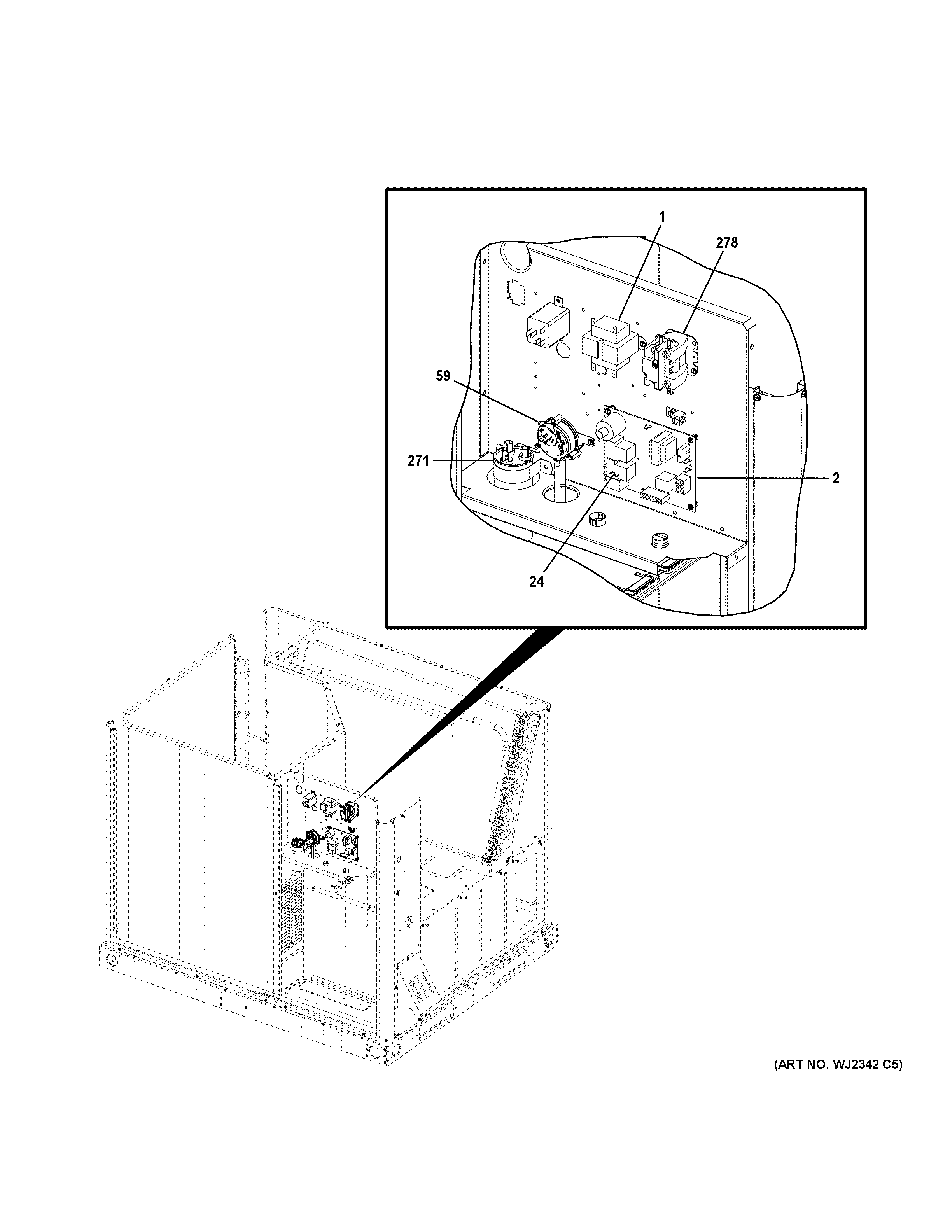

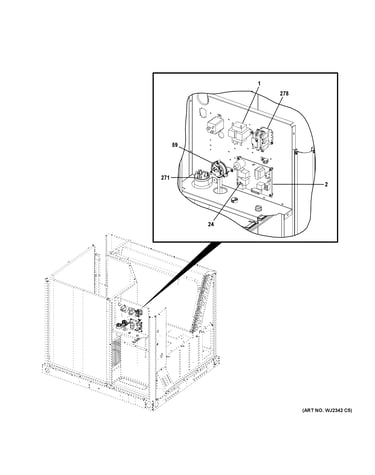

Control parts diagram
R39370b001 Transformer
Part #47K20
The manufacturer no longer makes this part, and there's no substitute part
