Model #84226006 Craftsman 36" snow blower

Here are the diagrams and repair parts for Craftsman 84226006 36" snow blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 122 parts

    Washer

    #15

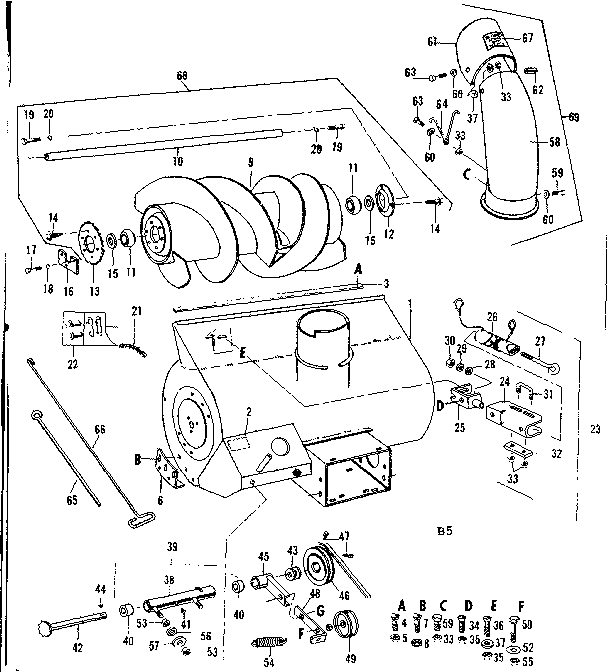

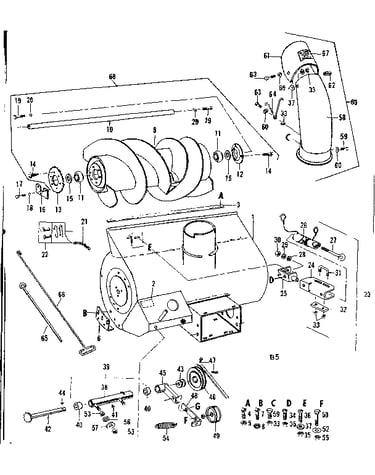

    Auger assembly Diagram

    Washer

    Part #4143

    The manufacturer no longer makes this part, and there's no substitute part

    Spring

    #25

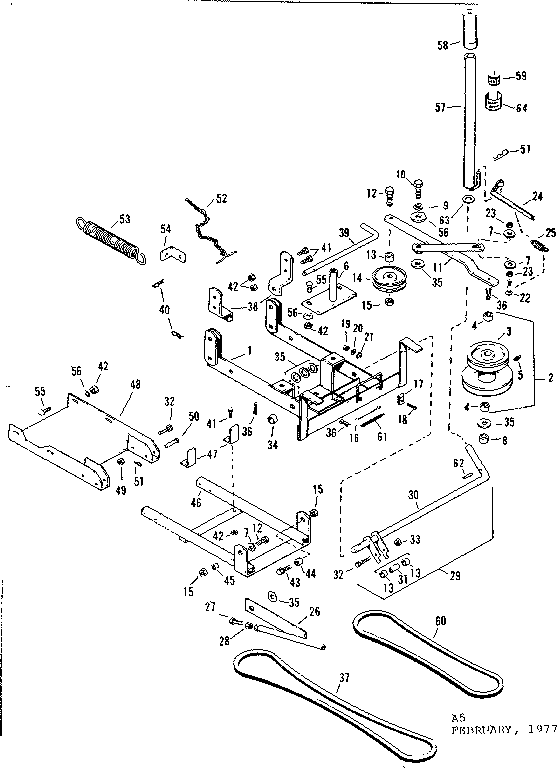

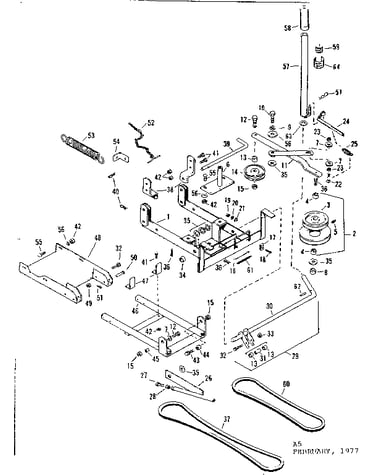

    Main frame Diagram

    Spring

    Part #3059

    The manufacturer no longer makes this part, and there's no substitute part

    Spring

    #61

    Main frame Diagram

    Spring

    Part #3293

    The manufacturer no longer makes this part, and there's no substitute part

    Nut

    #55

    Auger assembly Diagram

    Nut

    Part #GM120238

    The manufacturer no longer makes this part, and there's no substitute part

    Nut

    #33

    Main frame Diagram

    Nut

    Part #GM271184

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #7

    Main frame Diagram

    Washer

    Part #GM120389

    The manufacturer no longer makes this part, and there's no substitute part

    Pin

    #36

    Main frame Diagram

    Pin

    Part #GM120123

    The manufacturer no longer makes this part, and there's no substitute part

    Bolt

    #34

    Auger assembly Diagram

    Bolt

    Part #GM126227

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #20

    Main frame Diagram

    Washer

    Part #GM120217

    The manufacturer no longer makes this part, and there's no substitute part

    Plate Washer

    #57

    Auger assembly Diagram

    Plate washer

    Part #6979

    The manufacturer no longer makes this part, and there's no substitute part
