Frigidaire
Room Air Conditioner

Model # CRA102BT13 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire CRA102BT13 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

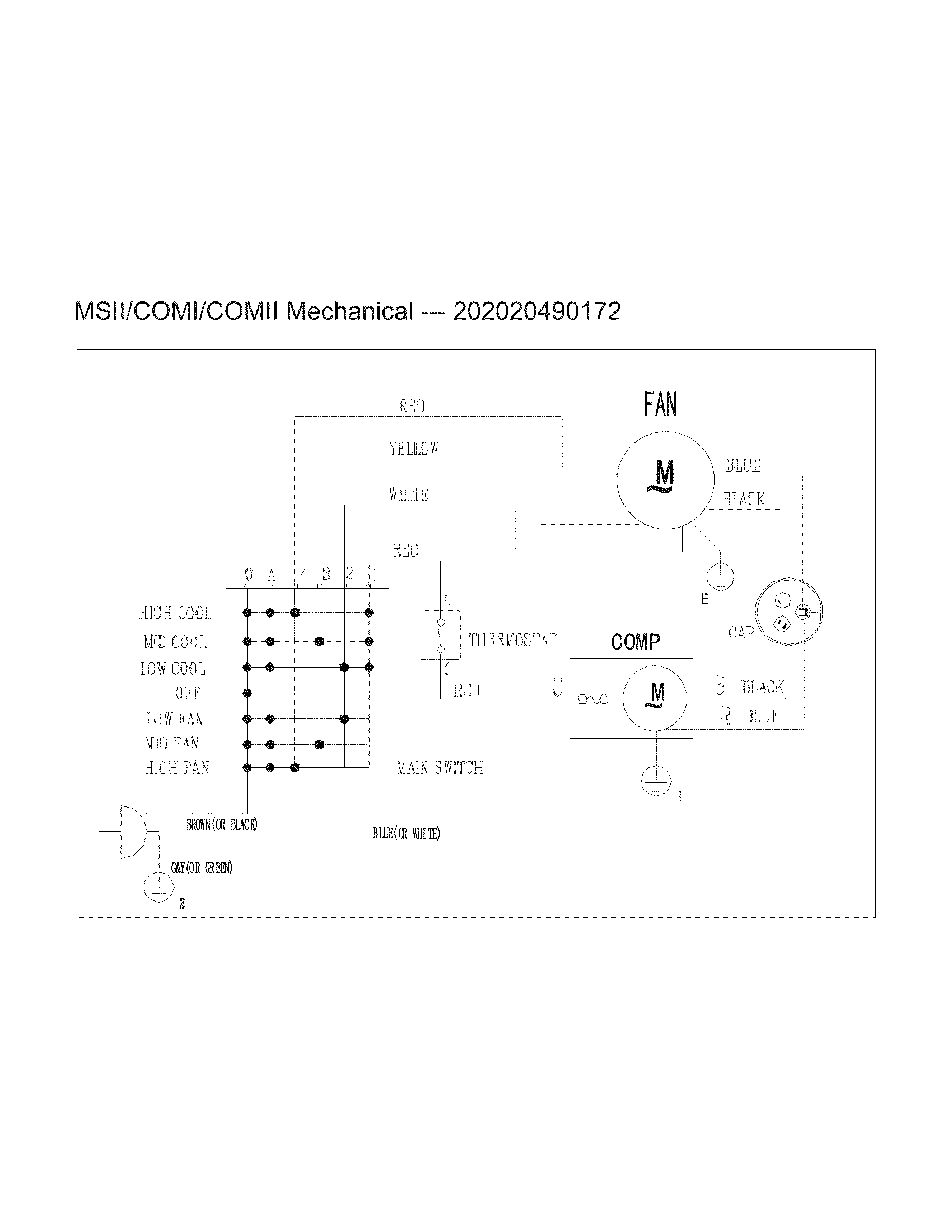

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Capacitor 5304471300
#15

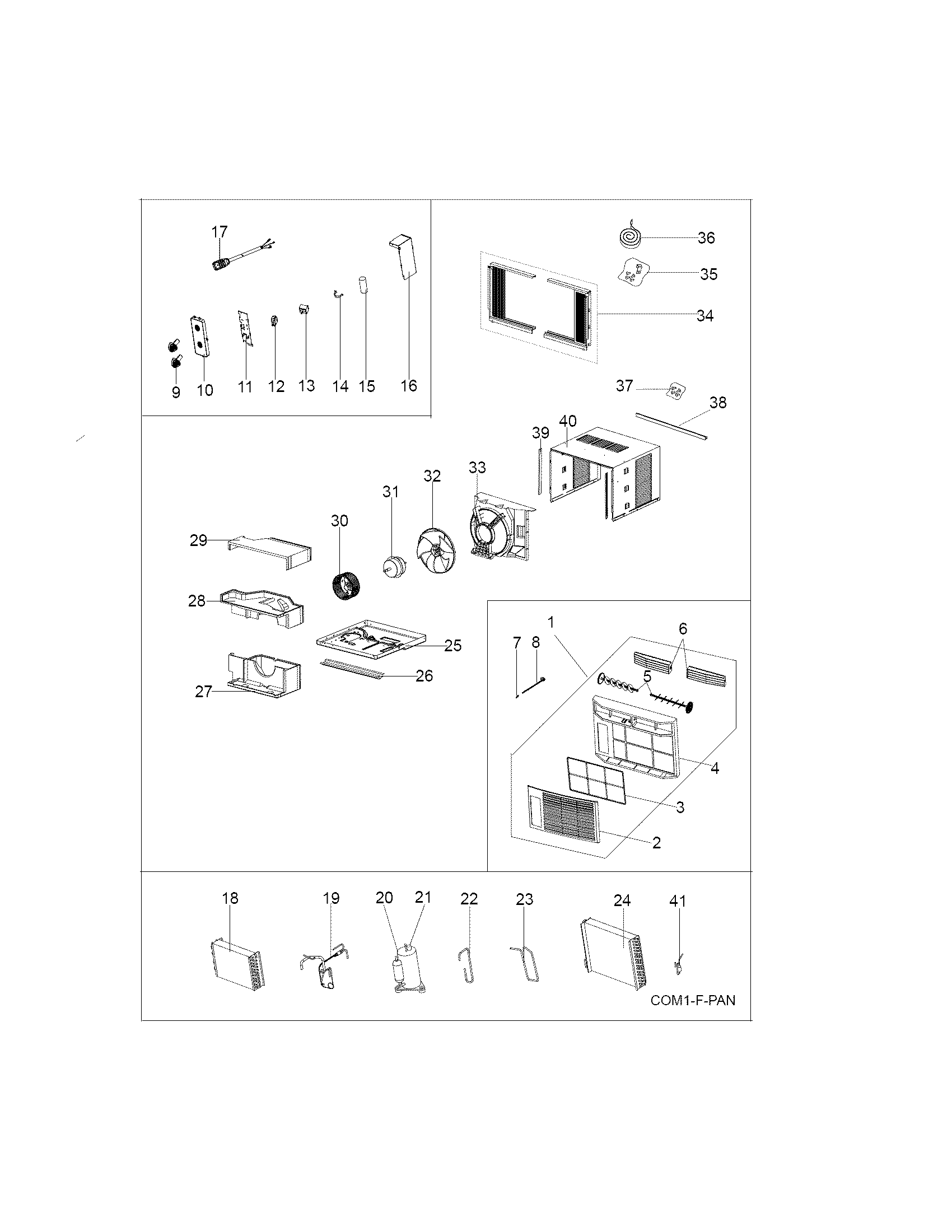

Recommended spare parts diagram

Capacitor

Part #5304471300

$125.44
In Stock
Room Air Conditioner Filter Dryer 5304476367
#41

Recommended spare parts diagram

Room air conditioner filter dryer

Part #5304476367

$34.29
In Stock
Sleeve 5304476179
#7

Recommended spare parts diagram

Sleeve

Part #5304476179

$13.29
In Stock
Capacitor 5304471294
#15

Recommended spare parts diagram

Capacitor

Part #5304471294

$122.50
In Stock
Door 5304476178
#8

Recommended spare parts diagram

Door

Part #5304476178

$22.40
In Stock
Base 5304476789
#25

Recommended spare parts diagram

Base

Part #5304476789

The manufacturer no longer makes this part, and there's no substitute part

Motor 5304476780
#31

Recommended spare parts diagram

Motor

Part #5304476780

The manufacturer no longer makes this part, and there's no substitute part

Control Box 5304476767
#16

Recommended spare parts diagram

Control box

Part #5304476767

The manufacturer no longer makes this part, and there's no substitute part

Scroll 5304476777
#28

Recommended spare parts diagram

Scroll

Part #5304476777

The manufacturer no longer makes this part, and there's no substitute part

Strap 5304471203
#14

Recommended spare parts diagram

Strap

Part #5304471203

The manufacturer no longer makes this part, and there's no substitute part
