Whirlpool ACE124XY1 air conditioner Parts
Here are the diagrams and repair parts for Whirlpool ACE124XY1 air conditioner, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for ACE124XY1 Air Conditioner

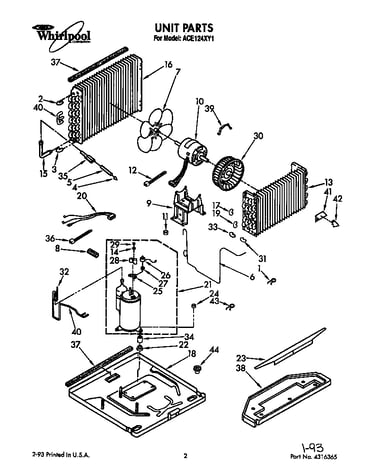

Unit parts diagram
Bend
Part #855644
The manufacturer no longer makes this part, and there's no substitute part

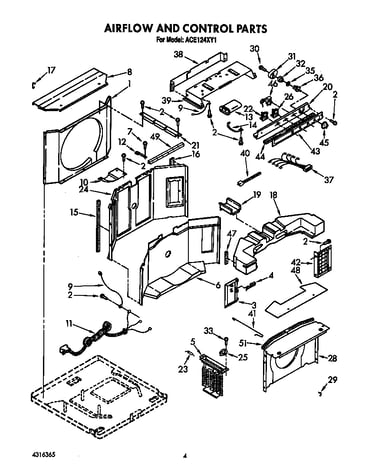

Airflow and control parts diagram
Power Cord
Part #1161355
The manufacturer no longer makes this part, and there's no substitute part

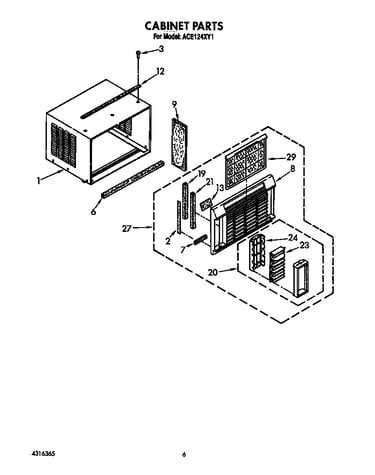

Cabinet parts diagram
Louver-vt
Part #1156975
The manufacturer no longer makes this part, and there's no substitute part

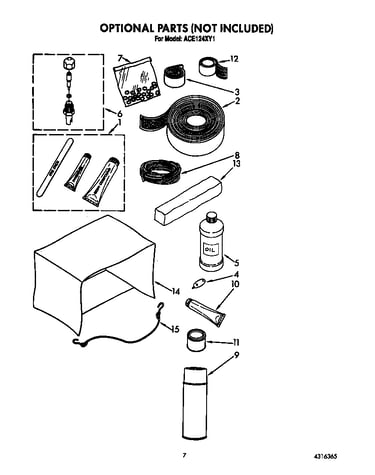

Optional parts (not included) diagram
Ge Room Air Conditioner Outdoor Cover
Part #484184
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control parts diagram
Washer
Part #647881
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control parts diagram
Cabinet Seal
Part #1160947
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Cabinet
Part #1163055
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control parts diagram
Shroud Clip
Part #1158257
The manufacturer no longer makes this part, and there's no substitute part
Optional parts (not included) diagram
Wire
Part #242820
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Strainer
Part #49599
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your room air conditioners
Main causes: clogged condensate drain, air conditioner not leveled properly, leaky window air seals …
Main causes: bad compressor, lack of refrigerant, bad compressor start relay, electronic control board failure…
Main causes: lack of electrical power, bad electronic control board, wiring failure, bad temperature sensor…
Thermostat problems, bad compressor/condenser fan capacitor, lack of refrigerant, failed compressor…
Dirty air filter, clogged condenser coils, low refrigerant charge, faulty compressor…
Main causes: turning the air conditioner off and the back on too quickly, dirty or restricted condenser coil, compressor…
Main causes: errant thermostat settings, lack of electrical power, clogged drain line, wiring failure, control failure.…
Main causes: dirty air filter, air conditioner is too small for the room, temperature set too cold, control failure…
Main causes: clogged drain hole, air conditioner not leveled properly…
