Model # 73XQB315301D Official Carrier room air conditioner - 1993 to 1995

Here are the diagrams and repair parts for Official Carrier 73XQB315301D room air conditioner - 1993 to 1995, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

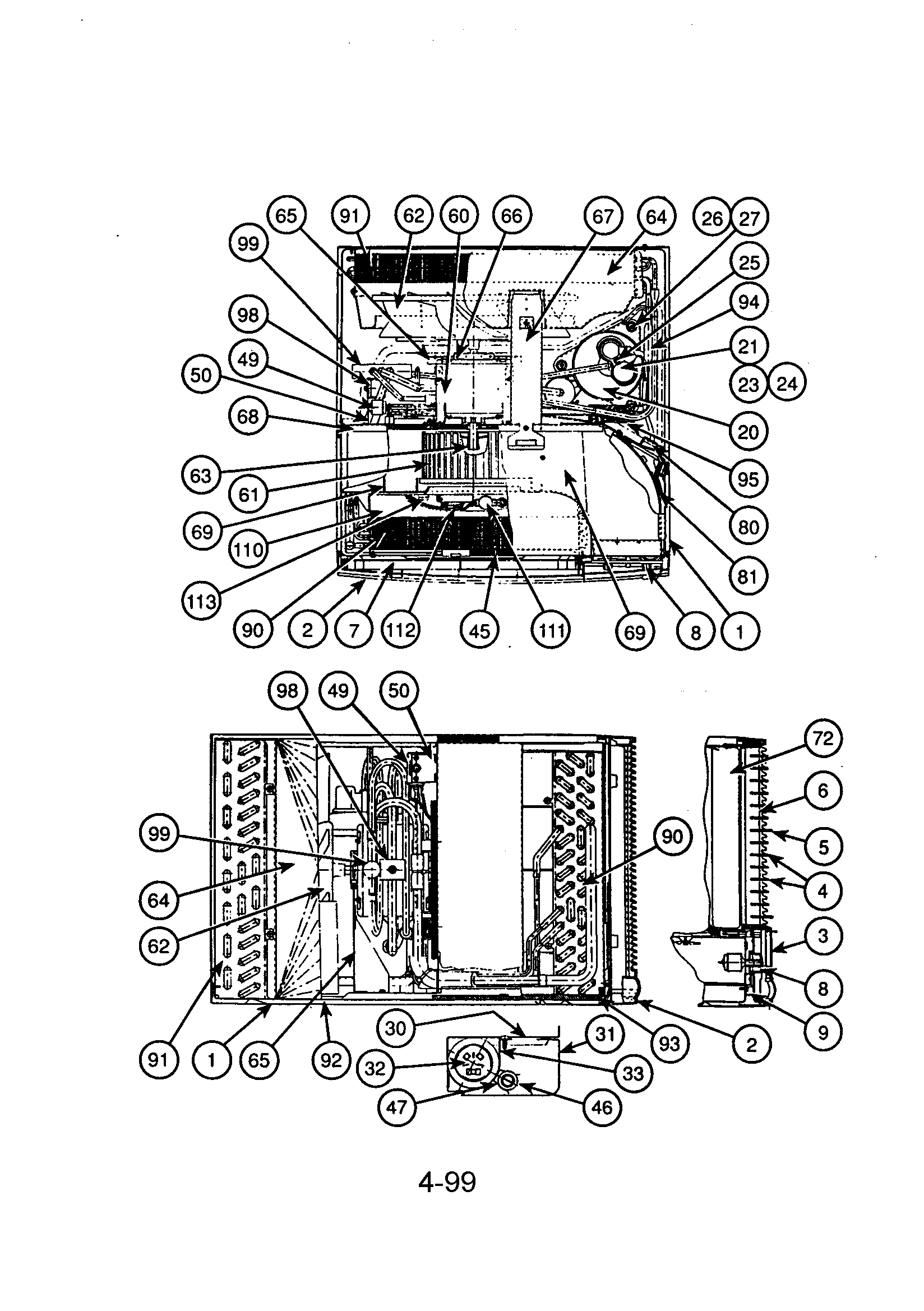

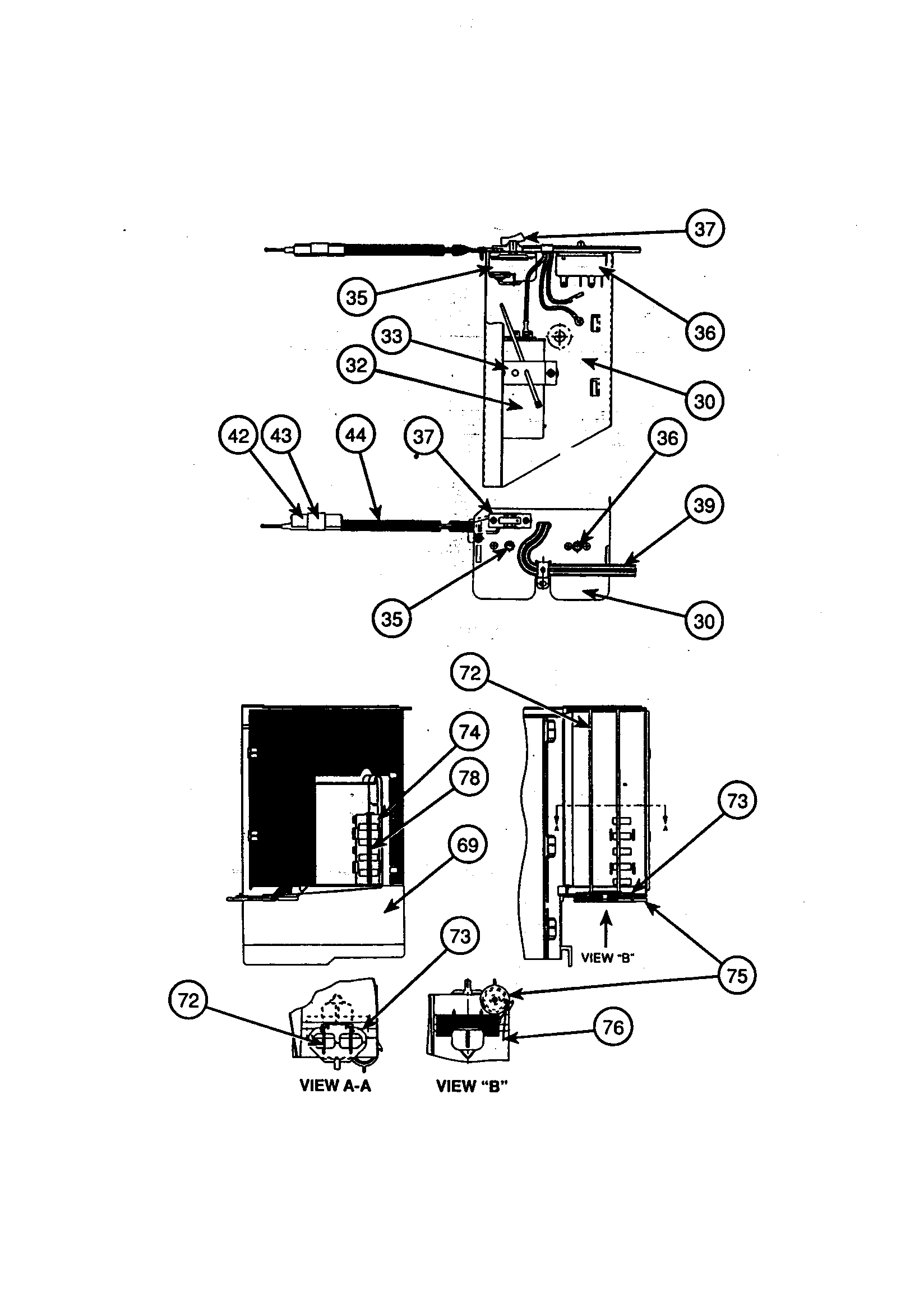

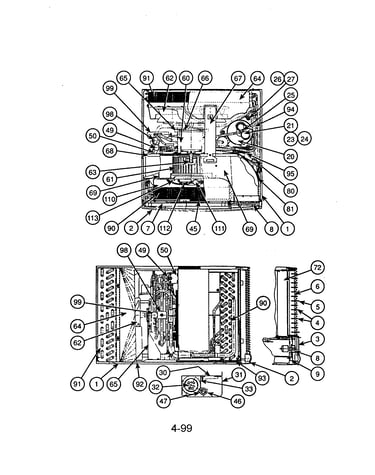

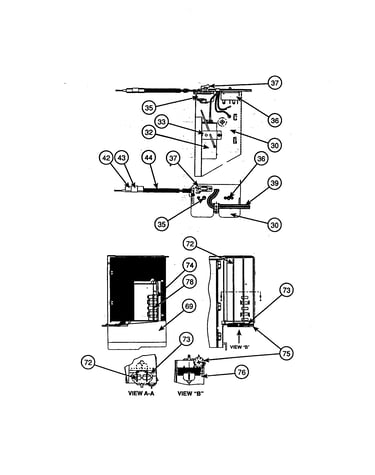

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Capacitor P291-2553RS

#32

All parts diagram

Capacitor

Part #P291-2553RS

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 25901018

#60

All parts diagram

Fan motor

Part #25901018

$642.78
In Stock
Air Conditioner Exhaust Vent 03501031

#75

All parts diagram

Air conditioner exhaust vent

Part #03501031

$33.53
In Stock
Limit Switch HH18JA240

#112

All parts diagram

Limit switch

Part #HH18JA240

$33.96
In Stock
Overload HN68GP154

#21

All parts diagram

Overload

Part #HN68GP154

$32.31
In Stock
Heater 05852033

#110A

All parts diagram

Heater

Part #05852033

$694.88
In Stock
Switch 06305012

#37

All parts diagram

Switch

Part #06305012

Replaced by #06305012

?
Manufacturer substitution
This part replaces 06305012. Substitute parts can look different from the original.
This item is not returnable
$5.34
In Stock
Capacitor P291-3053RS

#32A

All parts diagram

Capacitor

Part #P291-3053RS

Replaced by #CAP050300440RSP

?
Manufacturer substitution
This part replaces P291-3053RS. Substitute parts can look different from the original.
This item is not returnable
$34.08 |
13% OFF Phone Price : $39.08
In Stock
Fan Blade 17604014

#62

All parts diagram

Fan blade

Part #17604014

Replaced by #17604014

?
Manufacturer substitution
This part replaces 17604014. Substitute parts can look different from the original.
$97.51
In Stock
Room Air Conditioner Air Filter 13801040

#7

All parts diagram

Room air conditioner air filter

Part #13801040

The manufacturer no longer makes this part, and there's no substitute part
