Amana
Countertop Microwave

Model # 1435.000 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 1435000 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |
Scew, Stand-off Mounting M1D504
#6B

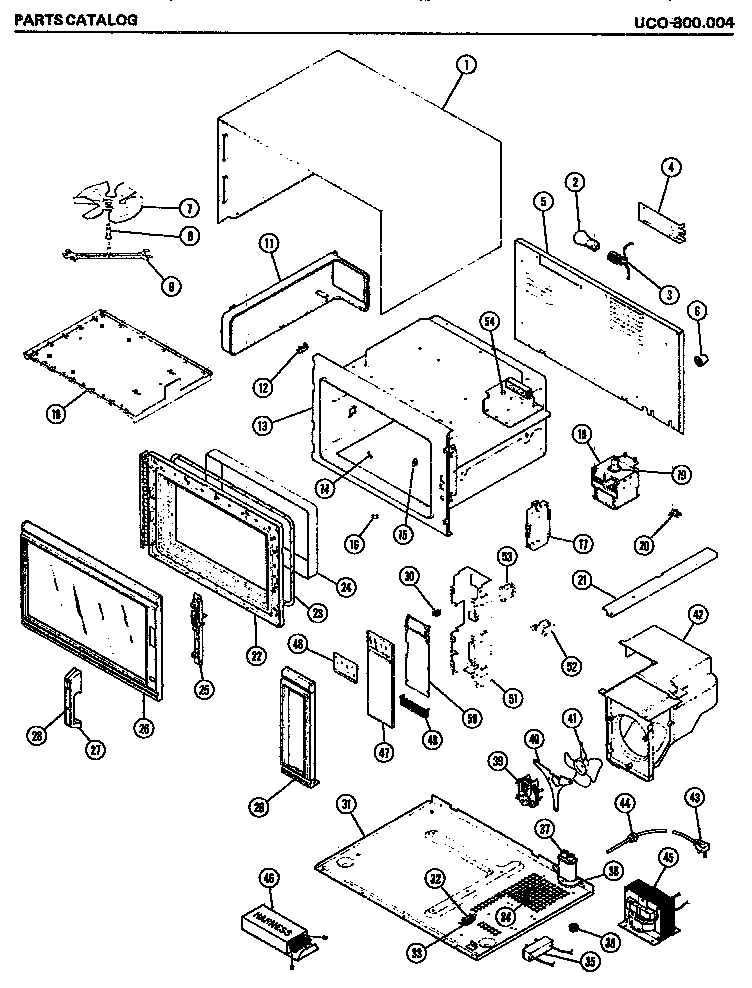

Mw parts (uco-300.004) diagram

Scew, stand-off mounting

Part #M1D504

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor Bracket M20D219
#40A

Mw parts (uco-300.004) diagram

Fan motor bracket

Part #M20D219

The manufacturer no longer makes this part, and there's no substitute part

Nut Plate M8D308
#14

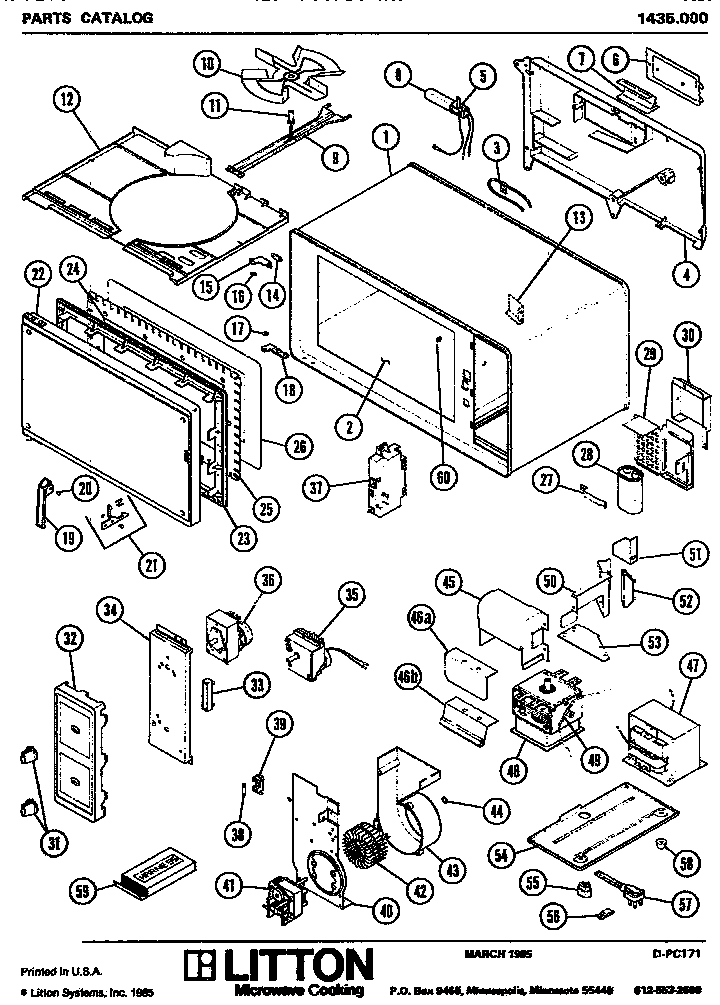

Mw parts (1435.000) diagram

Nut plate

Part #M8D308

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Manual M94D477

#NI

All parts diagram

Use and care manual

Part #M94D477

The manufacturer no longer makes this part, and there's no substitute part

Microwave Blower Wheel M35D51
#42

Mw parts (1435.000) diagram

Microwave blower wheel

Part #M35D51

The manufacturer no longer makes this part, and there's no substitute part

Electronic Circuit Board M32R49
#50A

Mw parts (uco-300.004) diagram

Electronic circuit board

Part #M32R49

The manufacturer no longer makes this part, and there's no substitute part

Nut, Clock M1D449
#22B

Mw parts (uco-300.004) diagram

Nut, clock

Part #M1D449

The manufacturer no longer makes this part, and there's no substitute part

Aurge Resistor (10 Ohm) M3D48
#33A

Mw parts (1435.000) diagram

Aurge resistor (10 ohm)

Part #M3D48

The manufacturer no longer makes this part, and there's no substitute part

Screw, Hinge Mounting M1D918
#7B

Mw parts (1435.000) diagram

Screw, hinge mounting

Part #M1D918

The manufacturer no longer makes this part, and there's no substitute part

Nut, Diode Mounting M1D329
Nut, diode mounting

Part #M1D329

The manufacturer no longer makes this part, and there's no substitute part
