Model # 507474551 Official Sears 26" women's bicycle

Here are the diagrams and repair parts for Official Sears 507474551 26" women's bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Crank 3C1700-44
#35

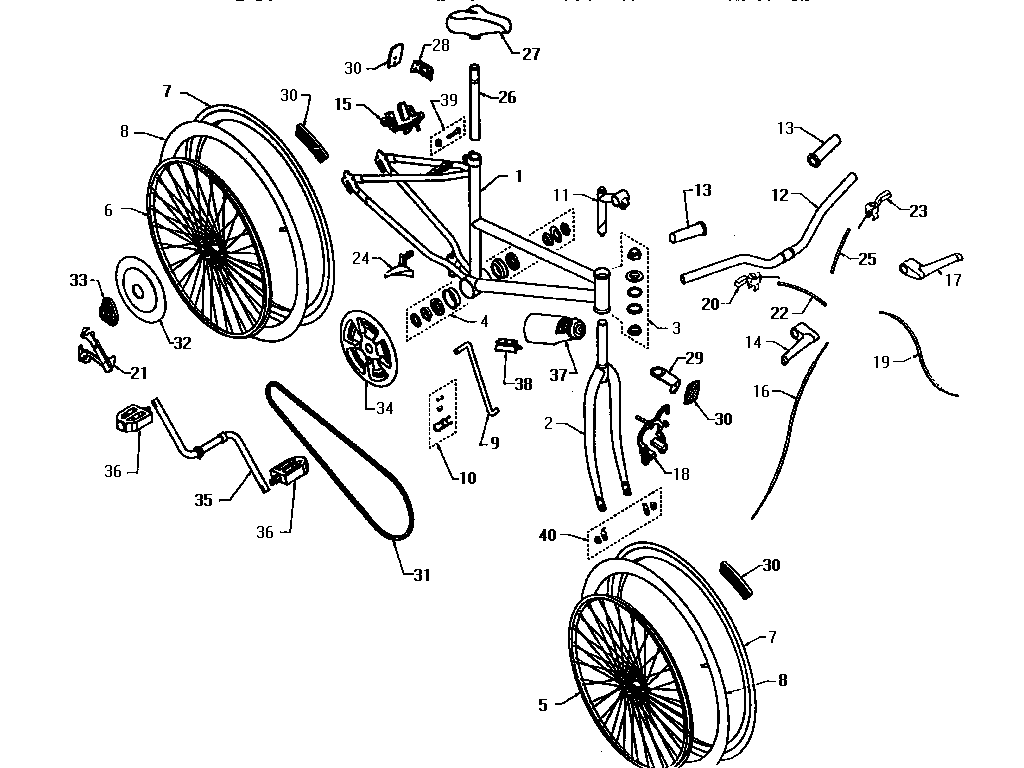

Unit parts diagram

Crank

Part #3C1700-44

The manufacturer no longer makes this part, and there's no substitute part

Deraileur,re 3C1660-A01
#21

Unit parts diagram

Deraileur,re

Part #3C1660-A01

The manufacturer no longer makes this part, and there's no substitute part

Pedal Pair 3C2073-A01
#36

Unit parts diagram

Pedal pair

Part #3C2073-A01

The manufacturer no longer makes this part, and there's no substitute part

Tire Tube 16225
#8

Unit parts diagram

Tire tube

Part #16225

The manufacturer no longer makes this part, and there's no substitute part

Handle 3C2724-A01
#17

Unit parts diagram

Handle

Part #3C2724-A01

The manufacturer no longer makes this part, and there's no substitute part

Seat Mast 3C2503

#NI

All parts diagram

Seat mast

Part #3C2503

The manufacturer no longer makes this part, and there's no substitute part

Chain 3C1873-A02
#31

Unit parts diagram

Chain

Part #3C1873-A02

The manufacturer no longer makes this part, and there's no substitute part

Front Fork 3C3213-1174X
#2

Unit parts diagram

Front fork

Part #3C3213-1174X

The manufacturer no longer makes this part, and there's no substitute part

Seat Post 3C1231-44
#26

Unit parts diagram

Seat post

Part #3C1231-44

The manufacturer no longer makes this part, and there's no substitute part

Brake Pad 3C2248

#NI

All parts diagram

Brake pad

Part #3C2248

The manufacturer no longer makes this part, and there's no substitute part
