Kenmore
Heating & Cooling Combined Unit

Model # 867813032 Official Kenmore packaged heat pump

Here are the diagrams and repair parts for Official Kenmore 867813032 packaged heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 422 parts  |
Motor Run Capacitor
#129A

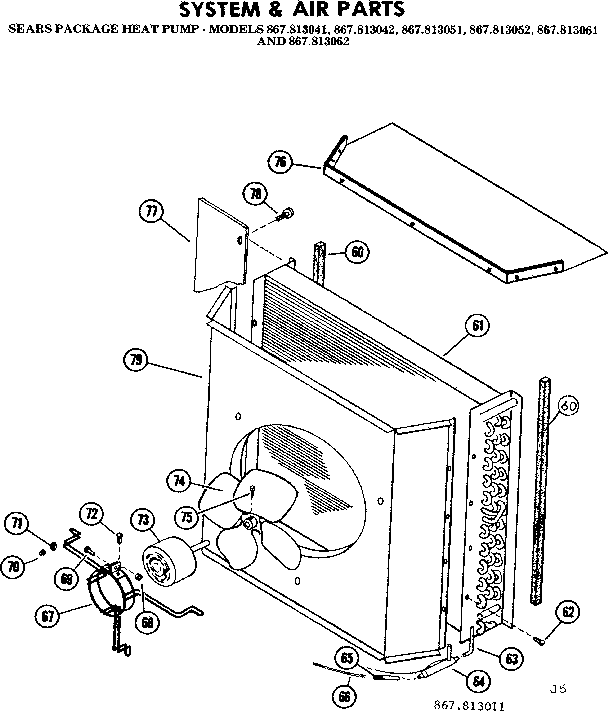

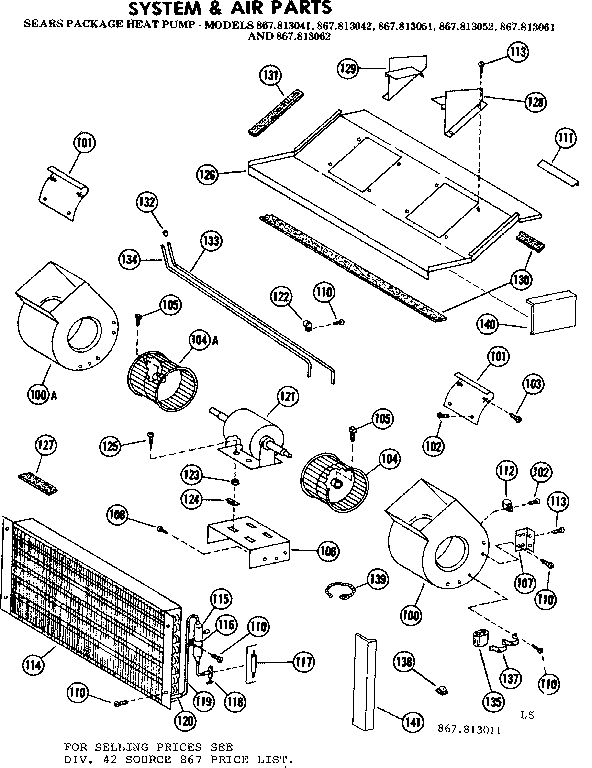

System and air parts diagram

Capacitor

Part #94149

Replaced by #12005

?
Manufacturer substitution
This part replaces 94149. Substitute parts can look different from the original.
$16.12 |
11% OFF Phone Price : $18.12
In Stock
Motor Run Capacitor
#129B

System and air parts diagram

Capacitor

Part #92646

Replaced by #12907

?
Manufacturer substitution
This part replaces 92646. Substitute parts can look different from the original.
This item is not returnable
$3.19 |
24% OFF Phone Price : $4.19
In Stock
Extension
#76B

System and air parts diagram

Extension

Part #750498

$12.99
In Stock
Tube Revers
#98B

Compressor system diagram

Tube revers

Part #750345

$13.49
In Stock
Washer
#19

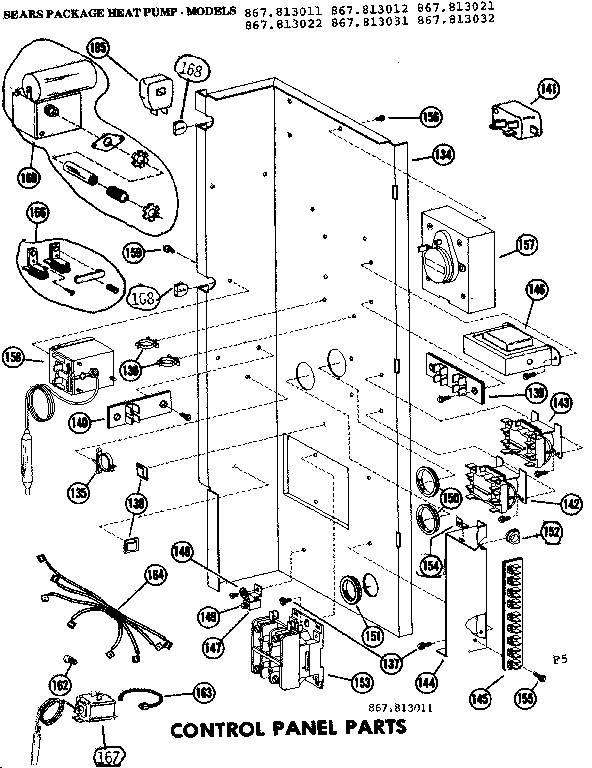

Terminal and fuse box diagram

Washer

Part #750684

This item is not returnable
$2.16
In Stock
Condenser
#61C

System and air parts diagram

Condenser

Part #703309

$1113.99
In Stock
Fan Shroud
#79A

System and air parts diagram

Fan shroud

Part #750501

This item is not returnable
$5.99
In Stock
Thermostat
#1

Auxiliary heter parts diagram

Thermostat

Part #700822

$10.99
In Stock
Corner Post
#41

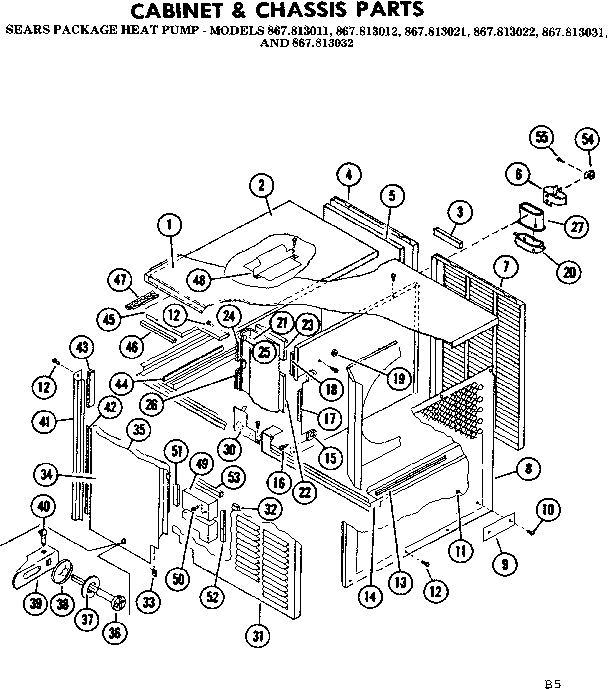

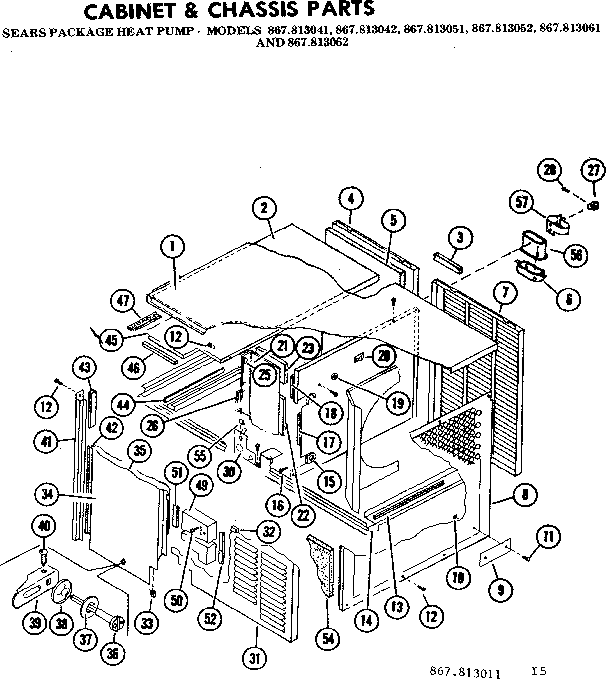

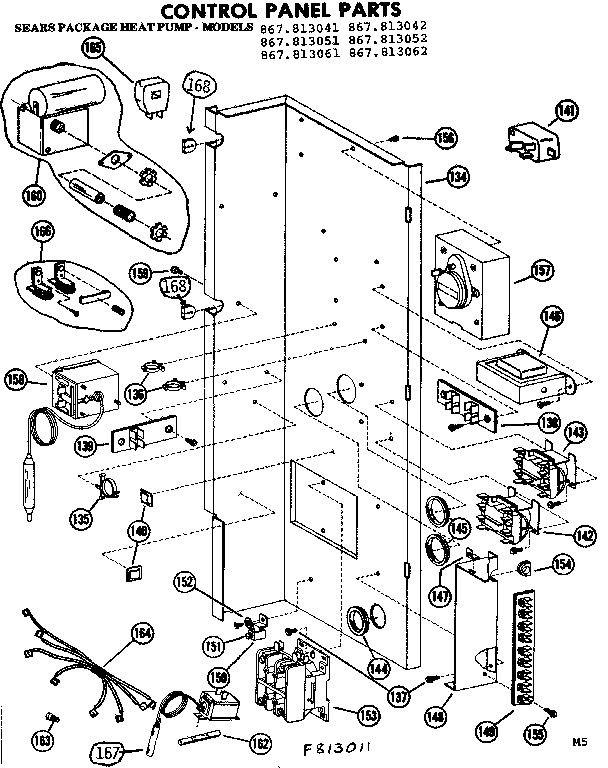

Cabinet and chassis parts diagram

Corner post

Part #750608

This item is not returnable
$5.99
In Stock
Tube Revers
#100B

Compressor system diagram

Tube revers

Part #750350

$23.49
In Stock
