Model # 22996463 Official Kenmore hot water boiler

Here are the diagrams and repair parts for Official Kenmore 22996463 hot water boiler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Boiler Burner Roll-out Limit Switch (replaces 146-29-002-60) 146-29-002

#NI

All parts diagram

Boiler burner roll-out limit switch (replaces 146-29-002-60)

Part #146-29-002

The manufacturer no longer makes this part, and there's no substitute part

Draft Divert 425-00-673
#18

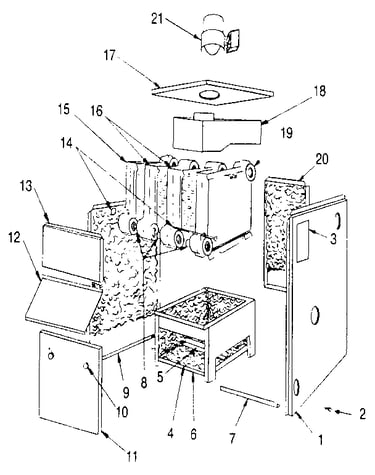

Jacket - section and base diagram

Draft divert

Part #425-00-673

$197.25
In Stock
3 Sec Block 410-00-313

#NI

All parts diagram

3 sec block

Part #410-00-313

$1420.89
In Stock
Burner 146-62-054
#7

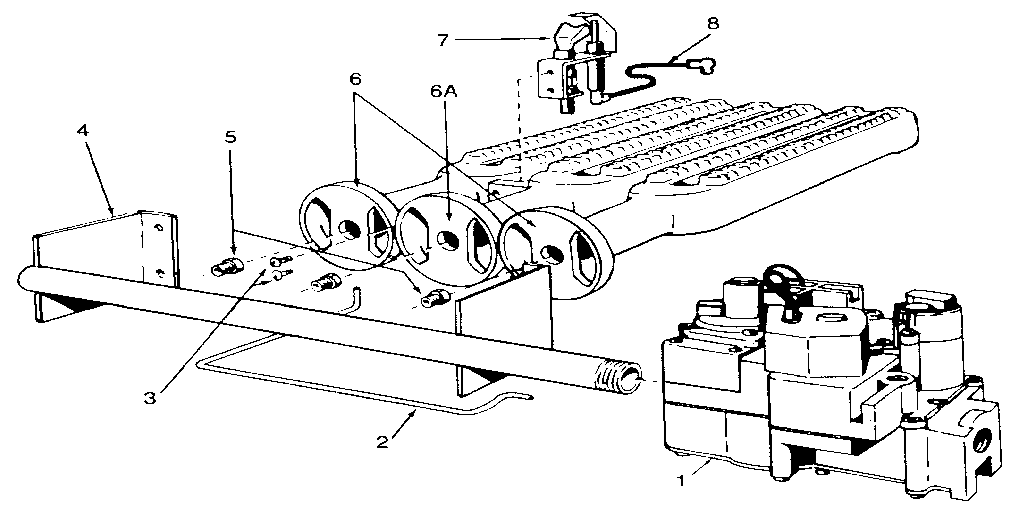

Gas burners and manifold diagram

Burner

Part #146-62-054

The manufacturer no longer makes this part, and there's no substitute part

Relief Valve 146-22-011
#1

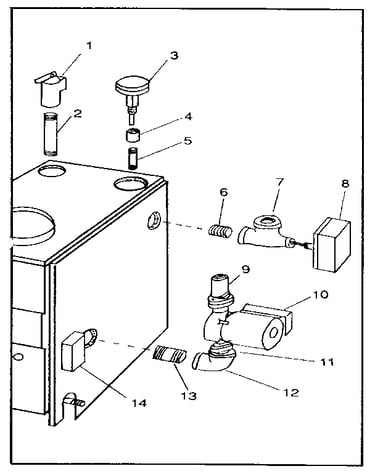

Boiler controls and piping diagram

Relief valve

Part #146-22-011

Replaced by #10-408-05

?
Manufacturer substitution
This part replaces 146-22-011. Substitute parts can look different from the original.
$44.77 |
10% OFF Phone Price : $49.77
In Stock
Ignitn Cable 146-62-074
#8

Gas burners and manifold diagram

Ignitn cable

Part #146-62-074

The manufacturer no longer makes this part, and there's no substitute part

Circulator 146-26-045
#10

Boiler controls and piping diagram

Circulator

Part #146-26-045

Replaced by #103251

?
Manufacturer substitution
This part replaces 146-26-045. Substitute parts can look different from the original.
$224.79 |
$10.00 OFF Phone Price : $234.79
In Stock
Metal Screw 146-95-074
#2

Jacket - section and base diagram

Metal screw

Part #146-95-074

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 146-62-052
#1

Gas burners and manifold diagram

Gas valve

Part #146-62-052

The manufacturer no longer makes this part, and there's no substitute part

Boiler Burner 146-15-523
#6

Gas burners and manifold diagram

Boiler burner

Part #146-15-523

The manufacturer no longer makes this part, and there's no substitute part
