Model # 583356002 Official Kenmore portable heater

Here are the diagrams and repair parts for Official Kenmore 583356002 portable heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Space Heater Pump Rotor Insert M22009
#12C

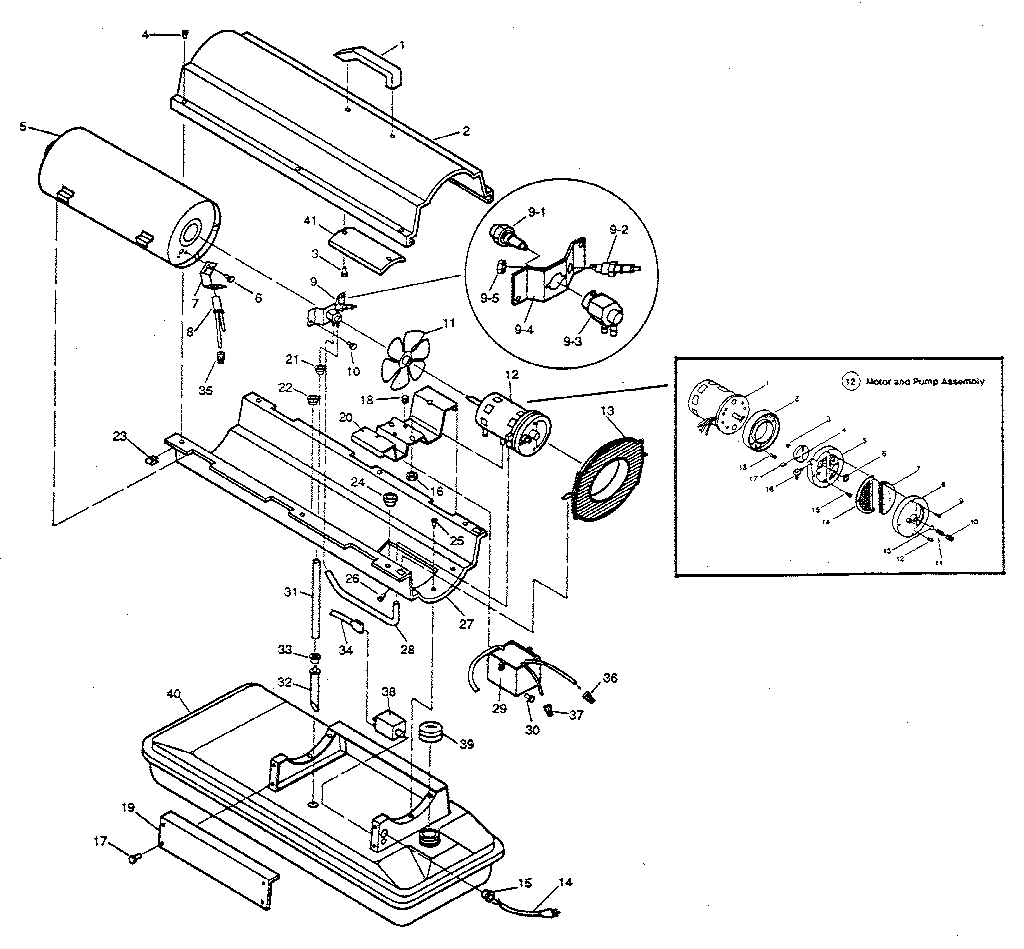

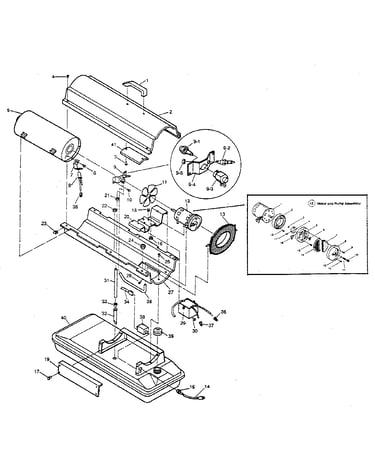

Burners diagram

Space heater pump rotor insert

Part #M22009

The manufacturer no longer makes this part, and there's no substitute part

Space Heater Pump Rotor Blade M8643
#12Q

Burners diagram

Space heater pump rotor blade

Part #M8643

The manufacturer no longer makes this part, and there's no substitute part

Space Heater Pump Hole Plug M22997
#12L

Burners diagram

Space heater pump hole plug

Part #M22997

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut NTC-4C
#16

Burners diagram

Hex nut

Part #NTC-4C

The manufacturer no longer makes this part, and there's no substitute part

Spark Plug M29835-2
#9B

Burners diagram

Spark plug

Part #M29835-2

The manufacturer no longer makes this part, and there's no substitute part

Nut Clip M11271-8
#23

Burners diagram

Nut clip

Part #M11271-8

The manufacturer no longer makes this part, and there's no substitute part

Kit M50671-01
#38

Burners diagram

Kit

Part #M50671-01

The manufacturer no longer makes this part, and there's no substitute part

Shell Kit 098511-92
#27

Burners diagram

Shell kit

Part #098511-92

The manufacturer no longer makes this part, and there's no substitute part

Screw, #10-16 X 1/2-in M15823-27
#4

Burners diagram

Screw, #10-16 x 1/2-in

Part #M15823-27

The manufacturer no longer makes this part, and there's no substitute part

Bracket 097124-01
#9D

Burners diagram

Bracket

Part #097124-01

The manufacturer no longer makes this part, and there's no substitute part
