Bosch
Electric Cooktop

Model # NIT8066SUC/01 Official Bosch electric cooktop

Here are the diagrams and repair parts for Official Bosch NIT8066SUC-01 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Cooktop Main Top Seal (replaces 613888) 00613888
#NI

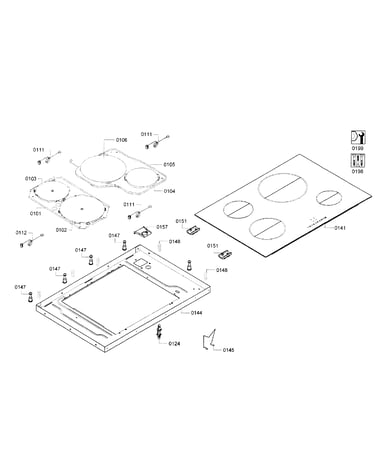

Cooktop assy diagram

Cooktop main top seal (replaces 613888)

Part #00613888

$24.69 |
17% OFF Phone Price : $29.69
In Stock
Insert 00416289
#243

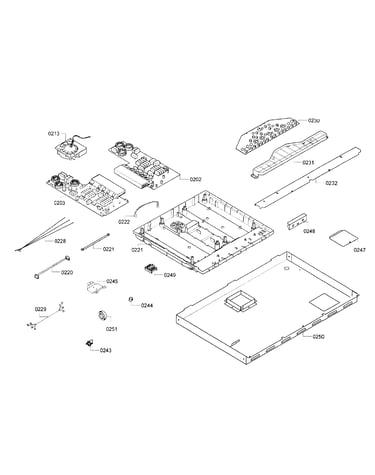

Pcb diagram

Insert

Part #00416289

This item is not returnable
$6.23
In Stock
Cooktop User Interface Board 00630709
#230

Pcb diagram

Cooktop user interface board

Part #00630709

$206.92 |
5% OFF Phone Price : $216.92
In Stock
Cooktop Induction Coil Temperature Sensor 00613824
Cooktop induction coil temperature sensor

Part #00613824

$45.73
In Stock
Pcb 00745774
#203

Pcb diagram

Pcb

Part #00745774

This item is not returnable
$337.64
In Stock
Washer 00415812
#244

Pcb diagram

Washer

Part #00415812

This item is not returnable
$7.49
In Stock
Case 00673382
#250

Pcb diagram

Case

Part #00673382

$217.58
In Stock
Cooktop Power Control Board 00745798
#202

Pcb diagram

Cooktop power control board

Part #00745798

This item is not returnable
$417.93
In Stock
Cover 00647679
#247

Pcb diagram

Cover

Part #00647679

$25.66
In Stock
Sensor 00612909
#111

Cooktop assy diagram

Sensor

Part #00612909

Replaced by #00613824

?
Manufacturer substitution
This part replaces 00612909. Substitute parts can look different from the original.
$45.73
In Stock
