Amana
Microwave/Hood Combo

Model # MVH-700/P75409-2M Official Amana radarange microwave counter saving microwave

Here are the diagrams and repair parts for Official Amana MVH-700-P75409-2M radarange microwave counter saving microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 221 parts  |
Screw M0216515
Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Torx Screw M0234016
#13

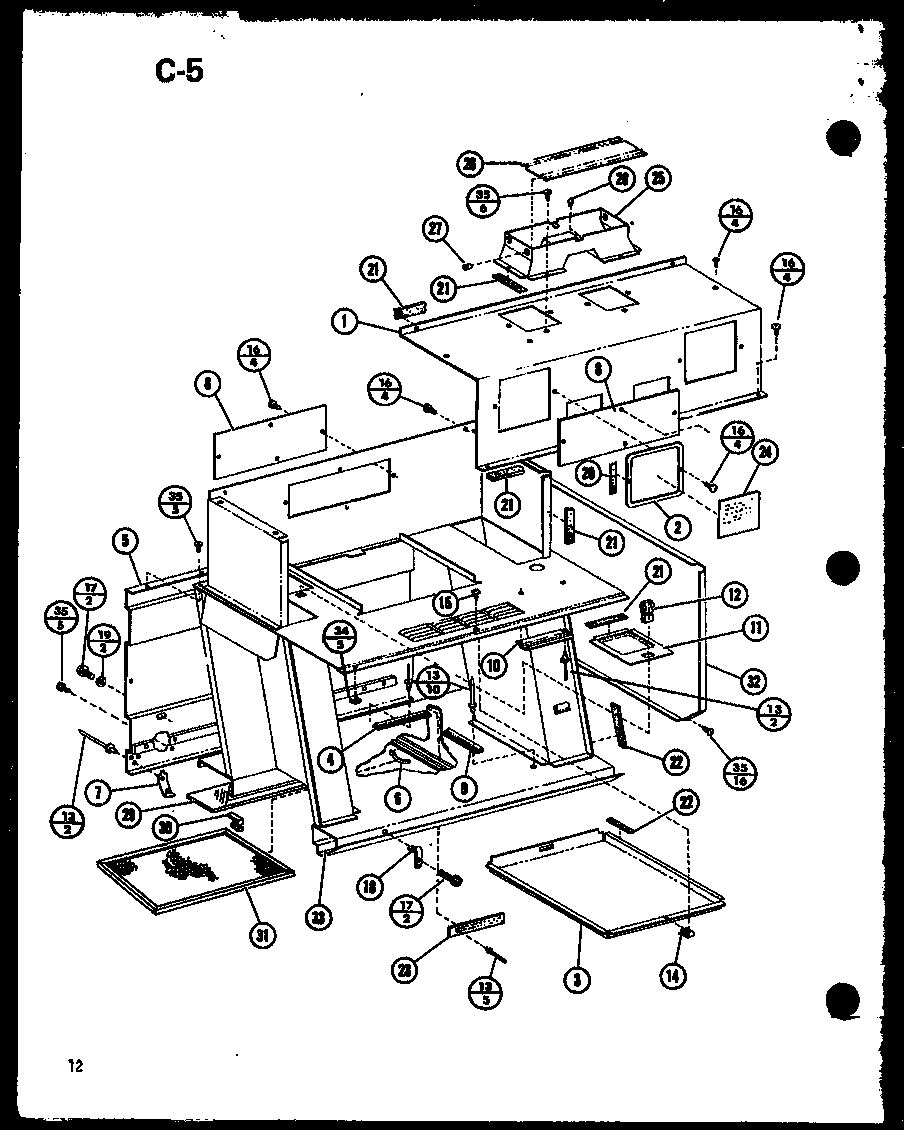

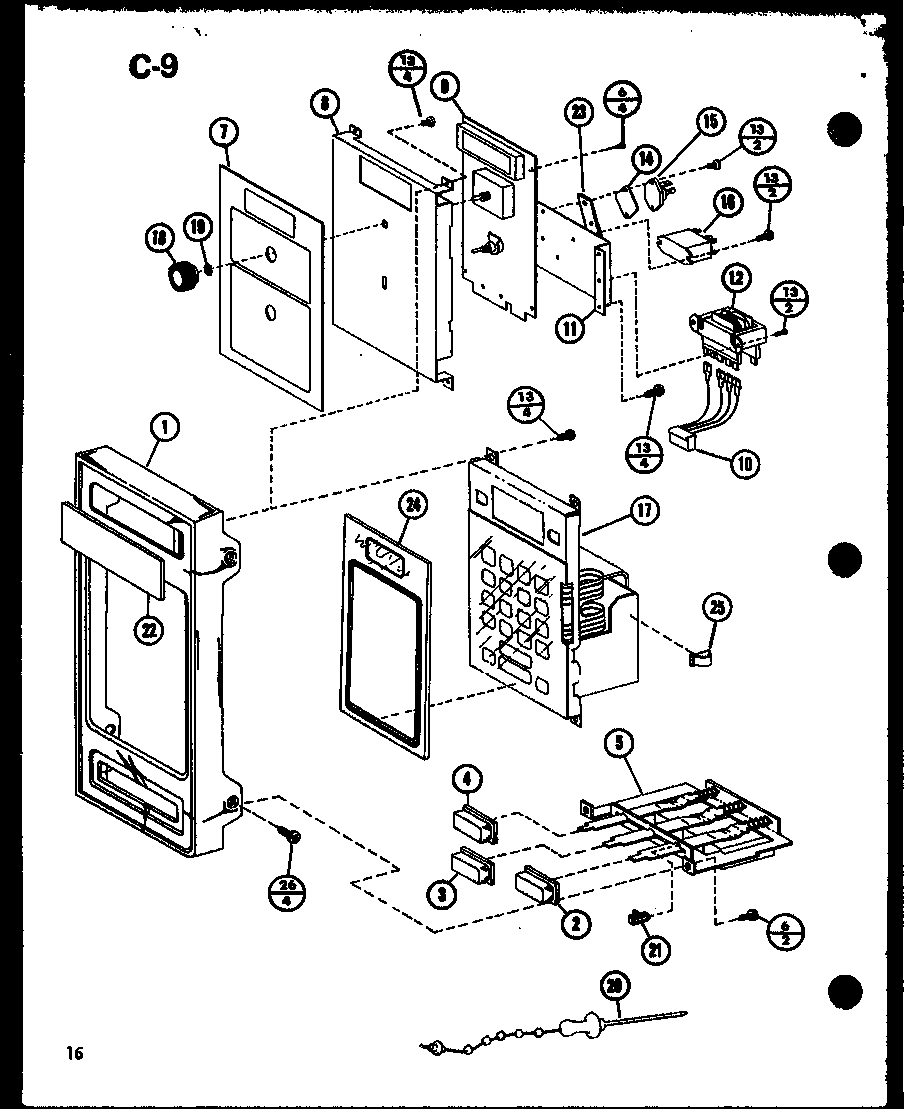

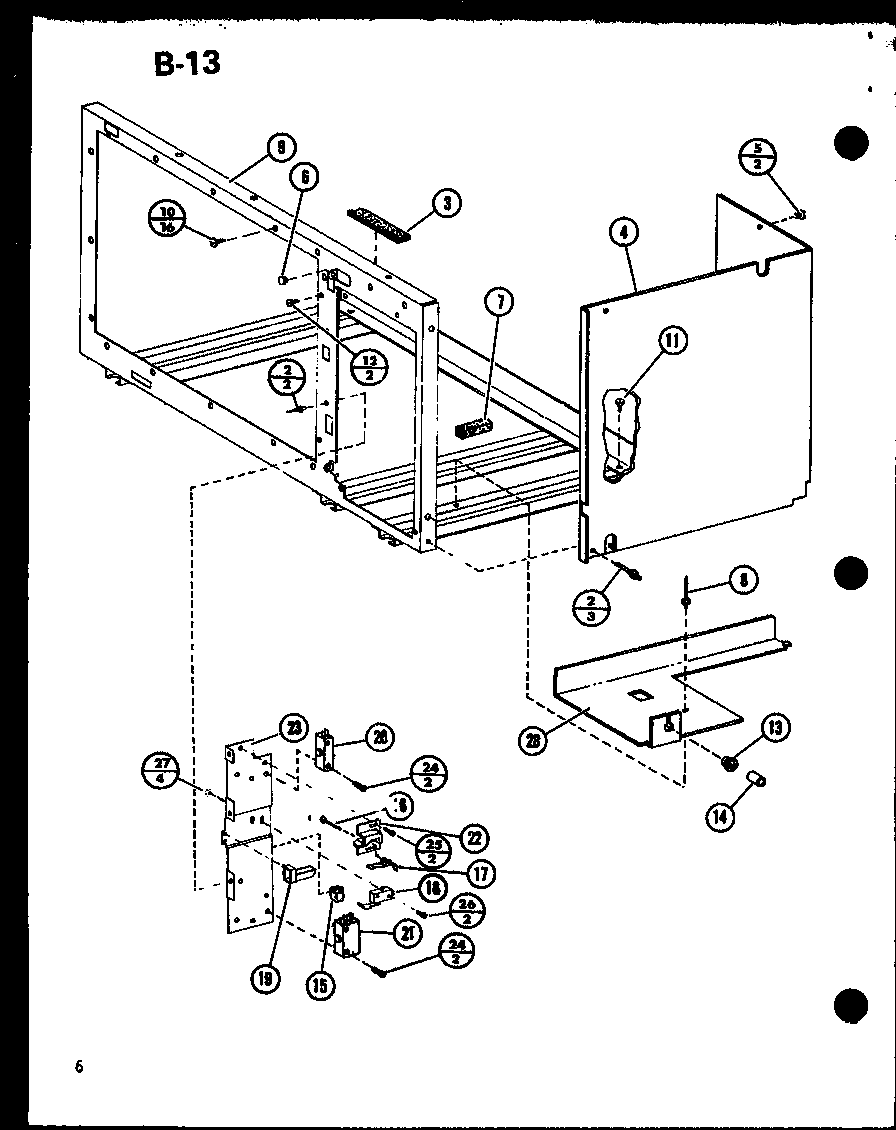

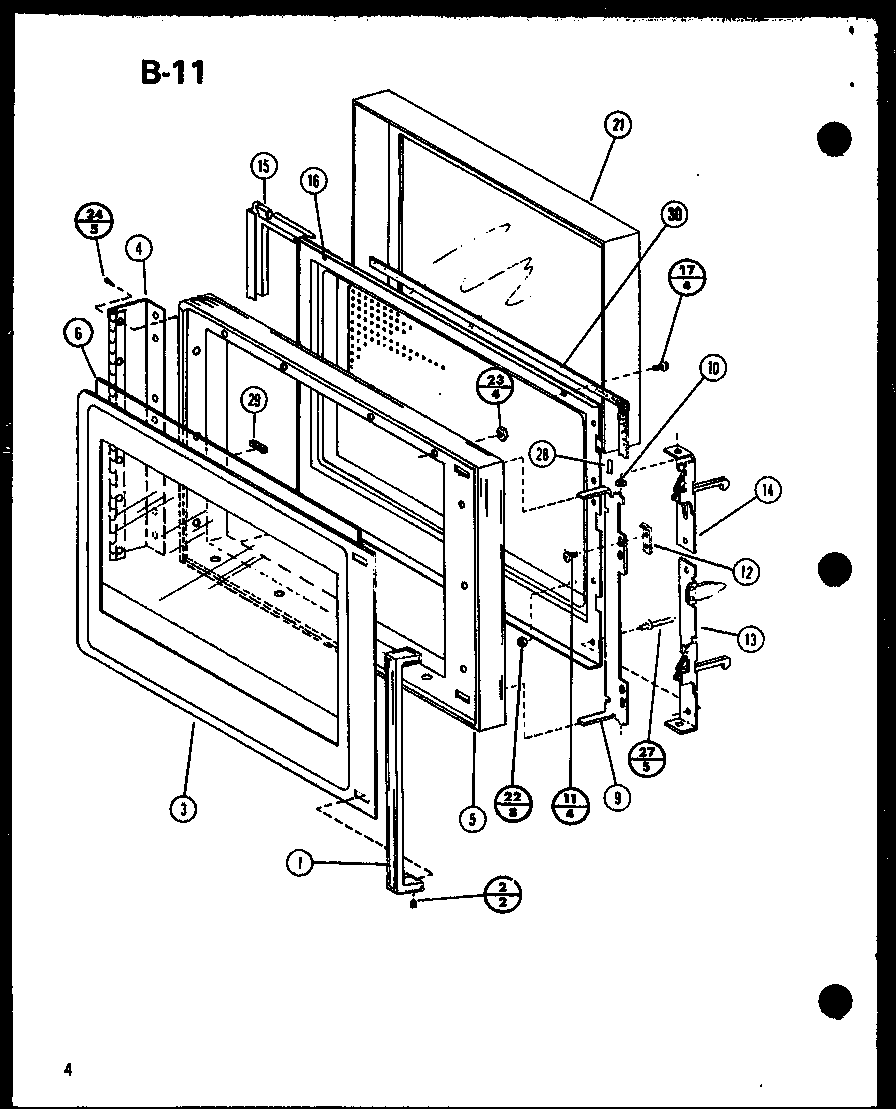

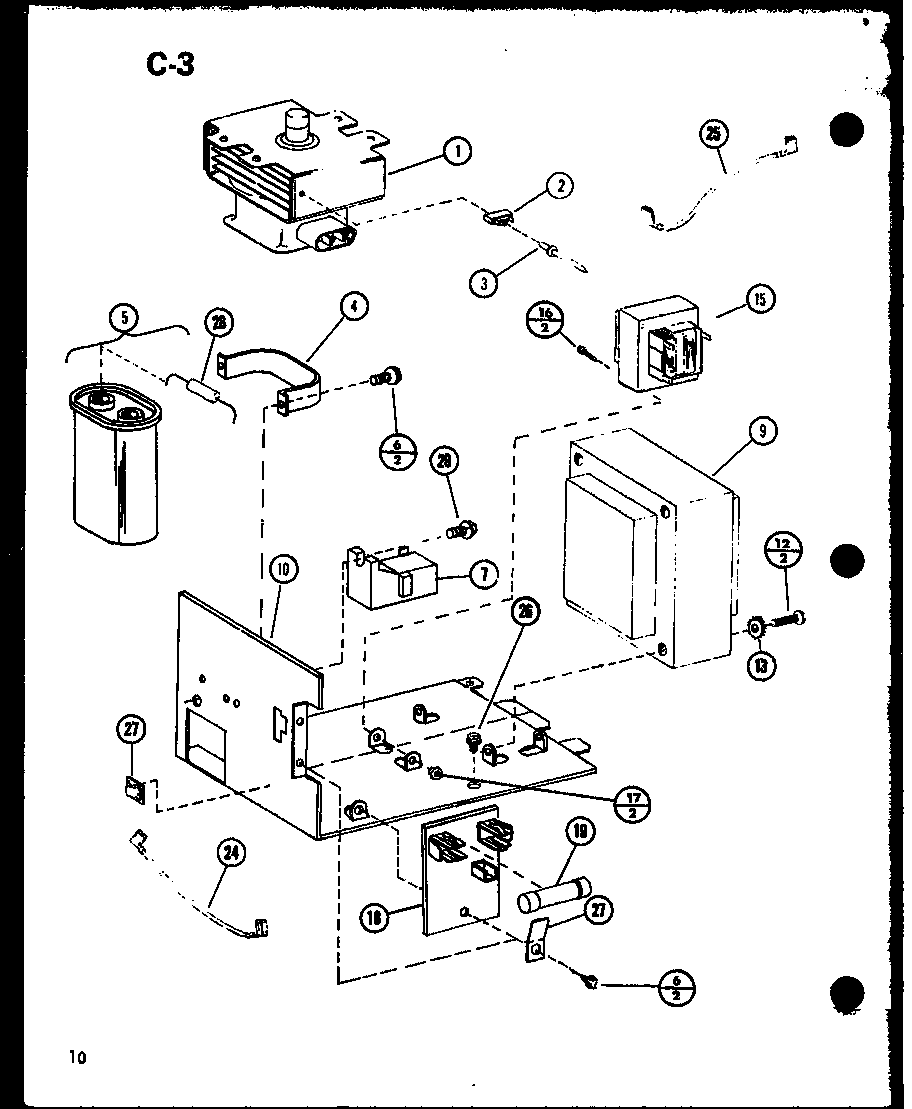

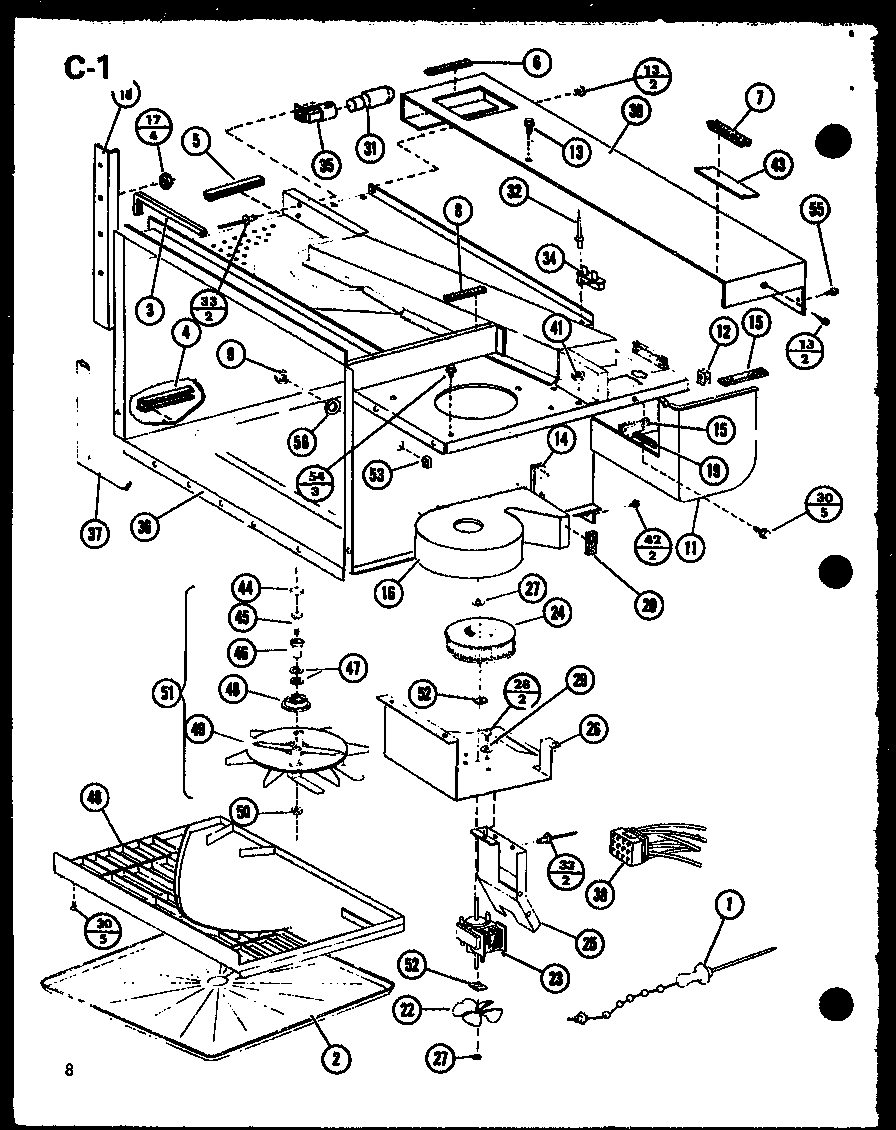

(mvh-700/p75409-2m) (mvh-900/p75409-3m) diagram

Torx screw

Part #M0234016

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0234016. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nut M0282009
#17

(mvh-700/p75409-2m) (mvh-900/p75409-3m) diagram

Nut

Part #M0282009

$12.49
In Stock
Screw M0234422
#12

(mvh-700/p75409-2m) (mvh-900/p75409-3m) diagram

Screw

Part #M0234422

Replaced by #M0234422

?
Manufacturer substitution
This part replaces M0234422. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
Nut M0281405
#9

(mvh-700/p75409-2m) (mvh-900/p75409-3m) diagram

Nut

Part #M0281405

Replaced by #M0281405

?
Manufacturer substitution
This part replaces M0281405. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw M0216703
#29

(mvh-700/p75409-2m) (mvh-900/p75409-3m) diagram

Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Light M0360302

#NI

All parts diagram

Light

Part #M0360302

Replaced by #WP95292

?
Manufacturer substitution
This part replaces M0360302. Substitute parts can look different from the original.
$57.49
In Stock
Nut M0282005
Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Washer M0270536
#56

(mvh-700/p75409-2m) (mvh-900/p75409-3m) diagram

Washer

Part #M0270536

Replaced by #M0270536

?
Manufacturer substitution
This part replaces M0270536. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Fuse M0805102
#19

(mvh-700/p75409-2m) (mvh-900/p75409-3m) diagram

Fuse

Part #M0805102

Replaced by #WPM0805102

?
Manufacturer substitution
This part replaces M0805102. Substitute parts can look different from the original.
$8.69 |
28% OFF MSRP : $12.00
In Stock
