Craftsman
Drill/Driver

Model # 973274950 Official Craftsman cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman 973274950 cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Case 977389-000

#NI

All parts diagram

Case

Part #977389-000

The manufacturer no longer makes this part, and there's no substitute part

Clutch Washer 974356-000
#11

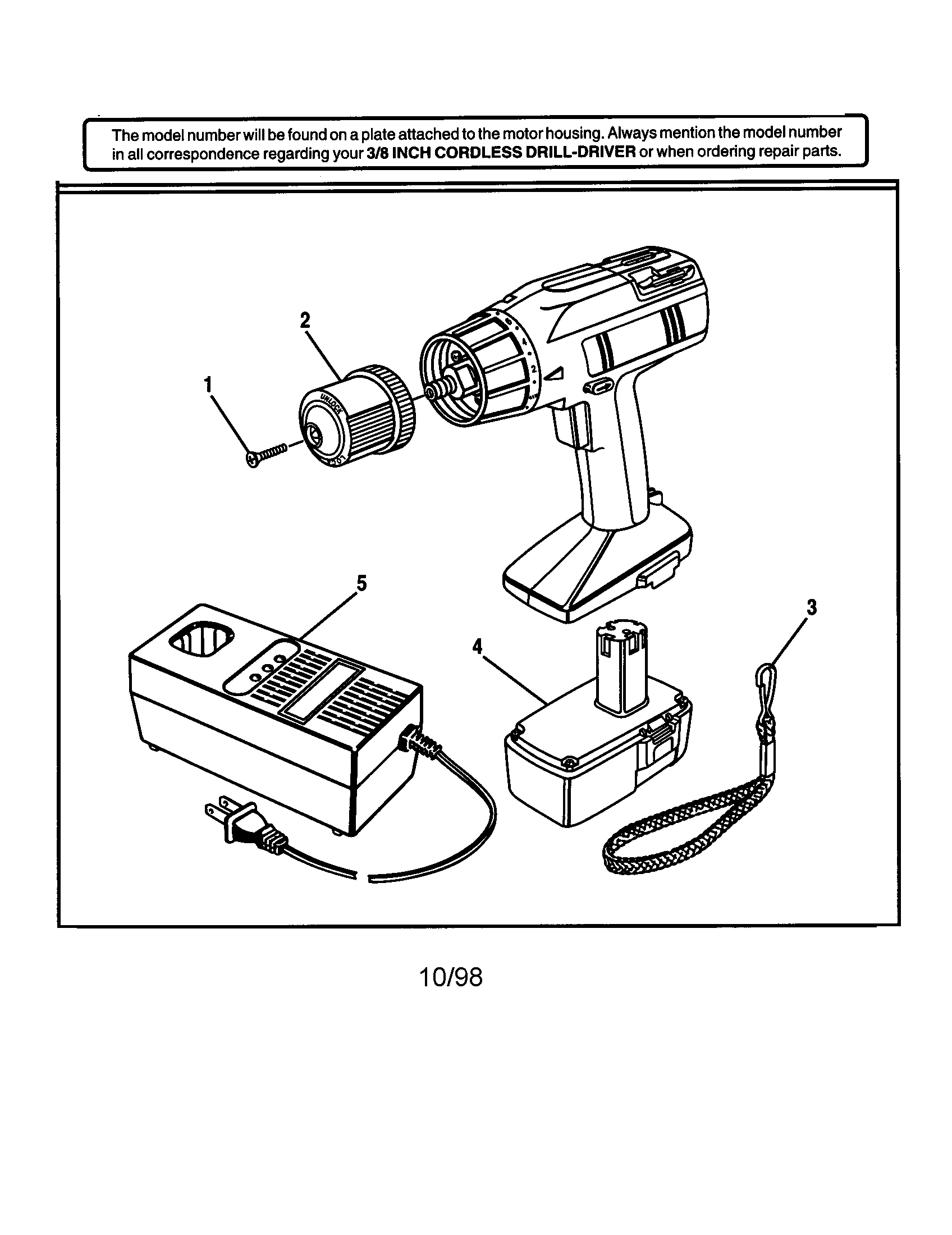

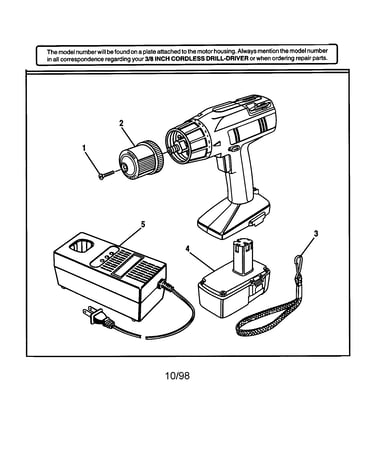

3/8" cordless drill-driver diagram

Clutch washer

Part #974356-000

The manufacturer no longer makes this part, and there's no substitute part

Clip 974362-000
#8

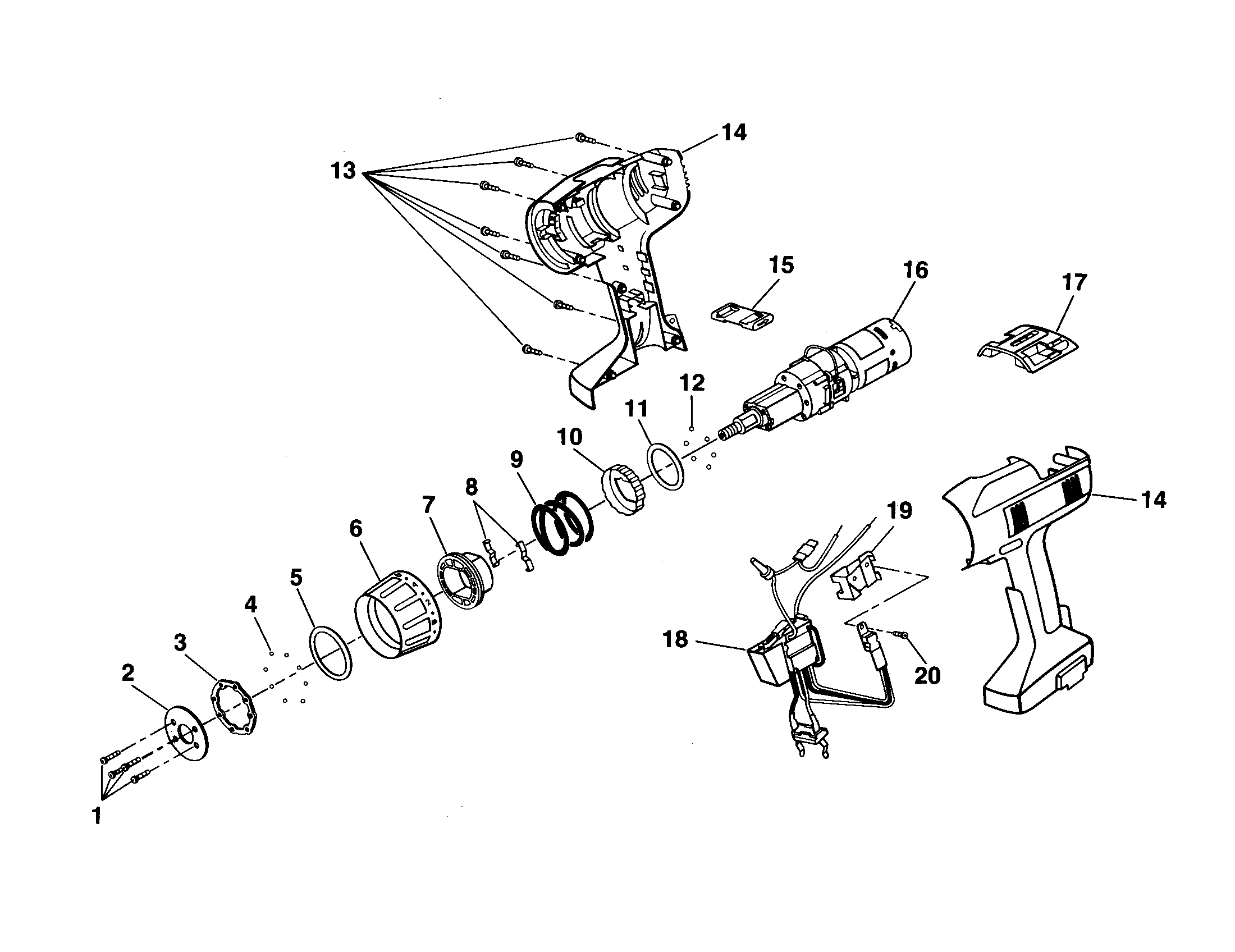

3/8" cordless drill-driver diagram

Clip

Part #974362-000

The manufacturer no longer makes this part, and there's no substitute part

Motor W/ge 977391-000
#16

3/8" cordless drill-driver diagram

Motor w/ge

Part #977391-000

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 977392-000
#14

3/8" cordless drill-driver diagram

Housing assembly

Part #977392-000

The manufacturer no longer makes this part, and there's no substitute part

Chuck 973015-001
#2

3/8" cordless drill-driver diagram

Chuck

Part #973015-001

The manufacturer no longer makes this part, and there's no substitute part

Ball Ret 974361-000
#3

3/8" cordless drill-driver diagram

Ball ret

Part #974361-000

The manufacturer no longer makes this part, and there's no substitute part

Ring 974360-000
#10

3/8" cordless drill-driver diagram

Ring

Part #974360-000

The manufacturer no longer makes this part, and there's no substitute part

Strap 967216-006
#3

3/8" cordless drill-driver diagram

Strap

Part #967216-006

The manufacturer no longer makes this part, and there's no substitute part

Spring 974357-000
#9

3/8" cordless drill-driver diagram

Spring

Part #974357-000

The manufacturer no longer makes this part, and there's no substitute part
