Model # 5127294379 Official Sears gym set

Here are the diagrams and repair parts for Official Sears 5127294379 gym set, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

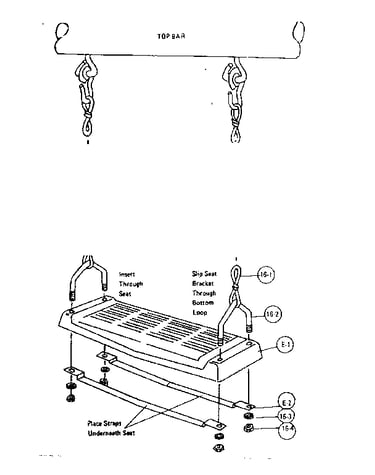

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Lock Nut 416-6337
#3

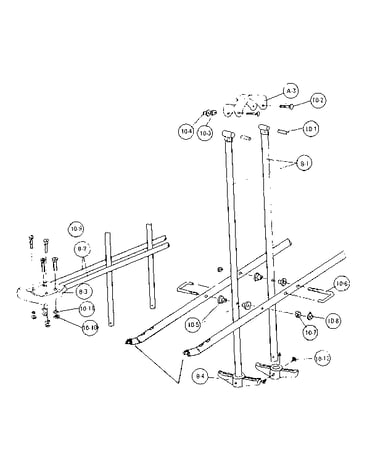

Glide ride assembly diagram

Lock nut

Part #416-6337

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 416-6425
#7

Glide ride assembly diagram

Lock nut

Part #416-6425

The manufacturer no longer makes this part, and there's no substitute part

Lock Device 441-162
#2

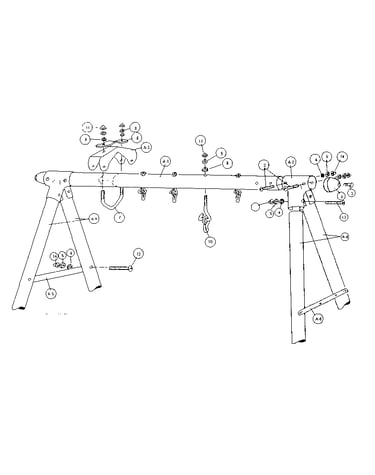

A - frame assembly diagram

Lock device

Part #441-162

The manufacturer no longer makes this part, and there's no substitute part

Top Bar 80046
#15

A - frame assembly diagram

Top bar

Part #80046

The manufacturer no longer makes this part, and there's no substitute part

Sockette 441-829
#9

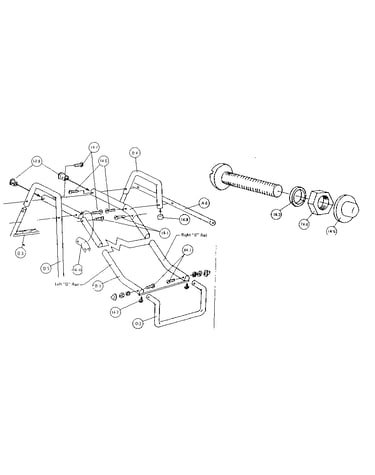

Slide assembly diagram

Sockette

Part #441-829

The manufacturer no longer makes this part, and there's no substitute part

Turn Bar 82006
#20

A - frame assembly diagram

Turn bar

Part #82006

The manufacturer no longer makes this part, and there's no substitute part

Leg 81004
#18

A - frame assembly diagram

Leg

Part #81004

The manufacturer no longer makes this part, and there's no substitute part

Support 82603
#14

Glide ride assembly diagram

Support

Part #82603

The manufacturer no longer makes this part, and there's no substitute part

Nylon Bush 417-310
#1

Glide ride assembly diagram

Nylon bush

Part #417-310

The manufacturer no longer makes this part, and there's no substitute part

Bolt 416-2740
#3

A - frame assembly diagram

Bolt

Part #416-2740

The manufacturer no longer makes this part, and there's no substitute part
