Model # S2009 Official Hoover stick vacuum electric broom

Here are the diagrams and repair parts for Official Hoover S2009 stick vacuum electric broom, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

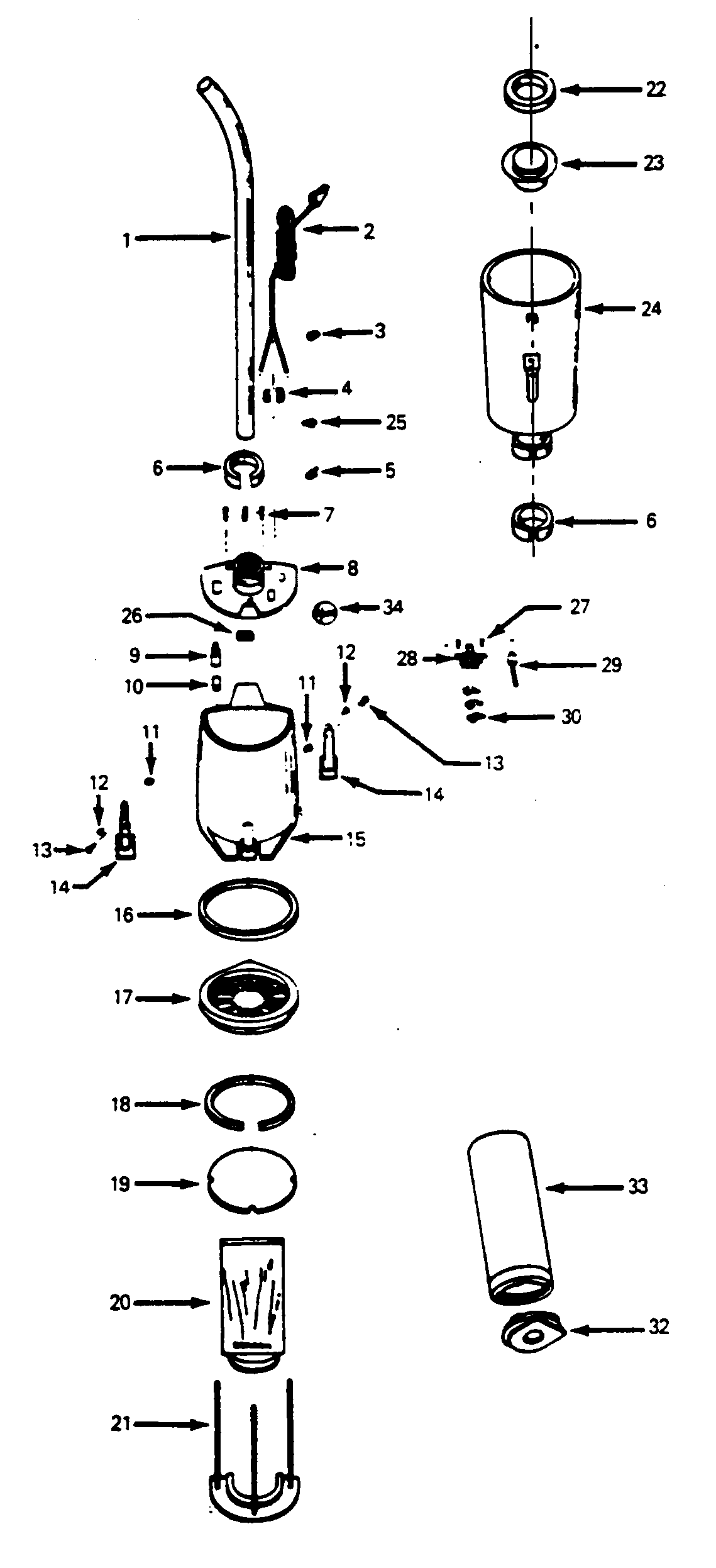

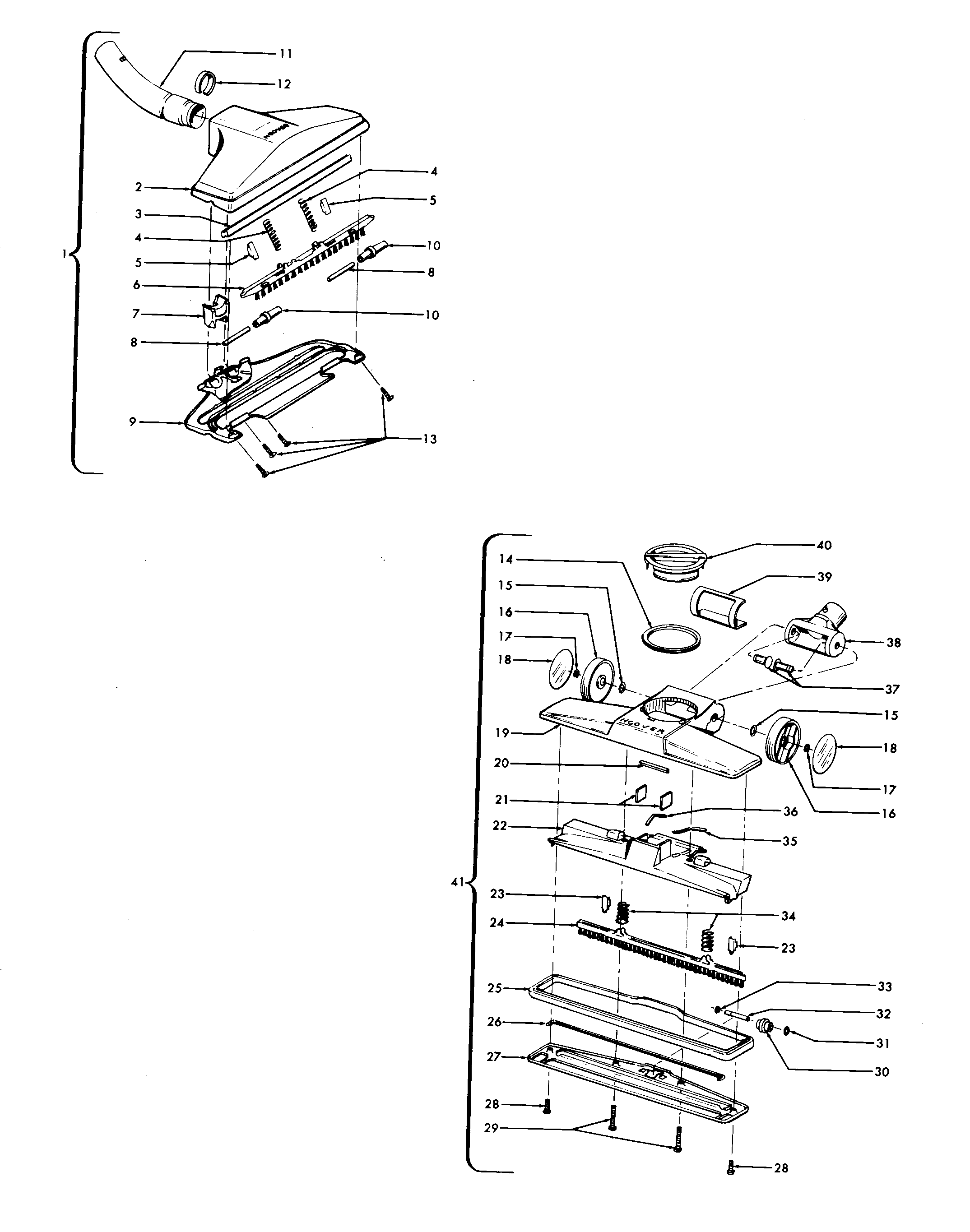

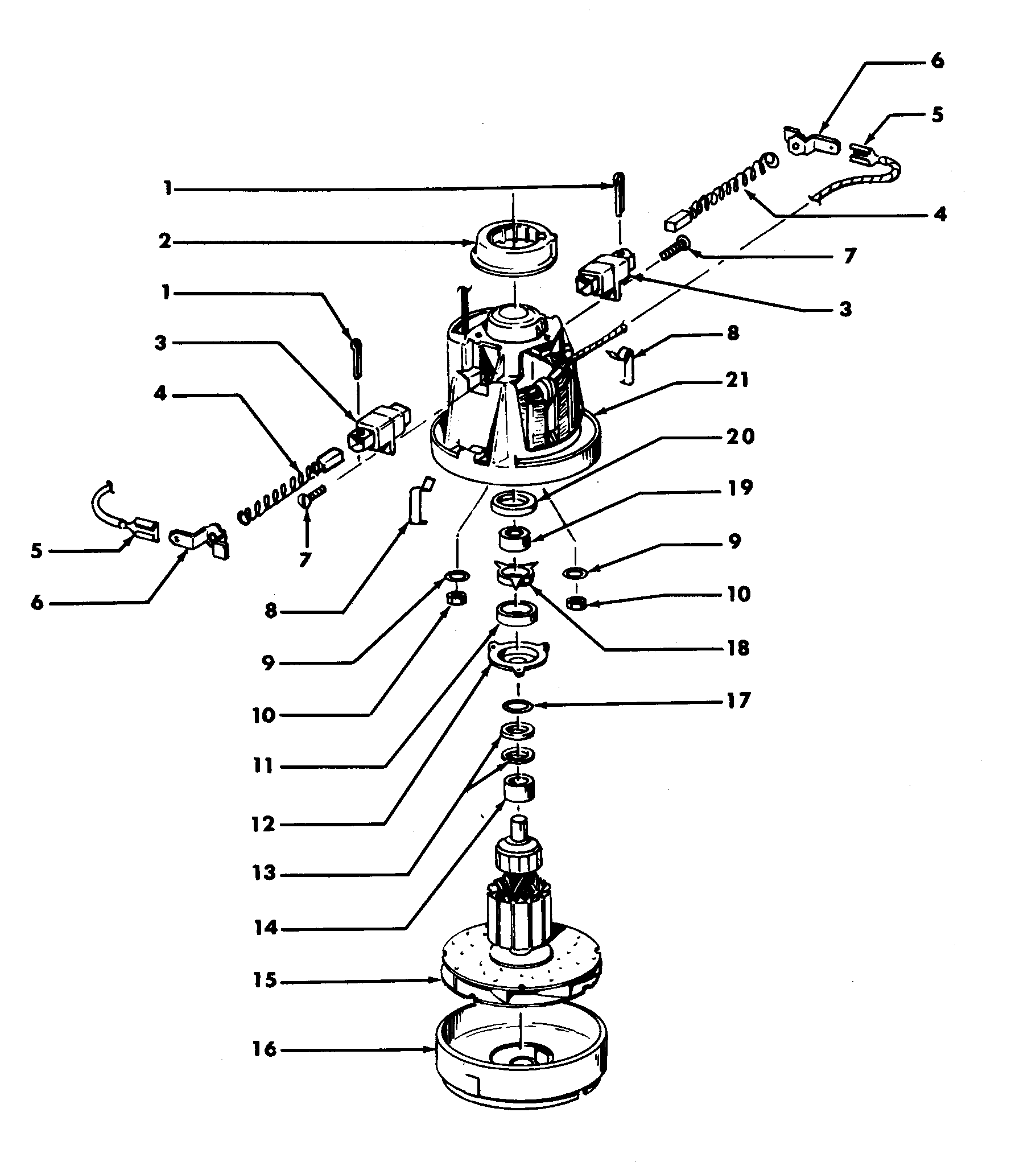

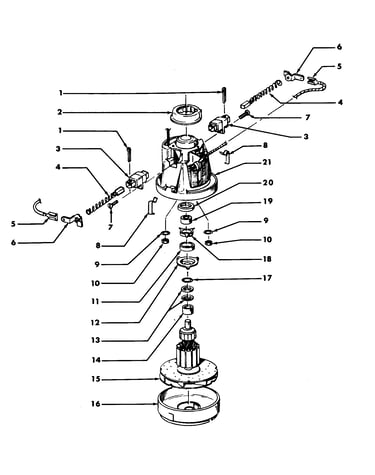

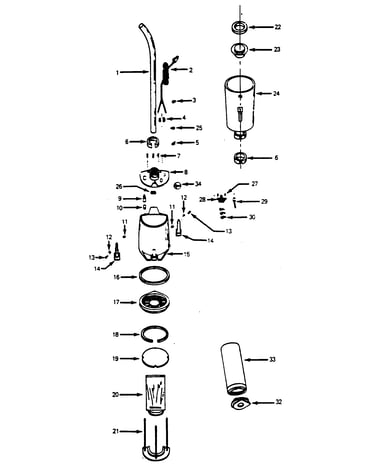

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Sleeve Hose 32156010
#56

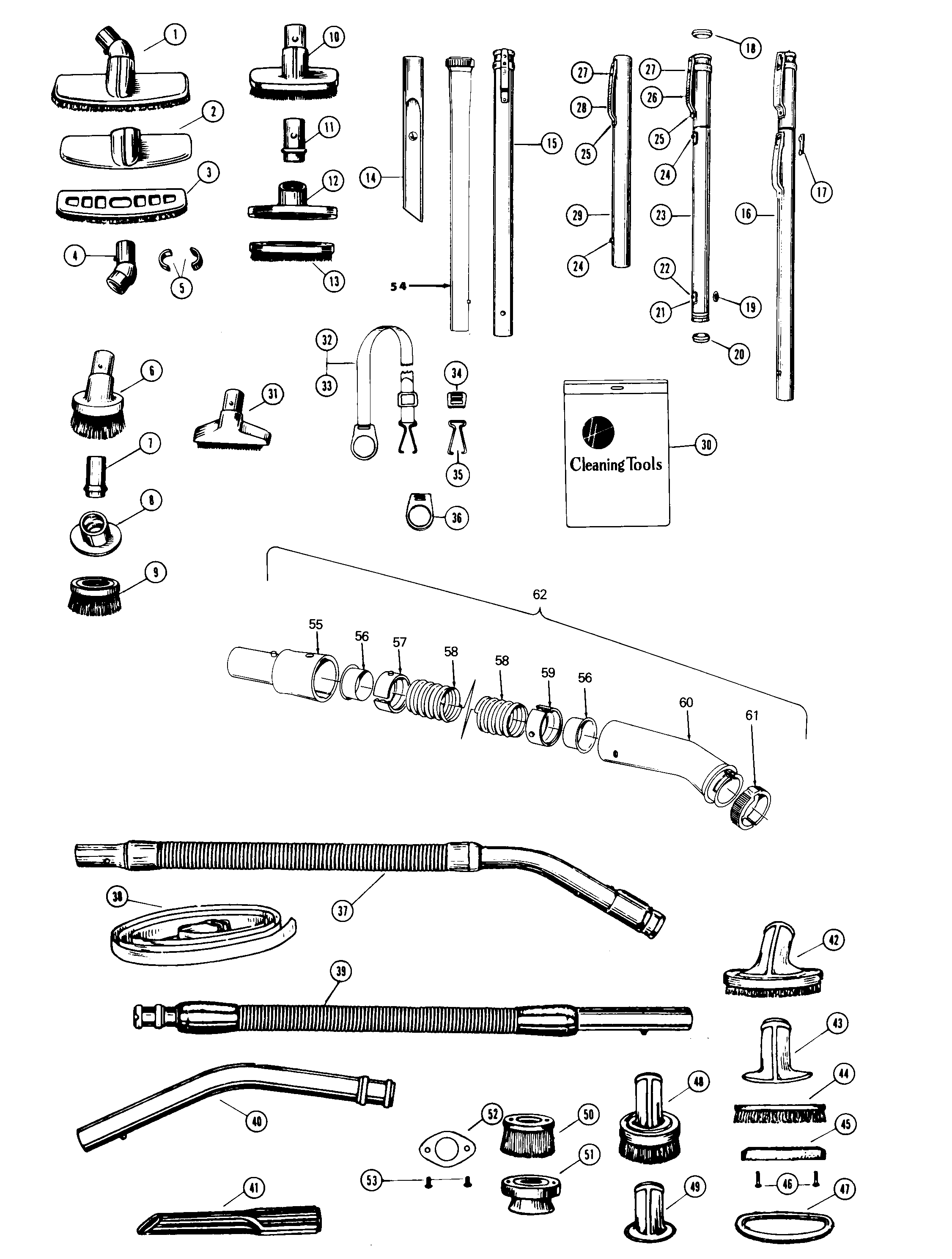

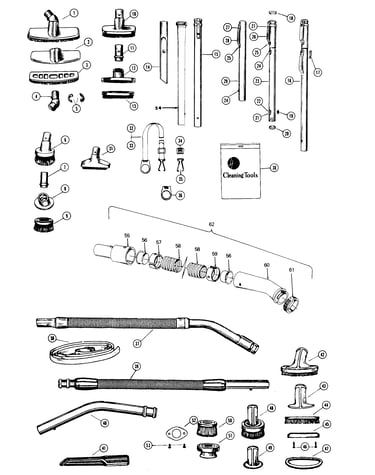

Hose, cleaningtools diagram

Sleeve hose

Part #32156010

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Grip Lock Ring 36153009
#61

Hose, cleaningtools diagram

Vacuum hose grip lock ring

Part #36153009

The manufacturer no longer makes this part, and there's no substitute part

Split Ring 33712007
#5A

Hose, cleaningtools diagram

Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Brush Attachment Swivel 38644020
#4A

Hose, cleaningtools diagram

Vacuum floor brush attachment swivel

Part #38644020

The manufacturer no longer makes this part, and there's no substitute part

Extension Tube 43453027
#15

Hose, cleaningtools diagram

Extension tube

Part #43453027

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Upholstery Nozzle 43414057
#31

Hose, cleaningtools diagram

Vacuum upholstery nozzle

Part #43414057

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 43414064
Vacuum dust brush

Part #43414064

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 38617018
#14

Hose, cleaningtools diagram

Crevice tool

Part #38617018

The manufacturer no longer makes this part, and there's no substitute part

Brush 161851JM
#6

Hose, cleaningtools diagram

Brush

Part #161851JM

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Brush 43414073
#1A

Hose, cleaningtools diagram

Vacuum floor brush

Part #43414073

The manufacturer no longer makes this part, and there's no substitute part
