GE
Countertop Microwave

Model # JE1240WW01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE1240WW01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

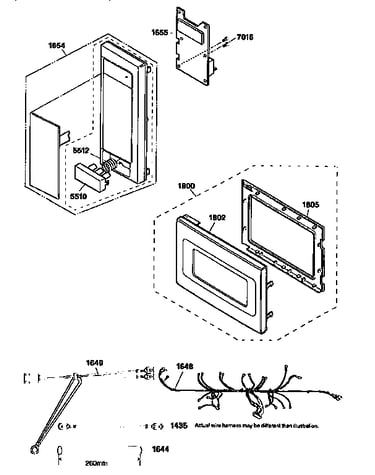

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Use/care Gui 49-8649

#*76121

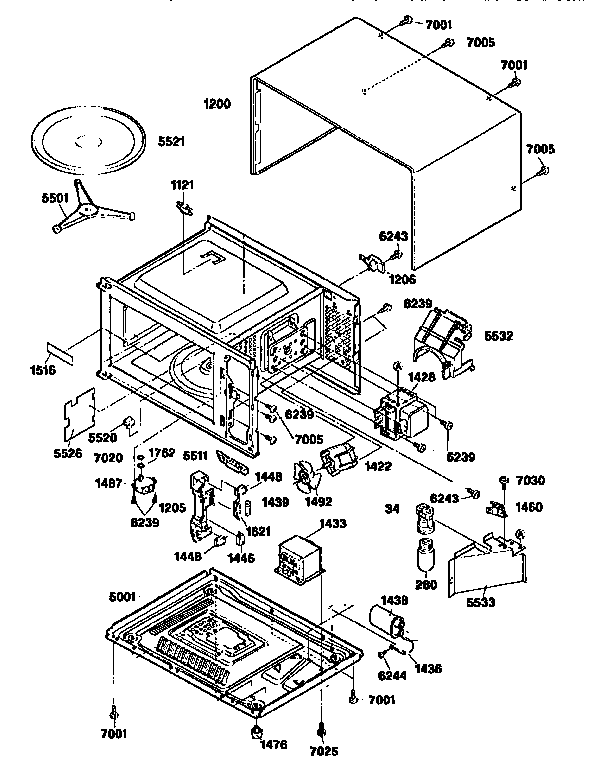

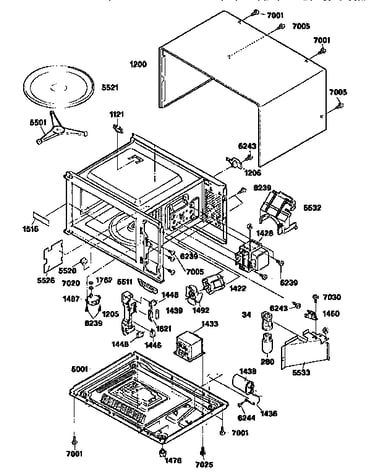

All parts diagram

Use/care gui

Part #49-8649

This item is not returnable
$2.99
In Stock
Power Cord WB18X0551

#1206

All parts diagram

Power cord

Part #WB18X0551

The manufacturer no longer makes this part, and there's no substitute part

Screw WB01X1247

#7005

All parts diagram

Screw

Part #WB01X1247

The manufacturer no longer makes this part, and there's no substitute part

Smartboard WB27X1050

#1655

All parts diagram

Smartboard

Part #WB27X1050

The manufacturer no longer makes this part, and there's no substitute part

Ttable Coupl WB06X0155

#5520

All parts diagram

Ttable coupl

Part #WB06X0155

The manufacturer no longer makes this part, and there's no substitute part

Tube WB18X0501

#1644

All parts diagram

Tube

Part #WB18X0501

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Support WB06X0160

#5501

All parts diagram

Microwave turntable support

Part #WB06X0160

The manufacturer no longer makes this part, and there's no substitute part

High-voltage Transformer WB27X1063

#1433

All parts diagram

High-voltage transformer

Part #WB27X1063

The manufacturer no longer makes this part, and there's no substitute part

Switch Harness WB18X0480

#1649

All parts diagram

Switch harness

Part #WB18X0480

The manufacturer no longer makes this part, and there's no substitute part

Tap Tght Scr WB01X1501

#6243

All parts diagram

Tap tght scr

Part #WB01X1501

The manufacturer no longer makes this part, and there's no substitute part
