Sharp R-2A97 microwave

Sharp R-2A97 microwave Parts

Here are the diagrams and repair parts for Sharp R-2A97 microwave, as well as links to manuals and error code tables, if available.

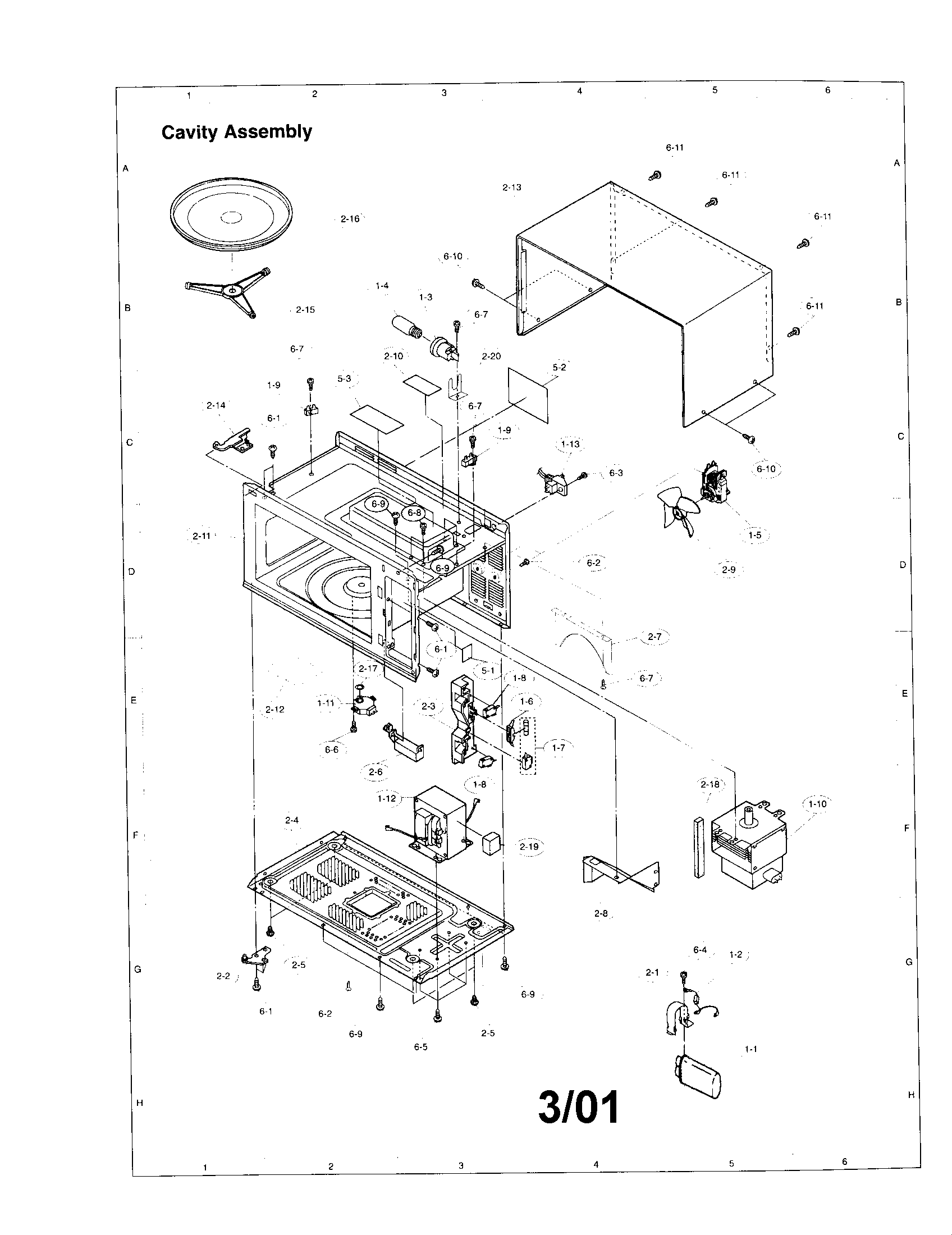

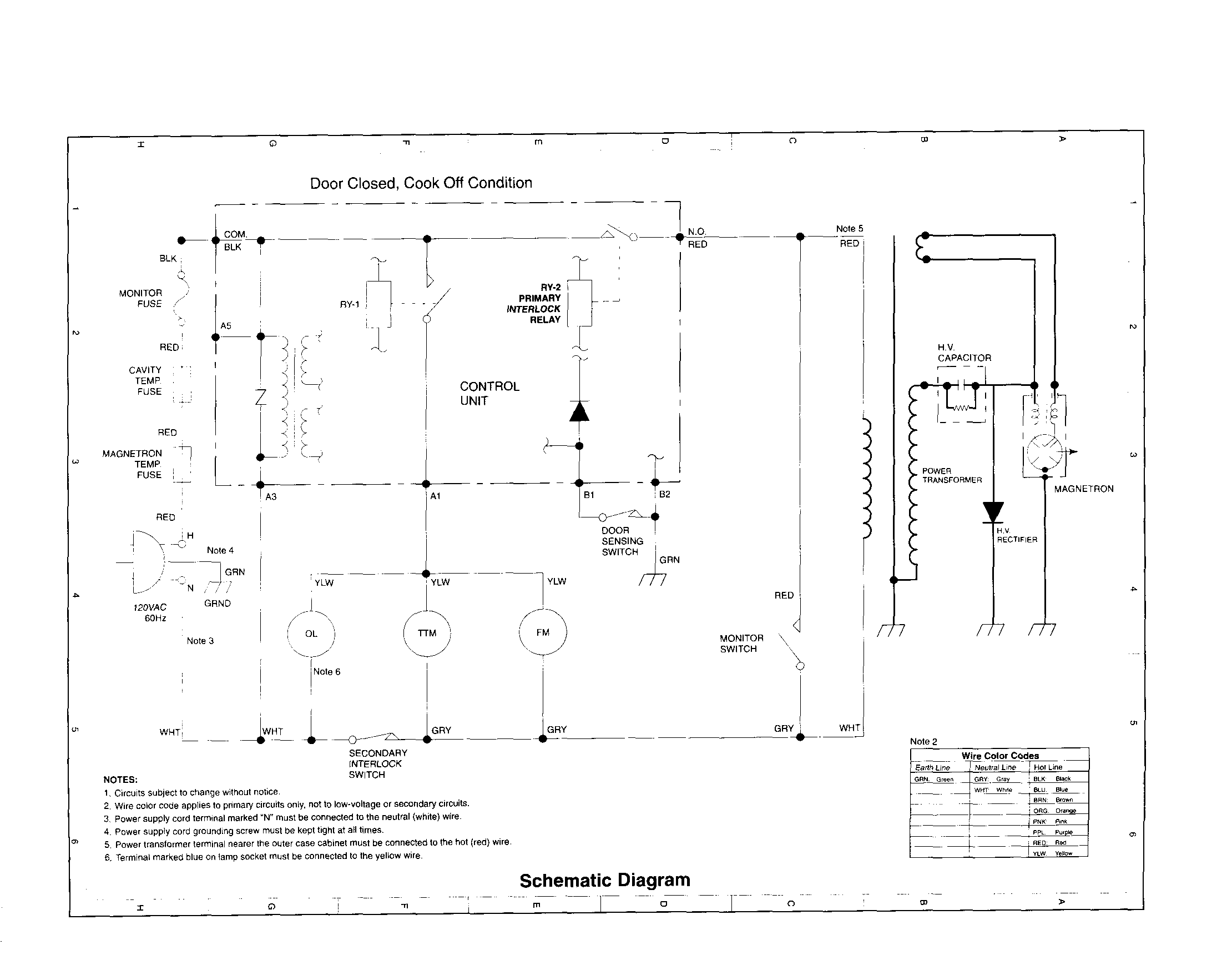

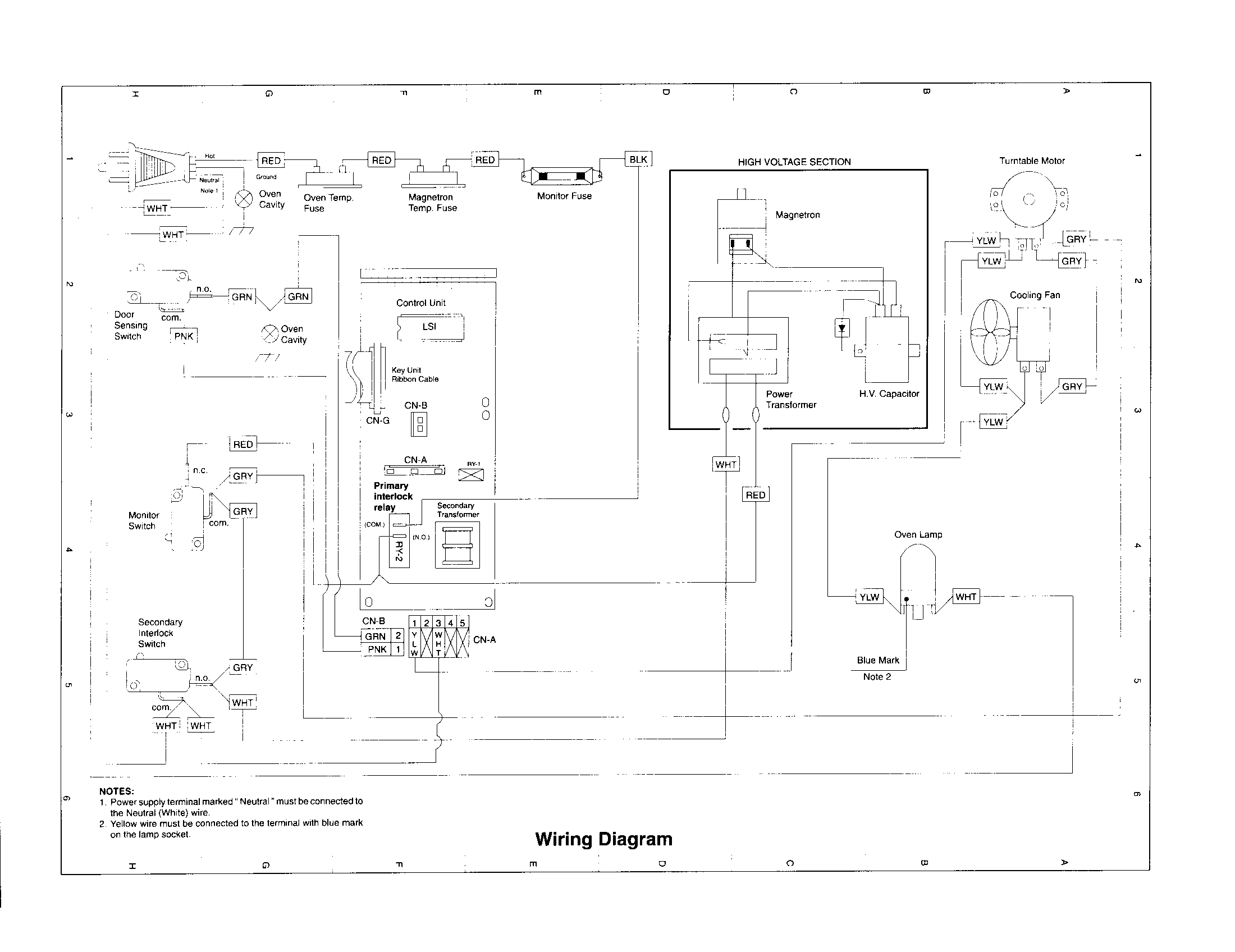

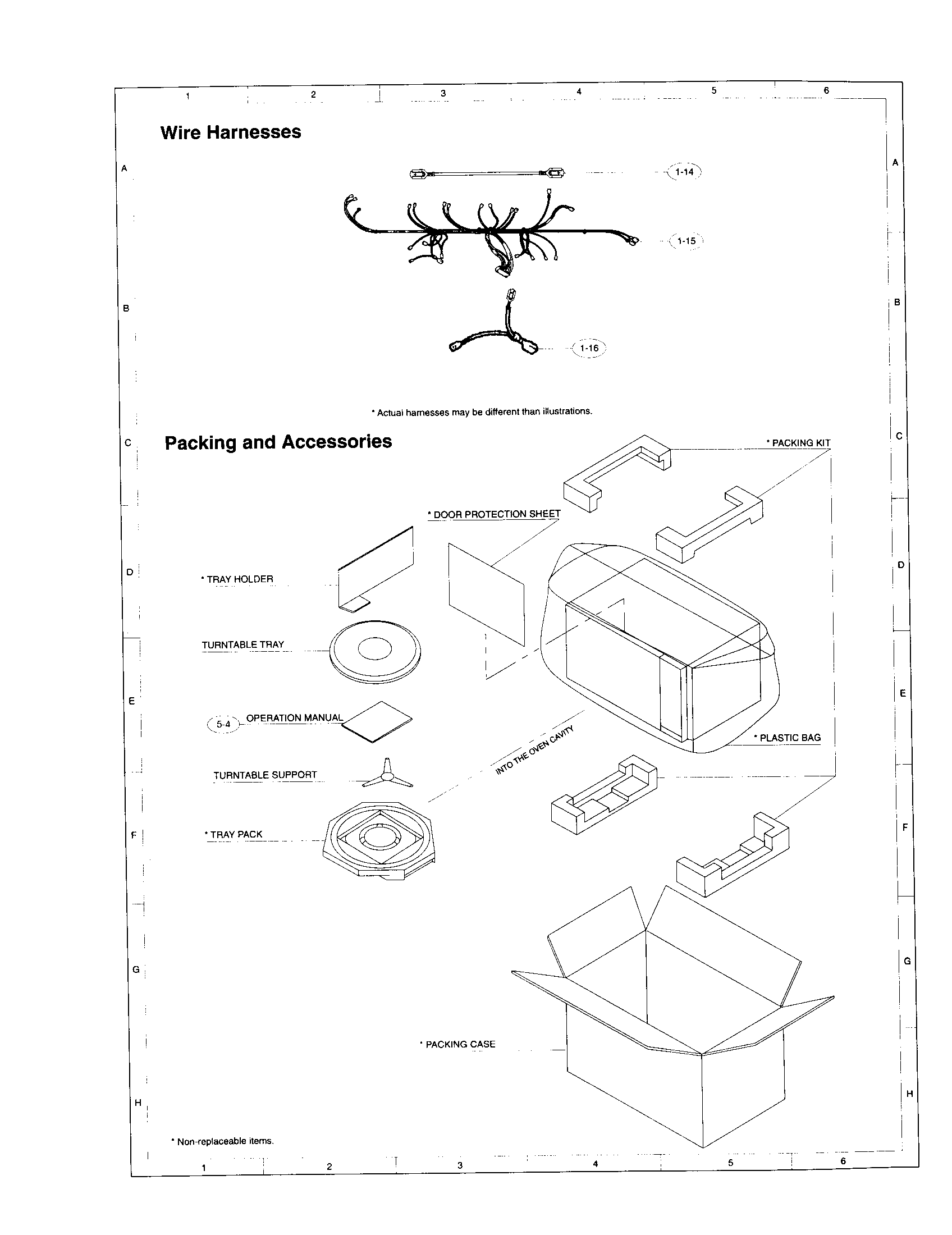

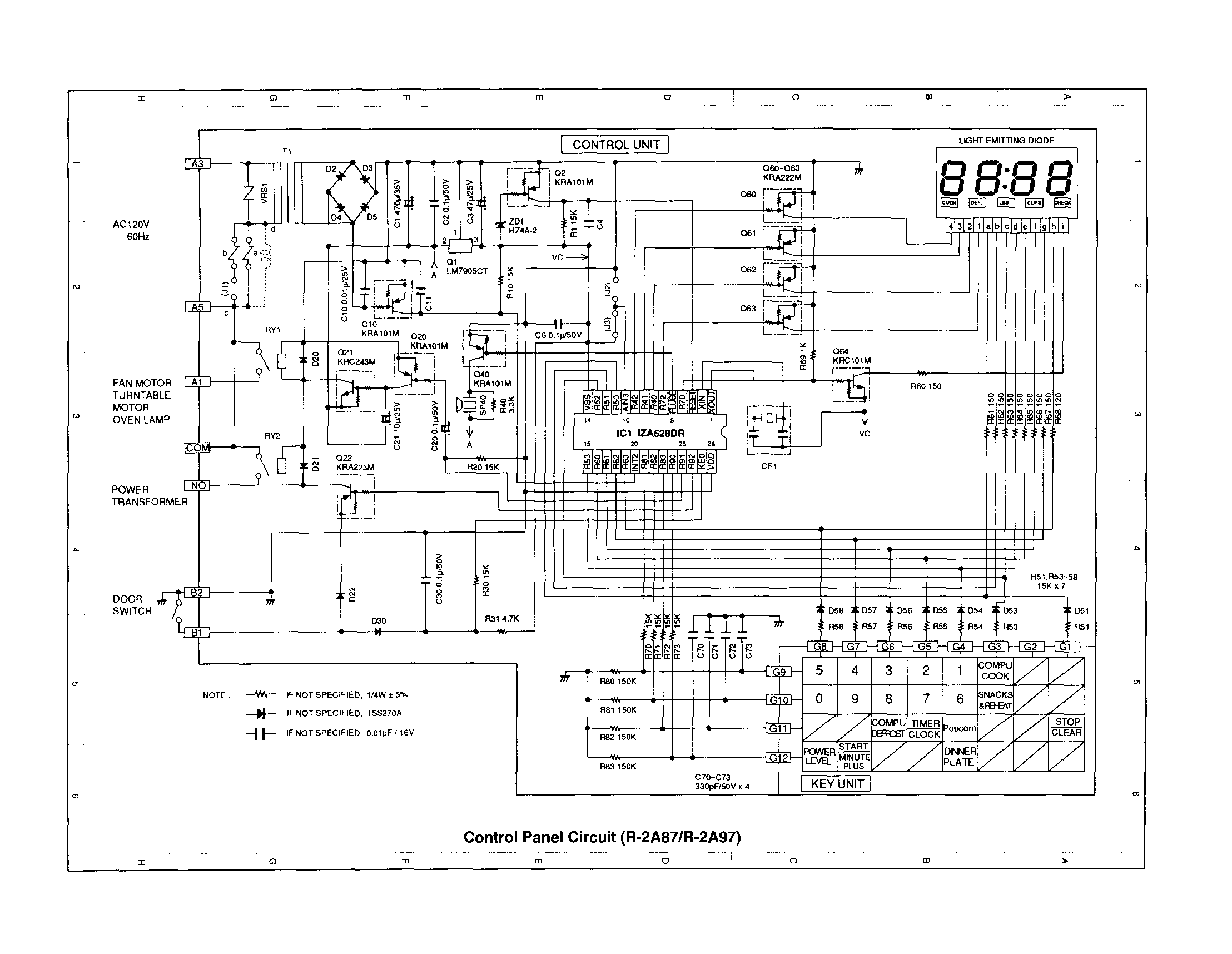

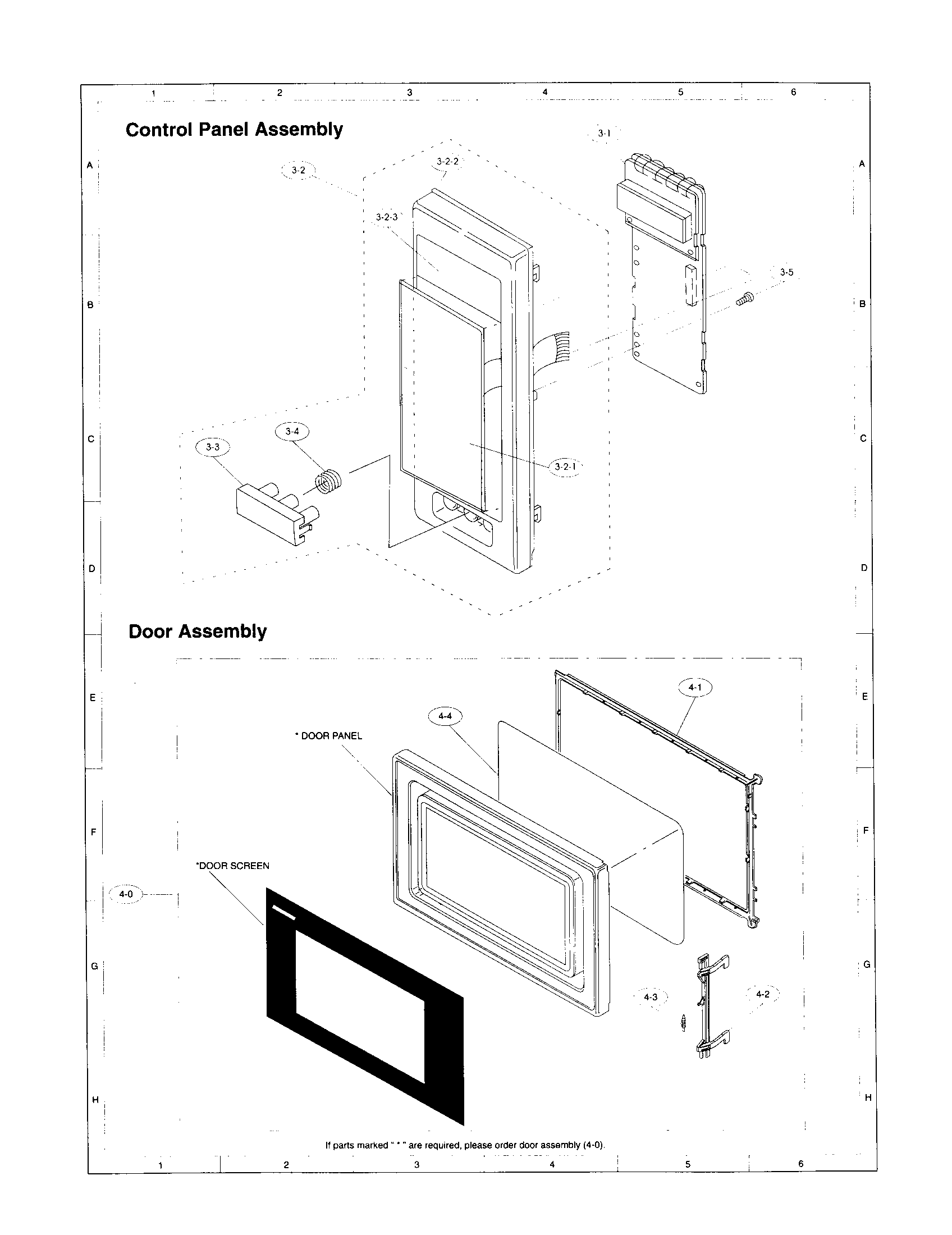

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for R-2A97 Microwaves

  • Cushion for Sharp R-2A97 - Part PPACGB005MRP0

    #2-19

    All parts diagram

    Cushion

    Part #PPACGB005MRP0

    The manufacturer no longer makes this part, and there's no substitute part

  • (c3,c7,c30) Capacitor 0.01uf 16v for Sharp R-2A97 - Part VCKYD11CY103N

    #NI

    All parts diagram

    (c3,c7,c30) Capacitor 0.01uf 16v

    Part #VCKYD11CY103N

    The manufacturer no longer makes this part, and there's no substitute part

  • (6-11) Screw; Latch Hook And Upper Oven Hinge Mtg for Sharp R-2A97 - Part LX-CZ0052WRE0

    #6-01

    All parts diagram

    (6-11) Screw; Latch Hook And Upper Oven Hinge Mtg

    Part #LX-CZ0052WRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Sharp R-2A97 - Part XOTSF40P12000

    #6-10

    All parts diagram

    Screw

    Part #XOTSF40P12000

    The manufacturer no longer makes this part, and there's no substitute part

  • (r31) Resistor 3.3k Ohm 1/4w for Sharp R-2A97 - Part VRD-B12EF332J

    #NI

    All parts diagram

    (r31) Resistor 3.3k Ohm 1/4w

    Part #VRD-B12EF332J

    The manufacturer no longer makes this part, and there's no substitute part

  • Diode for Sharp R-2A97 - Part VHD1SS270A/-1

    #NI

    All parts diagram

    Diode

    Part #VHD1SS270A/-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Microwave Cavity for Sharp R-2A97 - Part FOVN-B045MRT0

    #2-11

    All parts diagram

    Microwave Cavity

    Part #FOVN-B045MRT0

    The manufacturer no longer makes this part, and there's no substitute part

  • Magnetron Temperature Fuse (121? C) for Sharp R-2A97 - Part QFS-TB001MRE0

    #1-09

    All parts diagram

    Magnetron Temperature Fuse (121? C)

    Part #QFS-TB001MRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • T.t. Motor for Sharp R-2A97 - Part RMOTDA182/KIT

    #1-11

    All parts diagram

    T.t. Motor

    Part #RMOTDA182/KIT

    The manufacturer no longer makes this part, and there's no substitute part

  • Fuse Holder for Sharp R-2A97 - Part QFSHDB002MRE0

    #1-06

    All parts diagram

    Fuse Holder

    Part #QFSHDB002MRE0

    The manufacturer no longer makes this part, and there's no substitute part
