Model # 833796885 Official Craftsman 1-1/2-hp chipper/shredder

Here are the diagrams and repair parts for Official Craftsman 833796885 1-1/2-hp chipper/shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Self-locking Nut 745-9113P08
#3

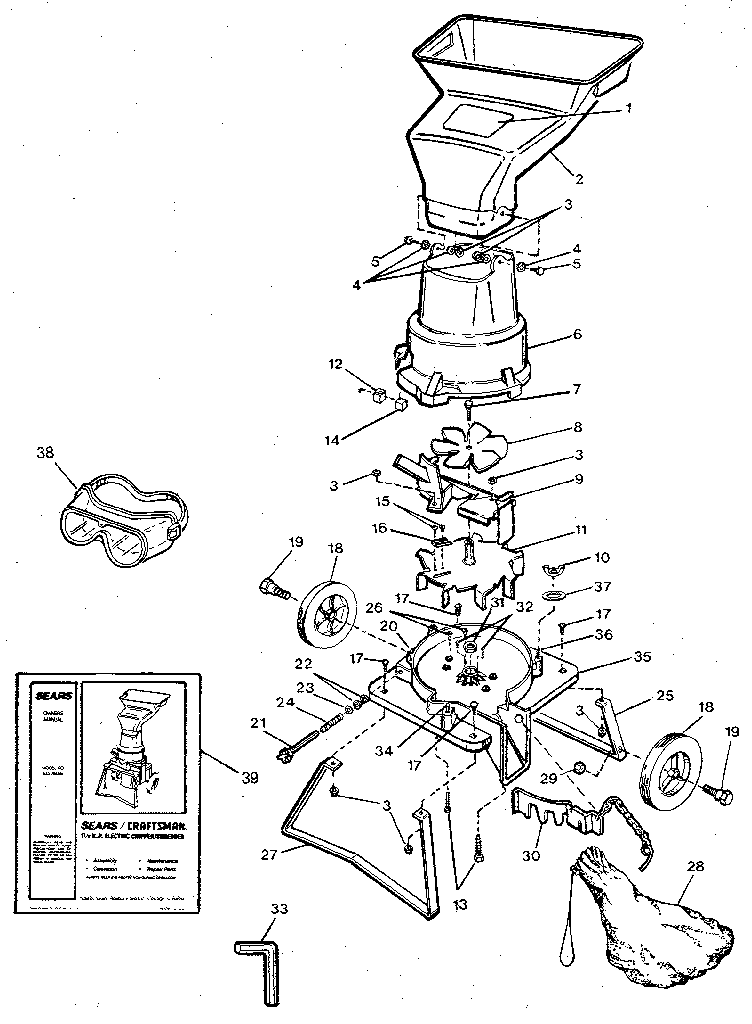

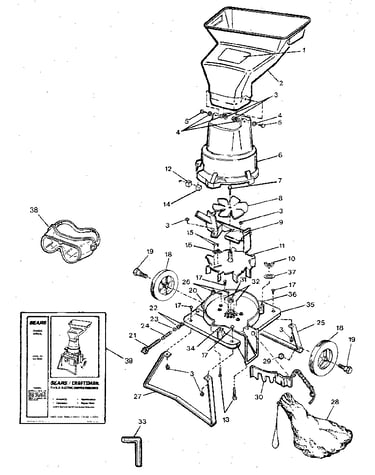

Replacement parts diagram

Self-locking nut

Part #745-9113P08

The manufacturer no longer makes this part, and there's no substitute part

Gear Box 354-1191
#8

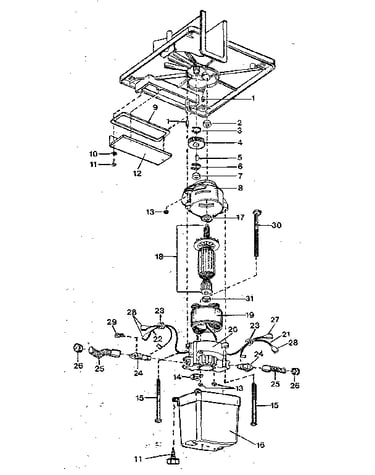

Motor assembly diagram

Gear box

Part #354-1191

The manufacturer no longer makes this part, and there's no substitute part

Terminal 786-8221
#28

Motor assembly diagram

Terminal

Part #786-8221

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 245-6279P03
#10

Motor assembly diagram

Lock washer

Part #245-6279P03

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 352-1137P1
#8

Replacement parts diagram

Fan blade

Part #352-1137P1

The manufacturer no longer makes this part, and there's no substitute part

Mgnt Bracket 352-1668
#12

Replacement parts diagram

Mgnt bracket

Part #352-1668

The manufacturer no longer makes this part, and there's no substitute part

Wire 305-1083
#2

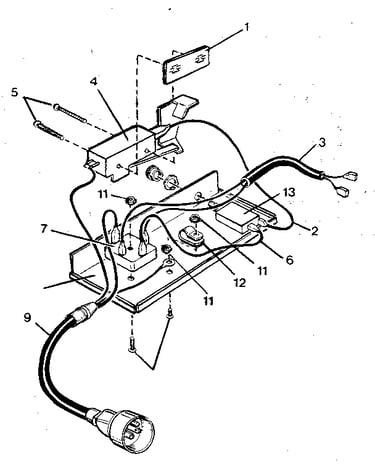

Electrical assembly diagram

Wire

Part #305-1083

The manufacturer no longer makes this part, and there's no substitute part

Screw 245-6224P34
#10

Electrical assembly diagram

Screw

Part #245-6224P34

The manufacturer no longer makes this part, and there's no substitute part

Bolt 745-8861P21
#5

Replacement parts diagram

Bolt

Part #745-8861P21

The manufacturer no longer makes this part, and there's no substitute part

Screw 745-8435
#29

Motor assembly diagram

Screw

Part #745-8435

The manufacturer no longer makes this part, and there's no substitute part
