Whirlpool MT9160XYQ1 microwave Parts

Here are the diagrams and repair parts for Whirlpool MT9160XYQ1 microwave, as well as links to manuals and error code tables, if available.

Whirlpool MT9160XYQ1 microwave
By Schematic
By Part

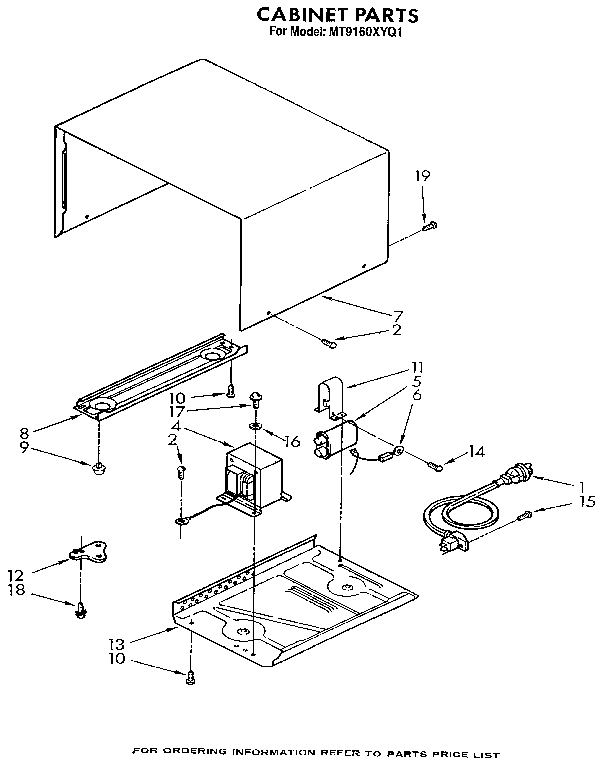

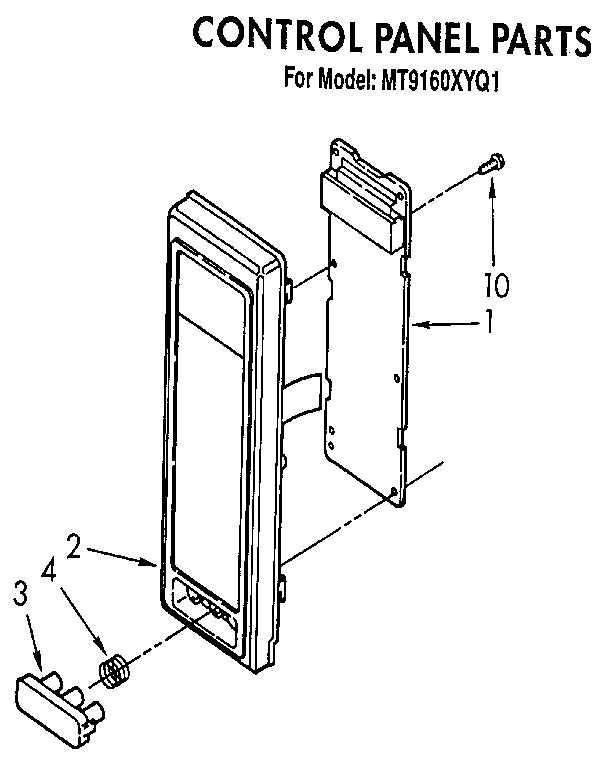

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MT9160XYQ1 Microwaves

  • Lamp Socket for Whirlpool MT9160XYQ1 - Part 4313607

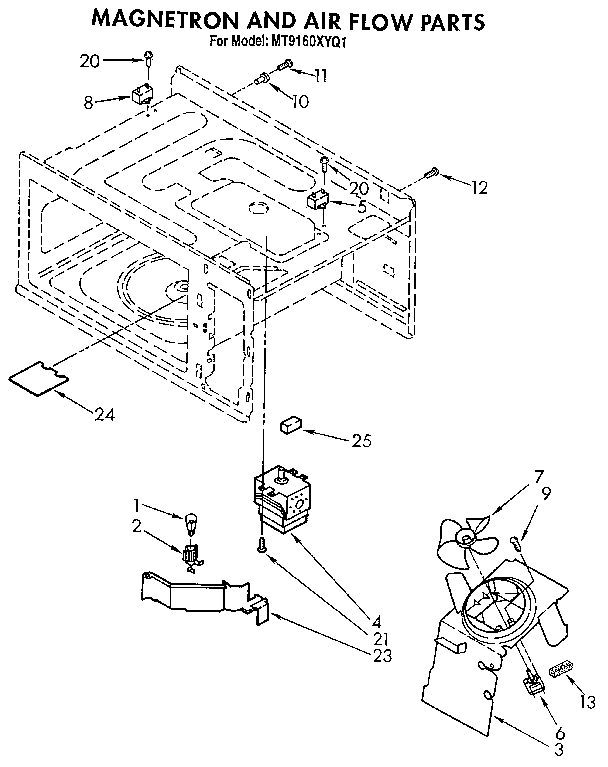

    Magnetron and air flow diagram

    Lamp Socket

    Part #4313607

    The manufacturer no longer makes this part, and there's no substitute part

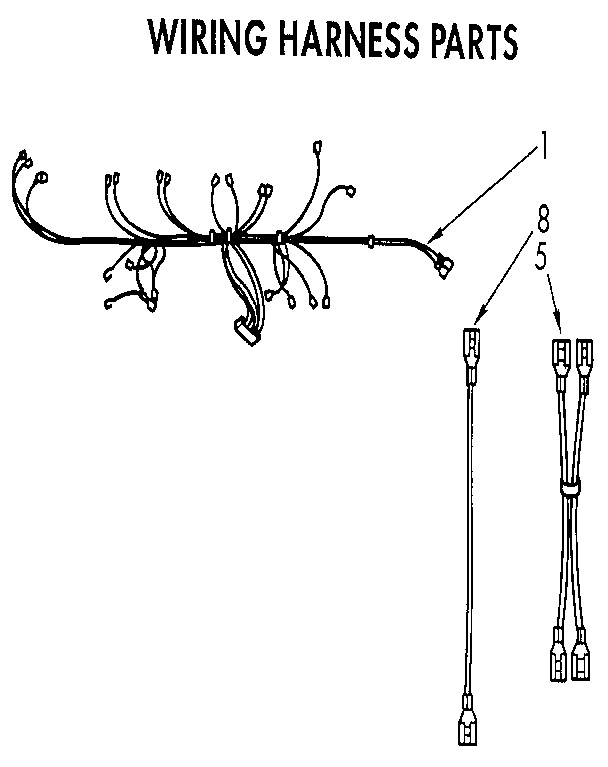

  • Wire (green) for Whirlpool MT9160XYQ1 - Part 242823

    #NI

    All parts diagram

    Wire (green)

    Part #242823

    The manufacturer no longer makes this part, and there's no substitute part

  • Lever Switch for Whirlpool MT9160XYQ1 - Part 4312877

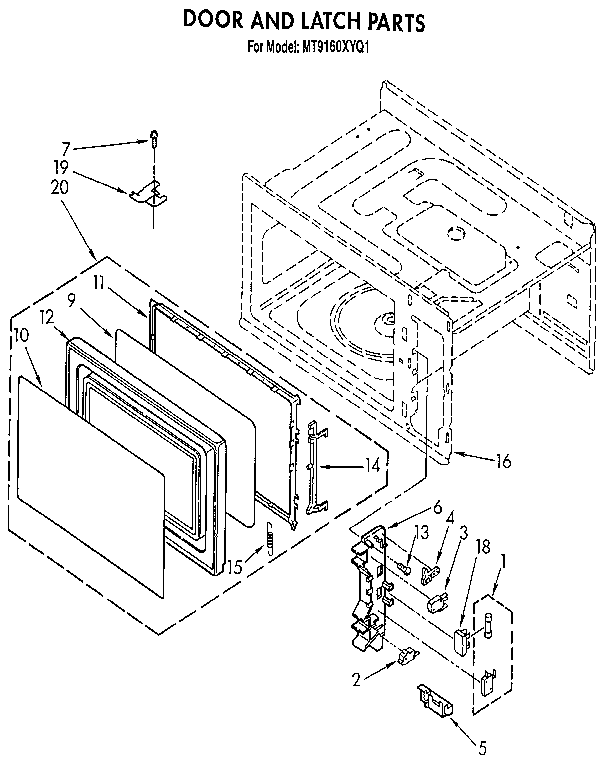

    Door and latch diagram

    Lever Switch

    Part #4312877

    The manufacturer no longer makes this part, and there's no substitute part

  • Glass Tray for Whirlpool MT9160XYQ1 - Part 4313690

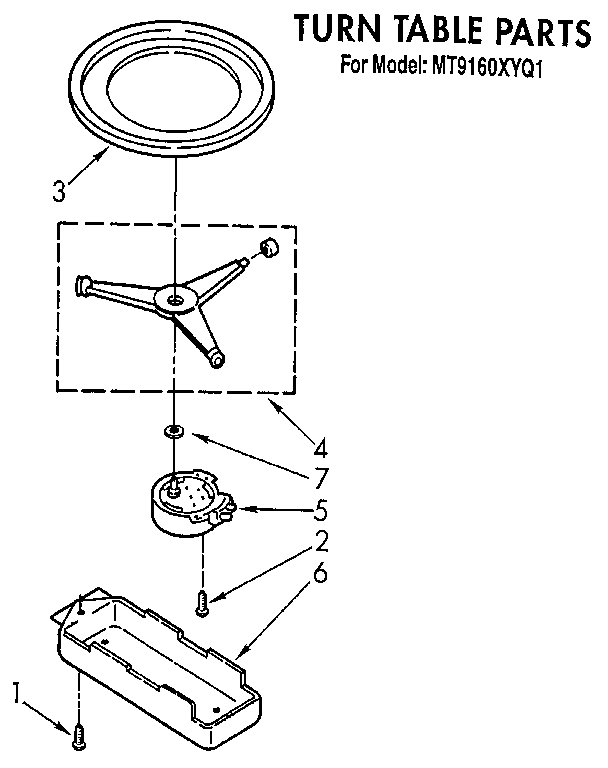

    Turn table diagram

    Glass Tray

    Part #4313690

    The manufacturer no longer makes this part, and there's no substitute part

  • Fan Motor for Whirlpool MT9160XYQ1 - Part 4313672

    Magnetron and air flow diagram

    Fan Motor

    Part #4313672

    The manufacturer no longer makes this part, and there's no substitute part

  • Trm-b/i Bl for Whirlpool MT9160XYQ1 - Part 4319163

    #NI

    All parts diagram

    Trm-b/i Bl

    Part #4319163

    The manufacturer no longer makes this part, and there's no substitute part

  • Shaft for Whirlpool MT9160XYQ1 - Part 4365526

    Turn table diagram

    Shaft

    Part #4365526

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Whirlpool MT9160XYQ1 - Part 4174826

    Magnetron and air flow diagram

    Screw

    Part #4174826

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire (orange) for Whirlpool MT9160XYQ1 - Part 242824

    #NI

    All parts diagram

    Wire (orange)

    Part #242824

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Whirlpool MT9160XYQ1 - Part 4174757

    Turn table diagram

    Screw

    Part #4174757

    The manufacturer no longer makes this part, and there's no substitute part
