Kenmore
Faucet Water Filter

Model # 625349301 Official Kenmore automatic clarifying tank filter

Here are the diagrams and repair parts for Official Kenmore 625349301 automatic clarifying tank filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Clip 1205500
#14

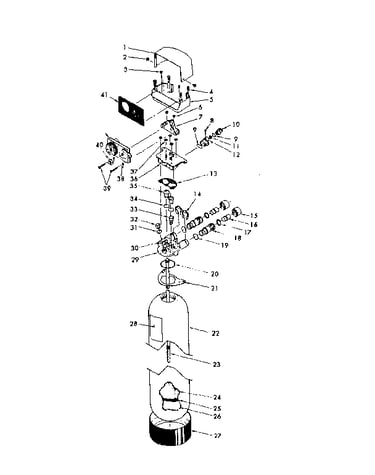

Tank assembly diagram

Clip

Part #1205500

Replaced by #7116713

?
Manufacturer substitution
This part replaces 1205500. Substitute parts can look different from the original.
BEST SELLER
$21.77 |
19% OFF Phone Price : $26.77
In Stock
Gravel 501782
#26

Tank assembly diagram

Gravel

Part #501782

Replaced by #7124415

?
Manufacturer substitution
This part replaces 501782. Substitute parts can look different from the original.
$27.79 |
15% OFF Phone Price : $32.79
In Stock
Washer 900570
#17

Tank assembly diagram

Washer

Part #900570

Replaced by #7170335

?
Manufacturer substitution
This part replaces 900570. Substitute parts can look different from the original.
This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Water Filtration System Filtering Sand, 10-lb 501783
#25

Tank assembly diagram

Water filtration system filtering sand, 10-lb

Part #501783

Replaced by #0501783

?
Manufacturer substitution
This part replaces 501783. Substitute parts can look different from the original.
$30.59 |
14% OFF Phone Price : $35.59
In Stock
Tank Filter Sand, 1-cu Ft 505647
#24

Tank assembly diagram

Tank filter sand, 1-cu ft

Part #505647

Replaced by #0505647

?
Manufacturer substitution
This part replaces 505647. Substitute parts can look different from the original.
$83.39 |
6% OFF Phone Price : $88.39
In Stock
Bearing 7011434
#47

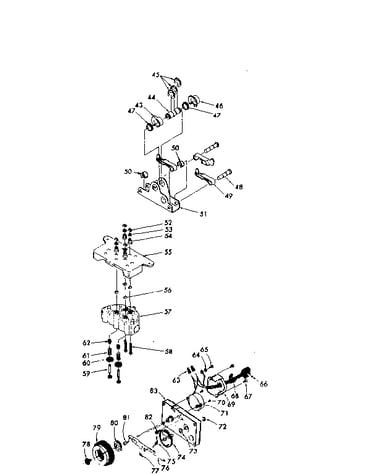

Cam nest/valve cap/timer assembly diagram

Bearing

Part #7011434

This item is not returnable
$2.99
In Stock
Push Arm 1230500
#76

Cam nest/valve cap/timer assembly diagram

Push arm

Part #1230500

$8.99
In Stock
Valve Cap 4021103
#57

Cam nest/valve cap/timer assembly diagram

Valve cap

Part #4021103

$74.99
In Stock
Bushing 503287
#73

Cam nest/valve cap/timer assembly diagram

Bushing

Part #503287

This item is not returnable
$2.99
In Stock
Strai Relief 9029800
#68

Cam nest/valve cap/timer assembly diagram

Strai relief

Part #9029800

This item is not returnable
$2.29
In Stock
