Model # ASYW12URDWD1 Official GE room a/c

Here are the diagrams and repair parts for Official GE ASYW12URDWD1 room a/c, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

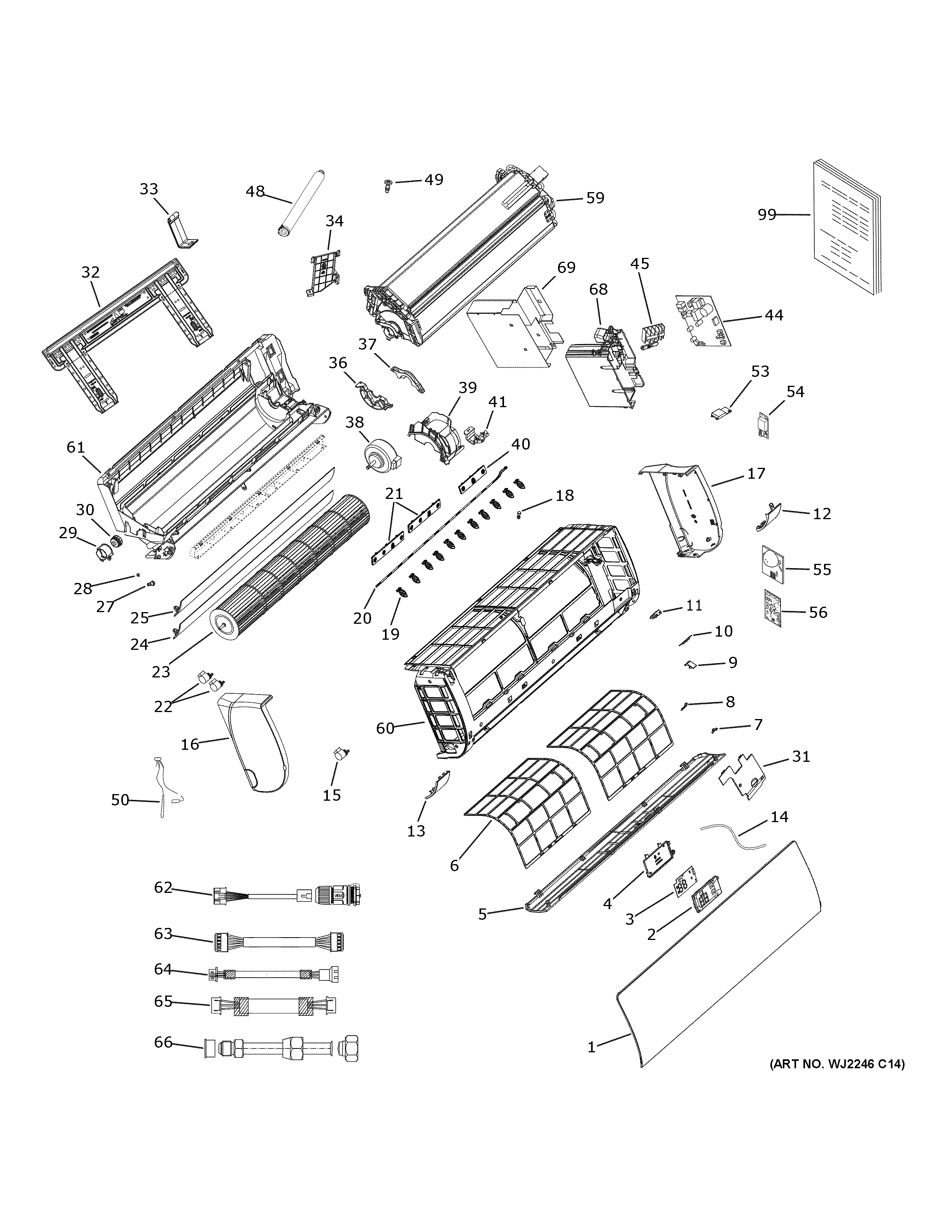

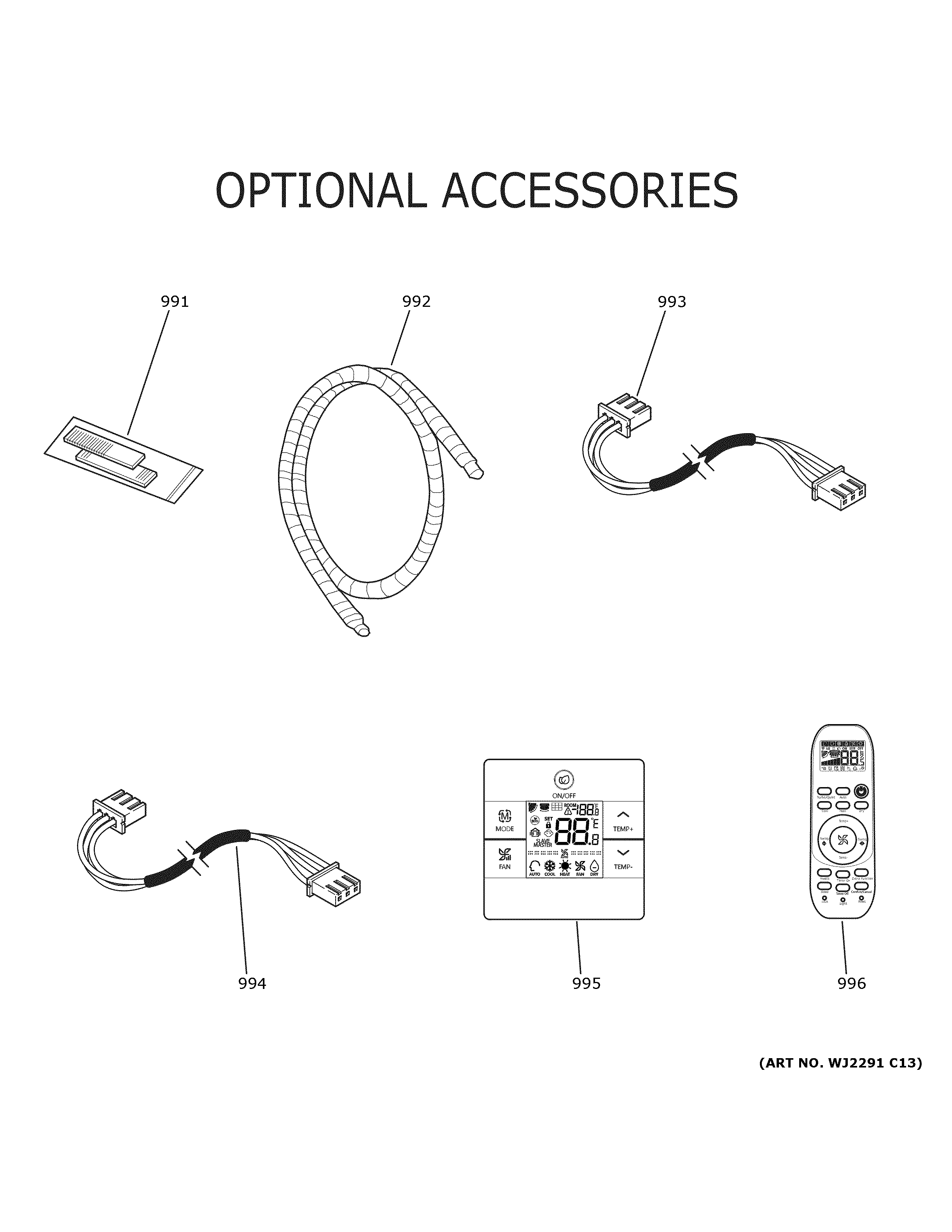

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Cross Flow Fan Bearing WJ73X23028
Cross flow fan bearing

Part #WJ73X23028

$10.42 |
16% OFF Phone Price : $12.42
In Stock
Controller Abc Cable 15ft. WJ01X23923
Controller abc cable 15ft.

Part #WJ01X23923

$15.54 |
11% OFF Phone Price : $17.54
In Stock
Wifi Module Cover WJ76X26434
Wifi module cover

Part #WJ76X26434

$8.26
In Stock
Left Cover WJ76X26413
Left cover

Part #WJ76X26413

$8.26
In Stock
Connecting Rod WJ01X26421
Connecting rod

Part #WJ01X26421

$8.26
In Stock
Indoor Fan Motor WJ94X23249
Indoor fan motor

Part #WJ94X23249

$116.42
In Stock
Motor Bracket Bottom WJ65X26400
Motor bracket bottom

Part #WJ65X26400

$8.26
In Stock
Drain Pipe WJ53X23256
Drain pipe

Part #WJ53X23256

$12.52 |
14% OFF Phone Price : $14.52
In Stock
Cross Flow Fan Bearing Cover WJ73X23050
Cross flow fan bearing cover

Part #WJ73X23050

$7.86
In Stock
Right End Panel WJ71X26417
Right end panel

Part #WJ71X26417

$14.20
In Stock
