Kenmore
Gas Grill

Model # 91655201 Official Kenmore wagon grill with oven

Here are the diagrams and repair parts for Official Kenmore 91655201 wagon grill with oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

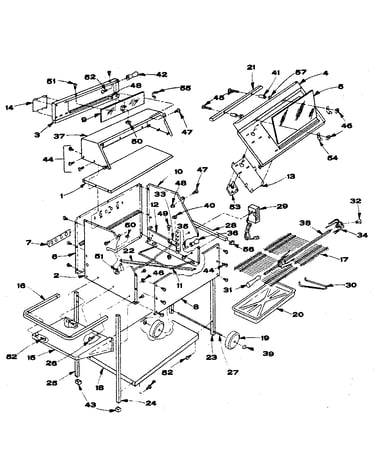

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Screw 10284
#52

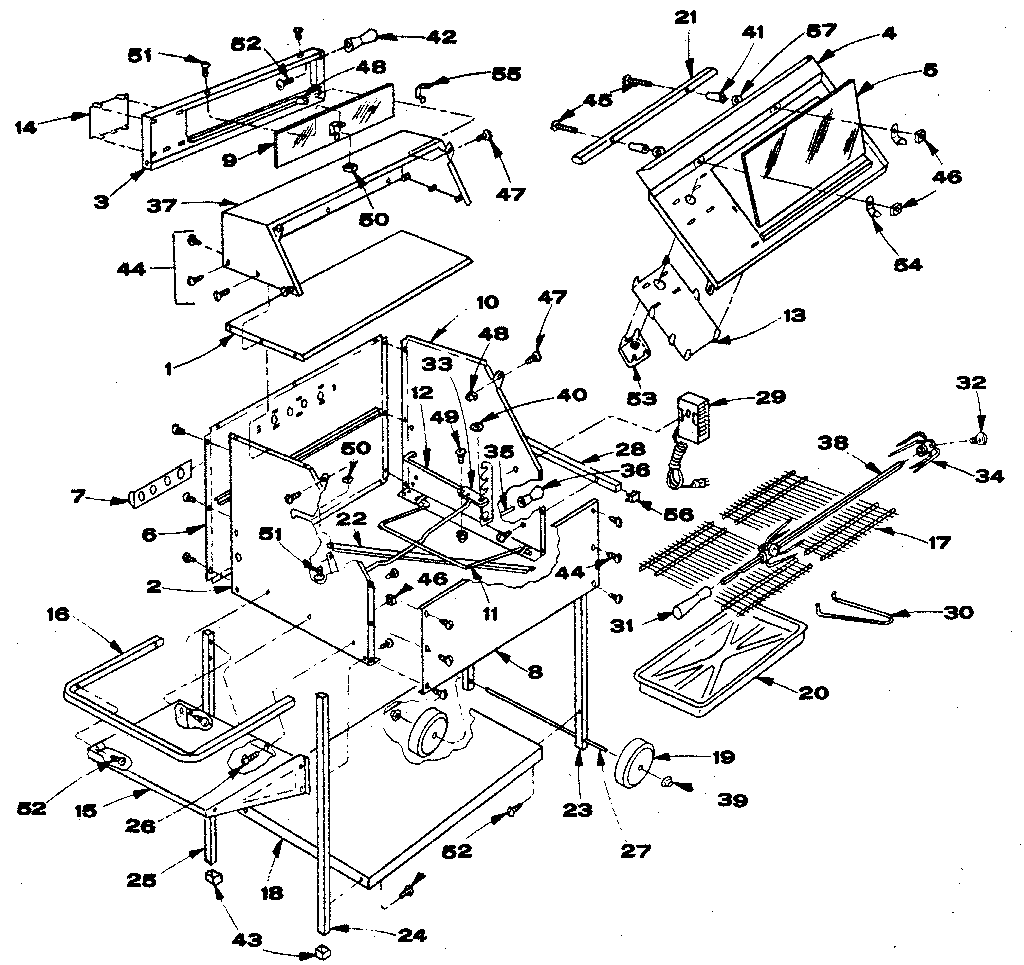

Replacement parts diagram

Screw

Part #10284

The manufacturer no longer makes this part, and there's no substitute part

Front Panel 3714601
#8

Replacement parts diagram

Front panel

Part #3714601

The manufacturer no longer makes this part, and there's no substitute part

Handle 10313
#42

Replacement parts diagram

Handle

Part #10313

The manufacturer no longer makes this part, and there's no substitute part

Small Panel 37463
#14

Replacement parts diagram

Small panel

Part #37463

The manufacturer no longer makes this part, and there's no substitute part

Vent Slide 37735
#7

Replacement parts diagram

Vent slide

Part #37735

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 10278
#48

Replacement parts diagram

Lock nut

Part #10278

The manufacturer no longer makes this part, and there's no substitute part

Axle 47037
#27

Replacement parts diagram

Axle

Part #47037

The manufacturer no longer makes this part, and there's no substitute part

Nut 10027
#46

Replacement parts diagram

Nut

Part #10027

The manufacturer no longer makes this part, and there's no substitute part

Glass 10321
#9

Replacement parts diagram

Glass

Part #10321

The manufacturer no longer makes this part, and there's no substitute part

Hndl Ferrule 10218
#41

Replacement parts diagram

Hndl ferrule

Part #10218

The manufacturer no longer makes this part, and there's no substitute part
