Model # NDGM125EKA1 Official ICP furnace

Here are the diagrams and repair parts for Official ICP NDGM125EKA1 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Trans 40 Va 1008782
#57

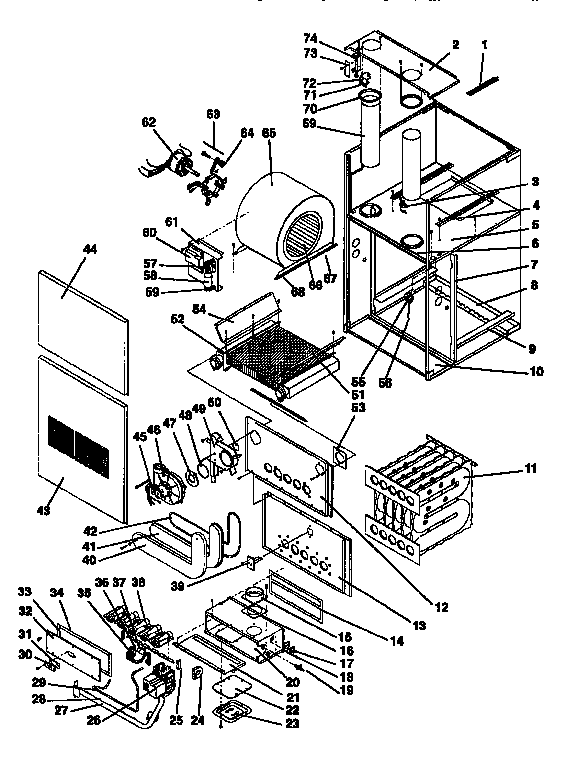

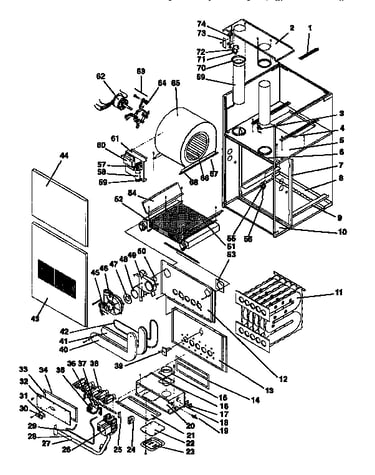

Unit parts diagram

Trans 40 va

Part #1008782

The manufacturer no longer makes this part, and there's no substitute part

Cap Rnrd 1094956
#58

Unit parts diagram

Cap rnrd

Part #1094956

Replaced by #12908

?
Manufacturer substitution
This part replaces 1094956. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Cont Fan Tmr 1009838
#60

Unit parts diagram

Cont fan tmr

Part #1009838

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1009838. Substitute parts can look different from the original.
$220.46 |
$10.00 OFF Phone Price : $230.46
In Stock
Valve Lp Svm 1009090
#26A

Unit parts diagram

Valve lp svm

Part #1009090

Replaced by #1170430

?
Manufacturer substitution
This part replaces 1009090. Substitute parts can look different from the original.
$674.90 |
$10.00 OFF Phone Price : $684.90
In Stock
Limit Switch 1005549
#17

Unit parts diagram

Limit switch

Part #1005549

Replaced by #1013102

?
Manufacturer substitution
This part replaces 1005549. Substitute parts can look different from the original.
$15.62 |
11% OFF Phone Price : $17.62
In Stock
Tubing 64930
#29

Unit parts diagram

Tubing

Part #64930

$77.80
In Stock
Blower Wheel 1009147
#66

Unit parts diagram

Blower wheel

Part #1009147

Replaced by #1011420

?
Manufacturer substitution
This part replaces 1009147. Substitute parts can look different from the original.
$160.43 |
6% OFF Phone Price : $170.43
In Stock
Valve Nat Sv 1009089
#26

Unit parts diagram

Valve nat sv

Part #1009089

Replaced by #1170429

?
Manufacturer substitution
This part replaces 1009089. Substitute parts can look different from the original.
$765.63
In Stock
Burner Plt/i 1008973

#NI

All parts diagram

Burner plt/i

Part #1008973

Replaced by #1149944

?
Manufacturer substitution
This part replaces 1008973. Substitute parts can look different from the original.
$118.36 |
8% OFF Phone Price : $128.36
In Stock
Gskt Viewpor 1093666
#31

Unit parts diagram

Gskt viewpor

Part #1093666

This item is not returnable
$6.20
In Stock
