Craftsman 536816701 18" power reel lawn mower Parts
Here are the diagrams and repair parts for Craftsman 536816701 18" power reel lawn mower, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 536816701 18" Power Reel Lawn Mower

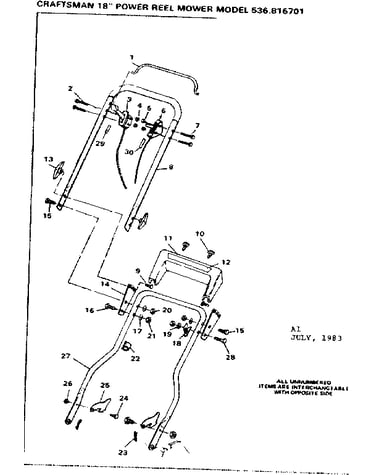

Handle assembly diagram
Lock Nut
Part #9424215Replaced by #703251
Manufacturer substitutionThis part replaces 9424215. Substitute parts can look different from the original.In Stock$9.54
Qty

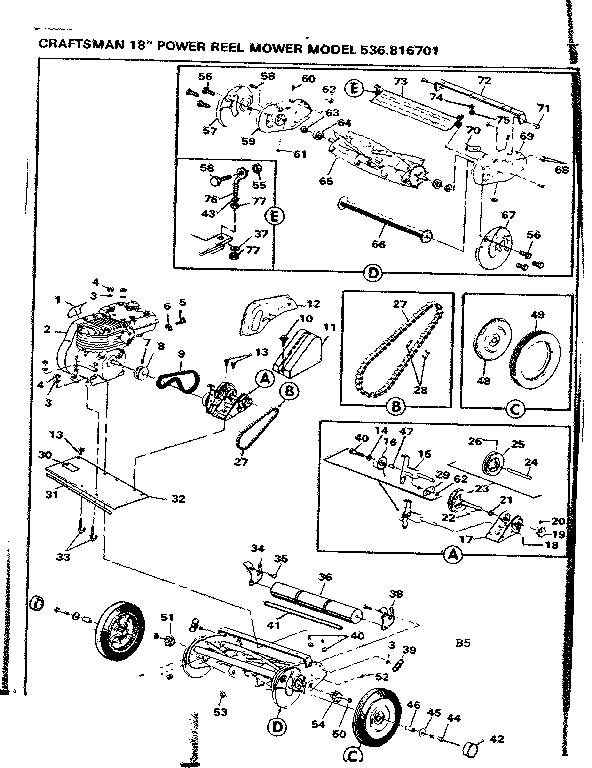

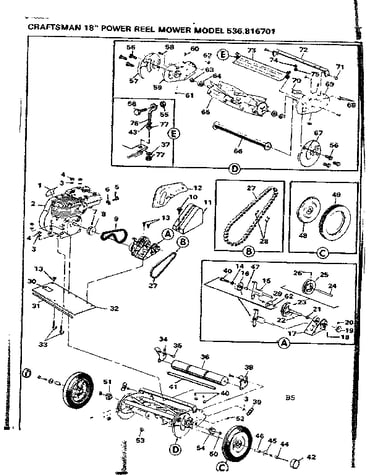

Reel assembly diagram
Screw
Part #35498Replaced by #782967MA
Manufacturer substitutionThis part replaces 35498. Substitute parts can look different from the original.In Stock$8.26QtyReel assembly diagram
Washer
Part #120386Replaced by #STD551025
Manufacturer substitutionThis part replaces 120386. Substitute parts can look different from the original.In Stock$36.61QtyHandle assembly diagram
Washer
Part #8728Replaced by #783000MA
Manufacturer substitutionThis part replaces 8728. Substitute parts can look different from the original.In Stock$9.91QtyReel assembly diagram
Wheel Nut
Part #53562
The manufacturer no longer makes this part, and there's no substitute part
Reel assembly diagram
Shield
Part #23623
The manufacturer no longer makes this part, and there's no substitute part
Handle assembly diagram
Decal
Part #69322
The manufacturer no longer makes this part, and there's no substitute part
Reel assembly diagram
Head Screw Rod
Part #35258
The manufacturer no longer makes this part, and there's no substitute part
Reel assembly diagram
Scraper Sprocket
Part #25164
The manufacturer no longer makes this part, and there's no substitute part
Reel assembly diagram
V-belt
Part #383
The manufacturer no longer makes this part, and there's no substitute part
