Porter Cable
Power Sander

Model # 8505 Official Porter Cable sander

Here are the diagrams and repair parts for Official Porter Cable 8505 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Screw 878813
#101

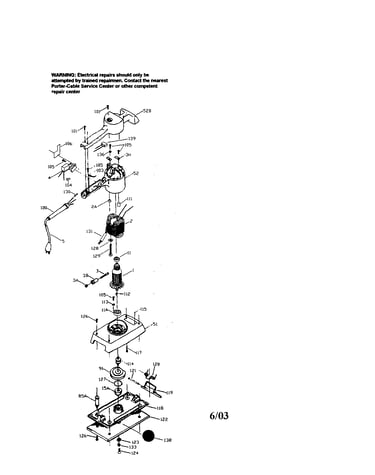

Finishing sander diagram

Screw

Part #878813

The manufacturer no longer makes this part, and there's no substitute part

Paper Clamp 844094
#119

Finishing sander diagram

Paper clamp

Part #844094

The manufacturer no longer makes this part, and there's no substitute part

Washer 800471
#113

Finishing sander diagram

Washer

Part #800471

The manufacturer no longer makes this part, and there's no substitute part

Cord Strain Reliever 838270
#100

Finishing sander diagram

Cord strain reliever

Part #838270

The manufacturer no longer makes this part, and there's no substitute part

Connector 682063
#104

Finishing sander diagram

Connector

Part #682063

The manufacturer no longer makes this part, and there's no substitute part

Screw 801374
#115

Finishing sander diagram

Screw

Part #801374

The manufacturer no longer makes this part, and there's no substitute part

Brush Holder 844089
#3B

Finishing sander diagram

Brush holder

Part #844089

The manufacturer no longer makes this part, and there's no substitute part

Counterweight Screw 845974
#124

Finishing sander diagram

Counterweight screw

Part #845974

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 855284
#11

Finishing sander diagram

Power tool bearing

Part #855284

The manufacturer no longer makes this part, and there's no substitute part

Field, 120v, T3 693921
#2

Finishing sander diagram

Field, 120v, t3

Part #693921

The manufacturer no longer makes this part, and there's no substitute part
