Model # DSC-W560L Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W560L digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Guide 416756401
#55

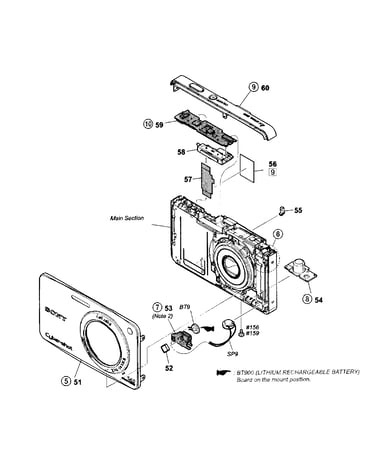

Front assy diagram

Guide

Part #416756401

$13.24
In Stock
Sy-241 Pcb A1752372A
#104

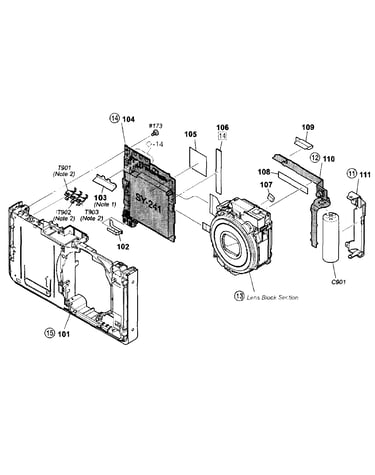

Main assy diagram

Sy-241 pcb

Part #A1752372A

$156.53
In Stock
Retaining 416757301
#111

Main assy diagram

Retaining

Part #416757301

$13.24
In Stock
Lcd Sheet 416819201
#4

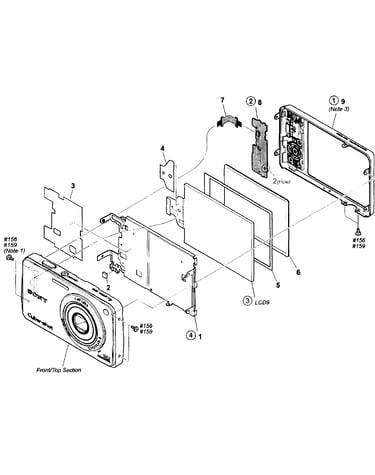

Rear assy diagram

Lcd sheet

Part #416819201

$28.11
In Stock
Screw 416757401
#54

Front assy diagram

Screw

Part #416757401

$10.31
In Stock
Cabinet Front X25604331
#51

Front assy diagram

Cabinet front

Part #X25604331

$107.59
In Stock
Seal 414711301
#159

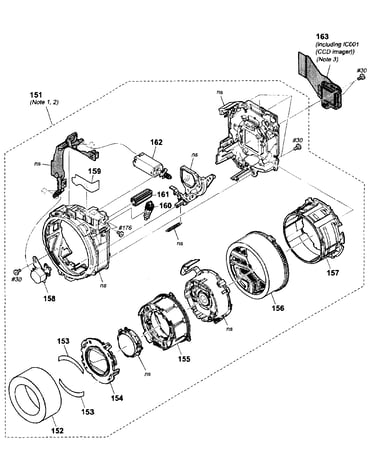

Lens assy diagram

Seal

Part #414711301

$13.24
In Stock
Ring A 415585001
#152

Lens assy diagram

Ring a

Part #415585001

$13.24
In Stock
Worm Motor A1743725A
#162

Lens assy diagram

Worm motor

Part #A1743725A

This item is not returnable
$6.51
In Stock
Tape 414710901
#153

Lens assy diagram

Tape

Part #414710901

$28.11
In Stock
