White-Westinghouse
Room Air Conditioner

Model # AC052M7A2 Official White-Westinghouse room air conditioner - lw34088490

Here are the diagrams and repair parts for Official White-Westinghouse AC052M7A2 room air conditioner - lw34088490, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Filter A000265301
#1

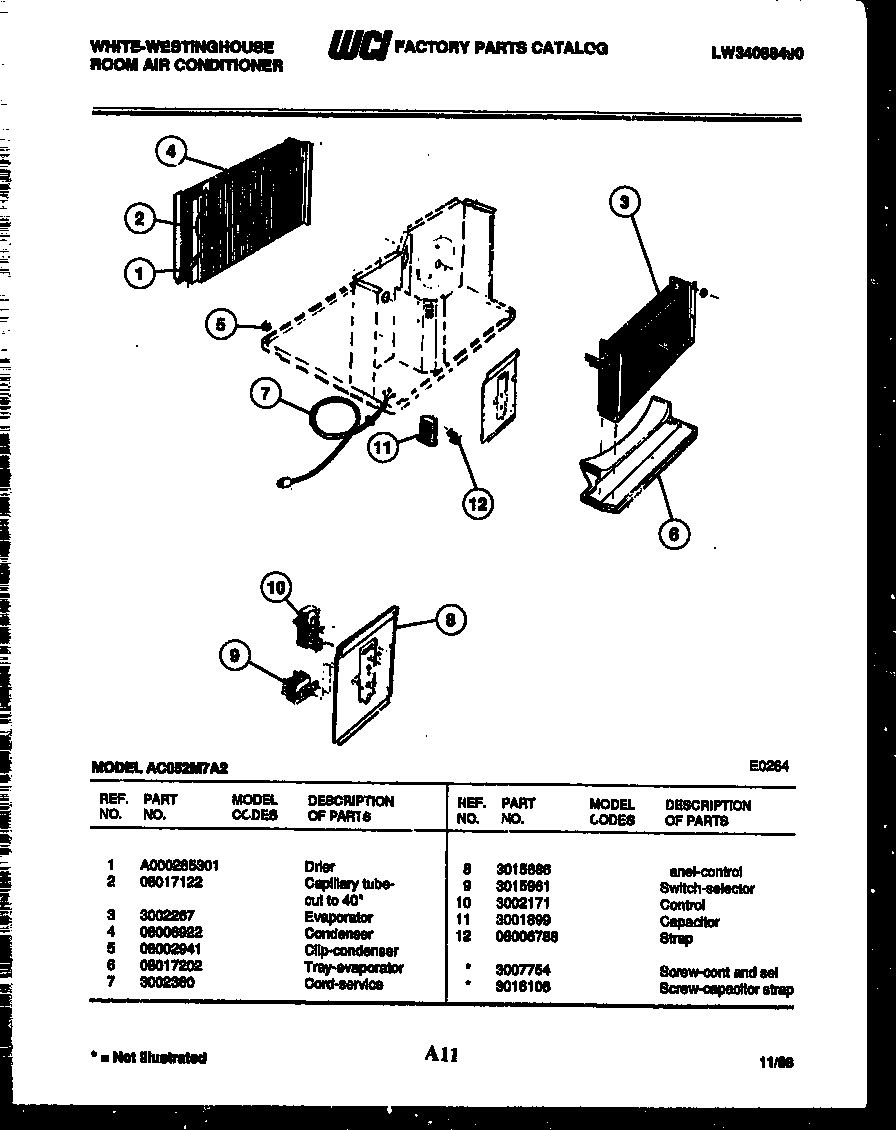

Electrical parts diagram

Filter

Part #A000265301

Replaced by #5300265301

?
Manufacturer substitution
This part replaces A000265301. Substitute parts can look different from the original.
$110.08
In Stock
Screw 08012954
#15

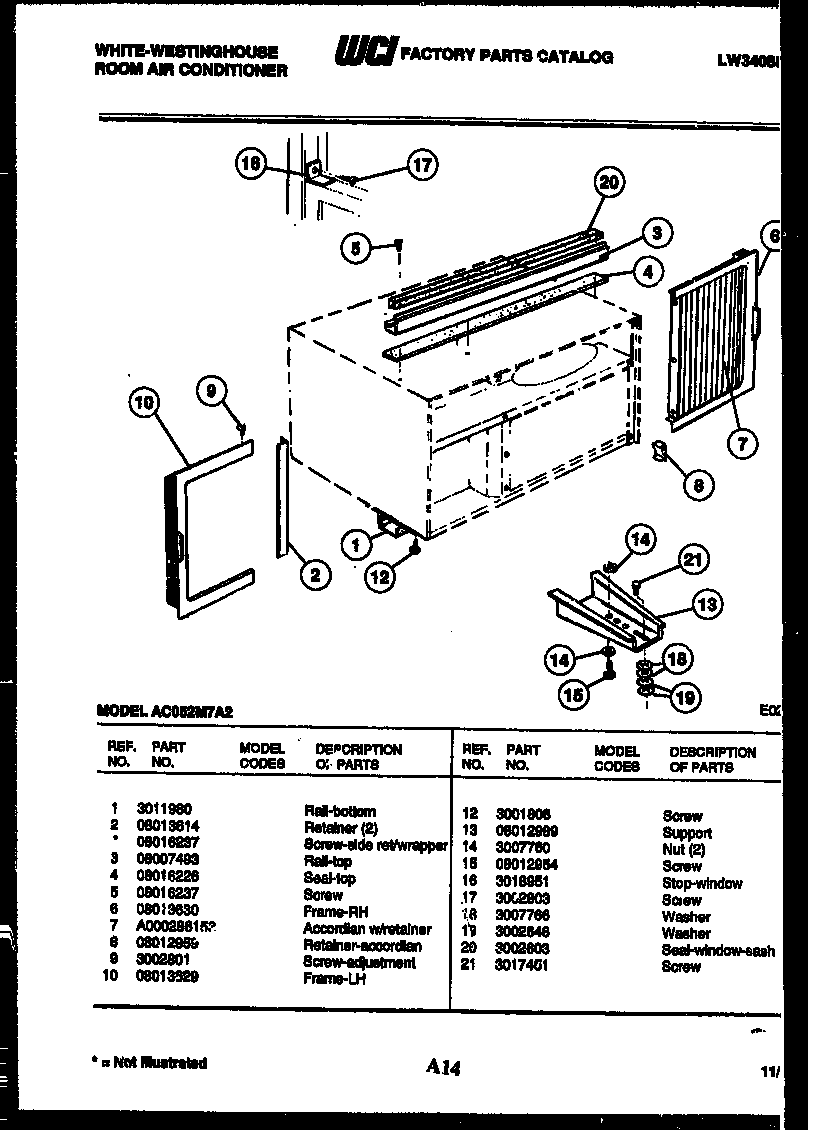

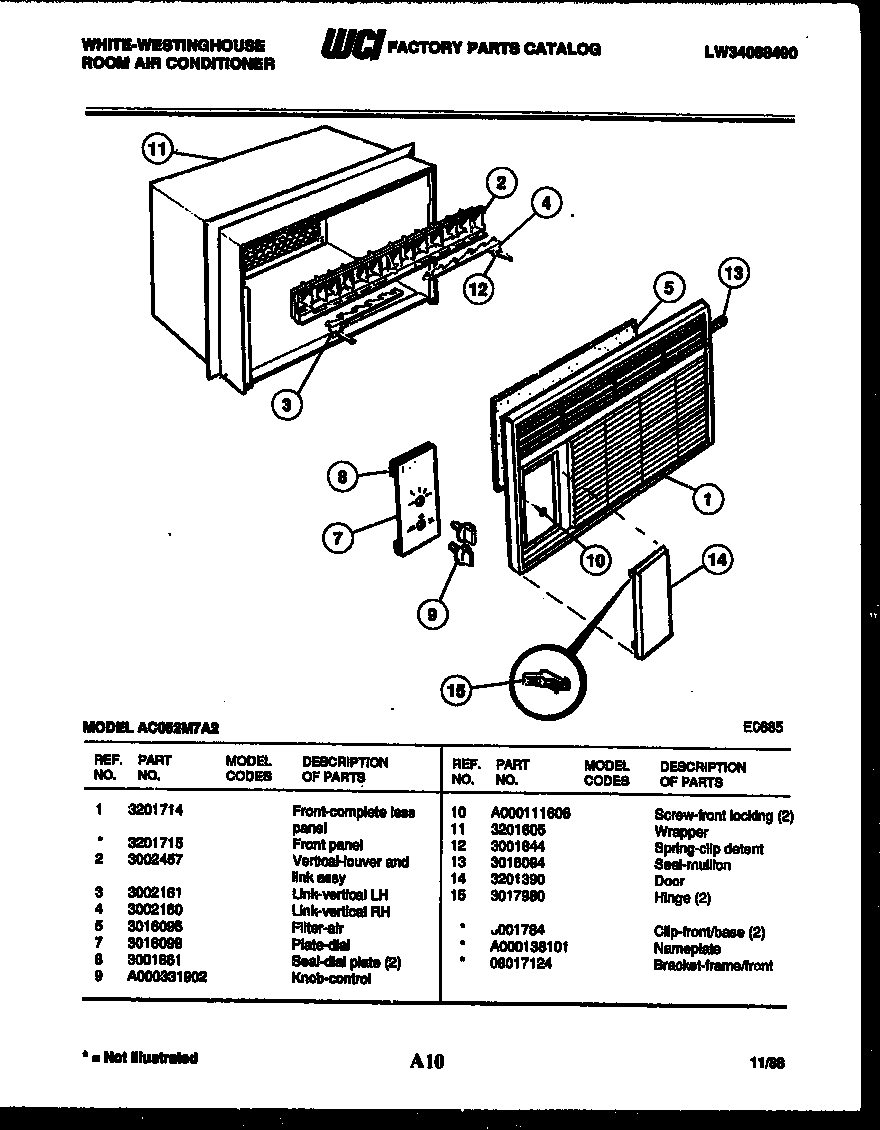

Cabinet and installation parts diagram

Screw

Part #08012954

This item is not returnable
$2.16
In Stock
Washer 3007766
#18

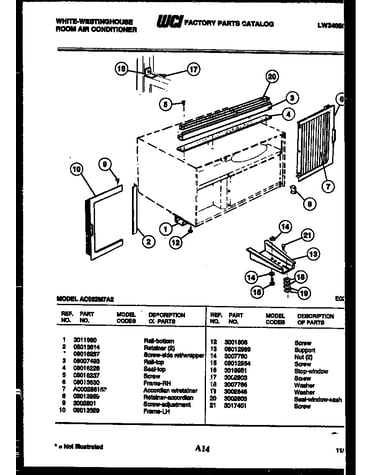

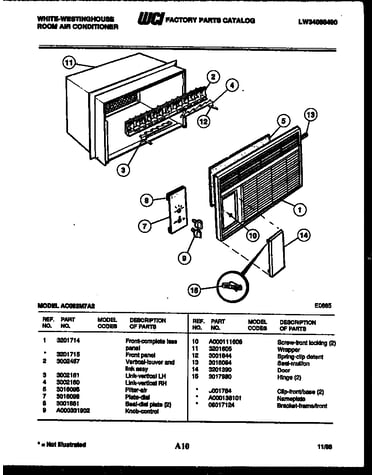

Cabinet and installation parts diagram

Washer

Part #3007766

This item is not returnable
$2.29
In Stock
Room Air Conditioner Lock Nut 08007481
#12

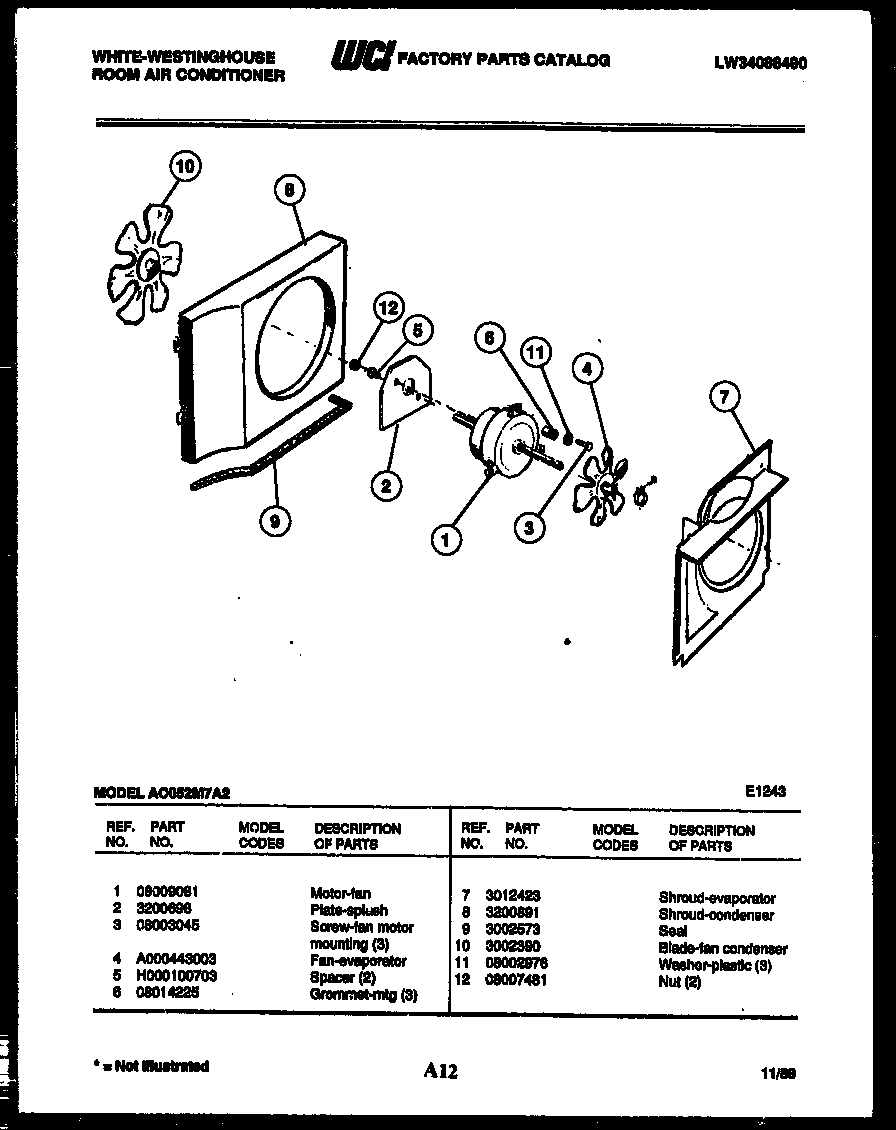

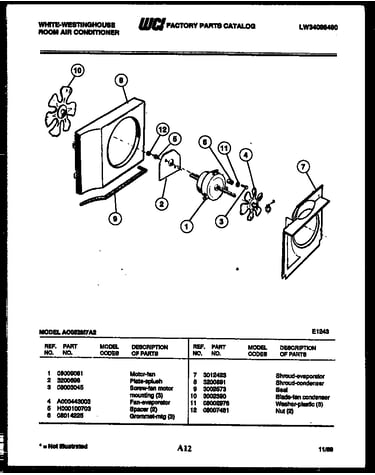

Air handling parts diagram

Room air conditioner lock nut

Part #08007481

This item is not returnable
$5.74
In Stock
Support (replaces 000253701, 000253701, 253701, 253701, A000253701, Wa253701) 08007493
#3

Cabinet and installation parts diagram

Support (replaces 000253701, 000253701, 253701, 253701, a000253701, wa253701)

Part #08007493

$12.99
In Stock
Gasket 3002603
#20

Cabinet and installation parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Spring 08002987
#8

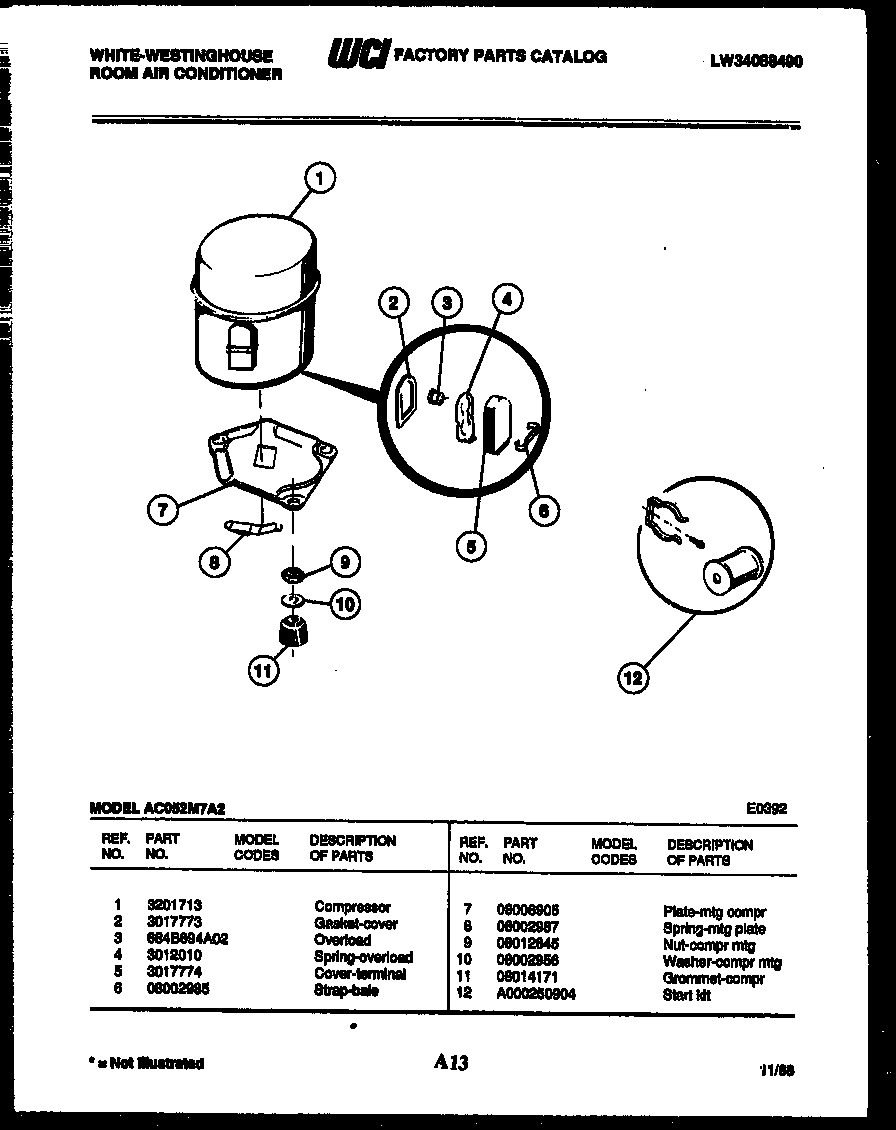

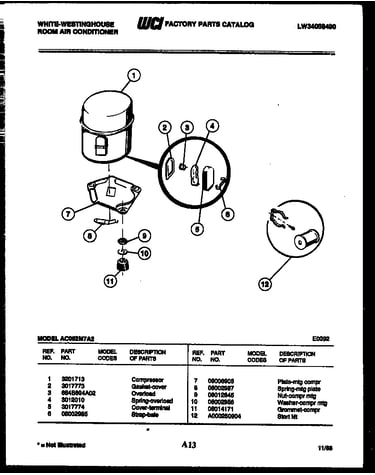

Compressor parts diagram

Spring

Part #08002987

Replaced by #5308002987

?
Manufacturer substitution
This part replaces 08002987. Substitute parts can look different from the original.
$7.99
In Stock
Washer 08002956
#10

Compressor parts diagram

Washer

Part #08002956

The manufacturer no longer makes this part, and there's no substitute part

Switch 3015961
#9

Electrical parts diagram

Switch

Part #3015961

The manufacturer no longer makes this part, and there's no substitute part

Support 08012989
#13

Cabinet and installation parts diagram

Support

Part #08012989

The manufacturer no longer makes this part, and there's no substitute part
