Craftsman
Miter Saw

Model # 113235300 Official Craftsman 10" compound miter saw

Here are the diagrams and repair parts for Official Craftsman 113235300 10" compound miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |

Lock Washer, 5/16-in, 8-pack STD551131
#15

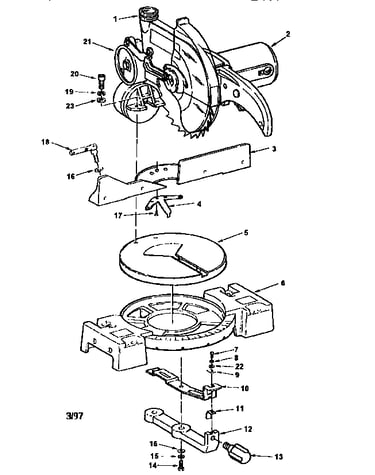

Figure 1 diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Washer 820238-2
#23

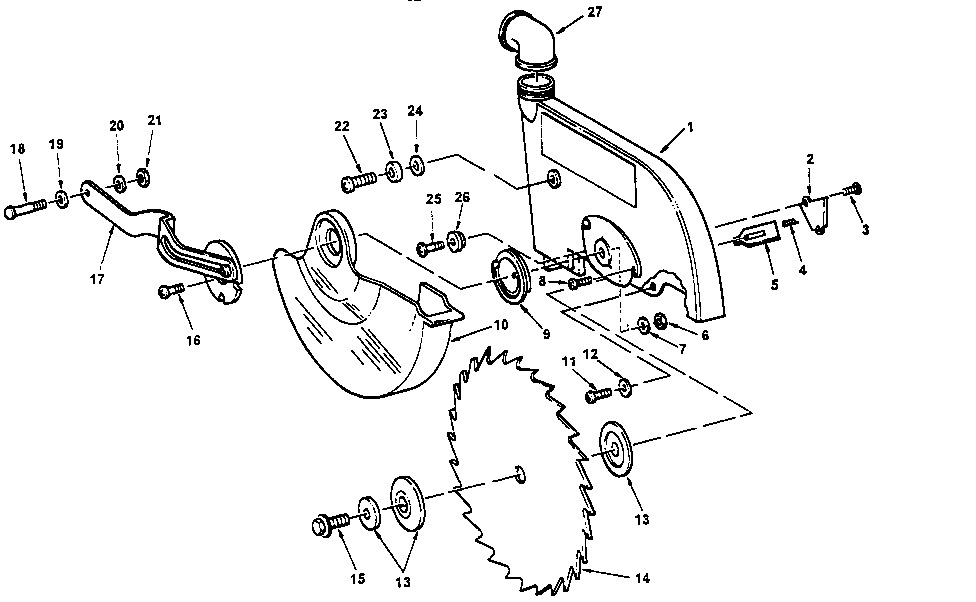

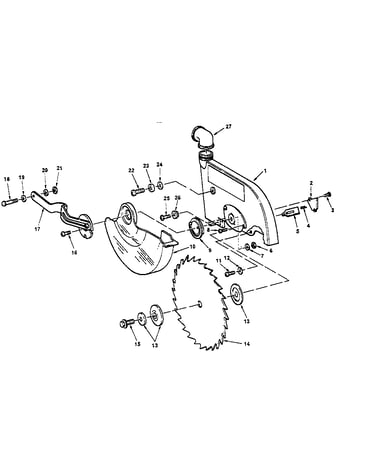

Figure 4 diagram

Miter saw washer

Part #820238-2

The manufacturer no longer makes this part, and there's no substitute part

Screw 141594-44
Screw

Part #141594-44

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Screw, #8-32 X 1/2-in 809727-4
#17

Figure 1 diagram

Miter saw screw, #8-32 x 1/2-in

Part #809727-4

The manufacturer no longer makes this part, and there's no substitute part

Nut 817449-1
#21

Figure 4 diagram

Nut

Part #817449-1

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Screw, M5-0.8 X 20 816755
#15

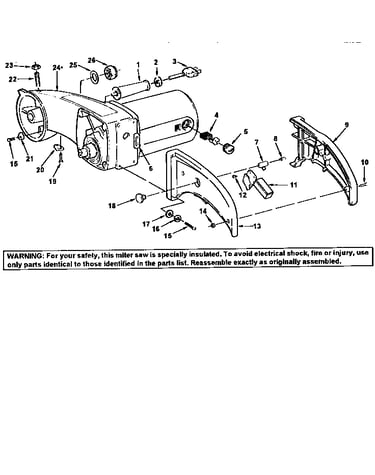

Arm and motor assembly diagram

Power tool screw, m5-0.8 x 20

Part #816755

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 816723
Lock nut

Part #816723

The manufacturer no longer makes this part, and there's no substitute part

Pan Screw 817698-2
#3

Figure 4 diagram

Pan screw

Part #817698-2

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Motor Brush 816768
#4

Arm and motor assembly diagram

Miter saw motor brush

Part #816768

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Locking Handle Assembly 820714-2
#18

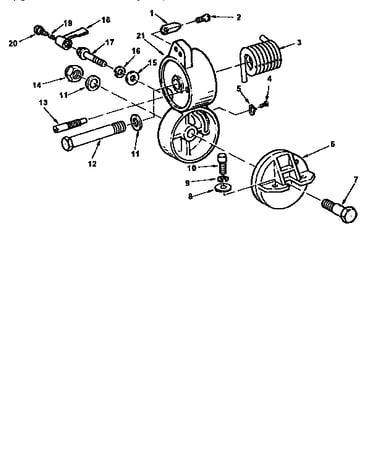

Pivot assembly diagram

Miter saw locking handle assembly

Part #820714-2

The manufacturer no longer makes this part, and there's no substitute part
