Amana 18M33PAEH-P1215002R 18000-btu room air conditioner Parts
Here are the diagrams and repair parts for Amana 18M33PAEH-P1215002R 18000-btu room air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM

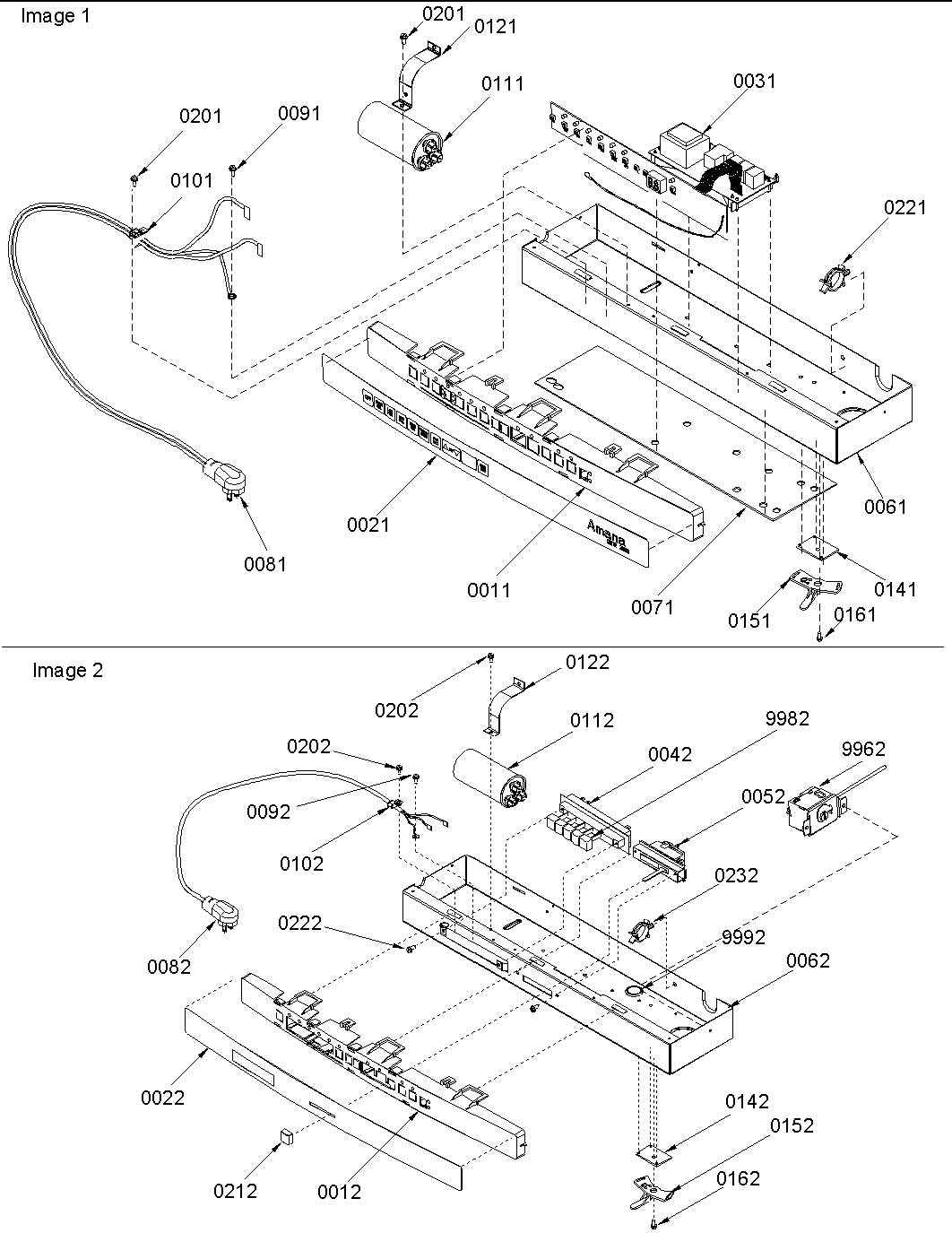

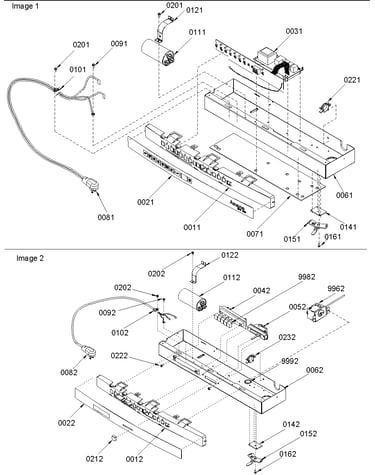

Browse Parts for 18M33PAEH-P1215002R 18000-BTU Room Air Conditioner

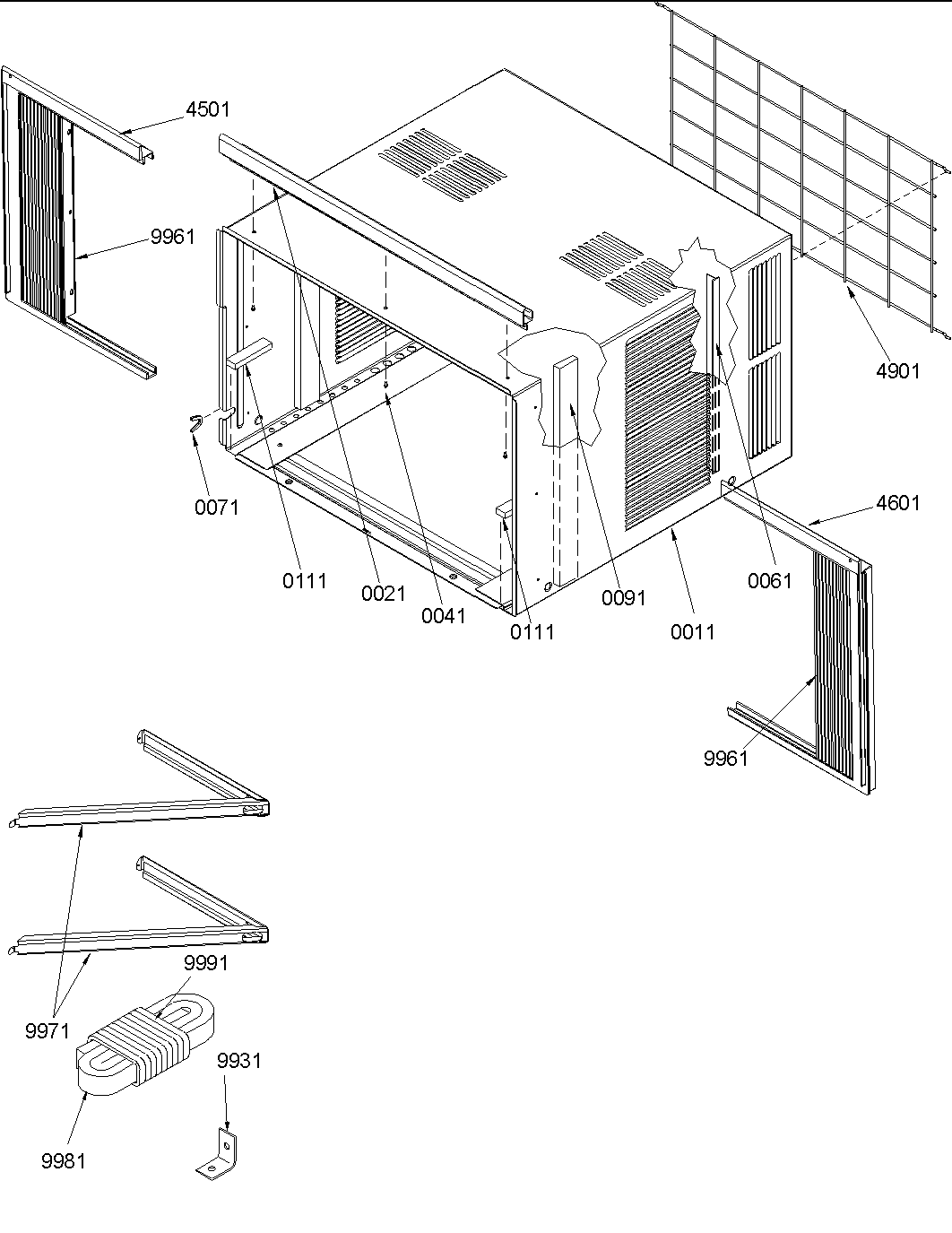

Outer case assembly diagram
Screw
Part #M0216716Replaced by #WP90767
Manufacturer substitutionThis part replaces M0216716. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88
Qty
Compressor
Part #20091801Replaced by #20091801

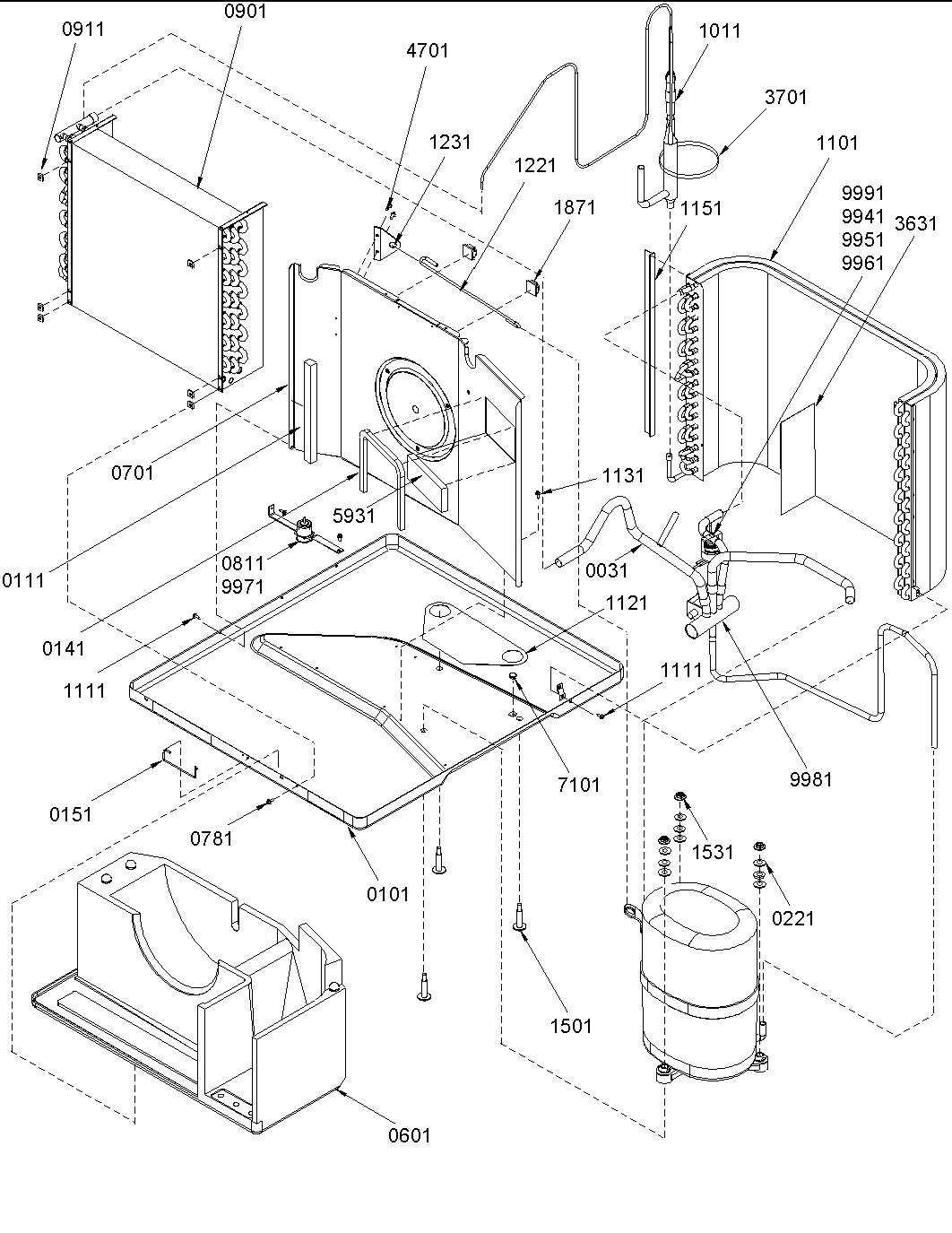

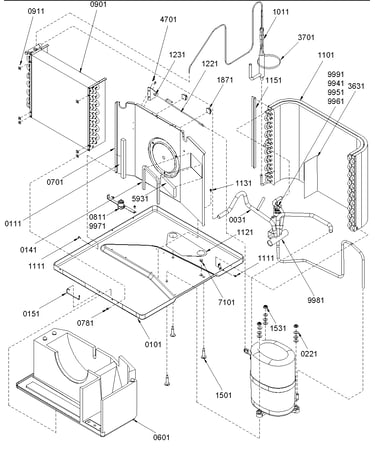

Manufacturer substitutionThis part replaces 20091801. Substitute parts can look different from the original.In Stock$486.53QtyChassis assembly diagram
Tap Screw
Part #M0224956Replaced by #WP489427

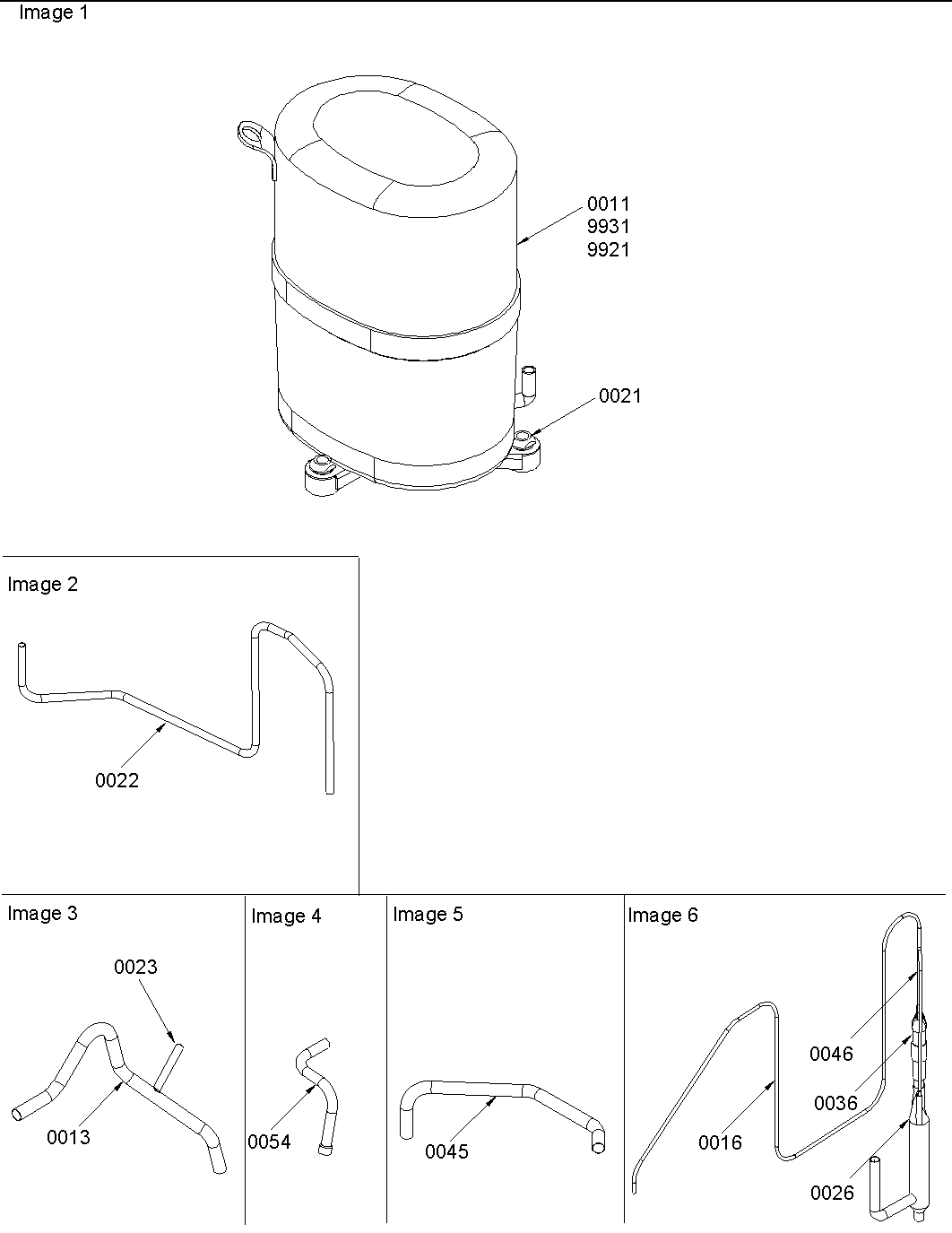

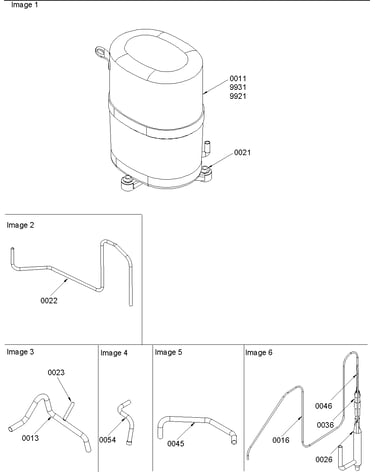

Manufacturer substitutionThis part replaces M0224956. Substitute parts can look different from the original.This item is not returnableIn Stock$7.6712% OFF Phone Price : $8.67QtyCompressor assembly diagram
Strainer
Part #B1257808Replaced by #B1257808

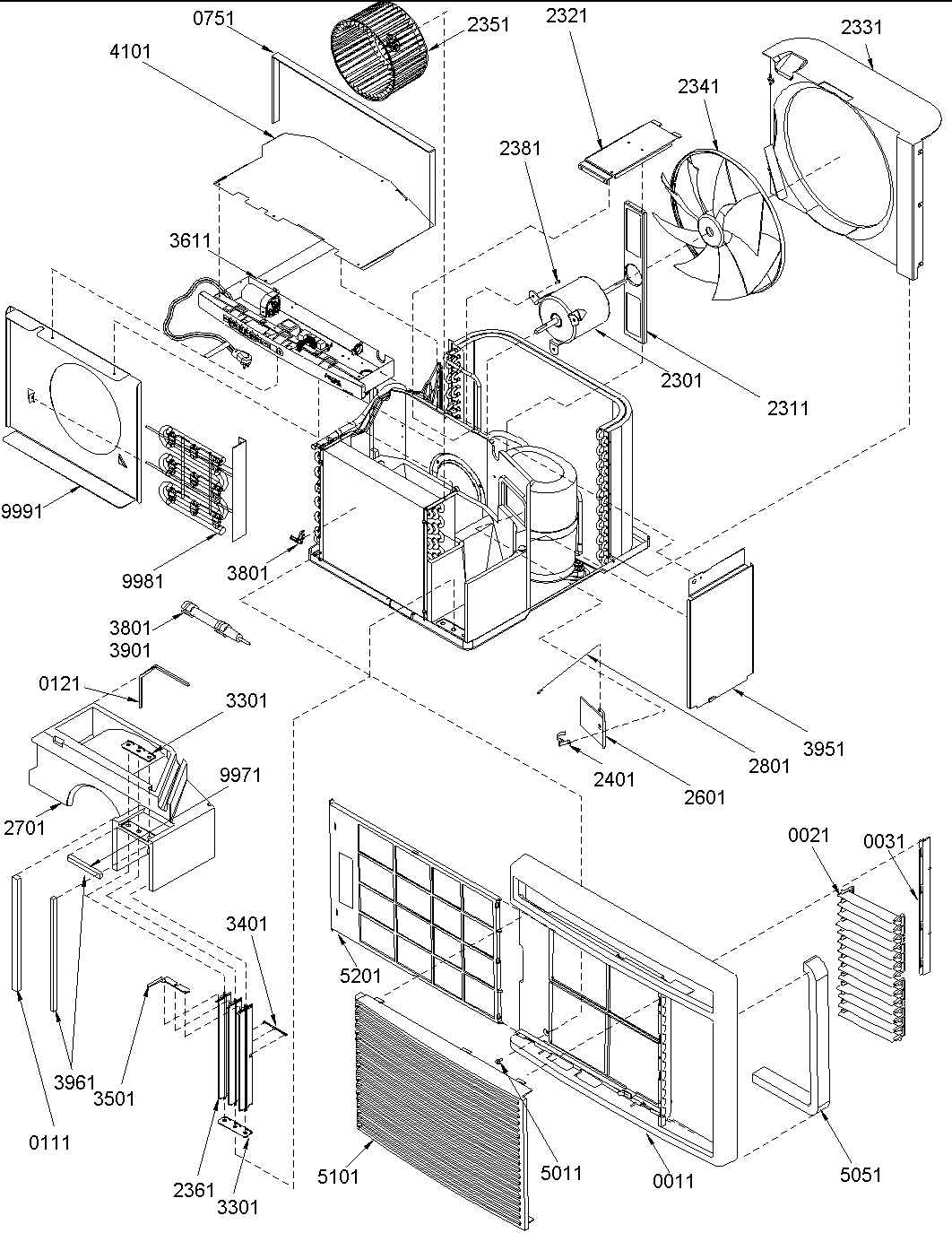

Manufacturer substitutionThis part replaces B1257808. Substitute parts can look different from the original.In Stock$45.47QtyChassis assembly diagram
Assy, Tube E
Part #20105501
The manufacturer no longer makes this part, and there's no substitute part
Outer case assembly diagram
Outer Case
Part #20060301
The manufacturer no longer makes this part, and there's no substitute part
Chassis assembly diagram
Panel
Part #20067604
The manufacturer no longer makes this part, and there's no substitute part
Chassis assembly diagram
Shroud
Part #20073001
The manufacturer no longer makes this part, and there's no substitute part
Compressor assembly diagram
Tube, Proces
Part #A4528912
The manufacturer no longer makes this part, and there's no substitute part
Chassis assembly diagram
Actuator
Part #20055607
The manufacturer no longer makes this part, and there's no substitute part
