Model # NOLF105A12B Official ICP furnace

Here are the diagrams and repair parts for Official ICP NOLF105A12B furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Furnace Breech Plate B30459
#J

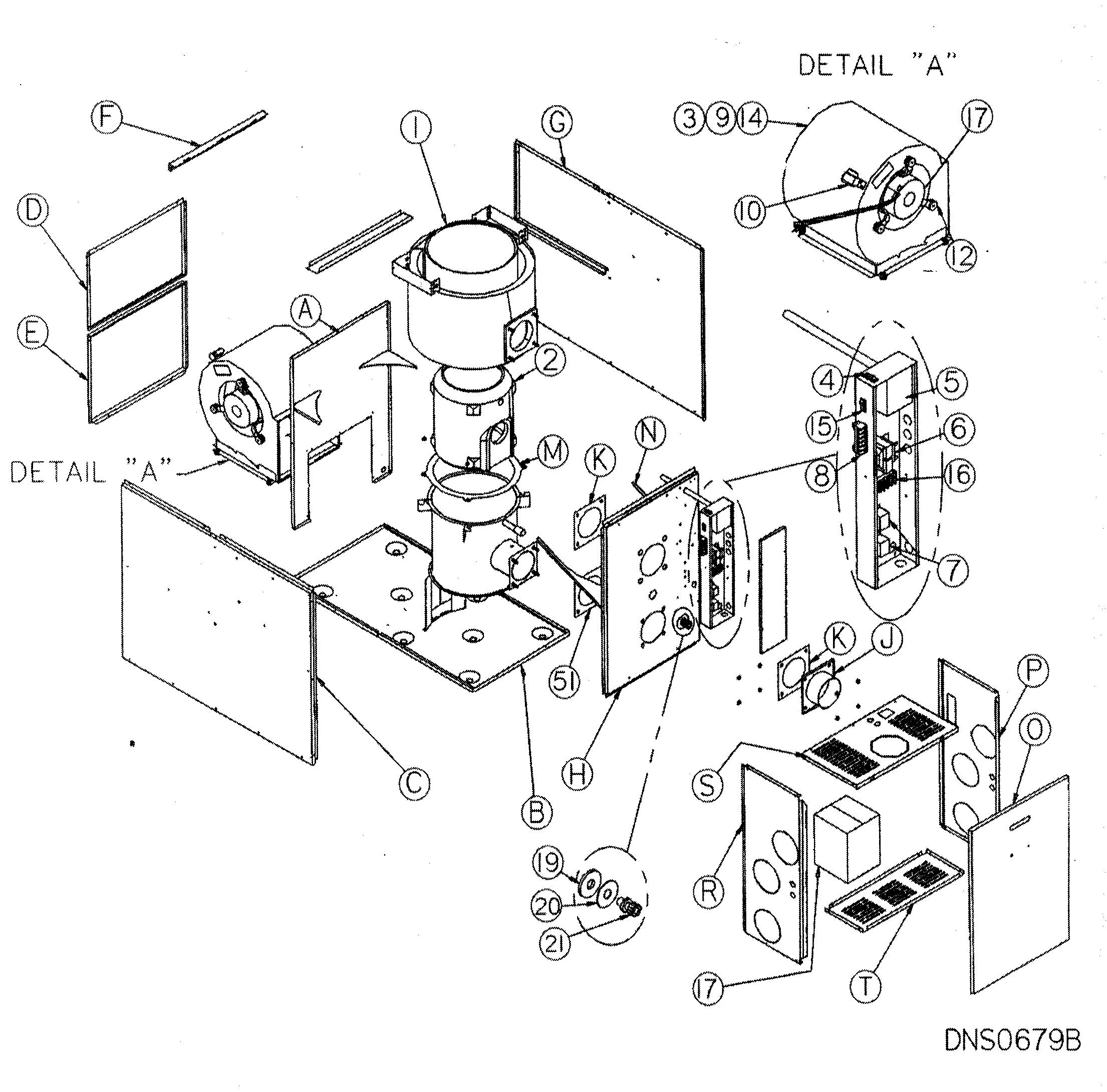

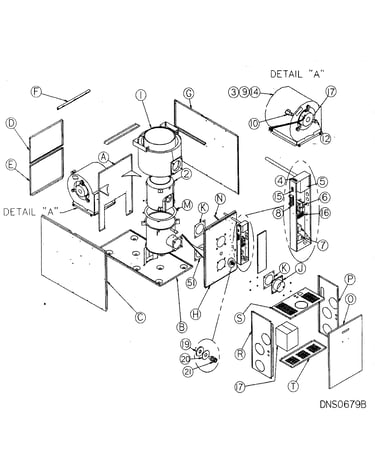

Cabinet assy diagram

Furnace breech plate

Part #B30459

$409.10 |
$10.00 OFF Phone Price : $419.10
In Stock
Ht Ex Oil B3075601
#1

Cabinet assy diagram

Ht ex oil

Part #B3075601

$944.69
In Stock
Reg. Draft Z06F001
#17

Cabinet assy diagram

Reg. draft

Part #Z06F001

$49.69
In Stock
Mount Assembly B01888
#12

Cabinet assy diagram

Mount assembly

Part #B01888

$111.50
In Stock
Motor1/3hp B0189001
#11

Cabinet assy diagram

Motor1/3hp

Part #B0189001

$347.85
In Stock
Gasket B30753
#19

Cabinet assy diagram

Gasket

Part #B30753

This item is not returnable
$2.16
In Stock
Relay L01H009
#7

Cabinet assy diagram

Relay

Part #L01H009

$55.78
In Stock
Gasket B30517
#M

Cabinet assy diagram

Gasket

Part #B30517

$50.84
In Stock
Transform K03040
#6

Cabinet assy diagram

Transform

Part #K03040

$182.35
In Stock
Gasket B3041502
#K

Cabinet assy diagram

Gasket

Part #B3041502

$9.11
In Stock
