Model # ODC300-04 Official Black & Decker coffee maker

Here are the diagrams and repair parts for Official Black & Decker ODC300-04 coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Housing 172192-00
#1

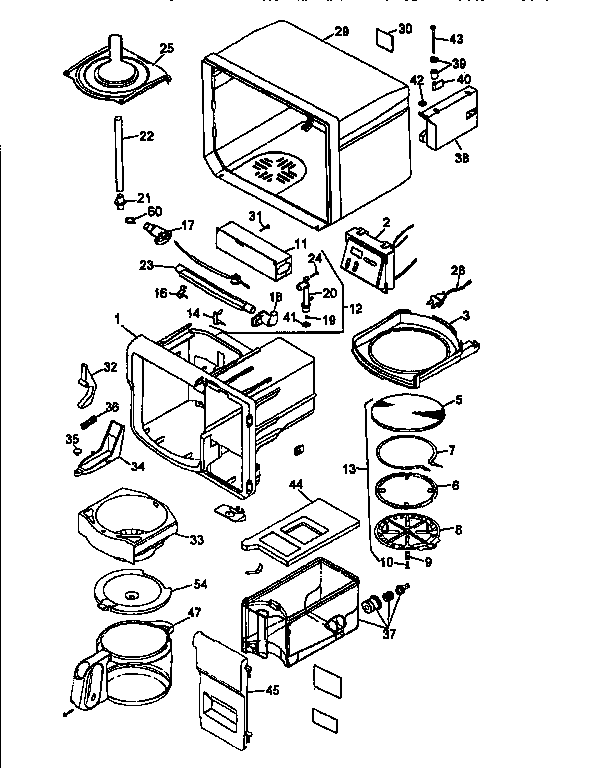

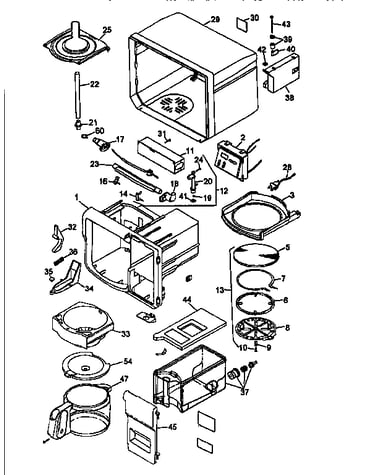

Replacement parts diagram

Housing

Part #172192-00

The manufacturer no longer makes this part, and there's no substitute part

Cover 172193-00
#29

Replacement parts diagram

Cover

Part #172193-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 172551-00
#24

Replacement parts diagram

Screw

Part #172551-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 172541-00
#10

Replacement parts diagram

Screw

Part #172541-00

The manufacturer no longer makes this part, and there's no substitute part

Door 172718-01
#45

Replacement parts diagram

Door

Part #172718-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 172551-01
#31

Replacement parts diagram

Screw

Part #172551-01

The manufacturer no longer makes this part, and there's no substitute part

Clip 172206-00
#9

Replacement parts diagram

Clip

Part #172206-00

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 172542-00
#28

Replacement parts diagram

Ac cord

Part #172542-00

The manufacturer no longer makes this part, and there's no substitute part

Htr Housng 172716-00
#13

Replacement parts diagram

Htr housng

Part #172716-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 168885-00
#43

Replacement parts diagram

Screw

Part #168885-00

The manufacturer no longer makes this part, and there's no substitute part
