Model # FF1DNE024000 Official Carrier fan coil

Here are the diagrams and repair parts for Official Carrier FF1DNE024000 fan coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

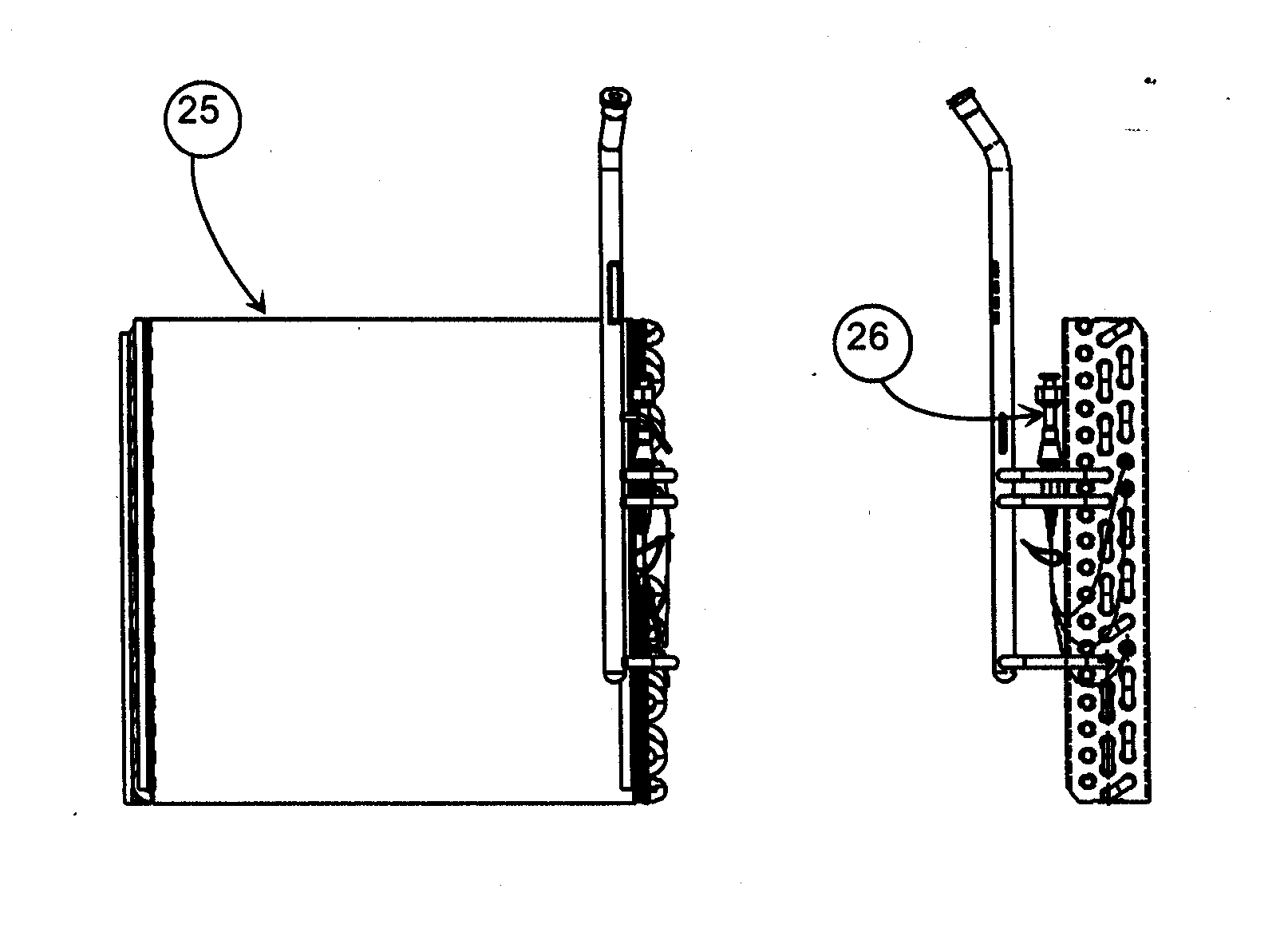

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Capactr Run P291-0503
#19

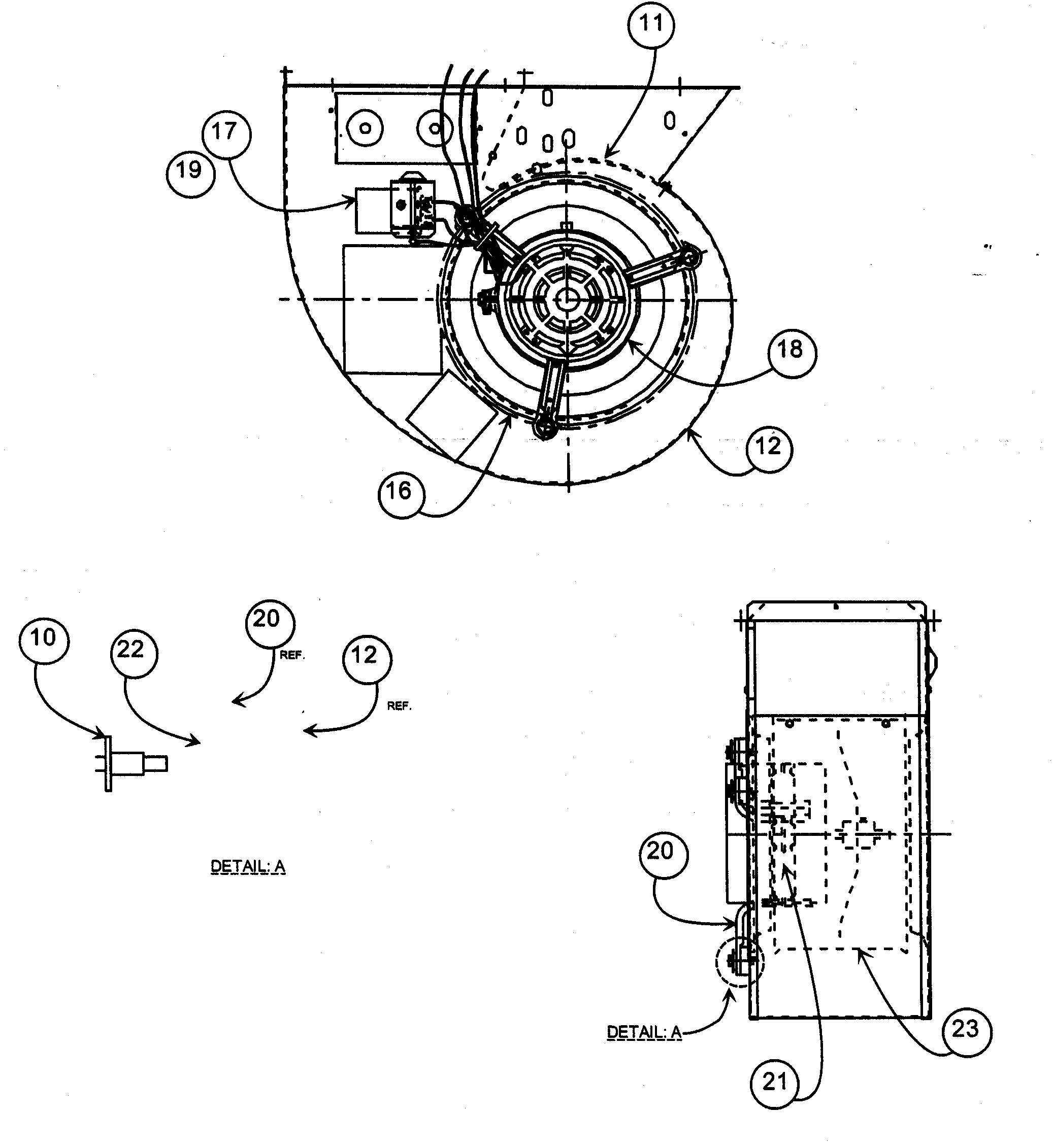

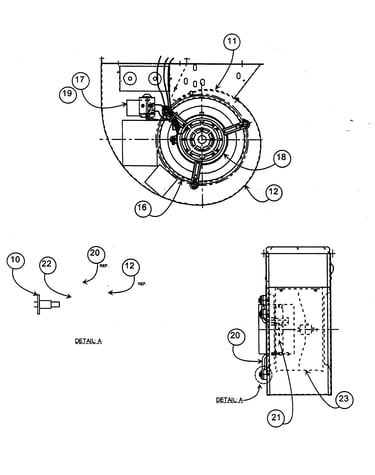

Blower assy diagram

Capactr run

Part #P291-0503

Replaced by #12005

?
Manufacturer substitution
This part replaces P291-0503. Substitute parts can look different from the original.
$16.12 |
11% OFF Phone Price : $18.12
In Stock
Central Air Conditioner Air Handler Blower Motor HC35AE230
#18

Blower assy diagram

Central air conditioner air handler blower motor

Part #HC35AE230

$429.58
In Stock
Arm HC98ZZ252
#20

Blower assy diagram

Arm

Part #HC98ZZ252

$9.89
In Stock
Grommet P251-0079
#21

Blower assy diagram

Grommet

Part #P251-0079

$7.97
In Stock
Sw Temp Act HH19ZA940
#NI

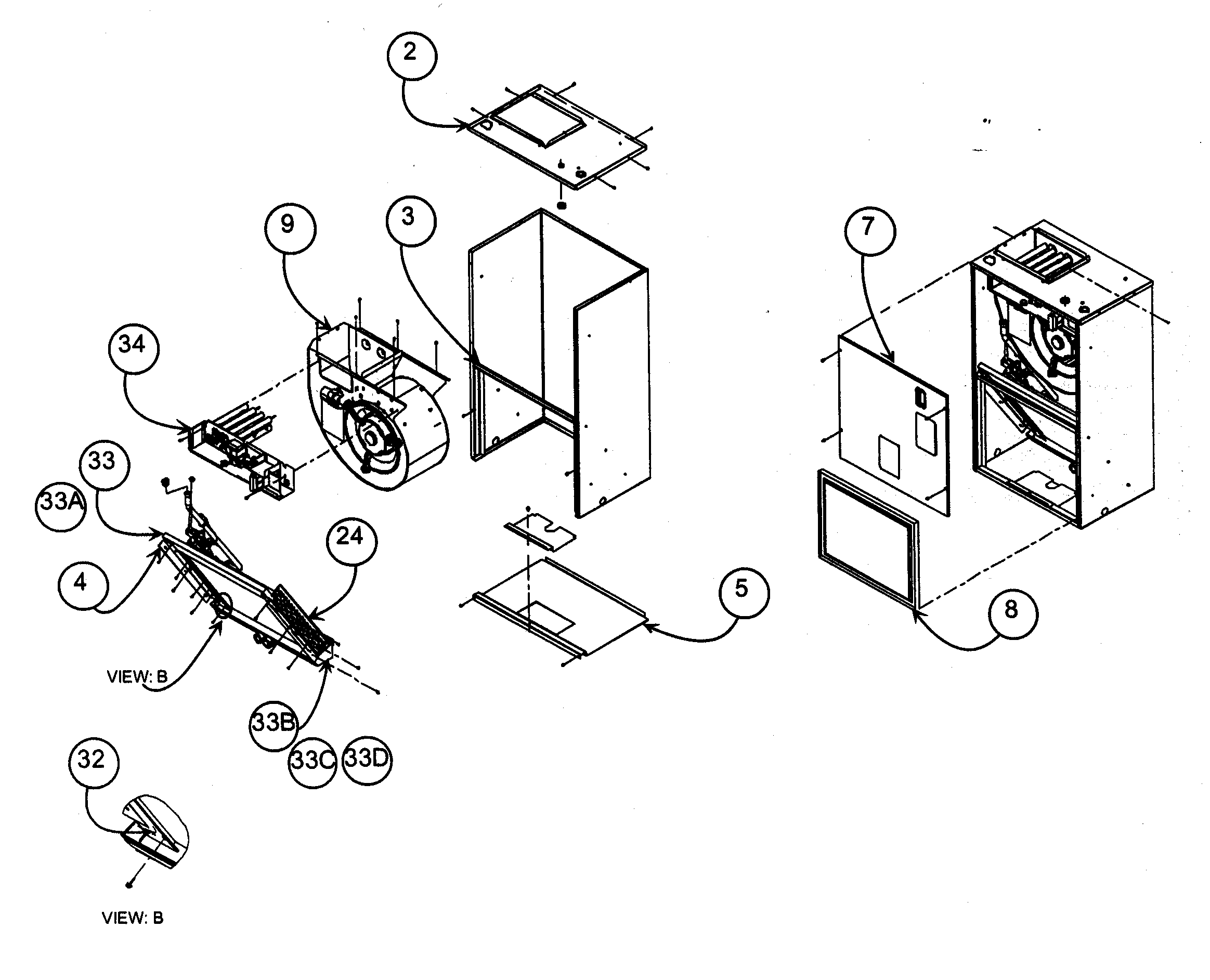

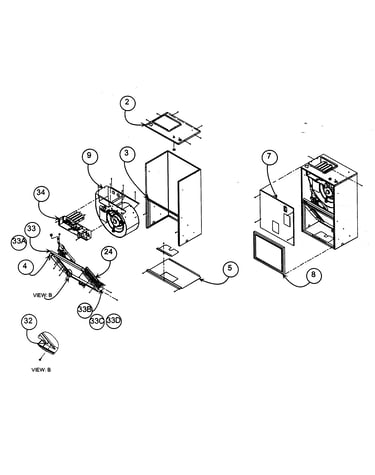

Cabinet assy diagram

Sw temp act

Part #HH19ZA940

$72.44
In Stock
Central Air Conditioner Air Handler Blower Wheel LA22XC059
#23

Blower assy diagram

Central air conditioner air handler blower wheel

Part #LA22XC059

$155.96
In Stock
Central Air Conditioner Air Handler Blower Motor Relay (replaces Hn61pc003) HN61PC002
#NI

Cabinet assy diagram

Central air conditioner air handler blower motor relay (replaces hn61pc003)

Part #HN61PC002

The manufacturer no longer makes this part, and there's no substitute part

Panel 324586-703
#7

Cabinet assy diagram

Panel

Part #324586-703

$349.63
In Stock
Mtr Mnt Band P251-0078
#21

Blower assy diagram

Mtr mnt band

Part #P251-0078

$24.58
In Stock
Element Kit L3-05453-28
#NI

Cabinet assy diagram

Element kit

Part #L3-05453-28

$565.05
In Stock
