Murray
Complete Deck

Model # 403132 Official Murray mower deck

Here are the diagrams and repair parts for Official Murray 403132 mower deck, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |

Idler Pulley 20613
#12

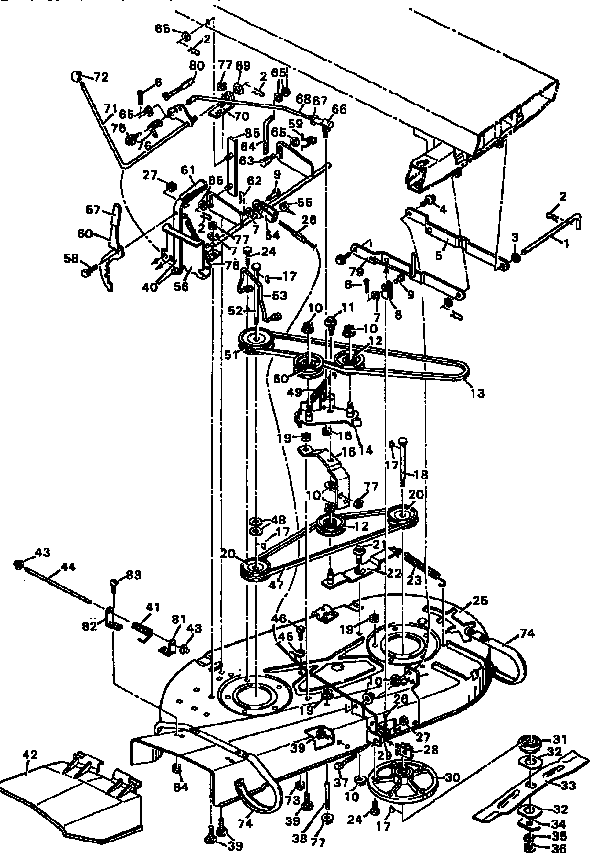

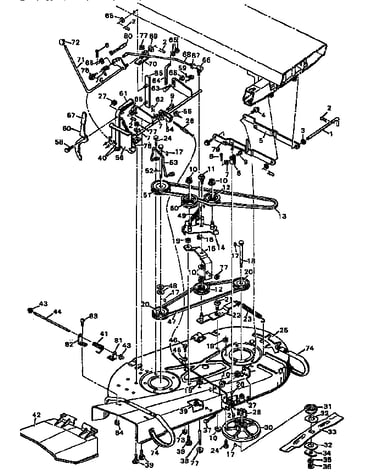

36" mower housing diagram

Idler pulley

Part #20613

Replaced by #420613MA

?
Manufacturer substitution
This part replaces 20613. Substitute parts can look different from the original.
This item is not returnable
$23.49
18% OFF Phone Price : $28.49
In Stock
Spring 24074
#49

36" mower housing diagram

Spring

Part #24074

Replaced by #165X43MA

?
Manufacturer substitution
This part replaces 24074. Substitute parts can look different from the original.
In Stock
Push-on-cap 28X23
#43

36" mower housing diagram

Push-on-cap

Part #28X23

Replaced by #703948

?
Manufacturer substitution
This part replaces 28X23. Substitute parts can look different from the original.
This item is not returnable
$7.29
12% OFF Phone Price : $8.29
In Stock
Bolt 1X84
#24

36" mower housing diagram

Bolt

Part #1X84

Replaced by #703585

?
Manufacturer substitution
This part replaces 1X84. Substitute parts can look different from the original.
In Stock
Housing 20551
#30

36" mower housing diagram

Housing

Part #20551

Replaced by #492574MA

?
Manufacturer substitution
This part replaces 20551. Substitute parts can look different from the original.
$68.99
7% OFF Phone Price : $73.99
In Stock
Bolt 2X53
#39

36" mower housing diagram

Bolt

Part #2X53

Replaced by #703159

?
Manufacturer substitution
This part replaces 2X53. Substitute parts can look different from the original.
This item is not returnable
In Stock
Pulley 21409
#50

36" mower housing diagram

Pulley

Part #21409

Replaced by #421409MA

?
Manufacturer substitution
This part replaces 21409. Substitute parts can look different from the original.
This item is not returnable
$23.49
18% OFF Phone Price : $28.49
In Stock
Woodruff Key 20062
#17

36" mower housing diagram

Woodruff key

Part #20062

Replaced by #20062MA

?
Manufacturer substitution
This part replaces 20062. Substitute parts can look different from the original.
This item is not returnable
In Stock
Nut 15X71
#84

36" mower housing diagram

Nut

Part #15X71

Replaced by #15X71MA

?
Manufacturer substitution
This part replaces 15X71. Substitute parts can look different from the original.
This item is not returnable
In Stock
Flange Nut 15X79
#77

36" mower housing diagram

Flange nut

Part #15X79

Replaced by #703409

?
Manufacturer substitution
This part replaces 15X79. Substitute parts can look different from the original.
$9.27
10% OFF Phone Price : $10.27
In Stock
