Model # DW948K Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt DW948K drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

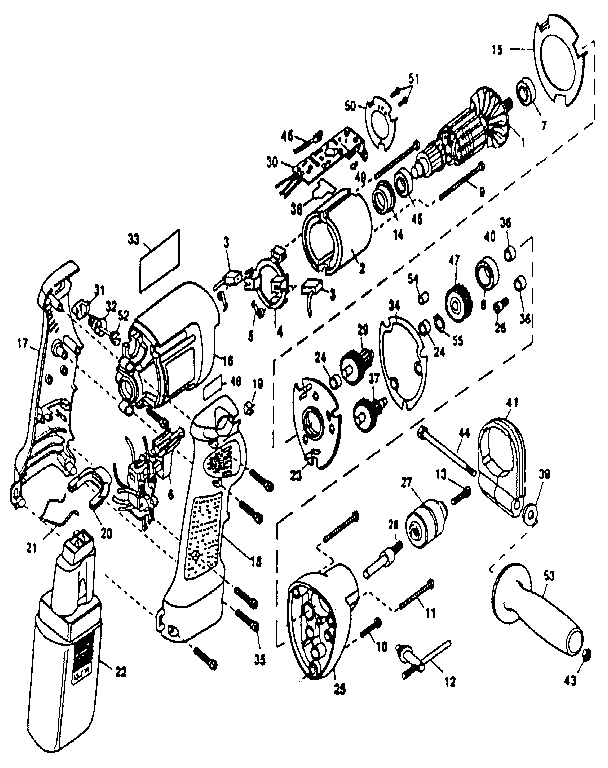

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Fan Baffle 447866-00
#15

Unit parts diagram

Fan baffle

Part #447866-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 448269-00
#9

Unit parts diagram

Screw

Part #448269-00

The manufacturer no longer makes this part, and there's no substitute part

M4x50 Plst 330019-18
#11

Unit parts diagram

M4x50 plst

Part #330019-18

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 330003-09
#8

Unit parts diagram

Power tool bearing

Part #330003-09

The manufacturer no longer makes this part, and there's no substitute part

Screw 448674-00
#44

Unit parts diagram

Screw

Part #448674-00

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 445964-00
#46

Unit parts diagram

Receptacle

Part #445964-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 144501-00
#21

Unit parts diagram

Spring

Part #144501-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-16
#10

Unit parts diagram

Screw

Part #330019-16

The manufacturer no longer makes this part, and there's no substitute part

Screw 148204-00
#13

Unit parts diagram

Screw

Part #148204-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Motor Brush Spring 445860-00
#5

Unit parts diagram

Drill motor brush spring

Part #445860-00

The manufacturer no longer makes this part, and there's no substitute part
