Whirlpool GMC305PDZ4 electric built-in oven with microwave Parts

Name: Whirlpool GMC305PDZ4 Parts | Diagrams | Sears PartsDirect
Brand: Whirlpool
SKU: GMC305PDZ4
Availability: InStock

Here are the diagrams and repair parts for Whirlpool GMC305PDZ4 electric built-in oven with microwave, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

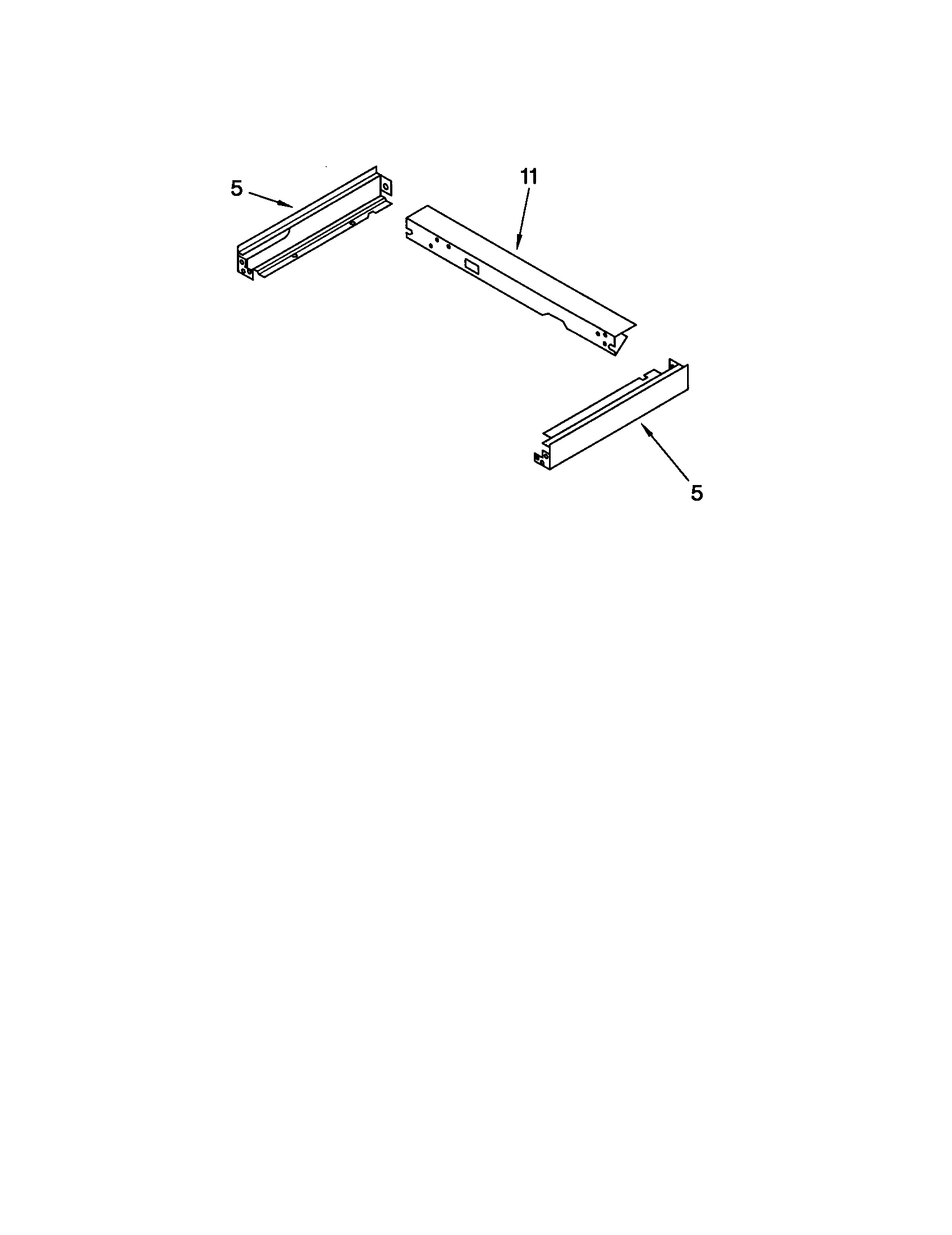

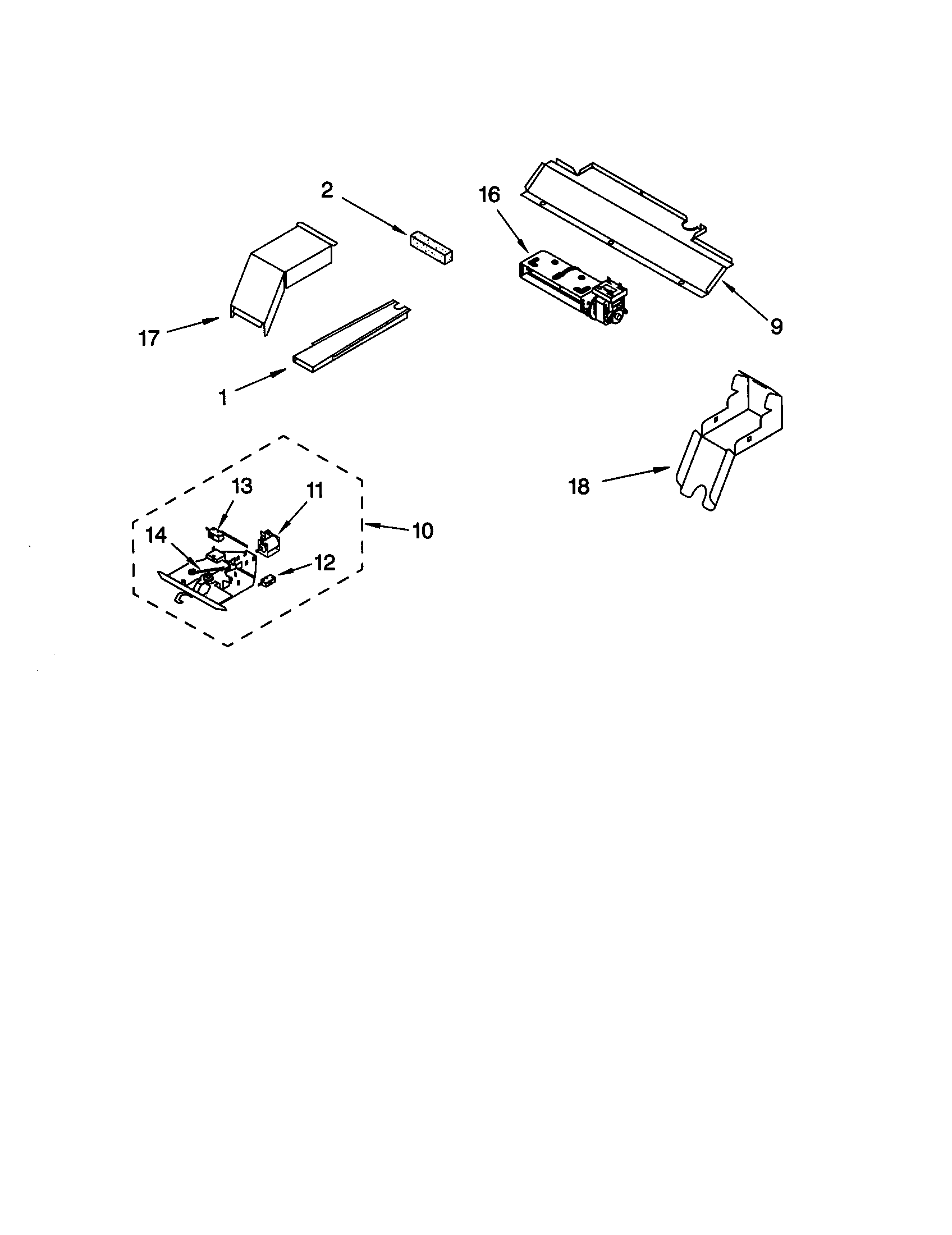

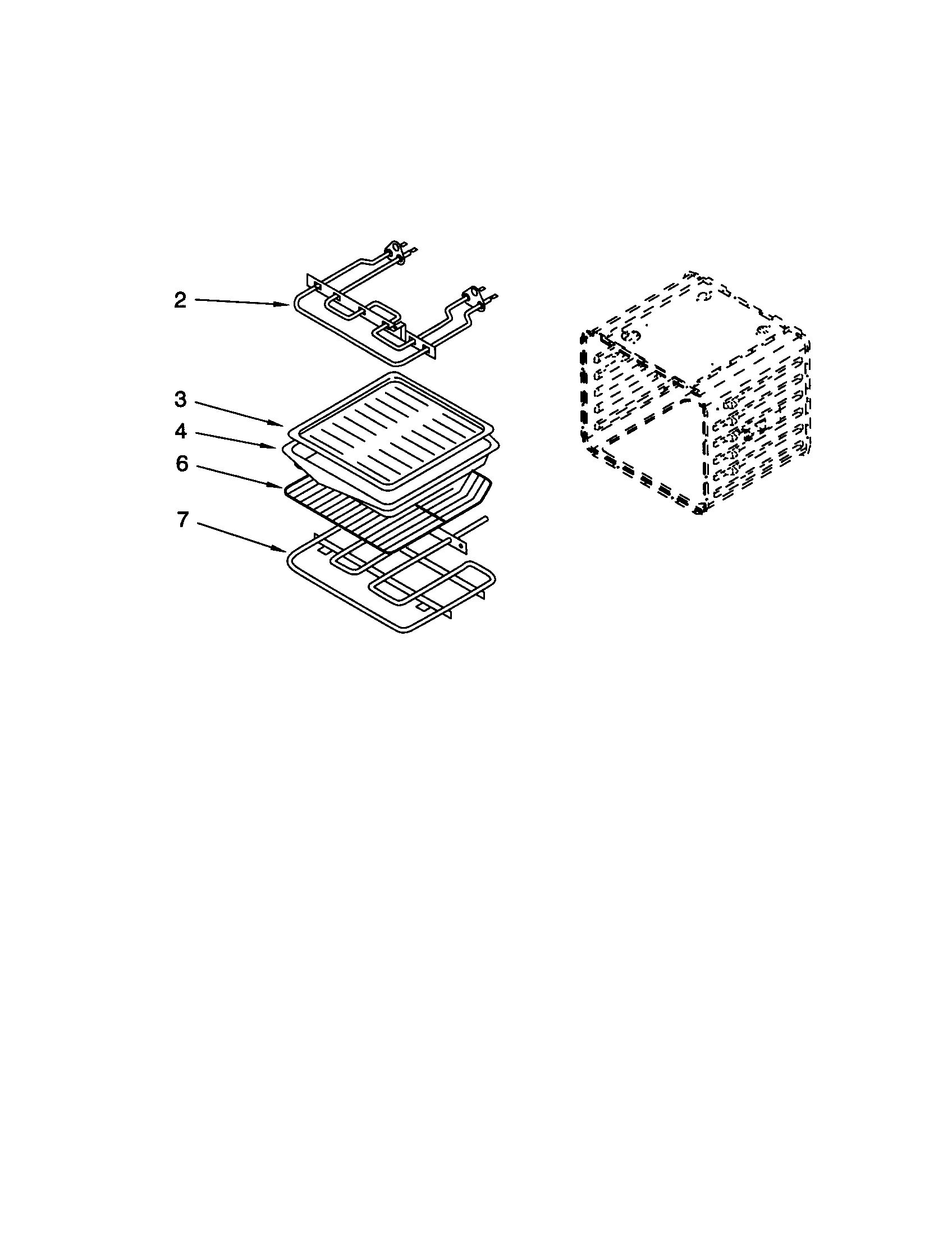

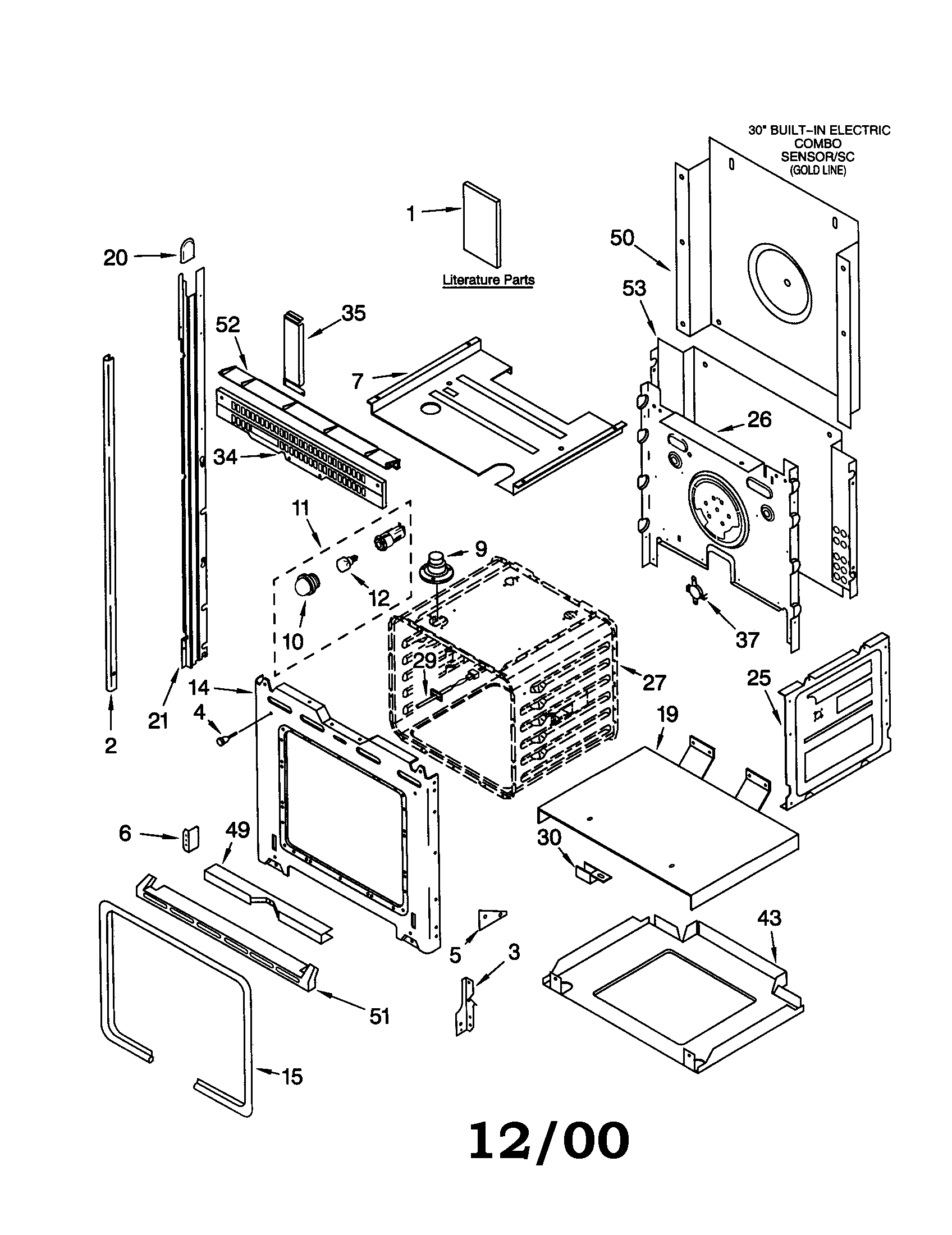

Browse Parts for GMC305PDZ4 Electric Built-In Oven with Microwave

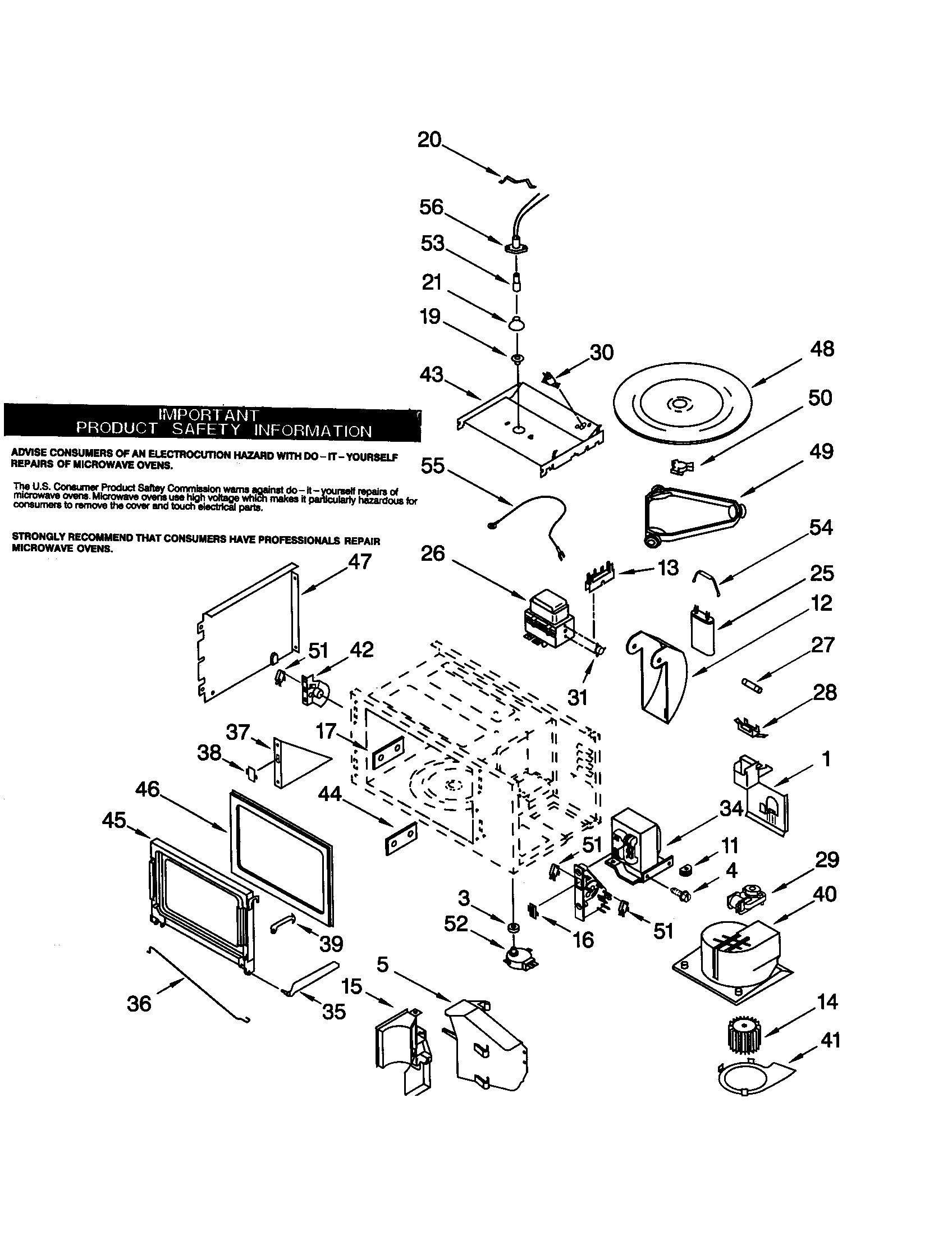

Cabinet and stirrer diagram
Microwave High-voltage Capacitor
Part #4375020
Replaced by #WP4375020
Manufacturer substitution
This part replaces 4375020. Substitute parts can look different from the original.
In Stock
$143.25
8% OFF Phone Price : $155.25
Qty
Cabinet and stirrer diagram
Mounting Bracket
Part #4375336
Replaced by #W10727408
Manufacturer substitution
This part replaces 4375336. Substitute parts can look different from the original.
In Stock
$86.90
20% OFF Was : $108.53
Qty
Cabinet and stirrer diagram
Magnetron
Part #4375072
The manufacturer no longer makes this part, and there's no substitute part
Cabinet and stirrer diagram
Oven Mounting Bracket
Part #4375335
Replaced by #W10727408
Manufacturer substitution
This part replaces 4375335. Substitute parts can look different from the original.
In Stock
$86.90
20% OFF Was : $108.53
Qty
Cabinet and stirrer diagram
Cook Tray
Part #4375343
Replaced by #W11373838
Manufacturer substitution
This part replaces 4375343. Substitute parts can look different from the original.
In Stock
$77.72
7% OFF Phone Price : $83.72
Qty

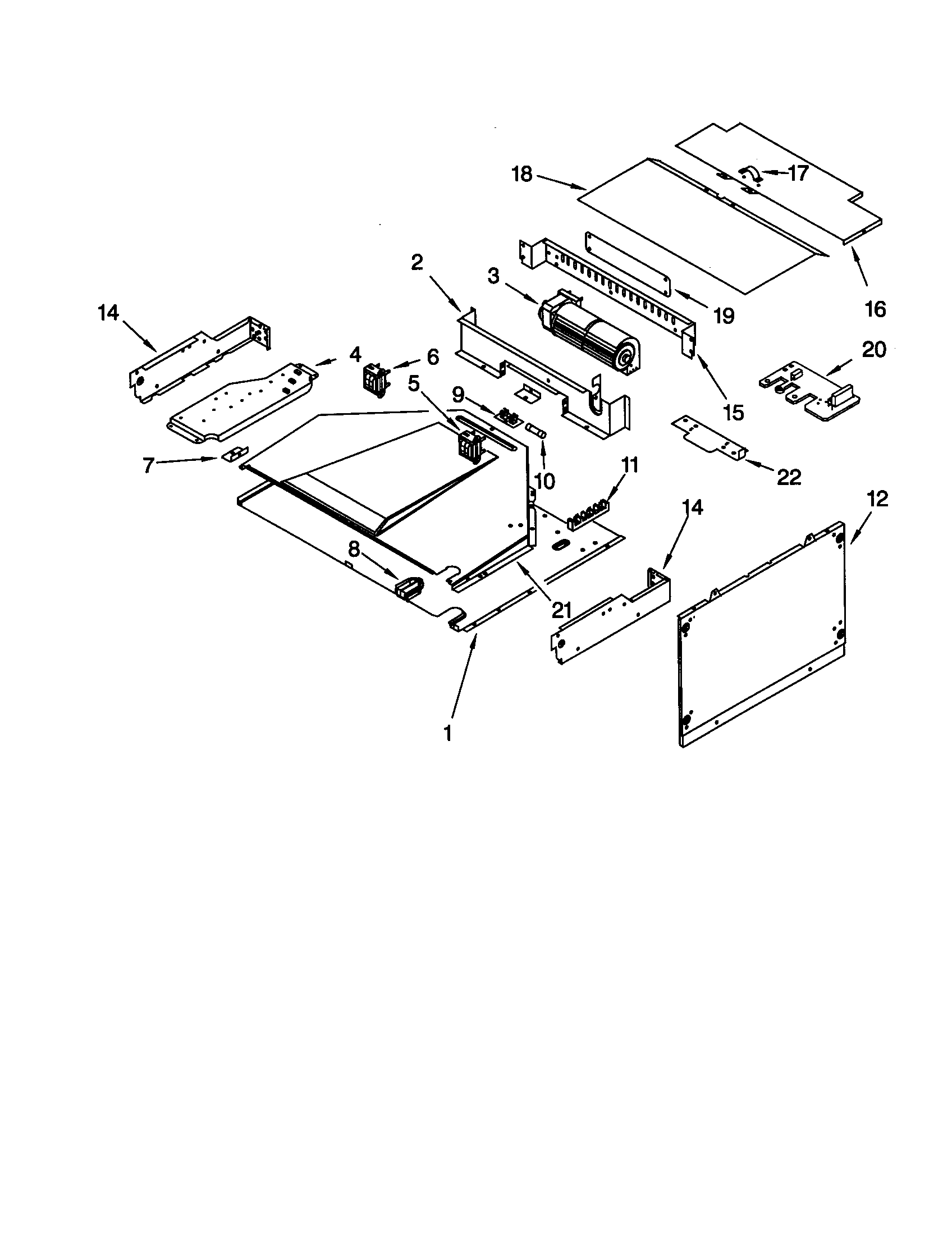

Top venting diagram
Thermal Fuse
Part #4454976
Replaced by #WPW10017410
Manufacturer substitution
This part replaces 4454976. Substitute parts can look different from the original.
This item is not returnable
In Stock
$13.19
13% OFF Phone Price : $15.19
Qty
Microwave door diagram
Door Frame
Part #4450946
Replaced by #WP8303556
Manufacturer substitution
This part replaces 4450946. Substitute parts can look different from the original.
In Stock
$175.69
6% OFF Phone Price : $187.69
Qty
Cabinet and stirrer diagram
Microwave Turntable Motor
Part #4375347
Replaced by #W10642989
Manufacturer substitution
This part replaces 4375347. Substitute parts can look different from the original.
In Stock
$92.62
6% OFF Phone Price : $98.62
Qty

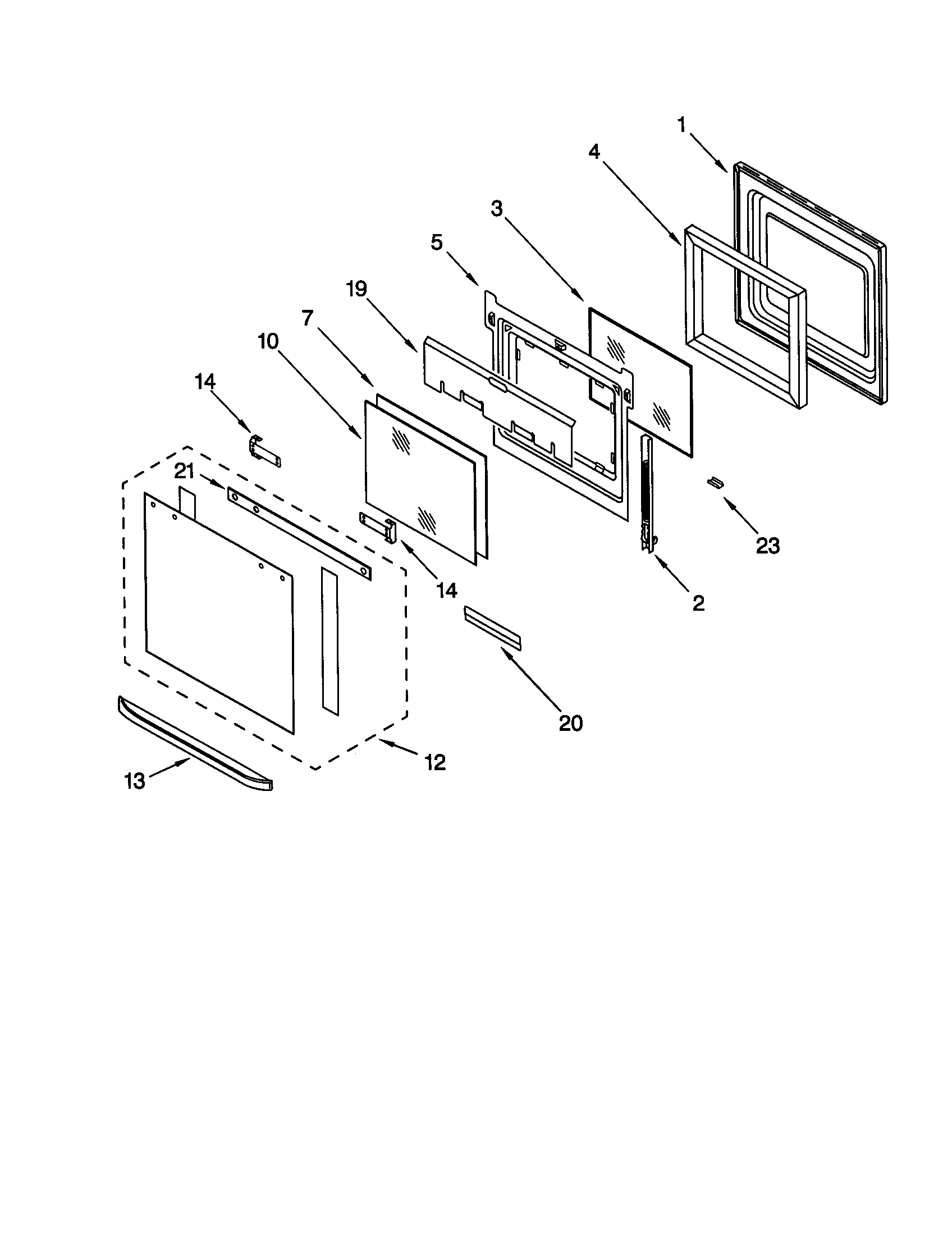

Oven door diagram
Wall Oven Door Hinge
Part #4455525
Replaced by #WP4455525
Manufacturer substitution
This part replaces 4455525. Substitute parts can look different from the original.
In Stock
$39.67
40% OFF Was : $66.01
Qty
Control panel diagram
Screw
Part #8281179
Replaced by #WP3400832
Manufacturer substitution
This part replaces 8281179. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.14
16% OFF Phone Price : $6.14
Qty
