Countertop Microwave

Model # ME1460SB/XAA Official Samsung microwave

Here are the diagrams and repair parts for Official Samsung ME1460SB-XAA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
#9

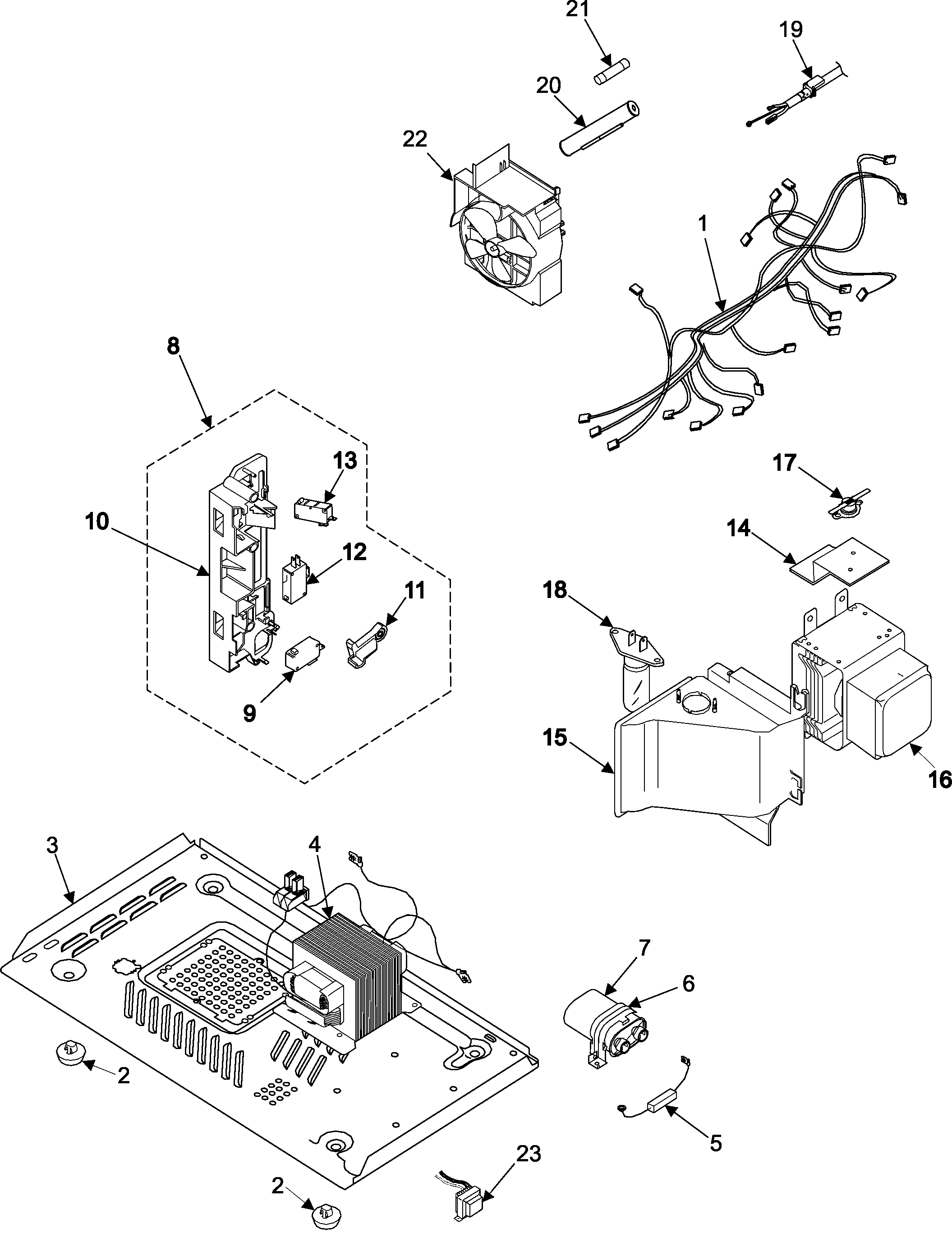

Internal control/latch asy/base diagram

Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$16.93 |
11% OFF Phone Price : $18.93
In Stock
Diode DE59-40001A
#5

Internal control/latch asy/base diagram

Diode

Part #DE59-40001A

The manufacturer no longer makes this part, and there's no substitute part

Incandescent Lamp 4713-001012
#18

Internal control/latch asy/base diagram

Incandescent lamp

Part #4713-001012

Replaced by #4713-001102

?
Manufacturer substitution
This part replaces 4713-001012. Substitute parts can look different from the original.
This item is not returnable
$16.93 |
11% OFF Phone Price : $18.93
In Stock
Latch Body DE72-00138A
#10

Internal control/latch asy/base diagram

Latch body

Part #DE72-00138A

Replaced by #DE72-00138D

?
Manufacturer substitution
This part replaces DE72-00138A. Substitute parts can look different from the original.
$20.57
In Stock
Hinge DE61-80002A
#5

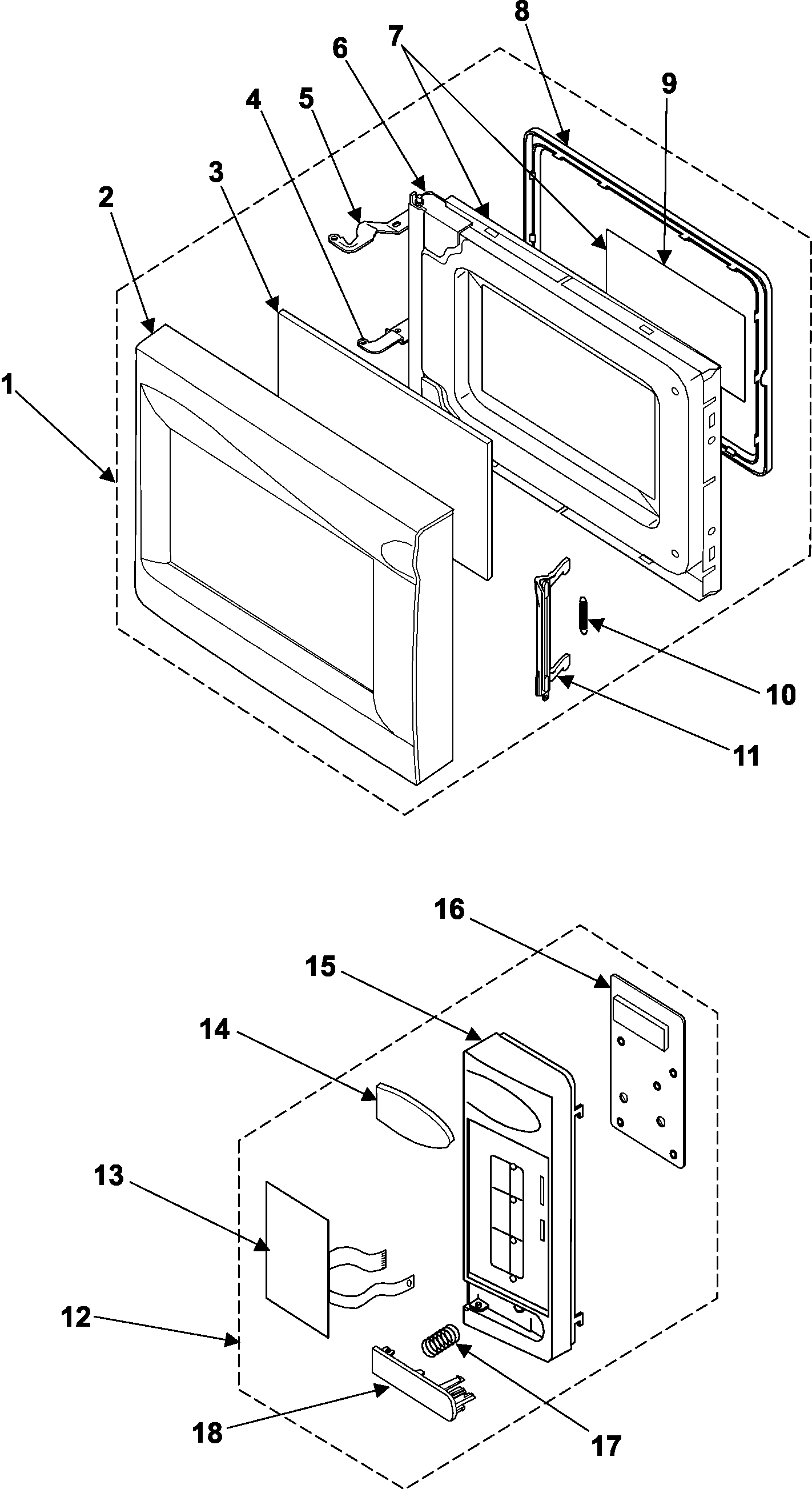

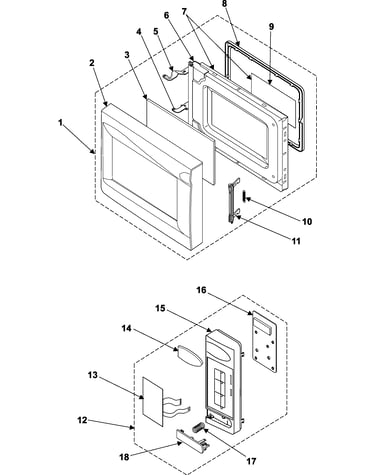

Control panel/door assembly diagram

Hinge

Part #DE61-80002A

$7.86
In Stock
Microwave Turntable DE31-10154A
#4

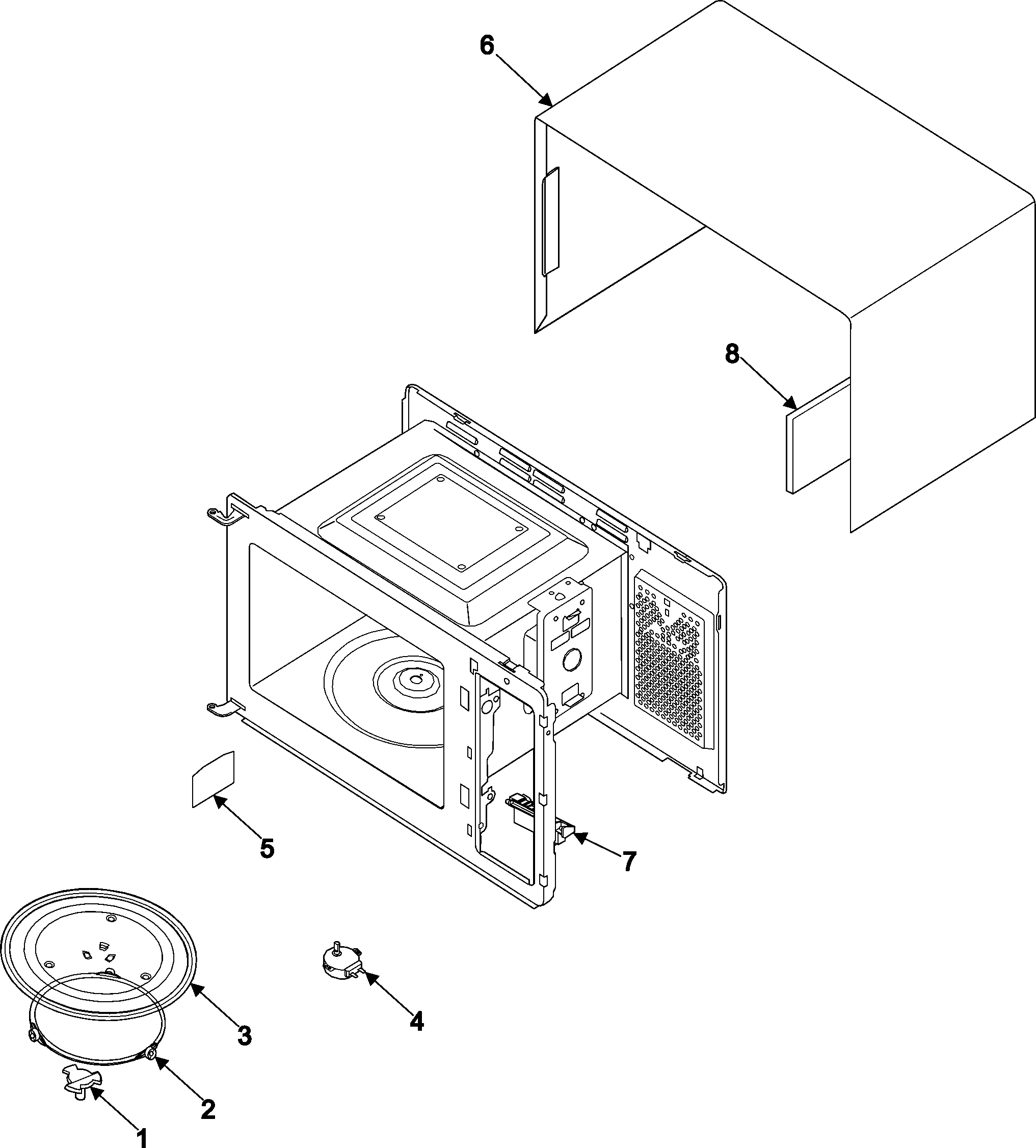

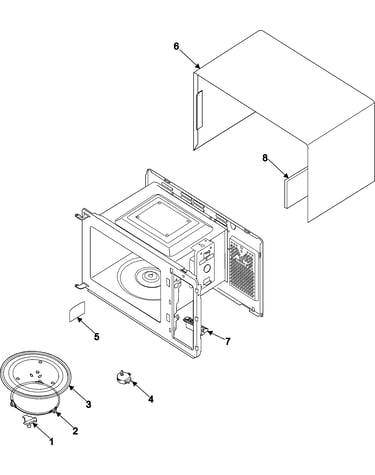

Body/cavity/elements diagram

Microwave turntable

Part #DE31-10154A

$27.62
In Stock
Complete Door DE64-40010B
#8

Control panel/door assembly diagram

Complete door

Part #DE64-40010B

$21.77
In Stock
Holder DE47-40025A
#20

Internal control/latch asy/base diagram

Holder

Part #DE47-40025A

$14.51
In Stock
Microwave Door Interlock Switch, Upper 3405-001055
#13

Internal control/latch asy/base diagram

Microwave door interlock switch, upper

Part #3405-001055

$11.29 |
15% OFF Phone Price : $13.29
In Stock
Bracket-tc DE61-50574A
#14

Internal control/latch asy/base diagram

Bracket-tc

Part #DE61-50574A

This item is not returnable
$2.59
In Stock
