Amana PTH12350EDG/P1113205R packaged terminal air conditioner - pth series Parts
Here are the diagrams and repair parts for Amana PTH12350EDG/P1113205R packaged terminal air conditioner - pth series, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for PTH12350EDG/P1113205R Packaged Terminal Air Conditioner - PTH Series

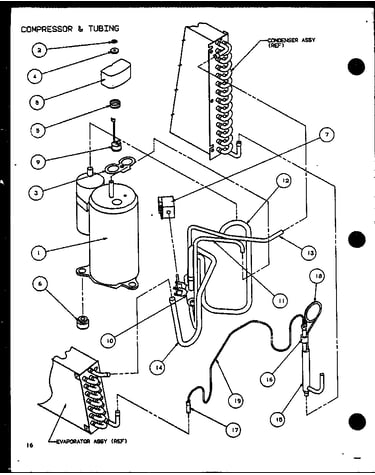

Compressor & tubing (pth15350edg/p1113204r) (pth12350edg/p1113205r) diagram
Tube Evaporator
Part #D9861001
The manufacturer no longer makes this part, and there's no substitute part

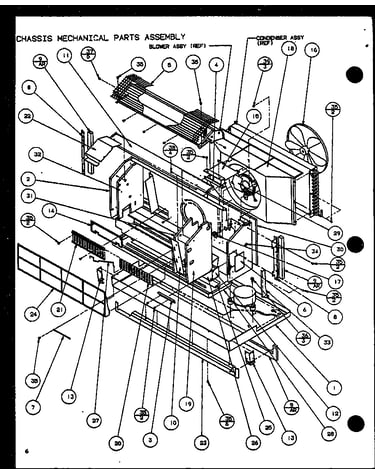

Chassis mechanical parts assembly (pth15350edg/p1113204r) (pth12350edg/p1113205r) diagram
Access Cover
Part #B1437801
The manufacturer no longer makes this part, and there's no substitute part

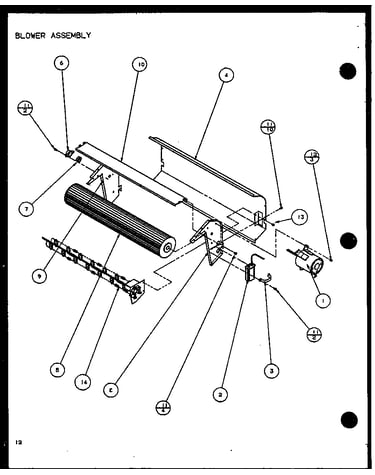

Blower assembly (pth15350edg/p1113204r) (pth12350edg/p1113205r) diagram
Air Conditioner Blower Wheel
Part #D9821501
The manufacturer no longer makes this part, and there's no substitute part
Insulator
Part #B1172803
The manufacturer no longer makes this part, and there's no substitute part

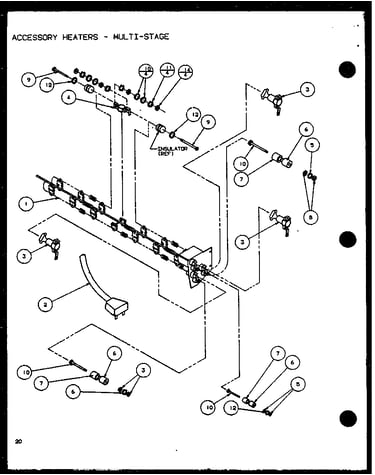

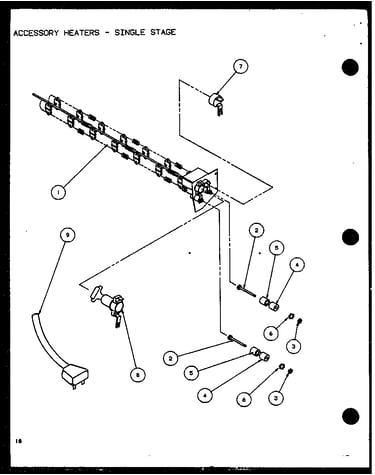

(230/208v.,1.5kw) (230/208v.,2.5kw) (230/208v.,3.0kw) (230/208v.,3.5kw) (265v.,1.5kw) (265v.,2.5kw) (265v.,3.0kw) (265v.,3.5kw) diagram
Heater Assembly
Part #D9829605
The manufacturer no longer makes this part, and there's no substitute part

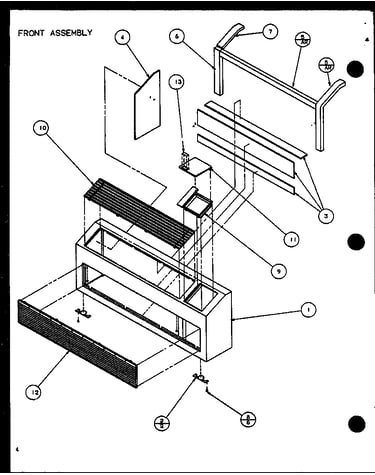

Front assembly (pth15350edg/p1113204r) (pth12350edg/p1113205r) diagram
Insulation
Part #D9862001
The manufacturer no longer makes this part, and there's no substitute part

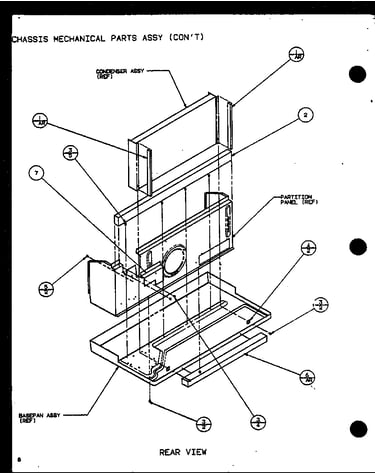

Chassis mechanical parts assembly (pth15350edg/p1113204r) (pth12350edg/p1113205r) diagram
Button Plug
Part #M0570801
The manufacturer no longer makes this part, and there's no substitute part
Heater Assembly
Part #D9829611
The manufacturer no longer makes this part, and there's no substitute part

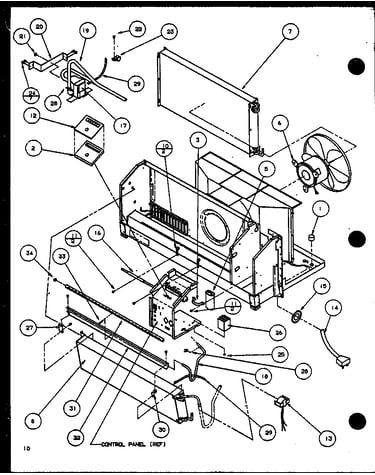

(pth15350edg/p1113204r) (pth12350edg/p1113205r) diagram
Use D9868404
Part #D9868403
The manufacturer no longer makes this part, and there's no substitute part

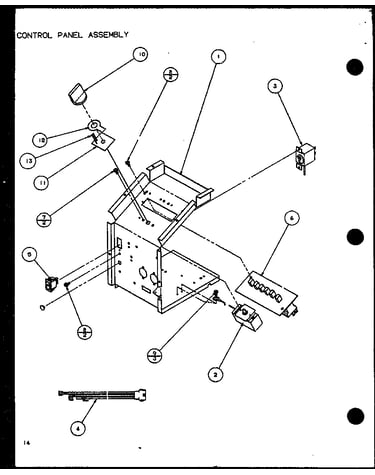

Control panel assembly (pth15350edg/p1113204r) (pth12350edg/p1113205r) diagram
Thermostat
Part #C6492601
The manufacturer no longer makes this part, and there's no substitute part
