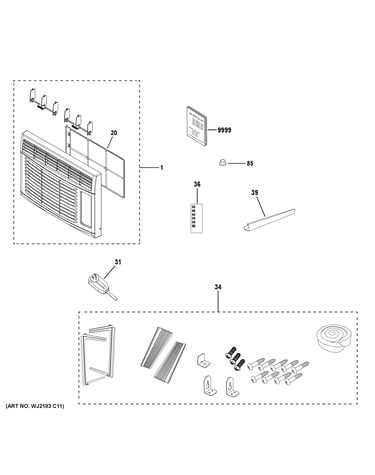

GE AWCS06BWT1 room air conditioner Parts

A 6,000 BTU room air conditioner like the GE AWCS06BWT1 typically cools about 150 to 250 sq ft in average conditions. Real coverage depends on sun exposure, insulation, ceiling height, and how well air can circulate through the space.

Quick sizing guide (typical)

• 150 to 250 sq ft: Most common fit for 6,000 BTU
• Up to ~300 sq ft: Possible in a shaded, well-insulated room with standard 8 ft ceilings
• Under ~150 sq ft: Often cools fast but may short-cycle if oversized

Room conditions	Expected coverage for 6,000 BTU
Shaded, insulated, 8 ft ceiling	200 to 300 sq ft
Average home conditions	150 to 250 sq ft
Hot sun, poor insulation, lots of heat sources	100 to 180 sq ft

What changes the sq ft number

• Direct sun exposure (south or west-facing windows)
• Insulation and air leaks (older windows, gaps, thin walls)
• Ceiling height (taller ceilings need more BTUs)
• Heat sources (kitchen use, computers, multiple people)
• Airflow restrictions (dirty filter, blocked grille, closed doors)

Why it matters

Right-sizing helps the GE AWCS06BWT1 cool evenly and remove humidity. Too small runs constantly and struggles; too large can cool quickly but leave the room feeling clammy.

Tip to keep cooling performance strong

A clogged filter can reduce airflow and make a correctly sized unit feel underpowered. Clean the filter regularly, and replace it when it will not come clean or is damaged using the filter WJ85X33815.

Last updated: January 2026

The most common issues we see with the GE AWCS06BWT1 room air conditioner are weak cooling from restricted airflow, water leaking or splashing from poor drainage or tilt, and power or control problems caused by cord, plug, or remote issues. Many problems are fixed with cleaning and a few basic checks.

Common problems and what they usually mean

• Not cooling well: Dirty or clogged air filter, blocked front grille, or the unit is undersized for the room.
• Airflow is weak: Filter is loaded with dust, grille is obstructed, or the fan wheel is dirty.
• Water leaking indoors: Unit is not tilted slightly to the outside, drain path is blocked, or the chassis pan is overflowing.
• Unit will not turn on: Outlet or breaker issue, damaged cord/plug, or a control reset is needed.
• Remote not working: Weak batteries, blocked sensor line-of-sight, or a failed remote.

Quick checks we recommend first

1. Unplug the unit for 2 minutes, then plug it back in to reset the controls.
2. Clean or replace the air filter; a clogged filter is the top cause of poor cooling. If you need a replacement, use the filter WJ85X33815.
3. Confirm proper tilt: the cabinet should pitch slightly downward toward the outdoors so condensate drains outside.
4. Clear airflow: keep curtains, furniture, and the front intake clear; clean the front grille if it is dusty (replacement option: front grille WJ71X33835).
5. Check power delivery: inspect the cord and plug for damage; replace if worn (see power cord WJ35X33816 and plug WJ01X27453).

Symptom-to-fix guide

Symptom	Most likely cause	Best first step
Runs but doesn’t cool	Airflow restriction	Clean/replace filter; clear grille
Leaks inside	Incorrect tilt or blocked drain	Re-level to drain outdoors; clear drain path
Dead/no power	Power supply or cord/plug	Check outlet/breaker; inspect cord/plug
Remote won’t control	Batteries or remote failure	Replace batteries; replace remote

Why it matters

Restricted airflow and poor drainage make the compressor work harder, reduce cooling, and can lead to water damage. Keeping the filter and intake clean is the simplest way to protect performance and extend the life of your GE room air conditioner.

Last updated: March 2026

Your GE room air conditioner’s model number is printed on the rating label; on most window and room AC units it’s located on the side of the cabinet (visible when you open the front grille) or near the power cord area. Match the full label to AWCS06BWT1.

Where to look on a GE room air conditioner

Check these common label locations:

• Behind the front grille or air filter area (open the intake panel)
• On the left or right side wall of the cabinet (inside the front opening)
• Along the lower front frame near the control panel area
• On the back of the unit near the condenser coil cover
• Near the cord exit point or electrical information label area

If your front grille is damaged or missing, replacing it can make the label area easier to access; see front grille WJ71X33835.

What to write down (so parts match)

Use the rating label to capture the exact identifiers below:

• Model number: AWCS06BWT1
• Brand: GE
• Serial number: used to identify production run
• Electrical ratings: volts and amps (helpful for troubleshooting power issues)

Quick ID checklist

Item	What it’s used for	Example
Model number	Correct diagrams and parts	AWCS06BWT1
Serial number	Version changes within a model	(varies)
Electrical rating	Outlet and power troubleshooting	(varies)

Why it matters

Room air conditioner parts can vary by model and sometimes by production run. Using the exact AWCS06BWT1 model number helps ensure the correct fit for common replacements like the air filter WJ85X33815, power cord, or remote.

Last updated: March 2026
