Jenn-Air JMW9527BAQ wall oven/microwave combo

Jenn-Air JMW9527BAQ wall oven/microwave combo Parts

Here are the diagrams and repair parts for Jenn-Air JMW9527BAQ wall oven/microwave combo, as well as links to manuals and error code tables, if available.

By Schematic
By Part

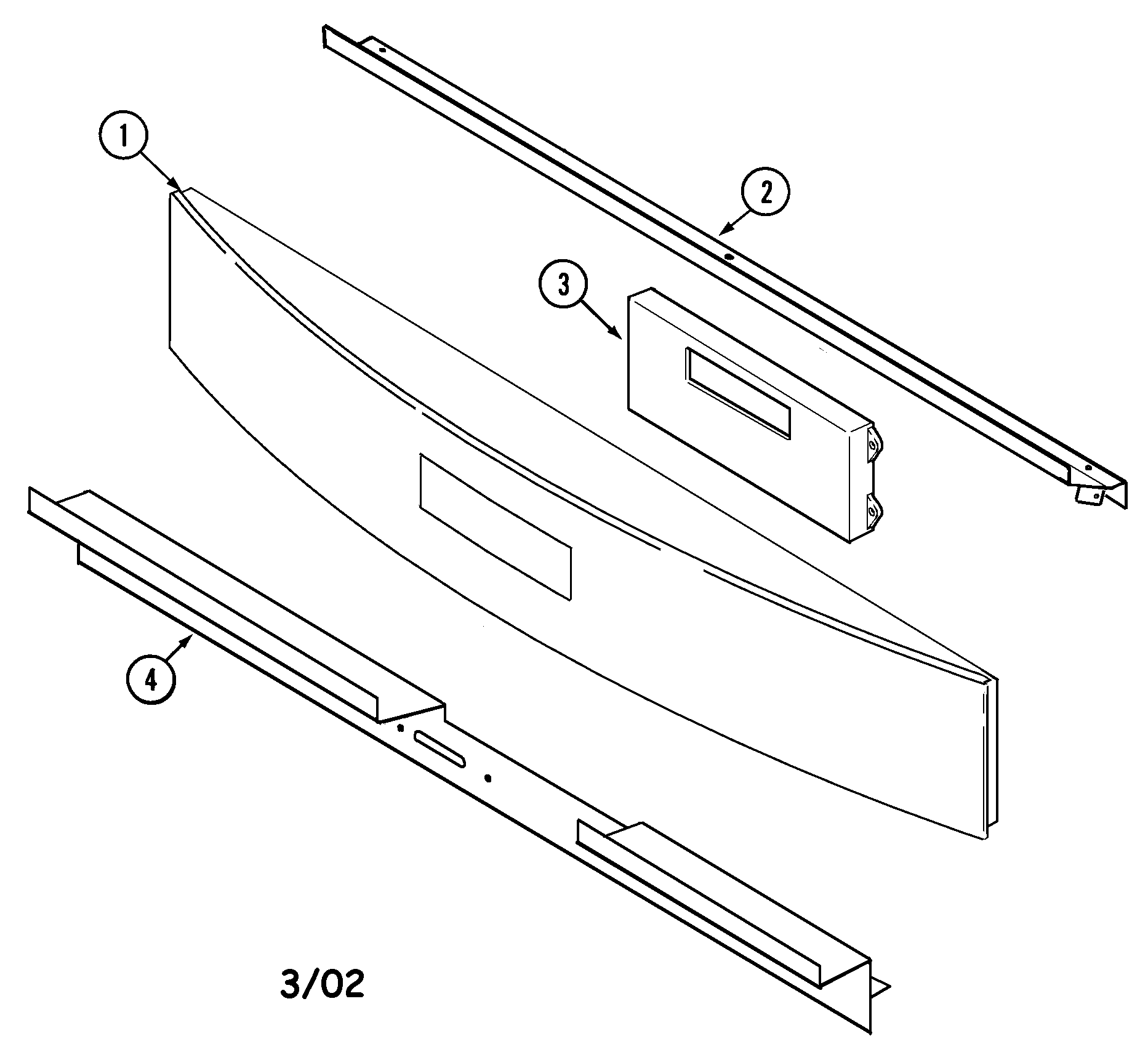

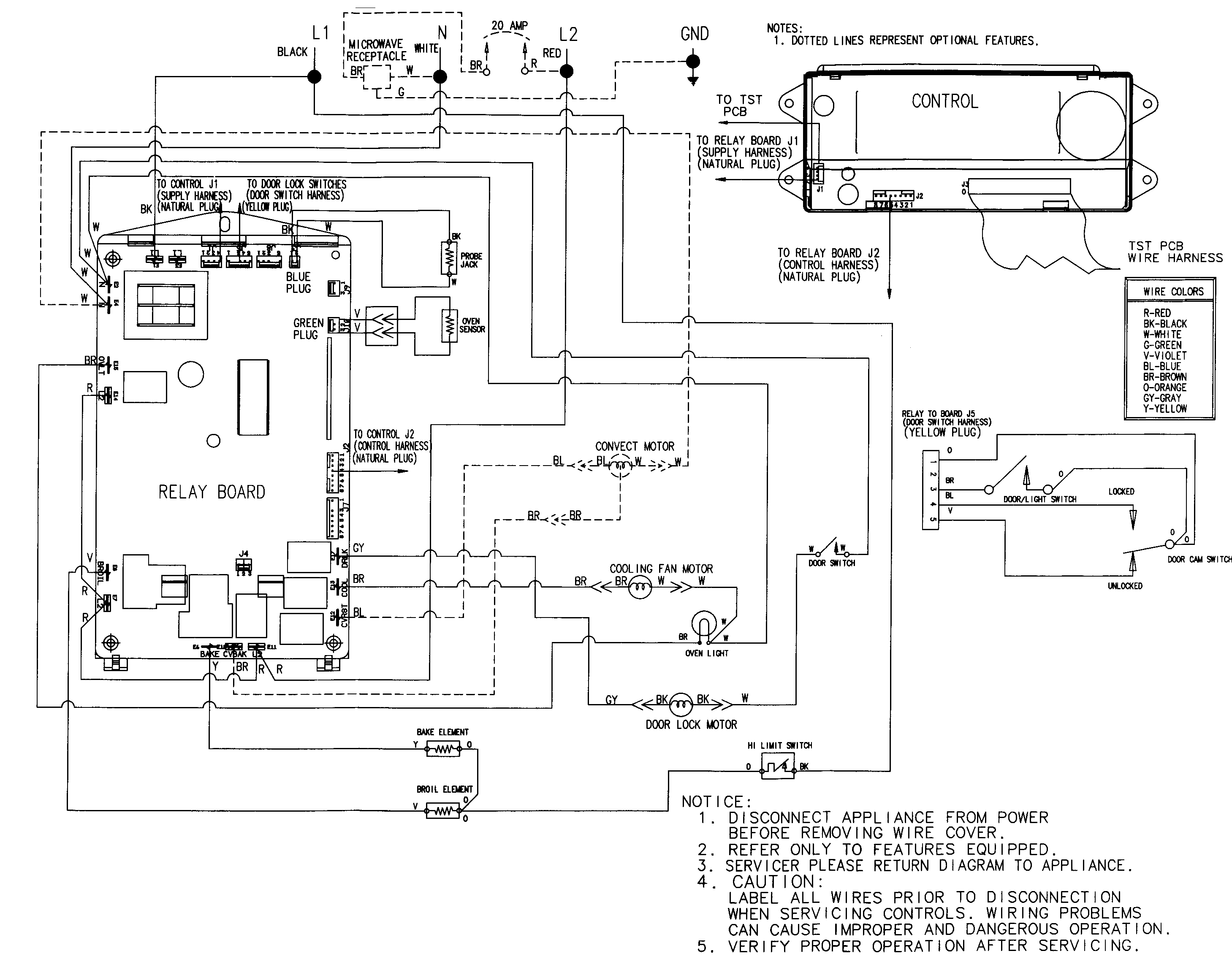

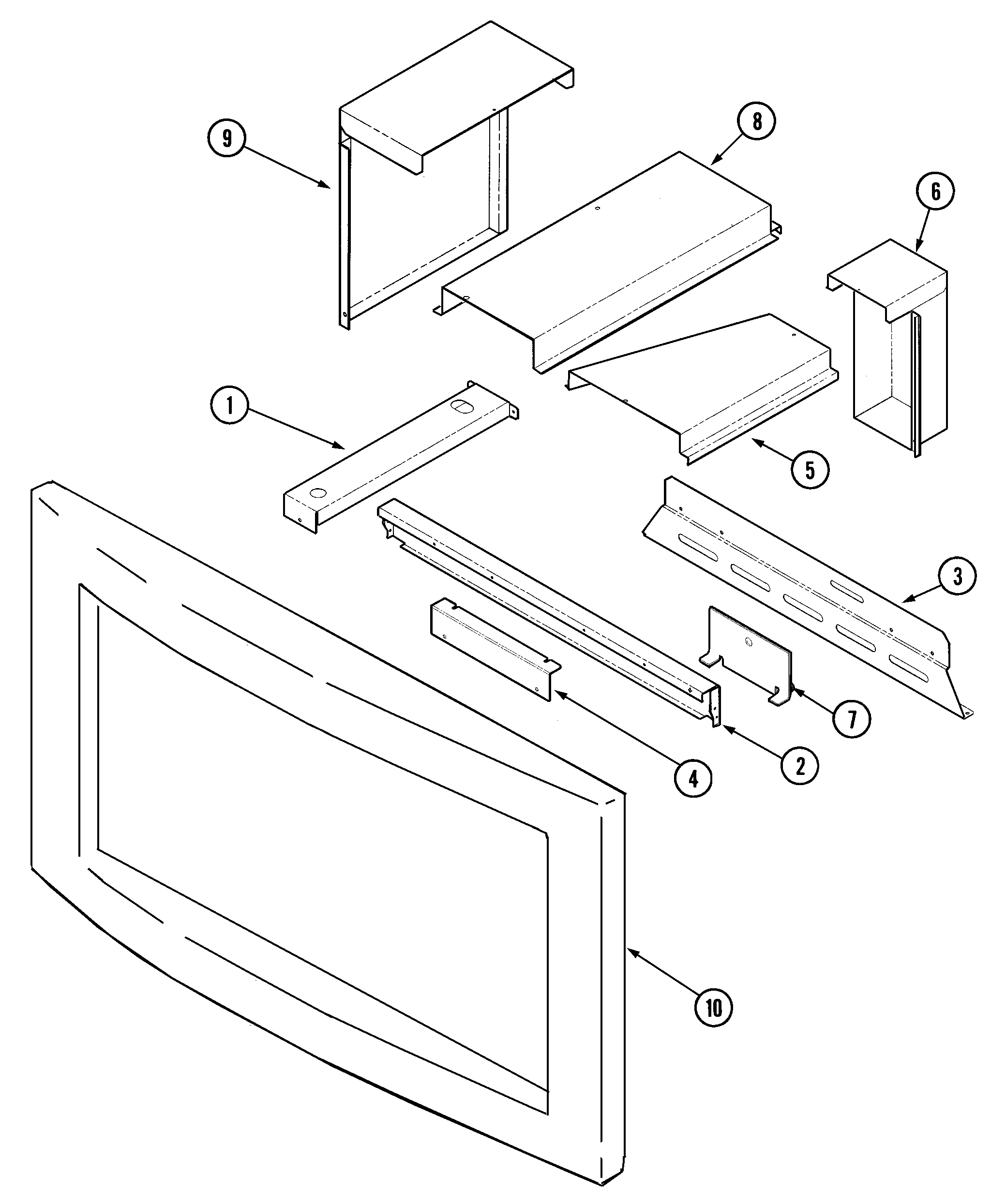

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JMW9527BAQ Wall Oven/Microwave Combo

  • Whirlpool Range Oven Temperature Sensor for Jenn-Air JMW9527BAQ - Part 12001656

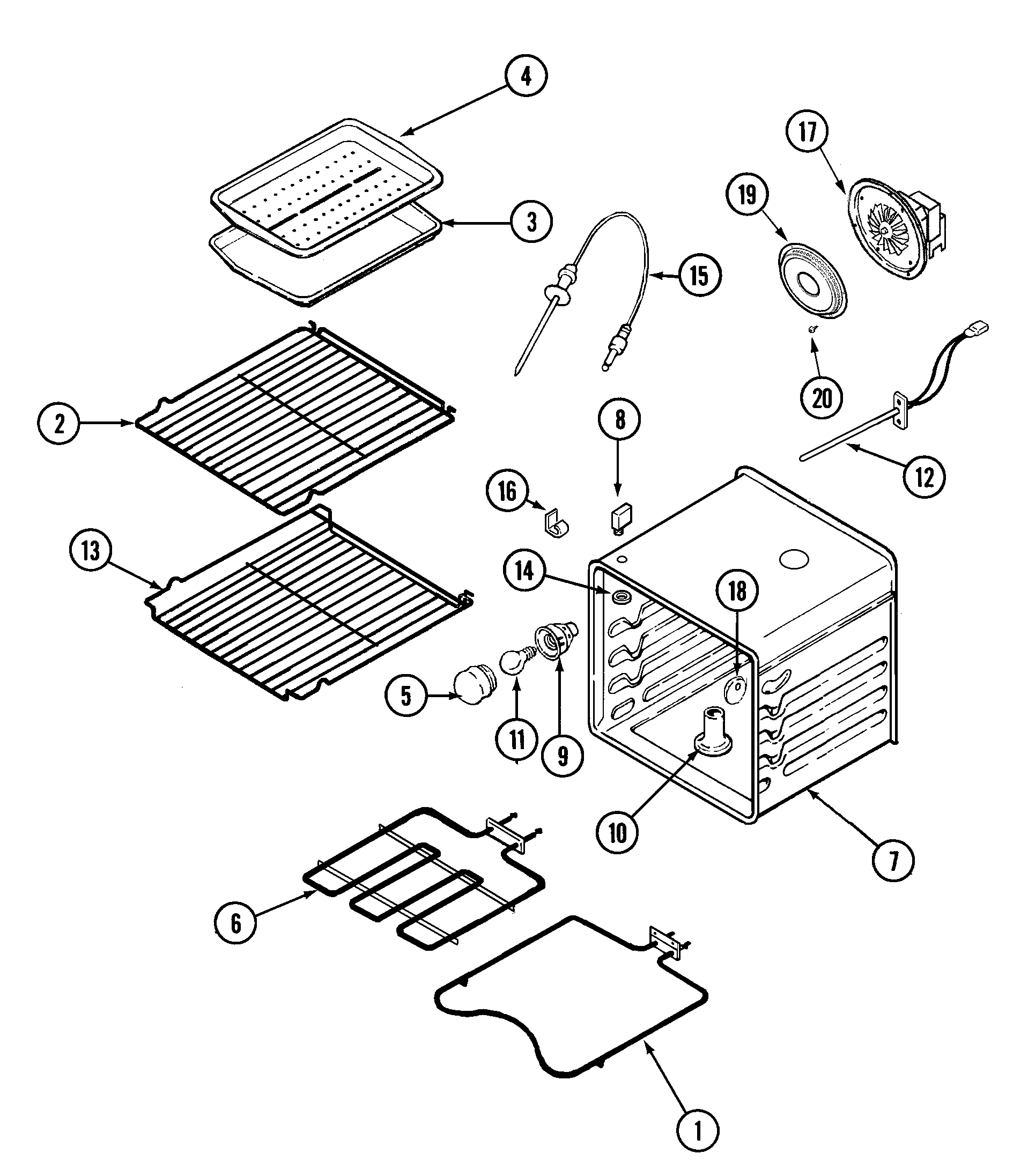

    Oven diagram

    Oven Sensor

    Part #71003083

    Replaced by #12001656

    Info Icon
    Manufacturer substitution
    This part replaces 71003083. Substitute parts can look different from the original.
    In Stock
    $22.64
    21% OFF Phone Price : $28.64Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Wall Oven Door Hinge for Jenn-Air JMW9527BAQ - Part WP74008014

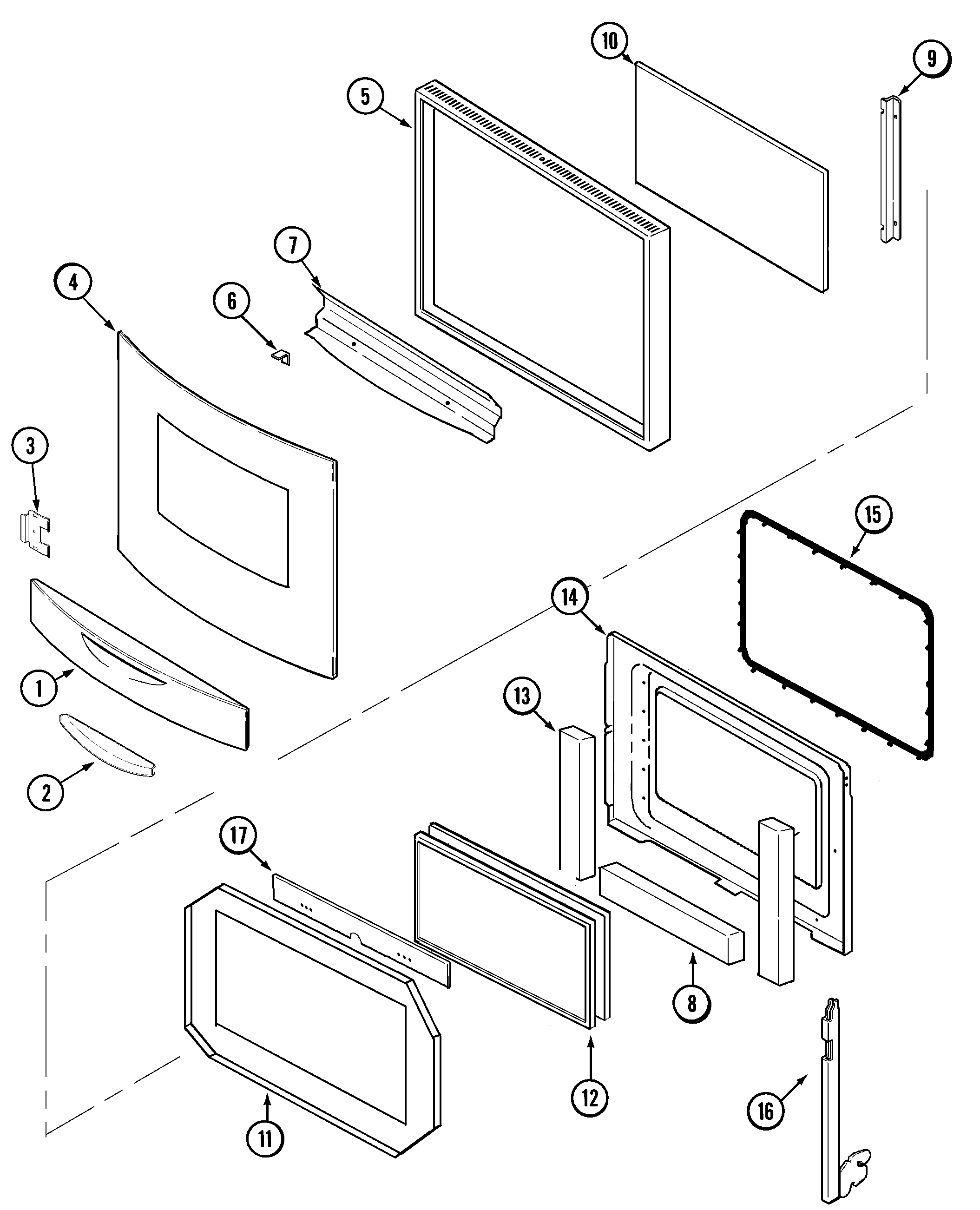

    Door diagram

    Door Hinge

    Part #71003350

    Replaced by #WP74008014

    Info Icon
    Manufacturer substitution
    This part replaces 71003350. Substitute parts can look different from the original.
    In Stock
    $99.20
    27% OFF Was : $135.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Bake Element for Jenn-Air JMW9527BAQ - Part WP7406P272-60

    Oven diagram

    Bake Element

    Part #71001636

    Replaced by #WP7406P272-60

    Info Icon
    Manufacturer substitution
    This part replaces 71001636. Substitute parts can look different from the original.
    In Stock
    $94.80
    6% OFF Phone Price : $100.80Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator for Jenn-Air JMW9527BAQ - Part W11233072

    Screw (#8ab)

    Part #71001183

    Replaced by #W11233072

    Info Icon
    Manufacturer substitution
    This part replaces 71001183. Substitute parts can look different from the original.
    In Stock
    $17.63
    Minus Item
    Qty
    Plus Item
  • Screw for Jenn-Air JMW9527BAQ - Part WP74003976

    Oven diagram

    Washer

    Part #702592

    Replaced by #WP74003976

    Info Icon
    Manufacturer substitution
    This part replaces 702592. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.06
    17% OFF Phone Price : $6.06Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for Jenn-Air JMW9527BAQ - Part WP74003976

    Oven diagram

    Screw

    Part #74003976

    Replaced by #WP74003976

    Info Icon
    Manufacturer substitution
    This part replaces 74003976. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.06
    17% OFF Phone Price : $6.06Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Hinge Receiver for Jenn-Air JMW9527BAQ - Part WP74008015

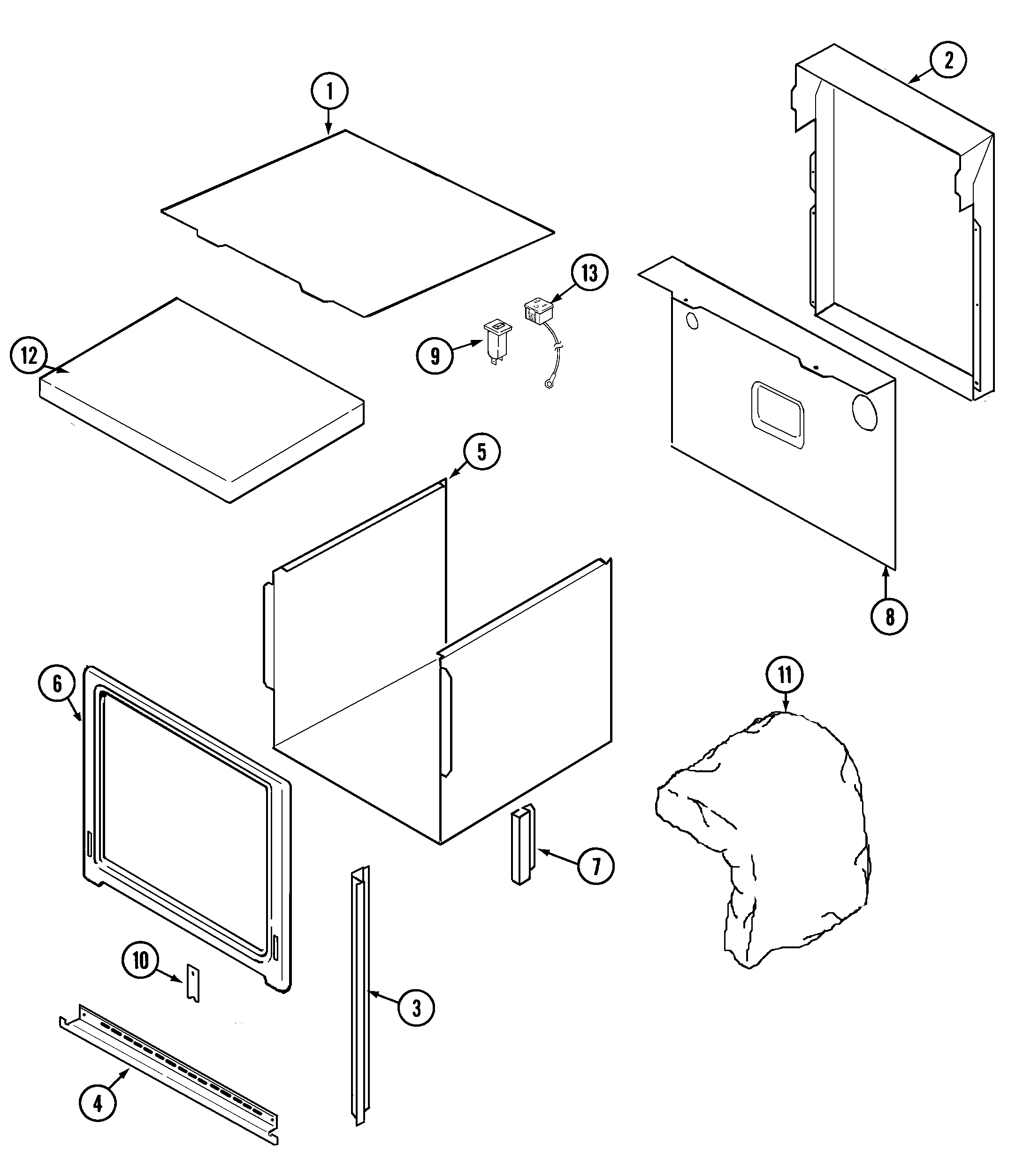

    Body diagram

    Receptacle

    Part #71001828

    Replaced by #WP74008015

    Info Icon
    Manufacturer substitution
    This part replaces 71001828. Substitute parts can look different from the original.
    In Stock
    $203.54
    6% OFF Phone Price : $215.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Range High-limit Thermostat for Jenn-Air JMW9527BAQ - Part WP71001844

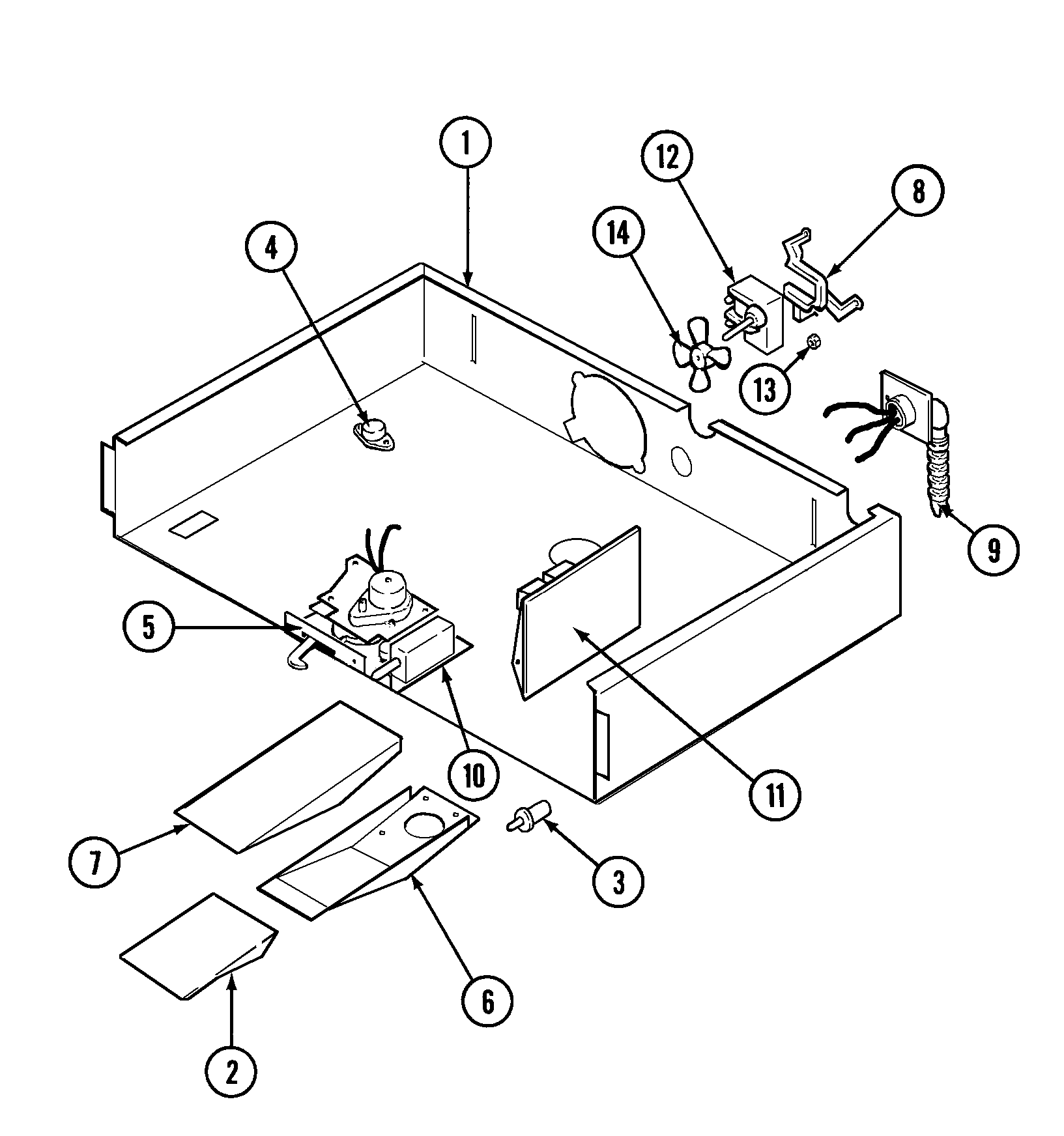

    Internal controls diagram

    Range High-limit Thermostat

    Part #71001844

    Replaced by #WP71001844

    Info Icon
    Manufacturer substitution
    This part replaces 71001844. Substitute parts can look different from the original.
    In Stock
    $117.76
    9% OFF Phone Price : $129.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Cable Tie for Jenn-Air JMW9527BAQ - Part WPW10339879

    Internal controls diagram

    Cable Tie

    Part #701678

    Replaced by #WPW10339879

    Info Icon
    Manufacturer substitution
    This part replaces 701678. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Light Assembly for Jenn-Air JMW9527BAQ - Part WP74011278

    Oven diagram

    Receptacle

    Part #71001866

    Replaced by #WP74011278

    Info Icon
    Manufacturer substitution
    This part replaces 71001866. Substitute parts can look different from the original.
    In Stock
    $95.48
    11% OFF Phone Price : $107.48Info Icon
    Minus Item
    Qty
    Plus Item
