Marantz SP-800 loudspeaker system Parts

Here are the diagrams and repair parts for Marantz SP-800 loudspeaker system, as well as links to manuals and error code tables, if available.

Marantz SP-800 loudspeaker system
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for SP-800 Audio Equipment

  • (l01) Inductor, 1 Mh-iron Core for Marantz SP-800 - Part 301-L10-070

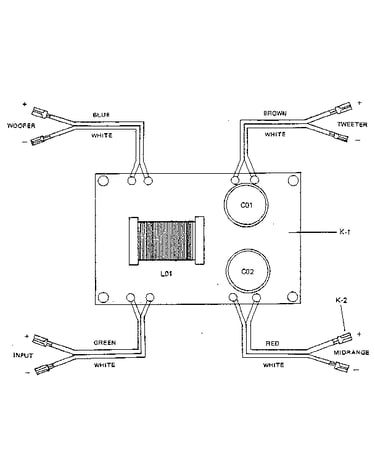

    Crossover assy diagram

    (l01) Inductor, 1 Mh-iron Core

    Part #301-L10-070

    The manufacturer no longer makes this part, and there's no substitute part

  • (a02) Baffle Board Assy for Marantz SP-800 - Part 130-P15-800

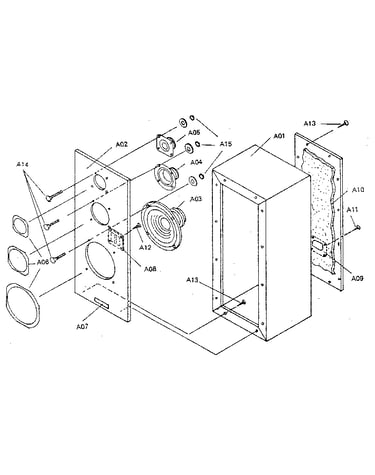

    Cabinet assy diagram

    (a02) Baffle Board Assy

    Part #130-P15-800

    The manufacturer no longer makes this part, and there's no substitute part

  • (p07) Cord Wire (cable) for Marantz SP-800 - Part 231-C03-220

    Cabinet assy diagram

    (p07) Cord Wire (cable)

    Part #231-C03-220

    The manufacturer no longer makes this part, and there's no substitute part

  • (a06) Front Paper Ring for Marantz SP-800 - Part 183-FPR-800

    Cabinet assy diagram

    (a06) Front Paper Ring

    Part #183-FPR-800

    The manufacturer no longer makes this part, and there's no substitute part

  • (a15) Washer & Nut for Marantz SP-800 - Part 191-WSN-320

    Cabinet assy diagram

    (a15) Washer & Nut

    Part #191-WSN-320

    The manufacturer no longer makes this part, and there's no substitute part

  • (a13) Screw 3x18mm Zny for Marantz SP-800 - Part 191-THZ-318

    Cabinet assy diagram

    (a13) Screw 3x18mm Zny

    Part #191-THZ-318

    The manufacturer no longer makes this part, and there's no substitute part

  • (a11) Screw 3x12mm Black for Marantz SP-800 - Part 191-THB-312

    Cabinet assy diagram

    (a11) Screw 3x12mm Black

    Part #191-THB-312

    The manufacturer no longer makes this part, and there's no substitute part

  • (a05) Tweeter 2 In Transducer for Marantz SP-800 - Part 141-T02-800

    Cabinet assy diagram

    (a05) Tweeter 2 In Transducer

    Part #141-T02-800

    The manufacturer no longer makes this part, and there's no substitute part

  • (c02) Capacitor, 6.8 Mf/63 V for Marantz SP-800 - Part 201-C68-063

    Crossover assy diagram

    (c02) Capacitor, 6.8 Mf/63 V

    Part #201-C68-063

    The manufacturer no longer makes this part, and there's no substitute part

  • (c01) Capacitor, 8 Mf/63 V for Marantz SP-800 - Part 201-C80-063

    Crossover assy diagram

    (c01) Capacitor, 8 Mf/63 V

    Part #201-C80-063

    The manufacturer no longer makes this part, and there's no substitute part
