Model # 167410053 Official Sears swimming pool water filter

Here are the diagrams and repair parts for Official Sears 167410053 swimming pool water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Clamp 066-6217
#29

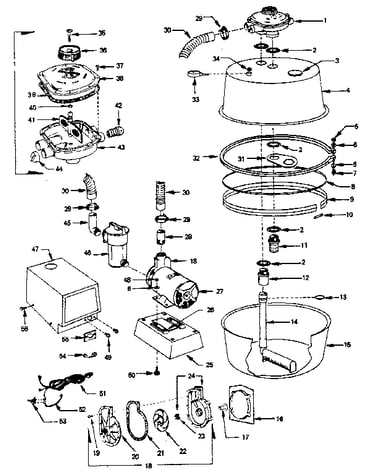

Replacement parts diagram

Clamp

Part #066-6217

The manufacturer no longer makes this part, and there's no substitute part

Teflon Tape 089-6713

#NI

All parts diagram

Teflon tape

Part #089-6713

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 052-3701
#6

Replacement parts diagram

Flat washer

Part #052-3701

The manufacturer no longer makes this part, and there's no substitute part

Plug 039-3408
#42

Replacement parts diagram

Plug

Part #039-3408

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 051-3735
#48

Replacement parts diagram

Hex nut

Part #051-3735

The manufacturer no longer makes this part, and there's no substitute part

Motor Cover 05-3073F
#47

Replacement parts diagram

Motor cover

Part #05-3073F

The manufacturer no longer makes this part, and there's no substitute part

Screw 054-3758
#56

Replacement parts diagram

Screw

Part #054-3758

The manufacturer no longer makes this part, and there's no substitute part

Sleeve Shaft 098-7074
#17

Replacement parts diagram

Sleeve shaft

Part #098-7074

The manufacturer no longer makes this part, and there's no substitute part

Gasket 038-3433
#64

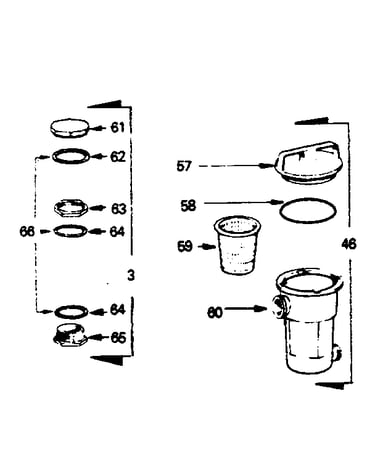

Hair and lint pot assembly diagram

Gasket

Part #038-3433

The manufacturer no longer makes this part, and there's no substitute part

Motor 010-4012
#27

Replacement parts diagram

Motor

Part #010-4012

The manufacturer no longer makes this part, and there's no substitute part
