Model # 47LA7400UDBUSYLJR Official LG television

Here are the diagrams and repair parts for Official LG 47LA7400UDBUSYLJR television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Television Screw FAB30016122
#A10

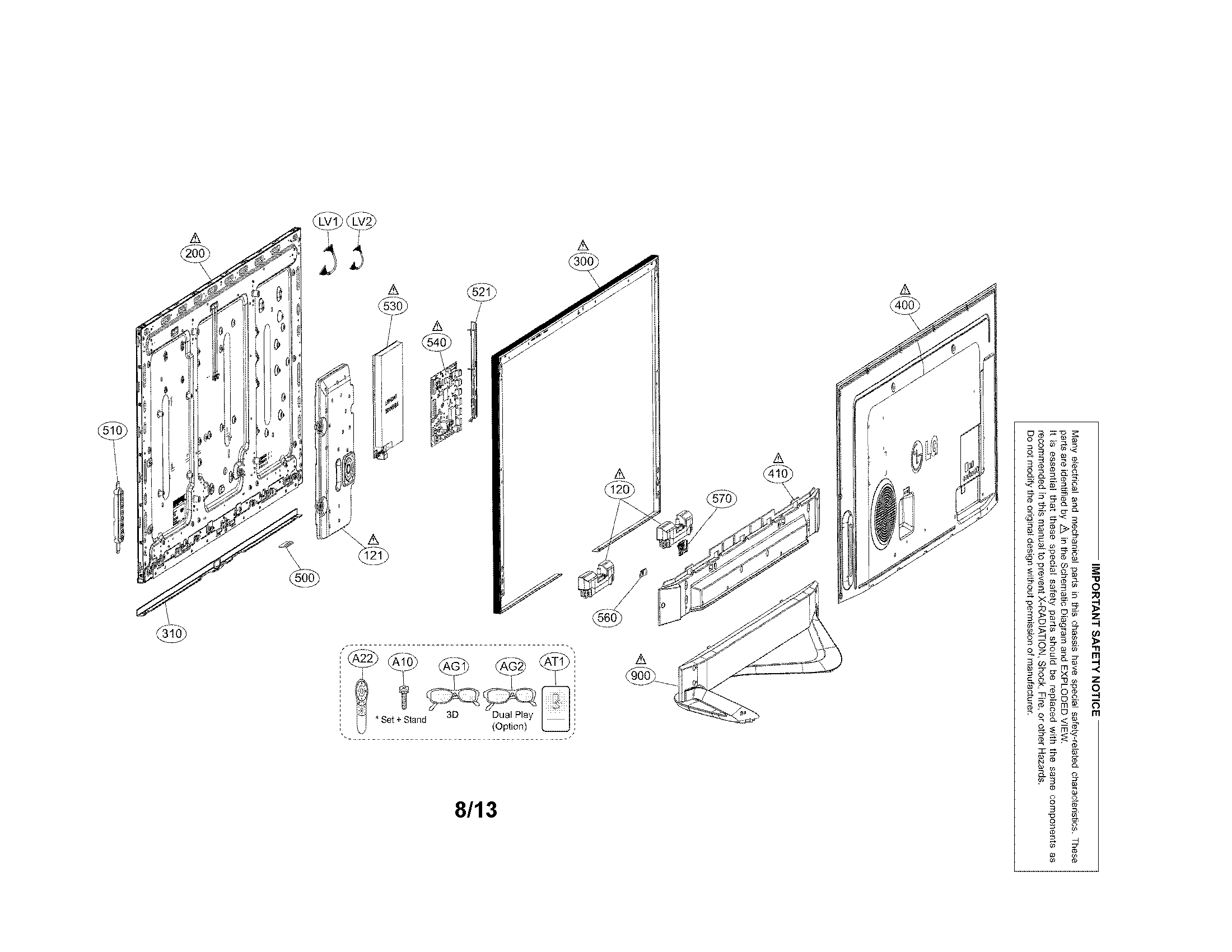

Exploded view parts diagram

Television screw

Part #FAB30016122

This item is not returnable
$2.83
In Stock
Cabinet Assembly ABJ73967403
#300

Exploded view parts diagram

Cabinet assembly

Part #ABJ73967403

$117.90
In Stock
Power Supply EAY62810901
#530

Exploded view parts diagram

Power supply

Part #EAY62810901

$148.62
In Stock
Pcb Assembly EBR76363001
#560

Exploded view parts diagram

Pcb assembly

Part #EBR76363001

$34.96
In Stock
Accessory EBX61668503
#AG1

Exploded view parts diagram

Accessory

Part #EBX61668503

$44.93
In Stock
Television Tag-on Wireless Accessory EBX61849401
#AT1

Exploded view parts diagram

Television tag-on wireless accessory

Part #EBX61849401

$10.57
In Stock
Sub Pcb Assembly EBR76384101
#510

Exploded view parts diagram

Sub pcb assembly

Part #EBR76384101

$24.77
In Stock
Television Power Cord EAD62348802
Television power cord

Part #EAD62348802

$23.07
In Stock
Module Assembly EAT61813801
#570

Exploded view parts diagram

Module assembly

Part #EAT61813801

$64.42
In Stock
Chassis Assembly EBT62435702
#540

Exploded view parts diagram

Chassis assembly

Part #EBT62435702

The manufacturer no longer makes this part, and there's no substitute part
