Model # 502456930 Official Sears 26" women's 15-speed atb bicycle

Here are the diagrams and repair parts for Official Sears 502456930 26" women's 15-speed atb bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

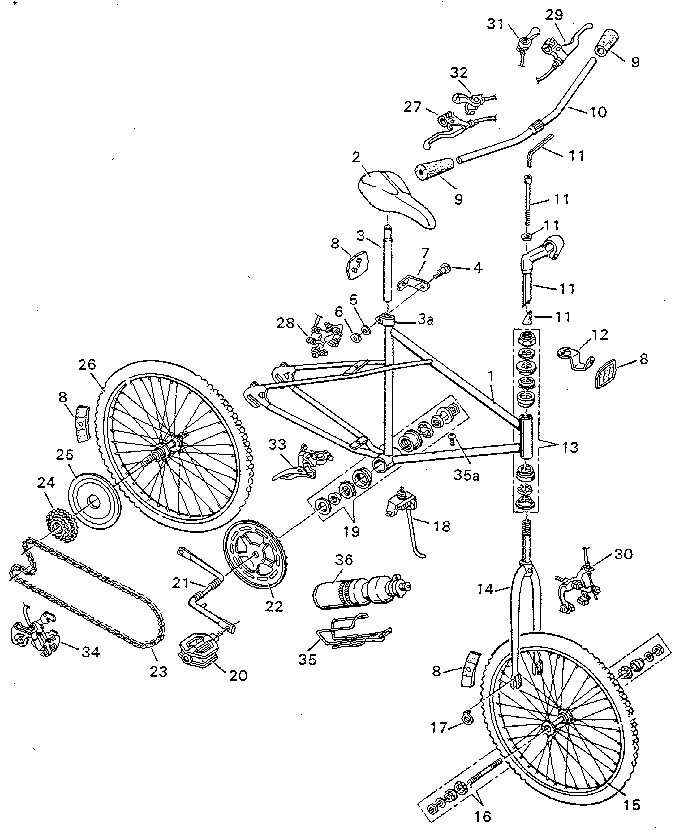

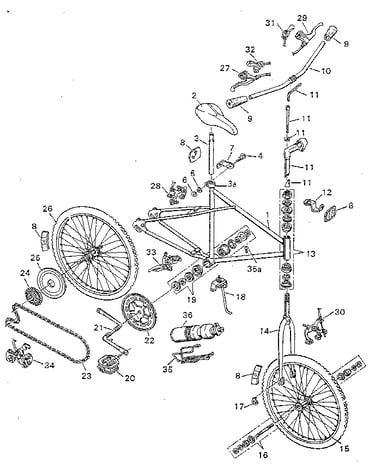

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Derailleur 40248
#34

Unit parts diagram

Derailleur

Part #40248

The manufacturer no longer makes this part, and there's no substitute part

26 In R Whel 303081C
#26

Unit parts diagram

26 in r whel

Part #303081C

The manufacturer no longer makes this part, and there's no substitute part

Wrench 6mm 300809

#NI

All parts diagram

Wrench 6mm

Part #300809

The manufacturer no longer makes this part, and there's no substitute part

Kickstand 302336
#18

Unit parts diagram

Kickstand

Part #302336

The manufacturer no longer makes this part, and there's no substitute part

Washer 17X47Z
#5

Unit parts diagram

Washer

Part #17X47Z

The manufacturer no longer makes this part, and there's no substitute part

Inner Tube 139X3
#15B

Unit parts diagram

Inner tube

Part #139X3

The manufacturer no longer makes this part, and there's no substitute part

Cable Casing 308525
#32A

Unit parts diagram

Cable casing

Part #308525

The manufacturer no longer makes this part, and there's no substitute part

Tire 75X677PA
#15A

Unit parts diagram

Tire

Part #75X677PA

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 40903
#24

Unit parts diagram

Sprocket

Part #40903

The manufacturer no longer makes this part, and there's no substitute part

Reflector Kt 36056
#8

Unit parts diagram

Reflector kt

Part #36056

The manufacturer no longer makes this part, and there's no substitute part
