Model # 2538700661 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 2538700661 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Installation Instructions 507263

#NI

All parts diagram

Installation instructions

Part #507263

Replaced by #5300507263

?
Manufacturer substitution
This part replaces 507263. Substitute parts can look different from the original.
This item is not returnable
$2.36
In Stock
Filter 47-9155
#16

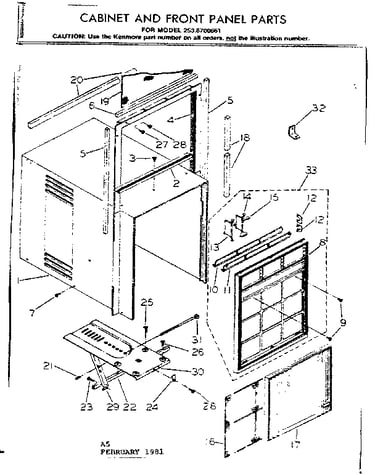

Cabinet and front panel parts diagram

Filter

Part #47-9155

The manufacturer no longer makes this part, and there's no substitute part

Clamp 27669
#26

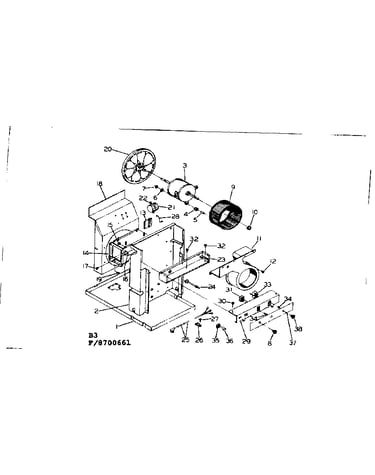

Electrical system & air handling parts diagram

Clamp

Part #27669

Replaced by #5303001199

?
Manufacturer substitution
This part replaces 27669. Substitute parts can look different from the original.
$50.60
In Stock
Grommet 126340
#9

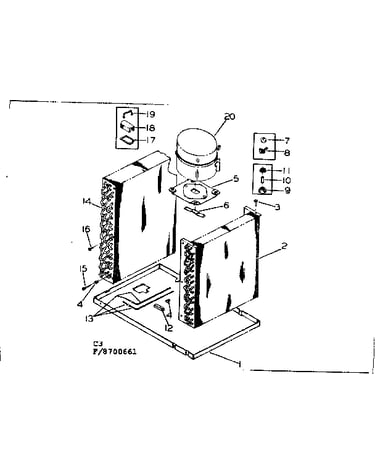

Unit parts diagram

Grommet

Part #126340

Replaced by #218513300

?
Manufacturer substitution
This part replaces 126340. Substitute parts can look different from the original.
$36.56 |
12% OFF Phone Price : $41.56
In Stock
Screw 500739
#34

Electrical system & air handling parts diagram

Screw

Part #500739

Replaced by #5303007620

?
Manufacturer substitution
This part replaces 500739. Substitute parts can look different from the original.
$9.49
In Stock
Tube 136533
#35

Electrical system & air handling parts diagram

Tube

Part #136533

The manufacturer no longer makes this part, and there's no substitute part

Screw 160564
#27

Cabinet and front panel parts diagram

Screw

Part #160564

The manufacturer no longer makes this part, and there's no substitute part

Control Box 160175-01
#23

Electrical system & air handling parts diagram

Control box

Part #160175-01

The manufacturer no longer makes this part, and there's no substitute part

Spring 125920
#8

Unit parts diagram

Spring

Part #125920

The manufacturer no longer makes this part, and there's no substitute part

Nut 500444
#7

Electrical system & air handling parts diagram

Nut

Part #500444

The manufacturer no longer makes this part, and there's no substitute part
