Frigidaire AW09NT5F1 room air conditioner - lf34088190

Frigidaire AW09NT5F1 room air conditioner - lf34088190 Parts

Here are the diagrams and repair parts for Frigidaire AW09NT5F1 room air conditioner - lf34088190, as well as links to manuals and error code tables, if available.

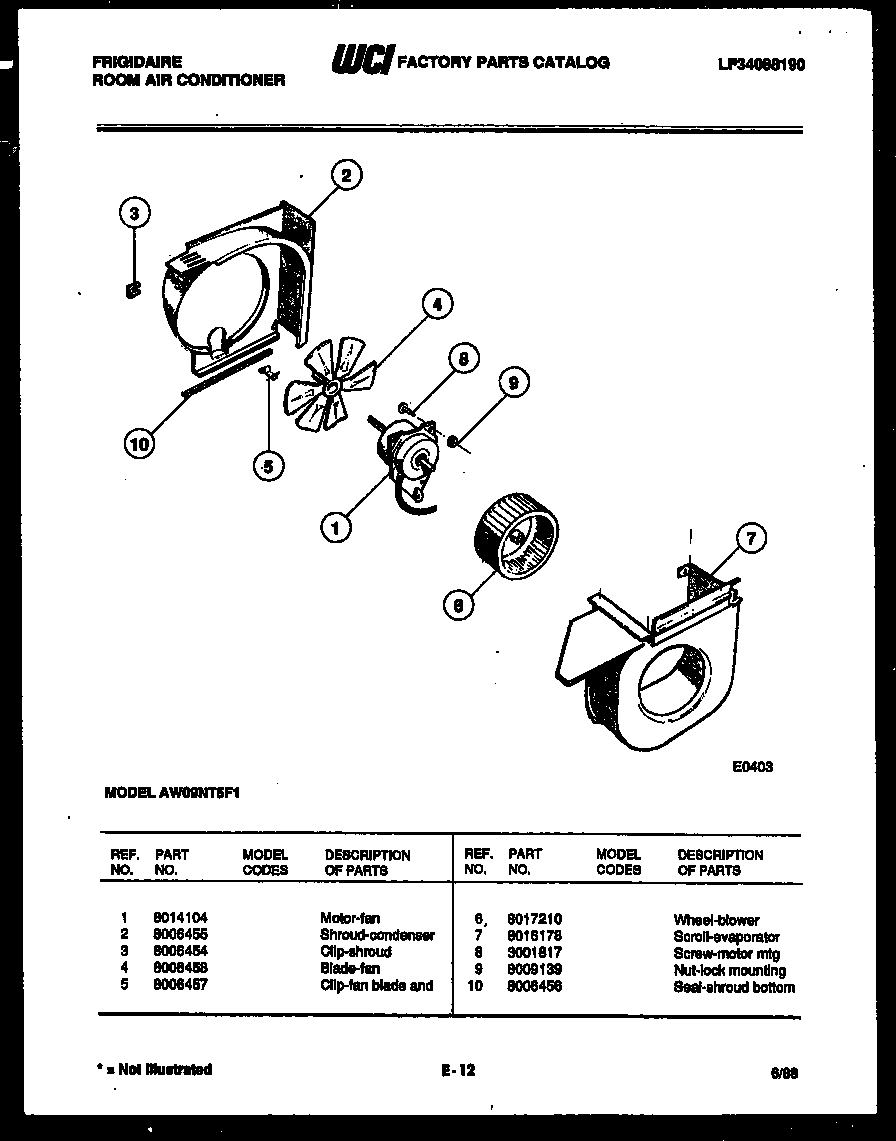

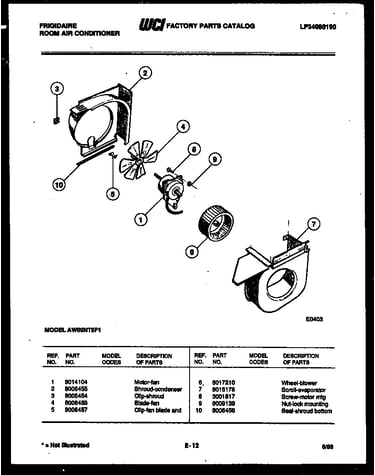

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for AW09NT5F1 Room Air Conditioner - LF34088190

  • Cover for Frigidaire AW09NT5F1 - Part 3002034

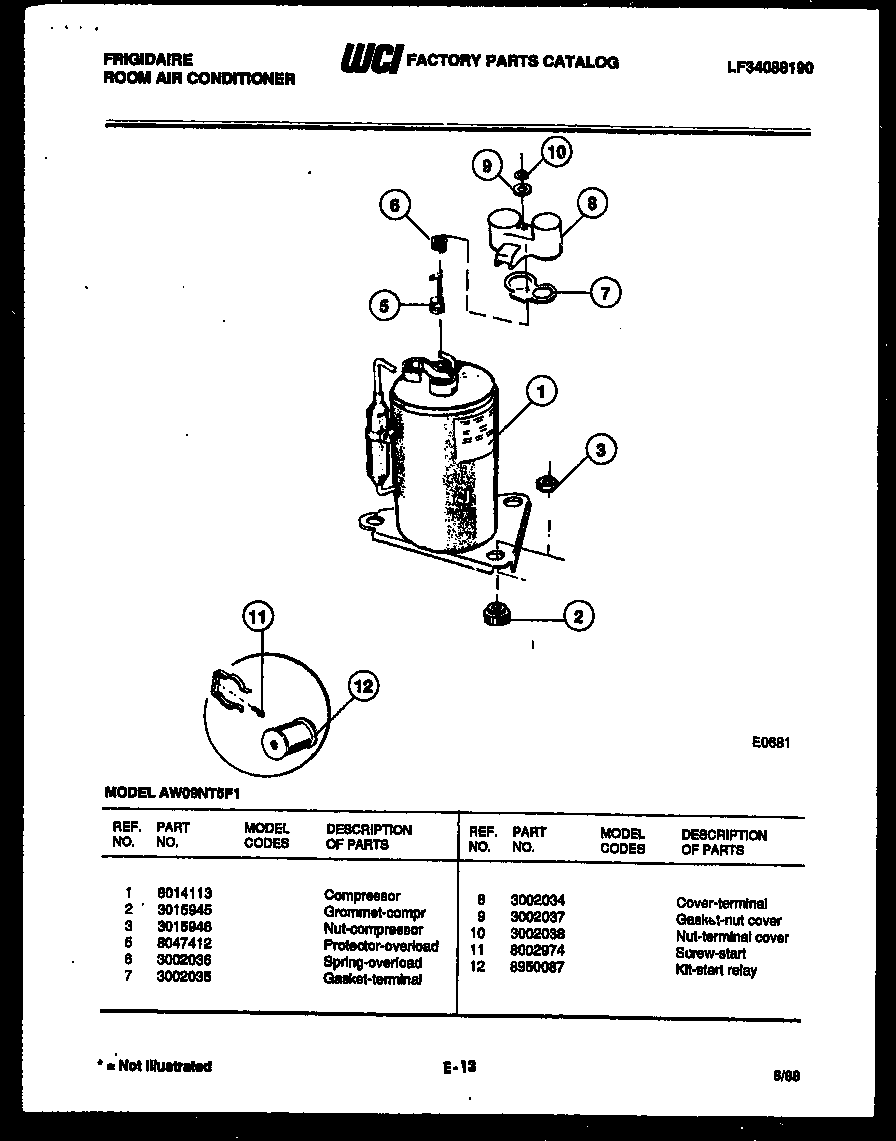

    Compressor parts diagram

    Cover

    Part #3002034
    In Stock
    $39.41
    Minus Item
    Qty
    Plus Item
  • Spring for Frigidaire AW09NT5F1 - Part 5303002036

    Compressor parts diagram

    Spring

    Part #3002036

    Replaced by #5303002036

    Info Icon
    Manufacturer substitution
    This part replaces 3002036. Substitute parts can look different from the original.
    In Stock
    $34.77
    Minus Item
    Qty
    Plus Item
  • Compressor Grommet for Frigidaire AW09NT5F1 - Part 5303015945

    Compressor parts diagram

    Grommet

    Part #3015945

    Replaced by #5303015945

    Info Icon
    Manufacturer substitution
    This part replaces 3015945. Substitute parts can look different from the original.
    In Stock
    $48.73
    Minus Item
    Qty
    Plus Item
  • Panel for Frigidaire AW09NT5F1 - Part 5304426658

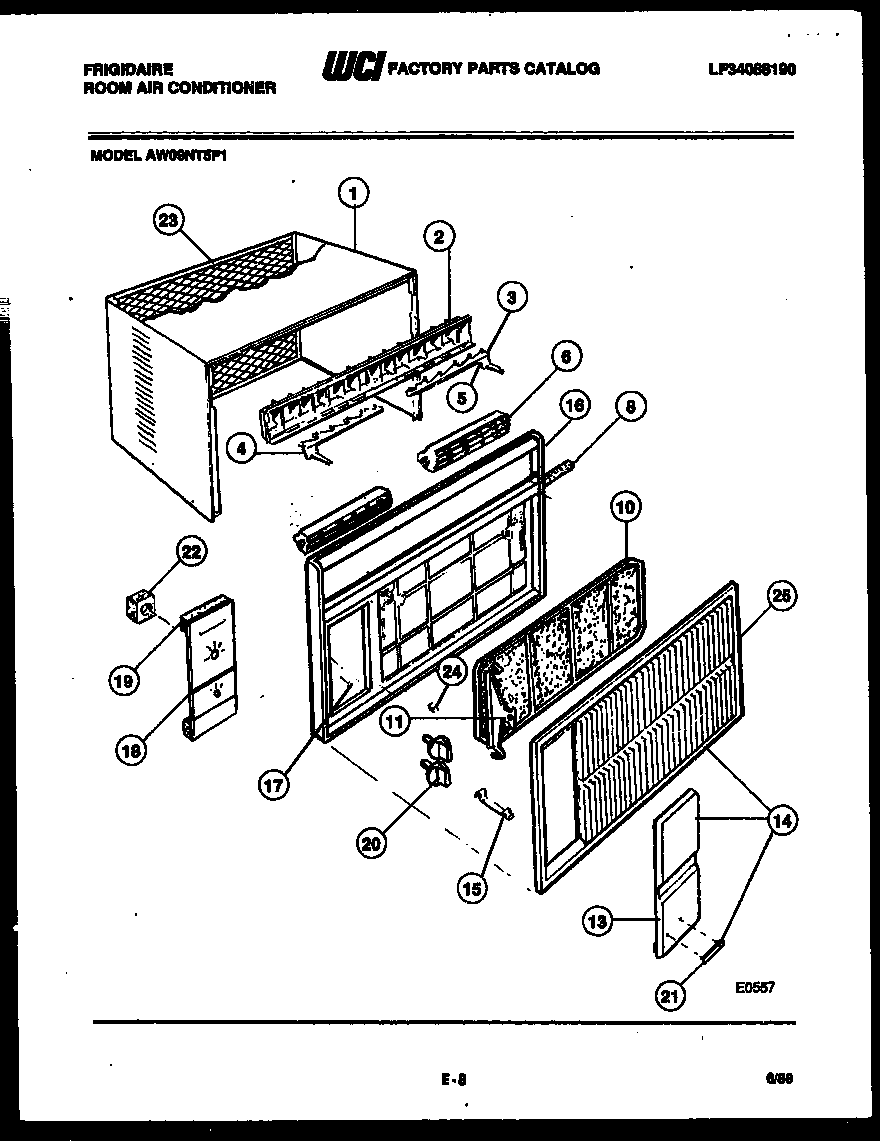

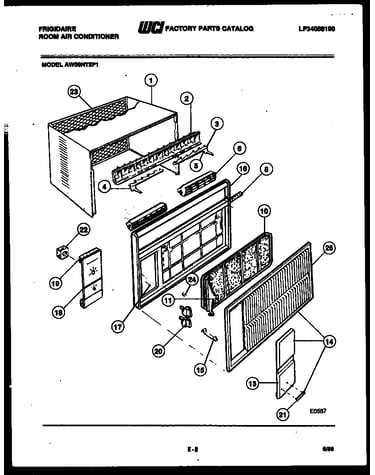

    Cabinet parts diagram

    Rear Grille

    Part #3015951

    Replaced by #5304426658

    Info Icon
    Manufacturer substitution
    This part replaces 3015951. Substitute parts can look different from the original.
    In Stock
    $34.81
    Minus Item
    Qty
    Plus Item
  • Terminal Cover for Frigidaire AW09NT5F1 - Part 5303002038

    Compressor parts diagram

    Nut

    Part #3002038

    Replaced by #5303002038

    Info Icon
    Manufacturer substitution
    This part replaces 3002038. Substitute parts can look different from the original.
    In Stock
    $25.37
    Minus Item
    Qty
    Plus Item
  • Westinghouse Room Air Conditioner Filter Dryer for Frigidaire AW09NT5F1 - Part 5300265301

    #NI

    All parts diagram

    Filter Drier

    Part #8004930

    Replaced by #5300265301

    Info Icon
    Manufacturer substitution
    This part replaces 8004930. Substitute parts can look different from the original.
    In Stock
    $290.45
    Minus Item
    Qty
    Plus Item
  • Room Air Conditioner Capillary Line for Frigidaire AW09NT5F1 - Part 3203179

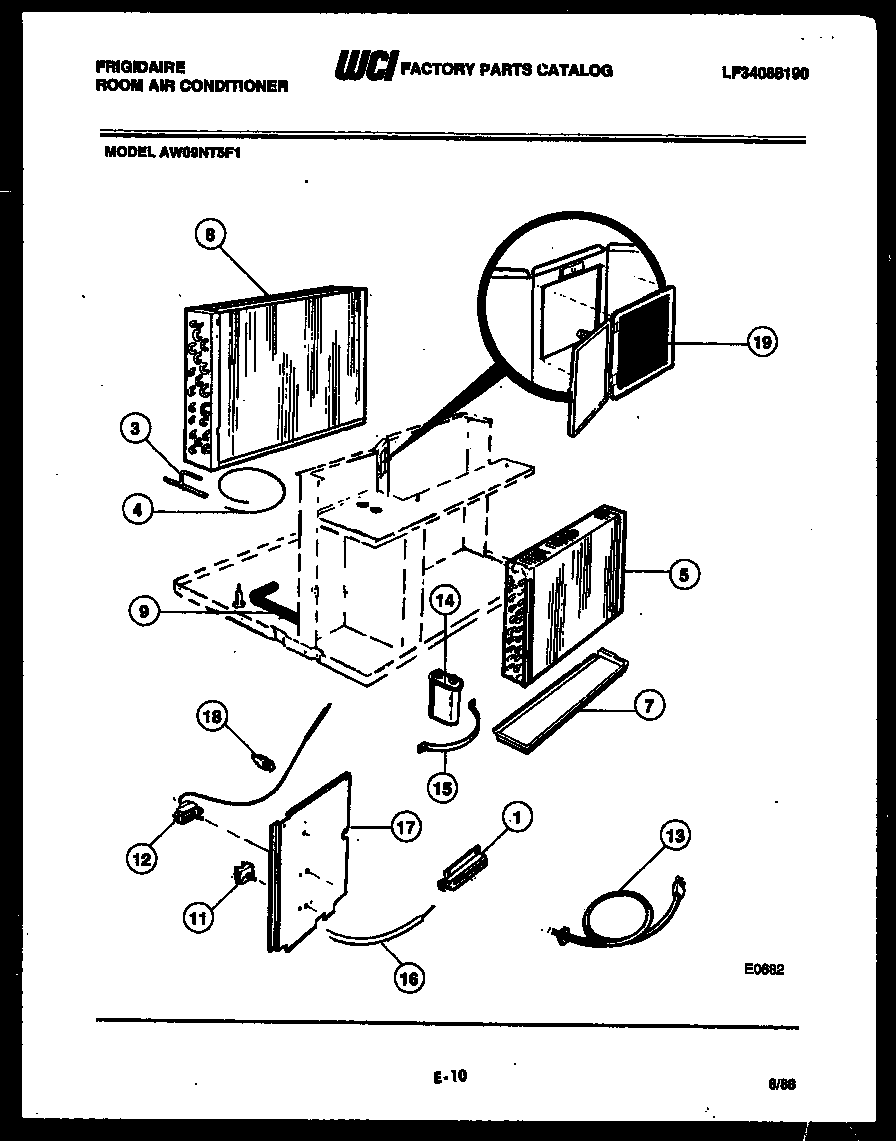

    Unit parts diagram

    Capillary Tube

    Part #3001746

    Replaced by #3203179

    Info Icon
    Manufacturer substitution
    This part replaces 3001746. Substitute parts can look different from the original.
    In Stock
    $111.22
    Minus Item
    Qty
    Plus Item
  • Gasket for Frigidaire AW09NT5F1 - Part 5303295516

    Compressor parts diagram

    Gasket

    Part #3002037

    Replaced by #5303295516

    Info Icon
    Manufacturer substitution
    This part replaces 3002037. Substitute parts can look different from the original.
    In Stock
    $26.04
    Minus Item
    Qty
    Plus Item
  • Nut for Frigidaire AW09NT5F1 - Part 3015946

    Compressor parts diagram

    Nut

    Part #3015946

    The manufacturer no longer makes this part, and there's no substitute part

  • Front for Frigidaire AW09NT5F1 - Part 3018394

    Cabinet parts diagram

    Front

    Part #3018394

    The manufacturer no longer makes this part, and there's no substitute part
