Model #KBGN274PSS0 KitchenAid gas grill

Here are the diagrams and repair parts for KitchenAid KBGN274PSS0 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 74 parts

    Appliance Screw, #8-32 x 0.29-in#25

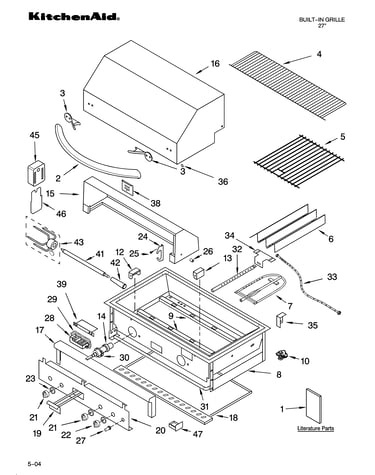

    Grille parts Diagram

    Screw

    Part #8190032
    Replaced by #WPW10068250
    ?
    Manufacturer substitution
    This part replaces 8190032. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.09
    Refrigerator Screw#NI

    Grille parts Diagram

    Screw

    Part #8190118
    Replaced by #WP67006715
    ?
    Manufacturer substitution
    This part replaces 8190118. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.49
    Stand Mixer Washer#NI

    Grille parts Diagram

    Washer

    Part #8190125
    Replaced by #9703439
    ?
    Manufacturer substitution
    This part replaces 8190125. Substitute parts can look different from the original.
    In Stock
    $22.39
    Dryer Nut#NI

    Grille parts Diagram

    Nut

    Part #8190116
    Replaced by #WPW10139757
    ?
    Manufacturer substitution
    This part replaces 8190116. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.33
    Refrigerator Nut#NI

    Grille parts Diagram

    Clip

    Part #8190114
    Replaced by #WP2004333
    ?
    Manufacturer substitution
    This part replaces 8190114. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.18
    Cover#36

    Grille parts Diagram

    Cover

    Part #8190104

    The manufacturer no longer makes this part, and there's no substitute part

    Bracket Support#35A

    Grille parts Diagram

    Bracket support

    Part #8190092

    The manufacturer no longer makes this part, and there's no substitute part

    Lock Washer#NI

    Grille parts Diagram

    Lock washer

    Part #8190123

    The manufacturer no longer makes this part, and there's no substitute part

    Grill Cooktop Nameplate#NI

    Grille parts Diagram

    Grill cooktop nameplate

    Part #8190090

    The manufacturer no longer makes this part, and there's no substitute part

    Hood#16

    Grille parts Diagram

    Hood

    Part #8190108

    The manufacturer no longer makes this part, and there's no substitute part

    Symptoms for gas grills

    Choose a symptom to see related gas grill repairs.

    Main causes: damaged or dirty flame tamers, corroded firebox, accumulated grease and debris in the grease pan
    Main causes: empty fuel tank, tripped flow-limiting device on the pressure regulator, faulty manifold valves, burner tubes not aligned
    Main causes: clogged burner tubes, cracked insulators on igniter electrodes, wiring failures, bad ignition module, manifold failure
    Main causes: nearly empty fuel tank, faulty pressure regulator, burner tube clogs, bad burner tube alignment to gas valves, manifold failure
