Model # SL-1200MK5PP Official Technics turntable

Here are the diagrams and repair parts for Official Technics SL-1200MK5PP turntable, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Cam SFUM122-03
#31

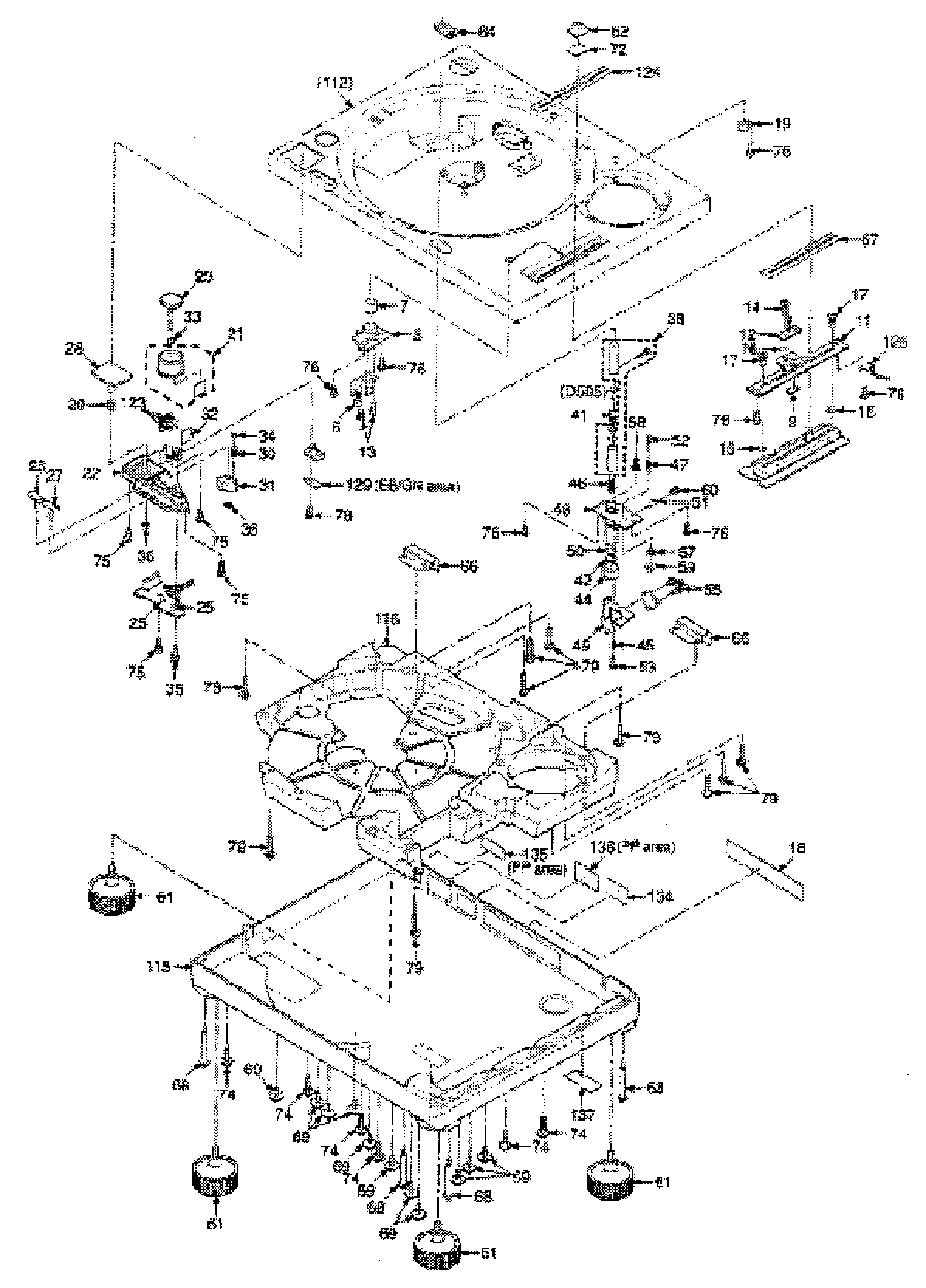

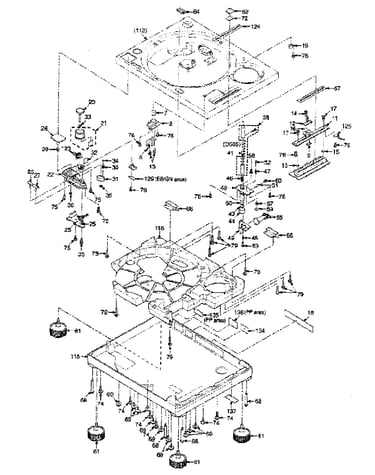

Cabinet parts diagram

Cam

Part #SFUM122-03

The manufacturer no longer makes this part, and there's no substitute part

Kit Wire REZ0836-1
#6

Cabinet parts diagram

Kit wire

Part #REZ0836-1

The manufacturer no longer makes this part, and there's no substitute part

Stereo System Turntable Arm Support SFPRT17201K1
#92

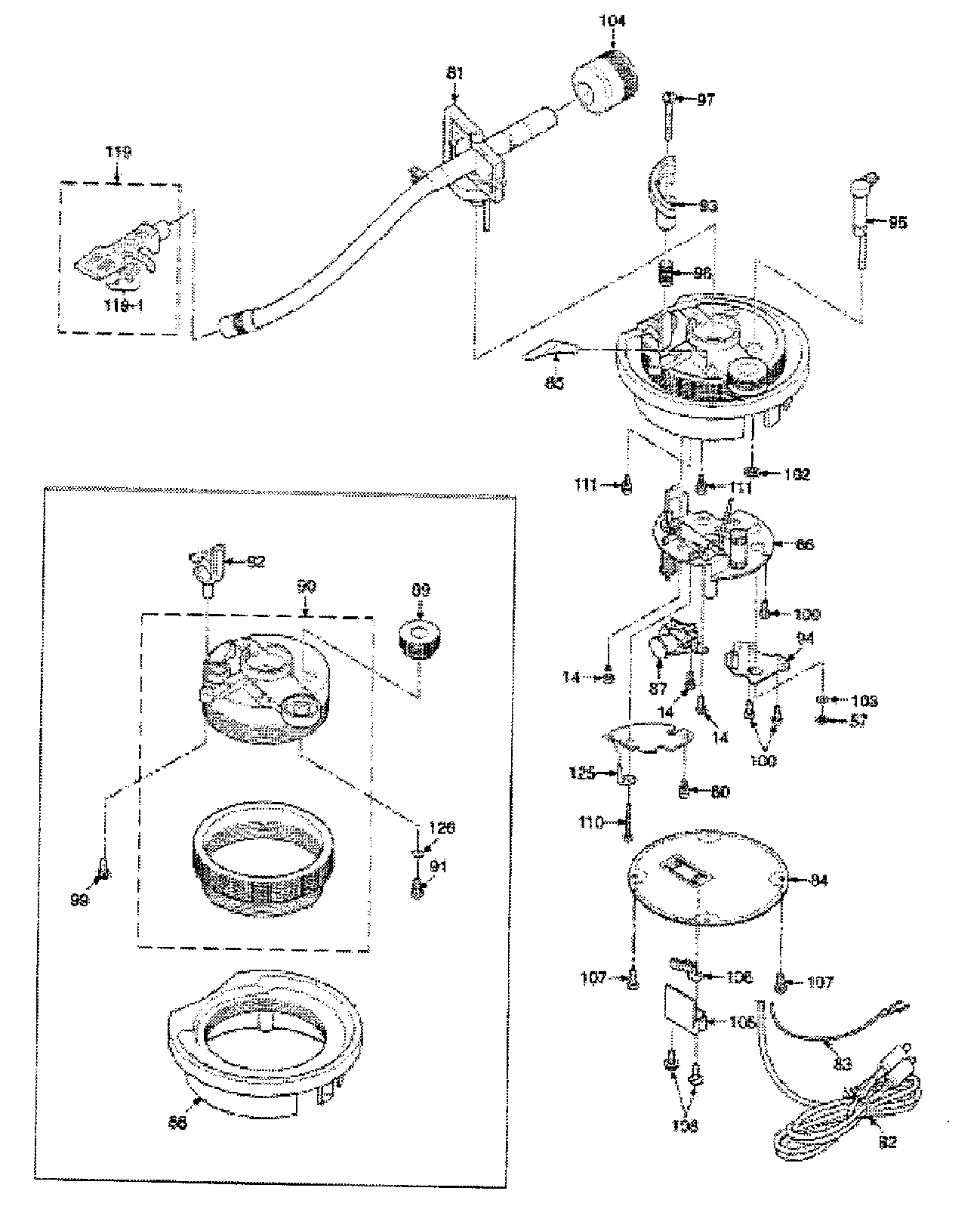

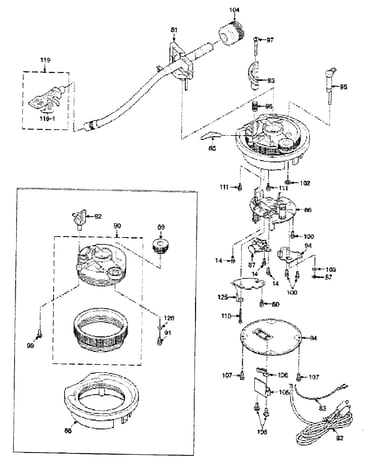

Arm assy diagram

Stereo system turntable arm support

Part #SFPRT17201K1

The manufacturer no longer makes this part, and there's no substitute part

Stereo System Turntable Phono Cord Clamp SFPZB12204
#105

Arm assy diagram

Stereo system turntable phono cord clamp

Part #SFPZB12204

The manufacturer no longer makes this part, and there's no substitute part

Plate SFPZB12203-1
#84

Arm assy diagram

Plate

Part #SFPZB12203-1

The manufacturer no longer makes this part, and there's no substitute part

Circlip RTW-12
#42

Cabinet parts diagram

Circlip

Part #RTW-12

The manufacturer no longer makes this part, and there's no substitute part

Spacer SFXW172-032
#72

Cabinet parts diagram

Spacer

Part #SFXW172-032

The manufacturer no longer makes this part, and there's no substitute part

Rubber Mat RGS0008
#120

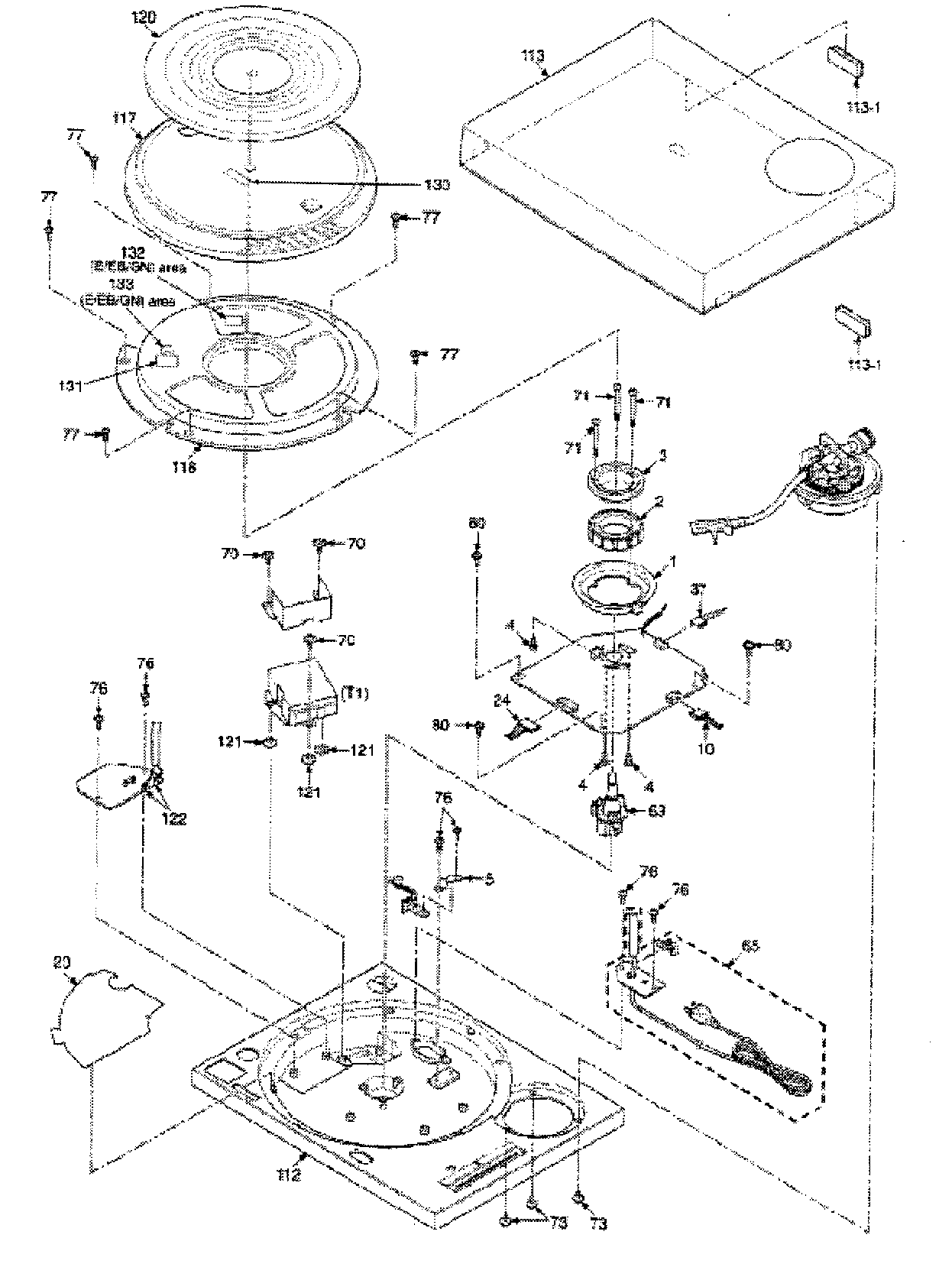

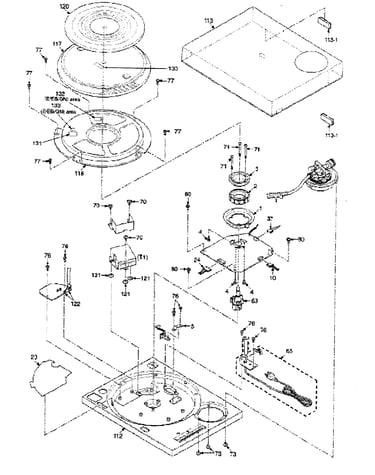

Top assy diagram

Rubber mat

Part #RGS0008

The manufacturer no longer makes this part, and there's no substitute part

Overhang Gau SFK0135-01
#NI

Top assy diagram

Overhang gau

Part #SFK0135-01

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord SFUP122M12E2
#65

Top assy diagram

Ac cord

Part #SFUP122M12E2

The manufacturer no longer makes this part, and there's no substitute part
